Synectix VMS Lite User Manual page 42

2 port stand alone voice mail system
Table of Contents

Advertisement

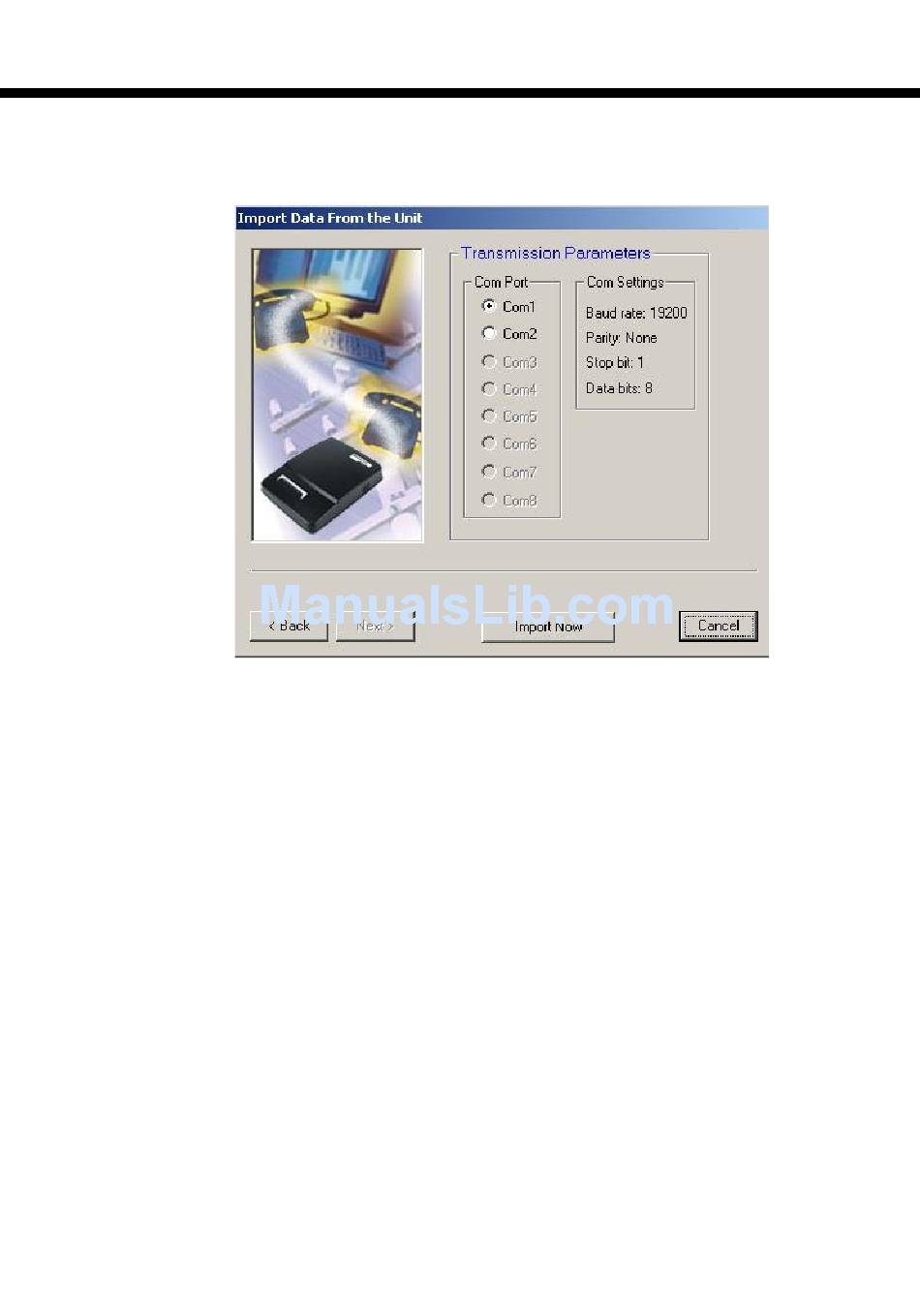

Select the port to be used. (Only the available free ports will be displayed.) The baud
rate is fixed at 19200 when importing data through the Serial port.
Click 'Import Now' button to import data from the Unit.
After collecting the complete data file, the screen as shown below appears.
3.1.3
Save / Save As
If you are working with an already previously saved file, when you click on the 'Save'
option the changes are saved in the same file. If you are working with an unsaved file
loaded from a Synectix VMS Lite, the following screen appears to prompt you to "Save
As". Choose a new file name to save as or overwrite an existing file.
3.1.4
Export
To export a binary file from the RPI to the Unit to configure it, click on the 'Export'
menu option and a dialog box appears prompting you to choose a binary file for
export.
If you want to export the file you have just collected from the Unit, you have to save
and close the file and then export. If you try to export the file that is currently open, the
RPI prompts you as shown below.
Synectix VMS Lite
41
