SKC QuickTake 30 Operating Instructions Manual page 8

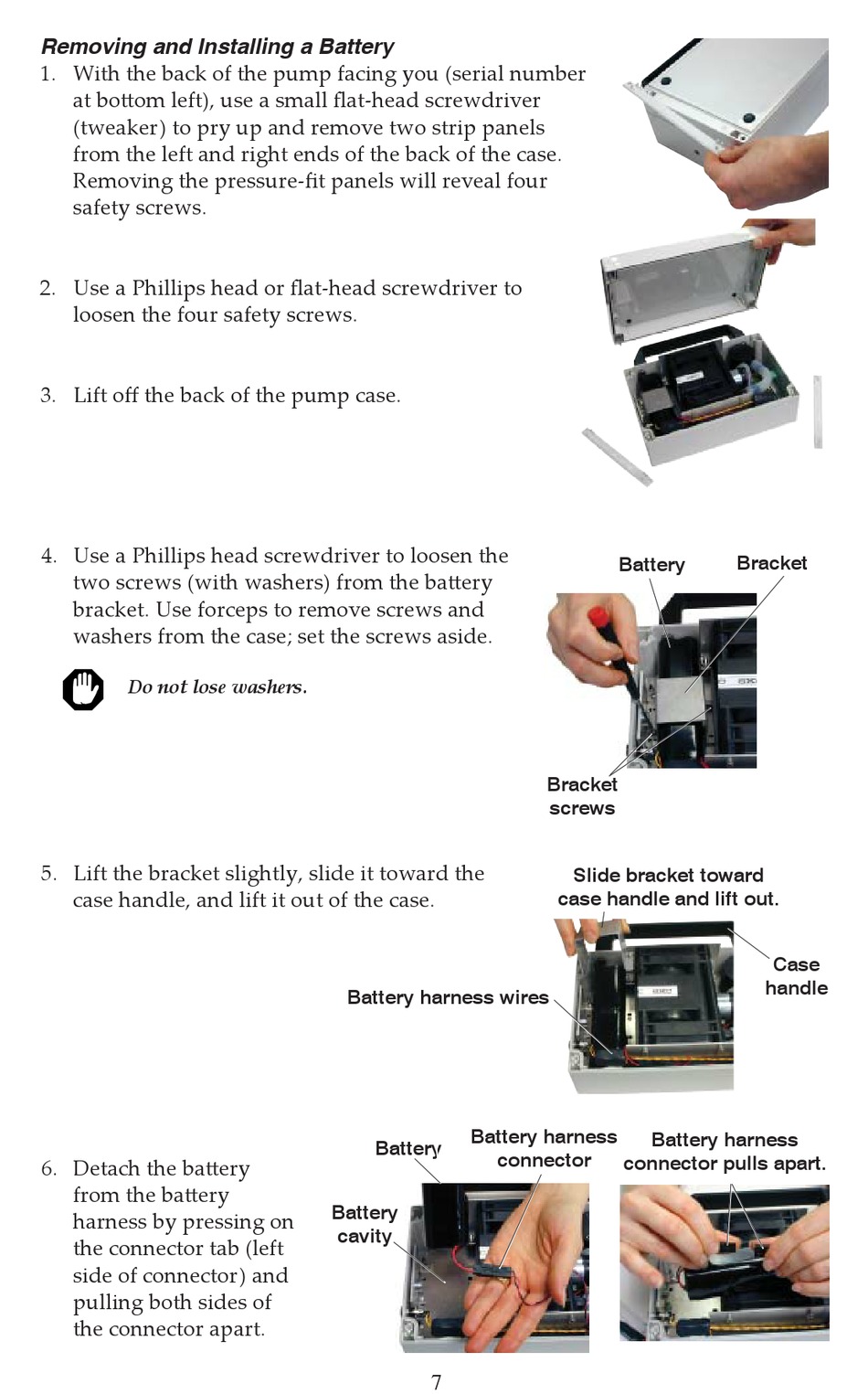

Removing and Installing a Battery
1. With the back of the pump facing you (serial number
at bott om left), use a small fl at-head screwdriver
(tweaker) to pry up and remove two strip panels
from the left and right ends of the back of the case.
Removing the pressure-fi t panels will reveal four
safety screws.
2. Use a Phillips head or fl at-head screwdriver to
loosen the four safety screws.
3. Lift off the back of the pump case.
4. Use a Phillips head screwdriver to loosen the
two screws (with washers) from the batt ery
bracket. Use forceps to remove screws and
washers from the case; set the screws aside.
Do not lose washers.
5. Lift the bracket slightly, slide it toward the
case handle, and lift it out of the case.
6. Detach the batt ery
from the batt ery
harness by pressing on
the connector tab (left
side of connector) and
pulling both sides of
the connector apart.
Battery harness wires
Battery harness
Battery
Battery
cavity
7
Battery
Bracket
screws
Slide bracket toward
case handle and lift out.
Battery harness
connector
connector pulls apart.
Bracket
Case
handle
