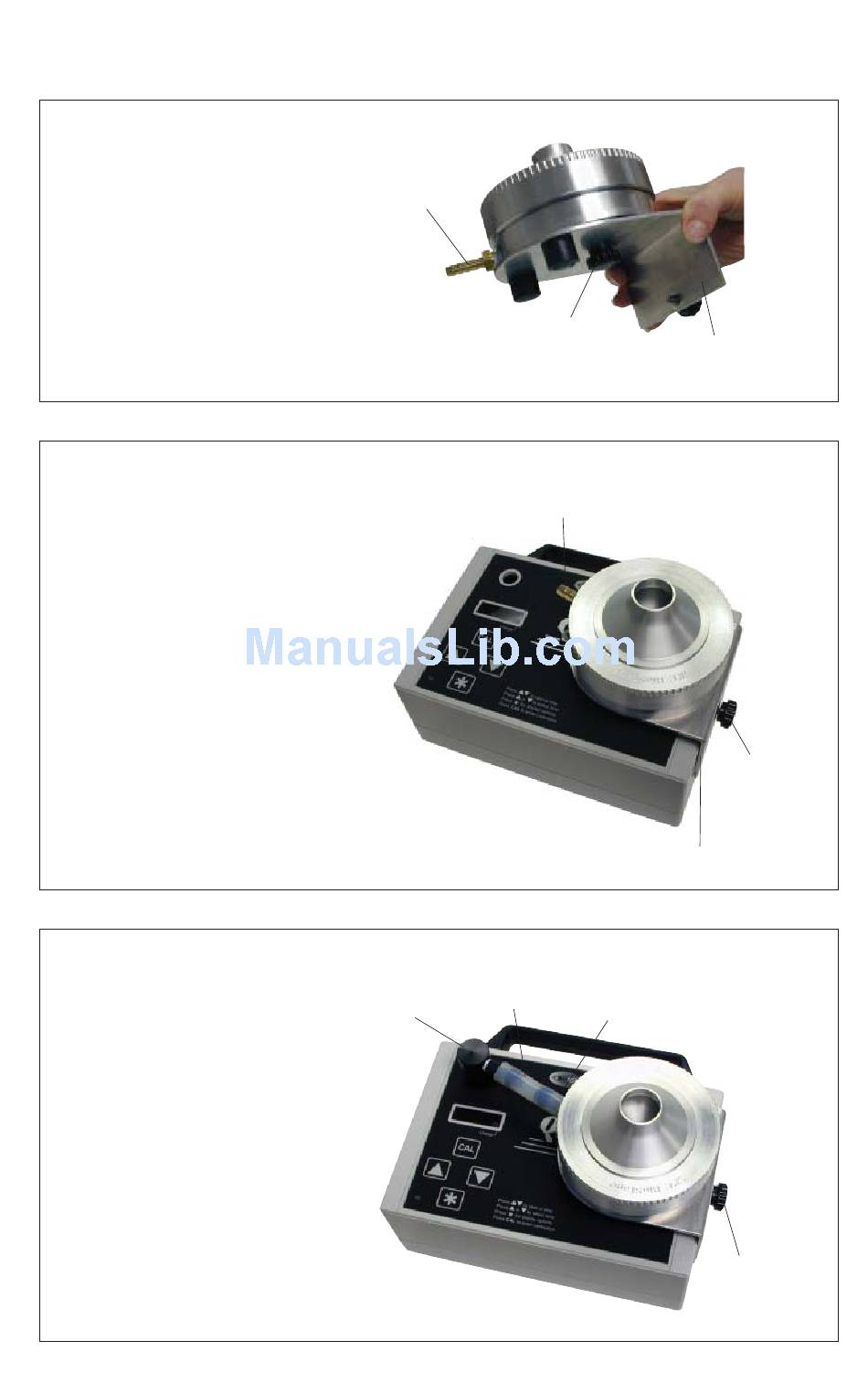

BioStage Impactor
Use with Mounting Bracket accessory (Cat. No. 228-9531).
1. Place the BioStage
L-shaped bracket. Align
the BioStage outlet to the
10 o'clock position on
the bracket. Secure with
thumbscrew on the bott om
of the bracket.
2. Place the L-shaped bracket
to the right on the pump
faceplate with the short leg
of the bracket fi tt ing over the
right edge of the pump. Align
the hole on the short leg of the
bracket with the hole on the
side of the pump. Secure the
bracket to the pump with the
thumbscrew.
3. Insert the inlet adapter
(included with bracket)
into the pump inlet
and connect the inlet
adapter tubing to the
BioStage outlet.
®
on the
BioStage
outlet
Inlet adapter
inserted into inlet
13
Thumbscrew
securing
BioStage
BioStage outlet
aligned to 10 o'clock position
Inlet
adapter
BioStage
tubing
outlet
Short leg
of bracket
Thumbscrew
securing
bracket
Bracket
Thumbscrew
securing
bracket
