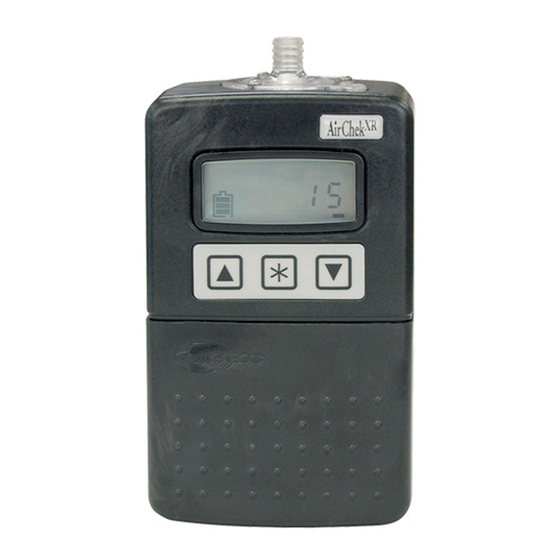

SKC AirChek XR5000 Operating Instructions Manual
Vacuum pumps
Hide thumbs
Also See for AirChek XR5000:
- Operating instructions manual (34 pages) ,
- Operating instructions manual (17 pages)
Subscribe to Our Youtube Channel
Related Manuals for SKC AirChek XR5000
Summary of Contents for SKC AirChek XR5000
-

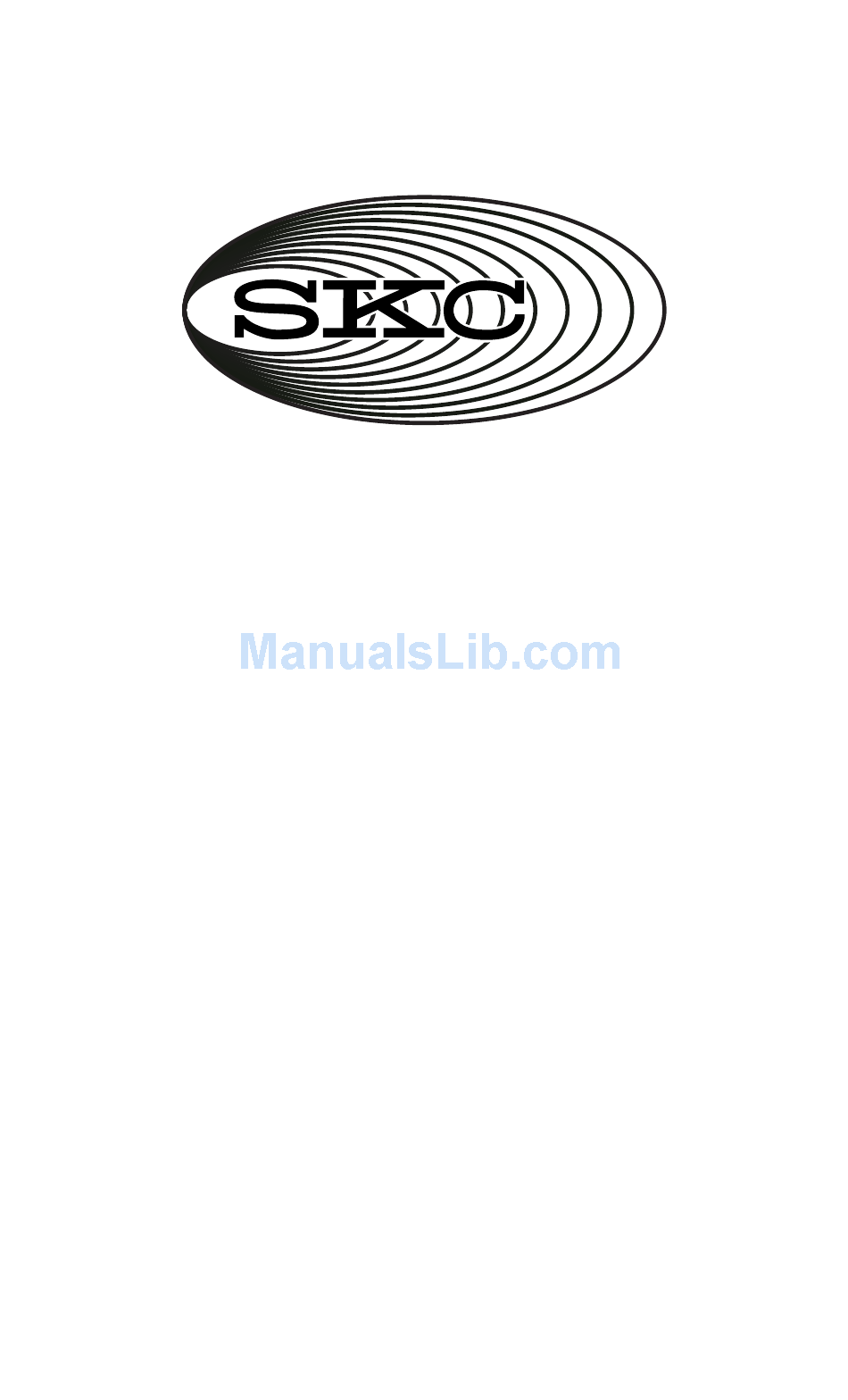

Page 1: Operating Instructions
Operating Instructions AirChek XR5000 ® SKC Inc. 863 Valley View Road Eighty Four, PA 15330 USA Form #38047 Rev 1010... -
Page 2: Table Of Contents
Table of Contents Description ........................1 Performance Profi le ......................2 Setup ..........................4 Charging the Battery Pack (Li-Ion) ................4 Reading the Charging Status LED on the Single Charger ......5 Keypad Basics ......................6 Turning the Pump On ....................6 Turning the Pump Off ....................6 Locking the Keypad ....................7 Checking Battery Charge Level ................7 Accessing User Setup Functions ................7... - Page 3 AirChek XR5000 Quick Guide Keypad Basics (star key) Scrolls through parameters in user setup functions. (up/down arrow keys) Increase or decrease fl ow rate, timed run, and run delay time. Key Sequences Press keys individually. Press keys simultaneously. Toggles between Run and Hold and exits user setup functions.
-
Page 4: Description
• The large three-button keypad and straightforward user setup functions offer user- friendly conveniences. AirChek XR5000 pumps feature a patented* isothermal fl ow sensor that measures fl ow directly and acts as a secondary standard, constantly maintaining the set fl ow rate. A built-in sensor compensates for changes in temperature that occur after calibration. -
Page 5: Performance Profi Le
Performance Profi le Flow Range: 1000 to 5000 ml/min (5 to 500 ml/min requires optional low fl ow adapter kit) Compensation Range: 5000 ml/min at 10 inches water back pressure 4000 ml/min at 20 inches water back pressure 2000 ml/min at 50 inches water back pressure Typical Back Pressure of Sampling Media (inches water) Flow Rate (L/min) Filter/Pore Size (μm) - Page 6 Remove alkaline batteries from pump before storage to prevent dam- age from battery leakage. • Use only SKC-approved parts to ensure reliable performance and to maintain the UL Listing for intrinsic safety. Failure to do so voids any warranty. •...
-
Page 7: Setup
Charging charging is achieved. unit jack Intrinsic safety circuitry inside the AirChek XR5000 charging train battery causes the pump to self- with single charger discharge during storage. Charge Li-Ion pump battery completely before calibration and sampling to achieve optimum pump operation. -
Page 8: Reading The Charging Status Led On The Single Charger
Charge completed Charge status 2 sec .25 sec 2 sec Note The battery pack may be kept on SKC-approved Li-Ion battery chargers for an indefi nite time. Cautions: • Do not charge or operate pump from charger in hazardous locations. -
Page 9: Keypad Basics
Setup Keypad Basics The AirChek XR5000 operates by pressing key sequences on the keypad located on the front of the pump case. Keys Scrolls through parameters in user setup functions Increases fl ow rate, timed run, and run delay time Decreases fl... -
Page 10: Locking The Keypad
Setup Locking the Keypad Locking: In any mode, press 5 times quickly. A flashing “L” will appear in the lower right corner of the display. Unlocking: Press 5 times quickly. The flashing “L” will disappear from the display. The keypad may be operated normally. -
Page 11: User Setup Functions
Setup User Setup Functions Function Overview User setup functions are listed below in the order in which they display. Note that the CLr function for clearing accumulated run time is only available when accumulated run time exists. No Accumulated Run Time Accumulated Run Time ADJ Flow ADJ Flow... -
Page 12: Setting A Timed Run
Setup Setting a Timed Run Program the AirChek XR5000 from its keypad to run from 1 to 9999 minutes. With pump in a non-running state (no fl ashing blue LED): Press to enter user setup functions. Press until a fl ashing Set Timed Run and min appear on the display. -
Page 13: Setting A Run Delay And Timed Run
Setup During a run delay with continuous run: The blue LED on top of the pump case will fl ash during the run delay even though the pump is not running. Run delay time remaining will count down in minutes and display on the LCD. -
Page 14: Canceling A Timed Run And/Or Run Delay
Setup At the end of the run, the pump will stop and “Timed Run Remaining” and “0” will display. To display accumulated run time, press and hold To return to “Timed Run” display, press [ ]. This will also clear accumulated run time. -
Page 15: Calibration
Calibration Calibration (High Flow: 1000 to 5000 ml/min) Before use, allow pump to equilibrate after moving it from one temperature extreme to another. Run pump for 5 minutes before performing calibration. Connect pump inlet to the outlet of a primary standard calibrator with representative sample medium in line. -
Page 16: Low Flow: 5 To 500 Ml/Min
Calibration Calibration (Low Flow: 5 to 500 ml/min) Requires Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holder - see Accessories, Low Flow Adapter Kit on page 19. Before use, allow pump to equilibrate after moving it from one temperature extreme to another. -
Page 17: Sampling
Sampling Sampling • Before use, allow pump to equilibrate after moving it from one temperature extreme to another. • Use of any device or battery pack other than P85004 and P84002 (including alkaline) to power the pump voids the UL Listing for intrinsic safety. •... - Page 18 Sampling Note A low battery fault may occur instead of a fl ow fault when there is a low battery charge at the time of the fault, excessive back pressure, and/or when there is a very short distance between the restriction and the pump inlet (e.g., fi nger fault versus pinched tubing).
-
Page 19: Battery Replacement
It may be necessary to charge the battery a few times before maximum battery capacity is achieved. Align the pump case with the battery pack. The etched SKC logo should be on the same side as the LCD and keypad. Press the two parts together until snug. The pump will power up and the LCD will display the last mode used (typically Hold) and possibly accumulated run time from the last sample run. -
Page 20: Changing The Batteries (Alkaline)
Battery Replacement Changing the Alkaline Batteries For models containing AA alkaline batteries only • To retain display data, ensure pump has been allowed to go to sleep after the last run (see Turning the Pump Off). Display data will not be retained if batteries are removed while pump is running. - Page 21 Installing the New Battery Pack Align the pump case with the battery pack. The etched SKC logo should be on the same side as the LCD and keypad. Press the two parts together until snug. The pump will power up and the LCD will display the last mode used (typically Hold) and possibly accumulated run time from the last sample run.
-
Page 22: Maintenance
• Remove alkaline batteries from pump before storage to prevent dam- age from battery leakage. • Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and pump and voids any warranty. •... -
Page 23: Accessories
Accessories Description Cat. No. Defender Primary Standard Calibrator, 50 to 5000 ml/min fl ow range, includes lead-acid battery, charger (100-240 V), software, and 1-meter serial cable 717-510M Single Charging Kit, for models with Li-Ion battery packs only, 100-240 V AC, 50/60 Hz, includes charging unit, power supply, and interchangeable wall plugs 223-241 Take Charge 5 Five-station Li-Ion Battery Charger for Li-Ion... -
Page 24: Replacement Parts
Li-Ion Battery Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Test Criteria, Part III, subsection 38.3.
