Introduction
Description

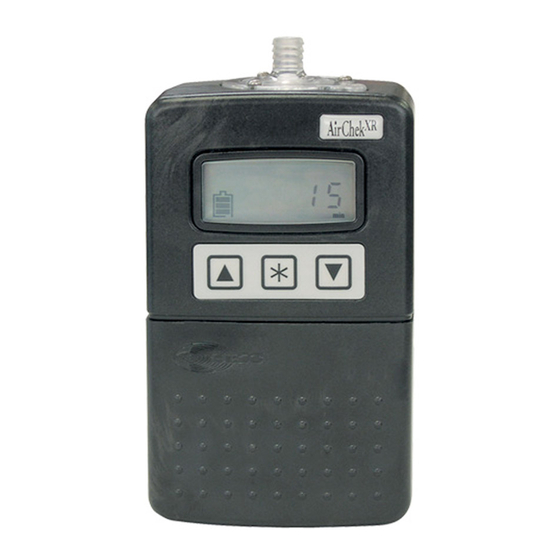

The SKC AirChek XR5000 Sample Pump (Figure 1) is a constant fl ow (5 to 5000 ml/min) air sampler suitable for low fl ow gas/vapor or
high fl ow particulate sampling.
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact
SKC at 800-752-8472 (U.S. only) or 724-941-9701.
If You Ordered Cat. No.
Your Package Should Contain
210-5001
AirChek XR5000 Sample Pump with high-power lithium-ion (Li-Ion) battery and screwdriver set
210-5002
AirChek XR5000 Sample Pump with standard Li-Ion battery and screwdriver set
Single Pump Kit includes pump with high-power Li-Ion battery, 100-240V single charger, and cassette holder, in a
210-5001K
soft-sided nylon carry case
Single Pump Kit includes pump with standard Li-Ion battery, 100-240V single charger, and cassette holder, in a soft-sided
210-5002K
nylon carry case
Required Equipment
1/4-inch ID (3/8-inch OD) Tygon
Charger for Li-Ion batt ery-powered pump
Low fl ow accessories if sampling at 5 to 500 ml/min. See Accessories.
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: 724-941-9701 • www.skcinc.com
Battery charge
level indicator
Battery pack
(2 options
available)

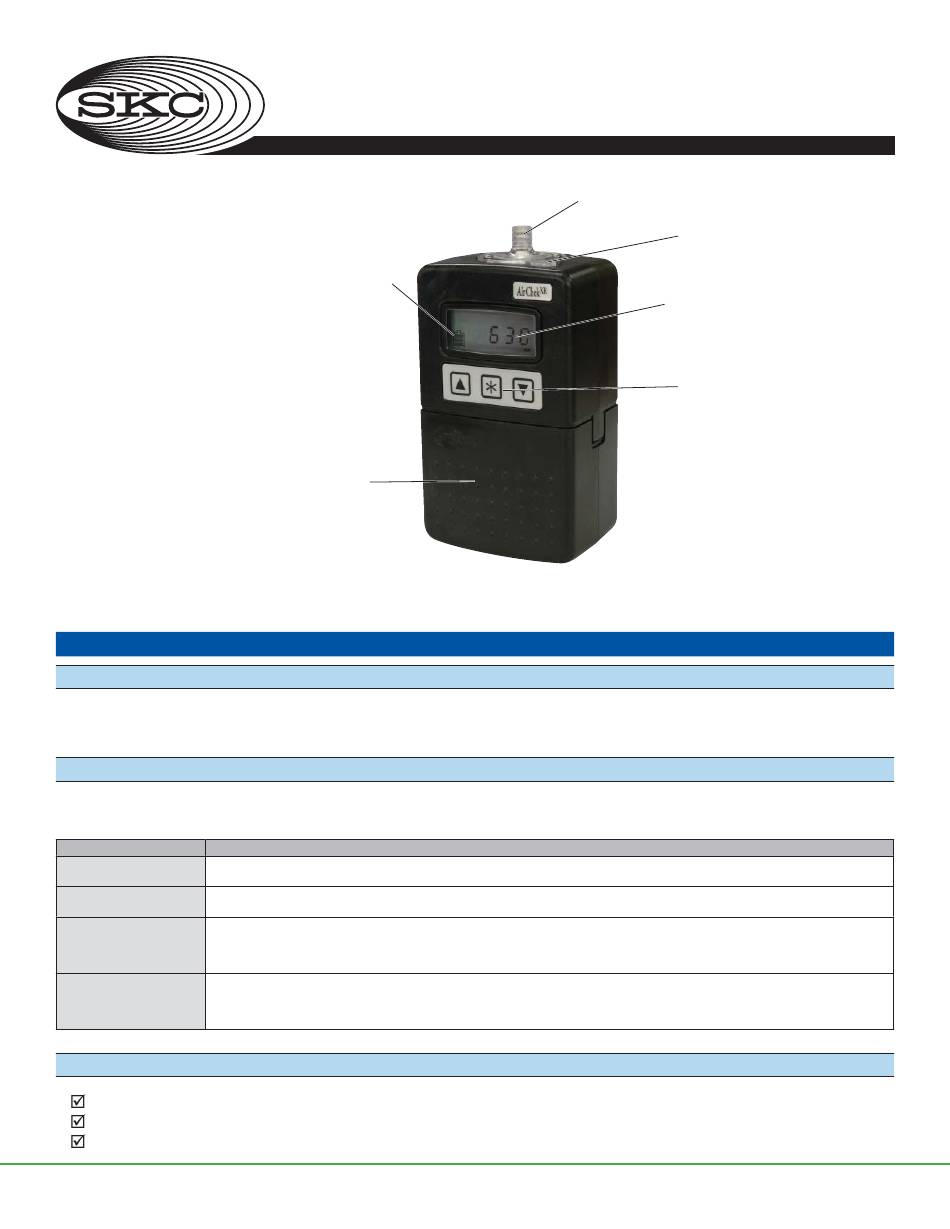

Figure 1. AirChek XR5000 Air Sample Pump
®
tubing
www.skcinc.com
AirChek
XR5000 Sample Pump
®
Cat. No. 210-5000

Operating Instructions

Inlet port with
protective fi lter
Bright blue
pump status
LED
Easy-to-read
liquid crystal
display (LCD)
Large,
simple
operating
keypad
Not shown:
Belt clip (back)
Battery charging jack (back)
Form 38047 Rev 1809
Page 1 of 16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AirChek XR5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for SKC AirChek XR5000

Summary of Contents for SKC AirChek XR5000

  • Page 1: Operating Instructions

    Figure 1. AirChek XR5000 Air Sample Pump Introduction Description The SKC AirChek XR5000 Sample Pump (Figure 1) is a constant fl ow (5 to 5000 ml/min) air sampler suitable for low fl ow gas/vapor or high fl ow particulate sampling. Checking Pump/Kit Contents Use the table below to verify that you received all items associated with the Cat.

  • Page 2: Getting Started

    Battery Charging charging • The battery pack may be kept on SKC-approved Li-Ion battery chargers for an indefi nite time. unit jack AirChek XR5000 charging train with For a complete charge, ensure the pump is not running. Insert plug on charging unit into the single charger (a fi...

  • Page 3: Notes And Cautions

    • Do not charge or operate pump from charger in hazardous locations. • Use only the charger and battery packs designed for the AirChek XR5000 pump to ensure reliable performance. Failure to do so will void any warranty. • For safe operation in hazardous locations, ensure the pump label contains the logo and the battery pack label contains Cat.
  • Page 4 Press [] to accept the fl ow sett ing and to exit user setup functions. Set a Timed Run Program the AirChek XR5000 from its keypad to run from 1 to 9999 minutes. With pump in a non-running state (no fl ashing blue LED): Press ...
  • Page 5 Set a Run Delay with Continuous Run Program the AirChek XR5000 from its keypad to automatically start a sample run after a specifi ed period of time (1 to 9999 minutes) has elapsed. With pump in a non-running state (no fl ashing blue LED): Press ...

  • Page 6: Operation

    Operation High Flow Applications (1 to 5 L/min) Set/Calibrate Flow Rate • Allow pump to equilibrate after moving it from one temperature extreme to another. • Charge pump battery completely before calibration and sampling. Ensure that batt ery is fully charged and that pump has run for 5 minutes before calibrating. Prepare the calibrator.
  • Page 7 Sample for the time specifi ed in the method used. Accumulated run time will display on the LCD. To stop a sample run, press []. This places the pump in Hold. Record stop time and other pertinent information. a. To resume sample run without clearing accumulated run time, press []. b.
  • Page 8 Low Flow Applications (5 to 500 ml/min) • Single-tube sampling requires the All-in-One low fl ow adjustable tube holder; see the operating instructions for the All-in-One for details on its operation. • Multiple-tube sampling requires a Constant Pressure Controller (CPC) and a Dual, Tri, or Quad Adjustable Low Flow Tube Holder accessory; see the operating instructions for the CPC and Adjustable Low Flow Tube Holder for details on their operation.
  • Page 9 Set Up/Sample with Single Tube • Allow pump to equilibrate after moving it from one temperature extreme to another. • Calibrate/verify pump fl ow rate before and after each sampling operation using the tube holder and pump to be used for sampling. •...
  • Page 10 Using a CPC and Dual, Tri, or Quad Adjustable Low Flow Tube Holder Set/Calibrate Flow Rate for Multiple Tubes • Requires Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holder (see Accessories). The low fl ow tube holder used with CPC allows up to four tube samples to be taken simultaneously, each at different fl...
  • Page 11 Set Up/Sample with Multiple Tubes • Requires Constant Pressure Controller (CPC) and Adjustable Low Flow Tube Holder (see Accessories). The low fl ow tube holder used with CPC allows up to four tube samples to be taken simultaneously, each at different fl ow rates if desired. •...

  • Page 12: Maintenance

    Pull the batt ery pack housing away from the pump case. Align the pump case with the new batt ery pack. The etched SKC logo should be on the same side as the LCD and keypad. Press the two parts together until snug. The pump will power up and the LCD will display the last mode used (typically Hold) and possibly accumulated run time from the last sample run.

  • Page 13: Troubleshooting

    Press  5 times quickly to deactivate the keypad lock: the “L” should disappear. 2. If no “L” is displayed in the lower right corner of the pump display and the keypad does not respond, contact SKC for repair, www.skcinc.com/repair.

  • Page 14: Accessories/Replacement Parts

    Accessories/Replacement Parts Accessories Cat. No. chek-mate Calibrator with CalChek, 0.50 to 5 L/min, includes 9-volt alkaline battery and NIST-traceable 375-0550N calibration certifi cate Single Charging Kit, for models with Li-Ion battery packs only, 100-240 V AC, 50/60 Hz, includes charging unit, 223-241 power supply, and interchangeable wall plugs Take Charge 5 Five-station Li-Ion Battery Charger, for Li-Ion model XR5000 pumps and Leland Legacy pumps,...

  • Page 15: Replacement Parts

    * Li-Ion Battery Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh).
  • Page 16 Standard Li-Ion (2 cell), rechargeable, 7.4 V, 2.2-Ah capacity, 16.3 Wh (Cat. No. P85002 for UL Listed pump) Battery Recharge Time Standard Li-Ion (2 cell): approximately 4 hrs (with SKC-approved chargers; High-power Li-Ion (4 cell): approximately 8 hrs varies with battery capacity and level of discharge)
