Introduction
Description
The QuickTake
®
30 Sample Pump (Figure 1) is a portable battery-powered air sample pump that maintains constant airflow from
10 to 30 L/min for use with the BioStage
cassettes, or other samplers requiring flows up to 30 L/min. A diaphragm pump operating with a closed loop flow control system, the
QuickTake 30 maintains true constant flow. The QuickTake 30 features a programmable timer that provides up to eight programmable
run time presets of 1 to 999 minutes, continuous run with manual shut-off, or intermittent sampling. A rechargeable lithium-ion battery
pack provides effective run times. See Appendix: Performance Profile - Typical Cumulative Run Time.
Checking Pump/Kit Contents
Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact
SKC at 800-752-8472 (U.S. only) or 724-941-9701.
If You Ordered Cat. No.
Your Package Should Contain
228-9530C
QuickTake 30 Pump with lithium-ion (Li-Ion) battery pack and cassette/tubing adapters
QuickTake 30 Pump and Charger includes pump with Li-Ion battery pack, 100-240 V AC charger/adapter,
228-9530
cassette/tubing adapters, and tubing
QuickTake 30 Pump, Rotameter, and Charger includes pump with Li-Ion battery pack, 100-240 V charger/adapter,
228-9530A
cassette/tubing adapters, calibrator, and tubing
Required Equipment
1/4-inch ID (3/8-inch OD) Tygon
Charger for Li-Ion batt ery-powered pump
Calibration
mode button
Up arrow
increases fl ow
and time and
scrolls through
presets
Star button
activates LED
and toggles
between
displays

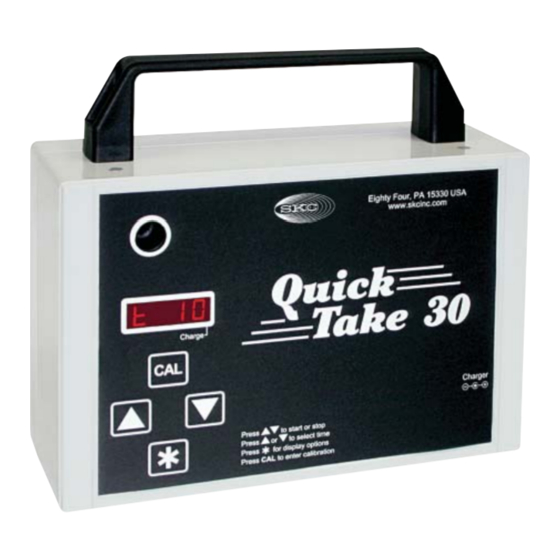

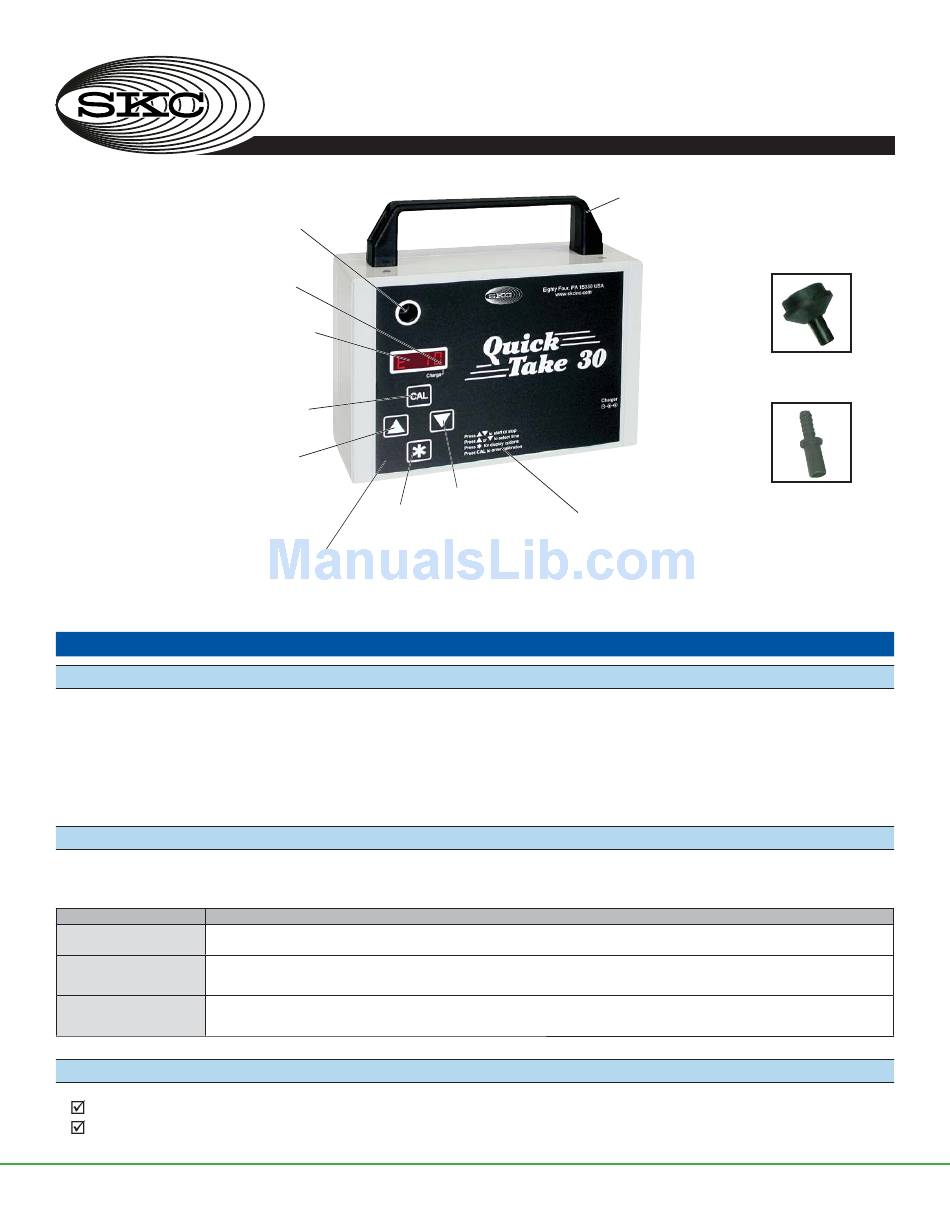

Figure 1. QuickTake 30 Sample Pump
®
viable cascade impactor, spore trap cassettes such as VersaTrap
®
tubing
www.skcinc.com
QuickTake 30 Sample Pump
863 Valley View Road, Eighty Four, PA 15330 USA • Tel: 724-941-9701 • www.skcinc.com
Down arrow
decreases fl ow
Printed Quick Guide
and time and
scrolls through
presets
Cat. No. 228-9530

Operating Instructions

Handle
for easy
portability
Cassette Adapter
Charging jack
(on side of case, not
shown)
Tubing Adapter
®
, asbestos cassettes, microvacuum
Form 40079 Rev 1705
Page 1 of 14
