Page 1: Operating Instructions
Operating Instructions Leland Legacy SKC Inc. 863 Valley View Road Eighty Four, PA 15330 Form #40075 Rev 0606... -
Page 2: Table Of Contents
Table of Contents Description ....................1 Performance Profile ................2 Pump Setup .................... 4 Keypad Basics ......................4 Turning the Pump On/Off .................... 4 Entering and Navigating Setup ................... 4 Setup Options ......................4 Resetting Run Time Data .................... 6 Setting a Sampling Time ..................... - Page 3 ] to save new setting. To delete, follow above steps and press until 0 appears. Exit Setup. Note: When in Setup, choosing Esc instead of End will exit Setup without saving new settings. SKC Inc., 863 Valley View Road, Eighty Four, PA 15330 • www.skcinc.com...
-
Page 4: Description

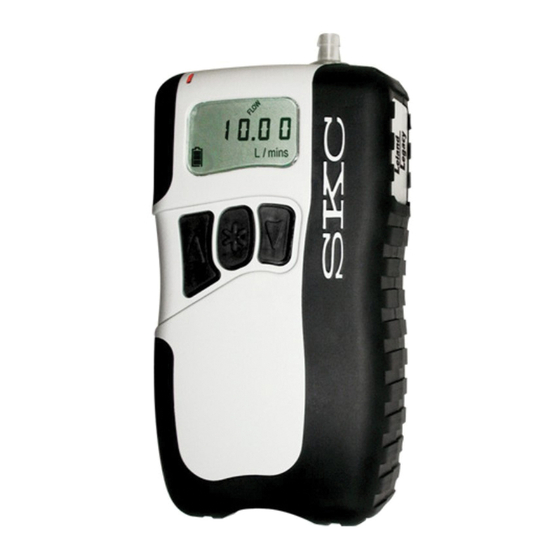

Powered by a rechargeable battery pack containing 10 Li-Ion cells, the Leland Legacy provides 24-hour run times for 10 L/min at 12 inches water back pressure. The pump’s patented internal flow sensor mea- sures flow directly and acts as a secondary standard, constantly maintaining the set flow rate. -
Page 5: Performance Profile
Performance Profile Flow Flow Range: 5 to 15 L/min Flow Control System: Closed loop with patented* internal flow sensor Compensation Range: 15 L/min at 5 inches water back pressure 10 L/min at 12 inches water back pressure 5 L/min at 20 inches water back pressure ±... - Page 6 US DOT regulations specify a limit of 24 or fewer battery cells in one shipping box. If you exceed 2 Leland Legacy pumps with battery packs in one shipping box, specific shipping requirements must be followed. Contact SKC for more information or refer to the regulatory authority in your area.
-
Page 7: Pump Setup
Pump Setup Keypad Basics Scrolls through run time data and Setup options. Increases values such as flow rate. Decreases values such as flow rate. When pressed simulta- neously, displayed item is selected or entered. Security code that must be Down pressed in sequence to enter arrow arrow... - Page 8 Pump Setup If changing other parameters, continue pressing after End appears and the remainder of the menu items will appear. Once all changes are entered, press until End appears, then press [ ] to save new settings and exit Setup. Pressing [ ] when Esc appears will exit Setup without saving new settings.
-
Page 9: Resetting Run Time Data
CLr does not clear previously set sampling time (ST). See Deleting a Sampling Time on p. 16. Setting a Sampling Time (ST) Program the Leland Legacy from the integral keypad or a PC using DataTrac software to sample from 1 to 99999 minutes. 1. Press [ ], then press the security code in sequence . -
Page 10: Setting A Delayed Start
Pump Setup Setting a Delayed Start A delayed start can be programmed using the pump keypad or from a PC using DataTrac Software. The following instructions are for keypad only. See DataTrac Operating Instructions (included on software CD) for programming from a PC. Display for delayed start When setting the pump for sampling from 1 to 99999... -
Page 11: Calibration
Calibration Resetting Run Time Data Press [ ], then press the security code in sequence . Setup will display briefly. Press until Clr appears, then press [ Press until End appears, then press [ ] to exit Setup. The accumulated data is cleared and the pump is now in Hold. -
Page 12: Verifying Flow Rate Using A Primary Standard Calibrator
Calibration Verifying Flow Rate Using a Primary Standard Calibrator Connect the pump inlet to a calibrator with representative media in-line (see photo below). Press [ ], then press the security code in sequence . The flow rate and Set will flash. 3. -
Page 13: Verifying Flow Rate Using Calchek Automatic Calibration Feature
Do not plug it into an RS232 serial computer port. Remember to calibrate with representative sampling media in-line. Run the Leland Legacy for a minimum of two minutes before starting the calibration procedure. Leave pump on. Using tubing, connect the outlet of the representative sampling medium to the inlet of the pump. - Page 14 Calibration Press on the pump keypad until Cal appears on the pump display. Turn on the calibrator. Press the Print button on the calibrator until ALL appears next to the printer icon on the calibrator display. Hold down the Read button on the calibrator until the calibrator cycles continuously.
- Page 15 Full (Multiple-point) Calibration Using CalChek This type of calibration provides flow correction across the whole operating range of Leland Legacy flow rates (5 to 15 L/min) in approximately four minutes. The operation calibrates each flow to a primary standard. It can also provide a record of calibration for maintenance and quality purposes if optional DataTrac Software is used.
- Page 16 5 and 15 L/min. Cal will display during Calibration Check (CCAL) and will count down to 1. 10. When calibration is completed, the Leland Legacy will go to Hold. If the full calibration is successful, the pump LCD will revert to displaying the pump run time as 0.0.
- Page 17 Calibration Checking CalChek Communicator Battery Status After two or three movements of the calibrator piston, the LED on the CalChek Communicator adapter should light. Observe the LED for an indication of battery status. Battery Blinks with each calibrator piston movement Battery fully charged Blinks rapidly for five seconds after the first Replace battery as...
- Page 18 SKC very small voltage to the pump. Technical Support at 800-752-8472. Pump unable to achieve flow rate of Check pump’s flow tube to ensure...
-
Page 19: Sampling
Failure to use the impinger trap voids the pump warranty. Leland Legacy pump with filter If the pump has been programmed with a PC, Prog cassette in... -
Page 20: Deleting A Datatrac Program Or Delayed Start
DataTrac Software to adjust the amount of time the pump will remain in flow fault before going to Hold (5 to 30 seconds) and the number of auto-restart attempts (0 to 25). See DataTrac for Leland Legacy Software Operating Instruc- tions (included on software CD). -
Page 21: Battery Operation
Using a repaired or rebuilt battery pack voids the SKC warranty. Use only an SKC-approved charger and battery pack designed for the Leland Legacy Sample Pump to ensure reliable performance and to maintain the SKC warranty. -
Page 22: Battery Status
Recharge the battery before sampling. Charging the Battery The Leland Legacy Sample Pump operates from a rechargeable Lithium-Ion battery. The battery is charged using single charger Cat. No. 223-241 (includes Cat. Nos. 223-245 and P22300). -
Page 23: Charger Status
Battery Operation Charger Status An LED on the Li-Ion Charging Unit (Cat. No. P22300) indicates charger status. View the LED for at least 5 seconds to determine charge status. LED Action Status On - steady Charge in progress On - quick blink off - on 80% charged Pattern repeats Off - quick blink on - off... -
Page 24: Removing And Replacing The Battery Pack
Battery Operation Removing and Replacing the Battery Pack Turn off pump before removing battery. Removing the battery pack while the pump is on or running may corrupt pump history. Position pump with belt clip facing upward. Use a Phillips head screwdriver to remove three screws on bottom half of pump. -
Page 25: Programming The Pump Using A Pc
DataTrac Software for full programma- bility. Install DataTrac Software onto a PC and connect the PC to the Leland Legacy pump data port with the provided cable adapter. With DataTrac, you can: •... -
Page 26: Optional Accessories
US DOT regulations specify a limit of 24 or fewer battery cells in one shipping box. If you exceed 2 Leland Legacy pumps with battery packs in one shipping box, specific shipping requirements must be followed. Contact SKC for more information or refer... -
Page 27: Service Policy
National Service Center 863 Valley View Road Eighty Four, PA 15330 SKC Inc. will accept for repair any SKC product that is not contami- nated with hazardous materials. Products determined to be contami- nated will be returned unserviced. Intrinsic safety and other approvals are void if SKC pumps are not repaired by SKC or authorized SKC repair centers. -
Page 28: Warranty
SKC Inc. This warranty does not cover the buyer’s failure to provide for normal maintenance, or improper selection or misapplication. This warranty shall fur-...
