Inlet

(shown without adapter)

LED

indicates active

battery charging

High-contrast LED display

for readout of presets, run

time, and battery status

Flow rate verification

Speaker

for end of timed run alarm

Introduction

Description

The QuickTake

30 Sample Pump (Figure 1) is a portable battery-powered air sample pump that maintains constant airflow from

10 to 30 L/min for use with the BioStage

cassettes, or other samplers requiring flows up to 30 L/min. A diaphragm pump operating with a closed loop flow control system, the

QuickTake 30 maintains true constant flow. The QuickTake 30 features a programmable timer that provides up to eight programmable

run time presets of 1 to 999 minutes, continuous run with manual shut-off, or intermittent sampling. A rechargeable lithium-ion battery

pack provides effective run times. See Appendix: Performance Profile - Typical Cumulative Run Time.

Checking Pump/Kit Contents

Use the table below to verify that you received all items associated with the Cat. No. ordered. If you are missing items, contact

SKC at 800-752-8472 (U.S. only) or 724-941-9701.

If You Ordered Cat. No.

Your Package Should Contain

228-9530C

QuickTake 30 Pump with lithium-ion (Li-Ion) battery pack and cassette/tubing adapter

QuickTake 30 Pump with Li-Ion battery pack, 100-240 V AC charger/adapter, and cassette/tubing adapter

228-9530

QuickTake 30 Pump with Li-Ion battery pack, rotameter, 100-240 V AC charger/adapter, cassette/tubing adapter, and

228-9530A

tubing

Required Equipment



3/8-inch ID (1/2-inch OD) Tygon



Charger for Li-Ion battery-powered pump

mode button

Up arrow

increases flow

and time and

scrolls through

presets

Star button

activates LED

and toggles

between

displays

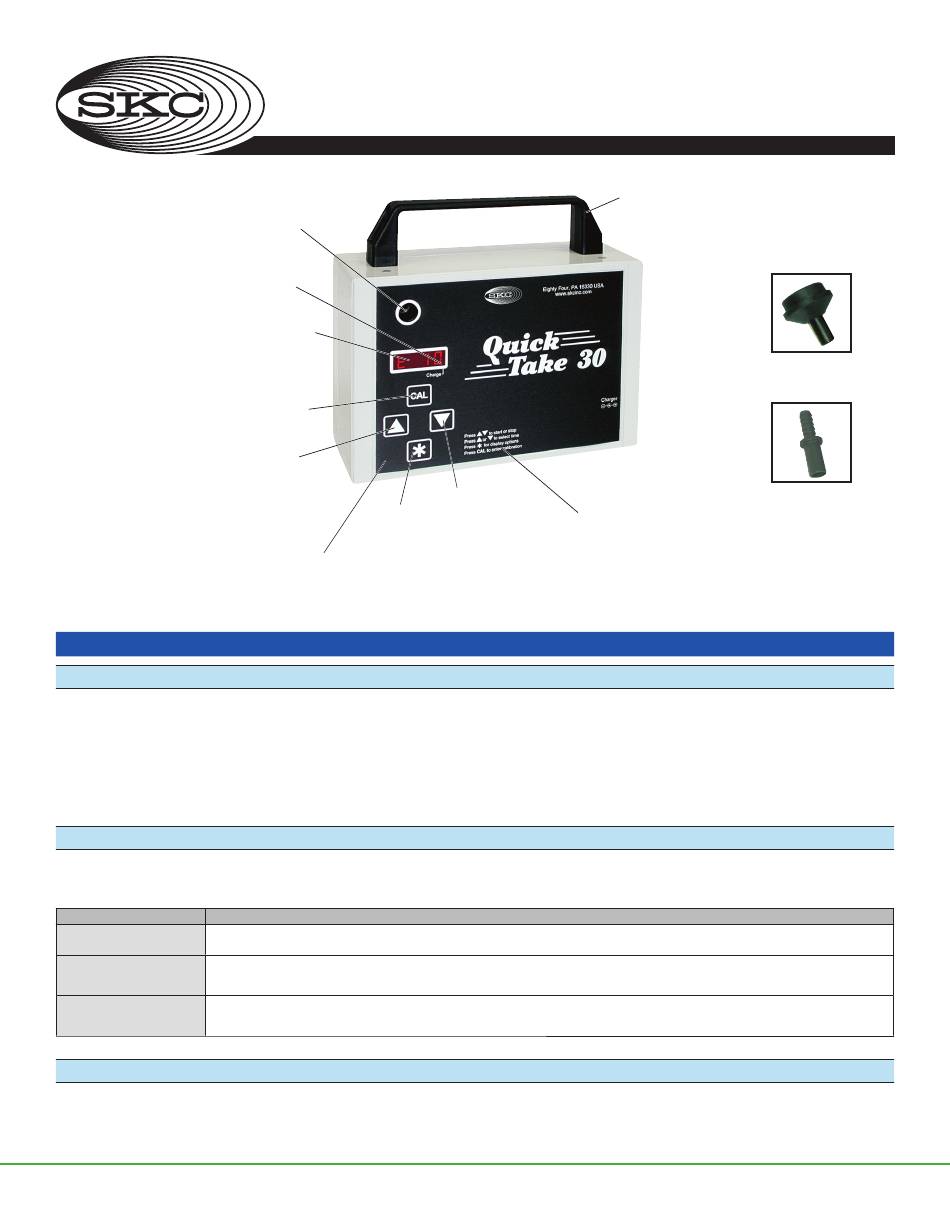

Figure 1. QuickTake 30 Sample Pump

viable cascade impactor, spore trap cassettes such as VersaTrap

tubing

QuickTake 30 Sample Pump

863 Valley View Road, Eighty Four, PA 15330 USA • 724-941-9701 • skcinc.com

Down arrow

decreases flow

Printed Quick Guide

and time and

scrolls through

presets

skcinc.com

Cat. No. 228-9530

Operating Instructions

Handle

for easy

portability

Cassette Adapter

Charging jack

(on side of case, not

shown)

Tubing Adapter

, asbestos cassettes, microvacuum

Form 40079 Rev 250103

Page 1 of 14

Need help?

Do you have a question about the QuickTake 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKC QuickTake 30

Page 1 30 L/min. A diaphragm pump operating with a closed loop flow control system, the QuickTake 30 maintains true constant flow. The QuickTake 30 features a programmable timer that provides up to eight programmable run time presets of 1 to 999 minutes, continuous run with manual shut-off, or intermittent sampling.
Page 2 • Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and the pump and voids any warranty. • The battery pack may be kept on the SKC-approved charger for an indefinite time.
Page 3 • Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved battery and charger for this pump. Use of an unapproved battery and/or charger may damage the battery and the pump and voids any warranty.
Page 4 Cassette adapter QuickTake 30 with VersaTrap cassette mounted in cassette adapter For bioaerosol sampling at 15 L/min, SKC recommends using the Leland Legacy ® pump (5 to 15 L/min) or the QuickTake 30 pump (10 to 30 L/min). BioStage Impactor Use with Mounting Bracket accessory (Cat.
Page 5 Set/Verify Flow Rate • Verify the flow rate with a representative sampling medium in line. • Allow pump to equilibrate after moving it from one temperature extreme to another. • High Flow chek-mate Flowmeter (see Accessories) requires Pulsation Dampener Cat. No. 375-150 in line between representative sample media inlet and flowmeter outlet.
Page 6 Set Up Run Time Modes Press  or  to scroll through the run time presets on the LED. Run Time Mode LED Display Timed Run (defaults: 15, 10, 5, 2, and 1 min) t xx Intermittent Sampling* Intt Continuous Run Cont * For setup and sampling in this mode or to change (program) run time presets, see Advanced Operation.
Page 7 Continuous Run with Manual Stop • Run time accumulates only while the pump is running. Continuous Run mode performs one sample from 1 to 999 minutes, and then automatically resets to zero and counts up to 999 again until the user manually stops the pump. Press ...
Page 8 End Sample and Reset the Pump For timed and continuous runs: from a running pump, press []. The pump is now in Hold. Press while in  Hold. Sample reset (rSEt) will display. Press [] to zero the cumulative run time and reset the pump. Digital display: For intermittent sampling, there is no Hold.
Page 9 Advanced Operation Intermittent Sampling (Setup and Sampling) Intermittent Sampling mode allows the pump to be programmed to run for a specific number of minutes up to 999, to shut off for a programmed length of time, and to continue sampling on and off for a predetermined number of cycles. An example is programming the pump to run three cycles (n) of 15 minutes each (r) with a 5-minute delay (d) between each cycle.
Page 10 Program Run Time Presets Press    Pt: 1 will alternately display with t xx. This corresponds to the first stored preset time. Press  to scroll to the number of minutes (1 to 999). Press  to scroll to Cont, Intt, or End mode options. End will not appear as an option during setup of the first preset.
Page 11 • Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved battery and charger for this pump. Use of an unapproved battery and/or charger may damage the battery and the pump and voids any warranty.
Page 12 If reinstalling the existing battery, remove as much of the previous adhesive as possible from the bottom of the battery. Remove the protective strip from one side of a new two-inch piece of double-sided mounting tape (available from SKC as Cat. No. 51872) and apply to the bottom of the battery.
Page 13 Li-Ion Battery Testing and Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh).
Page 14 • 37-mm, 0.8-μm MCE filter: > 14 hrs at 10 L/min (battery only) * Sampling times when using spore traps are usually ≤ 10 min. SKC recommends reducing length of sample time when using a 30 L/min flow rate to prevent overloading the media.
