SKC QuickTake 30 Operating Instructions Manual

Sample pump

Hide thumbs Also See for QuickTake 30:

Operating instructions manual (25 pages)

Operating instructions manual (14 pages)

Operating instructions manual (14 pages)

Table Of Contents

Quick Links

Download this manual

Inlet

(shown without adapter)

LED

indicates active

battery charging

High-contrast LED display

for readout of presets, run

time, and battery status

Speaker

for end of timed run alarm

Introduction

Description

Checking Pump/Kit Contents

If You Ordered Cat. No.

Your Package Should Contain

228-9530C

QuickTake 30 Pump with lithium-ion (Li-Ion) battery pack and cassette/tubing adapters

QuickTake 30 Pump and Charger includes pump with Li-Ion battery pack, 100-240 V AC charger/adapter,

228-9530

cassette/tubing adapters, and tubing

QuickTake 30 Pump, Rotameter, and Charger includes pump with Li-Ion battery pack, 100-240 V charger/adapter,

228-9530A

cassette/tubing adapters, calibrator, and tubing

Required Equipment

3/8-inch ID (1/2-inch OD) Tygon

Charger for Li-Ion battery-powered pump

Calibration

mode button

Up arrow

increases flow

and time and

scrolls through

presets

Star button

activates LED

and toggles

between

displays

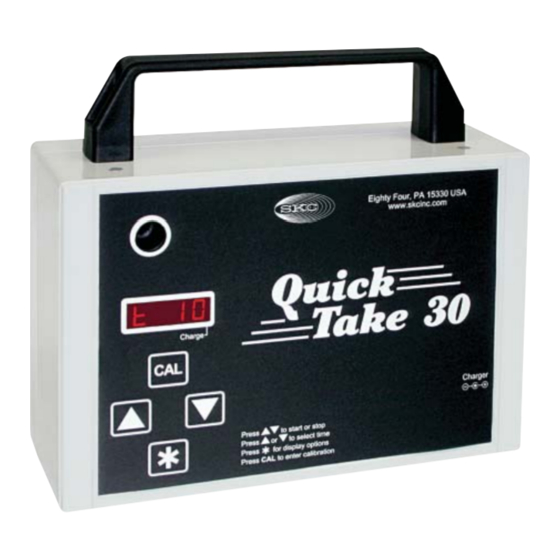

Figure 1. QuickTake 30 Sample Pump

tubing

QuickTake 30 Sample Pump

863 Valley View Road, Eighty Four, PA 15330 USA • 724-941-9701 • skcinc.com

Down arrow

decreases flow

Printed Quick Guide

and time and

scrolls through

presets

skcinc.com

Cat. No. 228-9530

Operating Instructions

Handle

for easy

portability

Cassette Adapter

Charging jack

(on side of case, not

shown)

Tubing Adapter

Form 40079 Rev

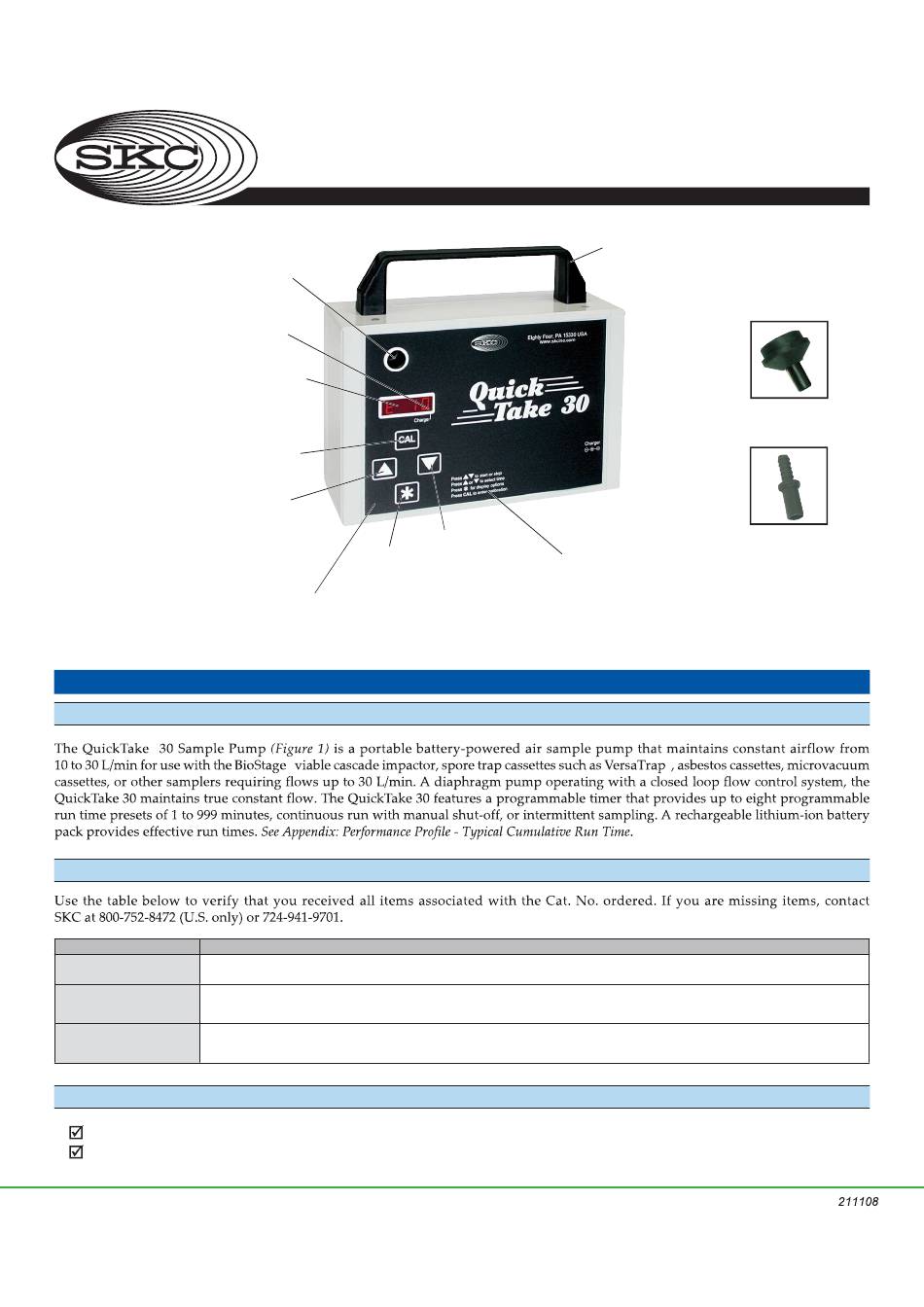

Page 1 of 14

Table of Contents

Need help?

Do you have a question about the QuickTake 30 and is the answer not in the manual?

Questions and answers

Summary of Contents for SKC QuickTake 30

Page 1 Your Package Should Contain 228-9530C QuickTake 30 Pump with lithium-ion (Li-Ion) battery pack and cassette/tubing adapters QuickTake 30 Pump and Charger includes pump with Li-Ion battery pack, 100-240 V AC charger/adapter, 228-9530 cassette/tubing adapters, and tubing QuickTake 30 Pump, Rotameter, and Charger includes pump with Li-Ion battery pack, 100-240 V charger/adapter,...
Page 2: Getting Started
• Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved charger for this pump. Use of an unapproved charger may damage the battery and the pump and voids any warranty. • The battery pack may be kept on the SKC-approved charger for an indefinite time.
Page 3 • Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved battery and charger for this pump. Use of an unapproved battery and/or charger may damage the battery and the pump and voids any warranty.
Page 4: Operation
Cassette adapter QuickTake 30 with VersaTrap cassette mounted in cassette adapter For bioaerosol sampling at 15 L/min, SKC recommends using the Leland Legacy pump (5 to 15 L/min) or the QuickTake 30 pump ® (10 to 30 L/min). BioStage Impactor Use with Mounting Bracket accessory (Cat.
Page 5 Set/Calibrate Flow Rate • Calibrate the flow rate with a representative sampling medium in line. • Allow pump to equilibrate after moving it from one temperature extreme to another. • Digital display: Calibration mode To save new setting: To ignore new setting: Digital display: Note: Store setting...
Page 6: Timed Run
Set Up Run Time Modes Run Time Mode LED Display Timed Run • Run time accumulates only while the pump is running. Digital display: Timed Run 2 minutes Digital display: Run time remaining is 2 seconds Digital display: Sample run completed User Options During Timed Run Sampling Viewing battery status Hold mode...
Page 7 Continuous Run with Manual Stop • Run time accumulates only while the pump is running. Digital display: Continuous Run To continue the sample run: To terminate the sample and reset the pump: User Options During Continuous Run Sampling Viewing battery status Hold mode Terminating a sample and resetting the pump •...
Page 8 End Sample and Reset the Pump Digital display: Terminate sample and Note: reset pump Digital display: Sampling Error Flow Fault Manufacturer default: enabled. User may disable feature. Restoring Sampling from a Flow Fault Fault restart (manufacturer default: enabled) Digital display: Flow fault Fault restart (user disabled) The flow fault and flow fault restart features can be enabled or disabled by the user as desired.
Page 9: Advanced Operation
Advanced Operation Intermittent Sampling (Setup and Sampling) Enter Intermittent Sampling Mode Digital display: Intermittent Sampling Set Run Time (r) To save the new setting: Digital display: To ignore the new setting: Set run time If displayed values are not changed, the flashing Stor will not appear and pressing will move the display to the next parameter to be set.
Page 10 Program Run Time Presets Digital display: First preset To save the new settings: To ignore the new settings: Digital Display: Note: Time set for preset 1 Digital display: Store settings Presets Sequence Preset 8 Preset 8 Preset 7 Intt Preset 7 Intt Preset 6 Cont...
Page 11: Maintenance
• Do not operate or charge the pump in hazardous locations. • Use only the SKC-approved battery and charger for this pump. Use of an unapproved battery and/or charger may damage the battery and the pump and voids any warranty.
Page 12: Maintenance (Cont)
Maintenance (Cont) Slide bracket toward case handle and lift out. Case handle Battery harness wires underneath the battery end nearest the case handle. Battery harness Pull apart battery Battery connector harness connector. Battery cavity Ensure the battery harness wires on battery pack are facing away from the case handle before inserting battery in case. Reset Pump to Manufacturer Default Settings Digital display: Pump default...
Page 13: Accessories/Replacement Parts
Li-Ion Battery Testing and Shipment Rechargeable lithium-ion batteries for use with SKC sample pumps have been tested in accordance with the UN Manual and are proven to meet requirements of each test in the UN Manual of Tests and Criteria, Part III, subsection 38.3. The batteries are rated below 100 watt-hours (Wh).
Page 14: Performance Profile
• BioStage viable cascade impactor: 4 hrs at 28.3 L/min (battery only) • 25-mm, 1.2- m MCE filter: 9+ hrs at 10 L/min To achieve, use QuickTake 30 with a fully charged battery and AC charger/adapter. • 37-mm, 0.8- m MCE filter: > 14 hrs at 10 L/min (battery only) The AC charger/adapter can be used to extend battery run time, but it is not a battery eliminator.
