1.3 External View

The flexible design of the X-gateway platform allows each network interface to be mounted at the top
or bottom of the unit. Note that this will affect the orientation of the on-board switches and network
connectors.

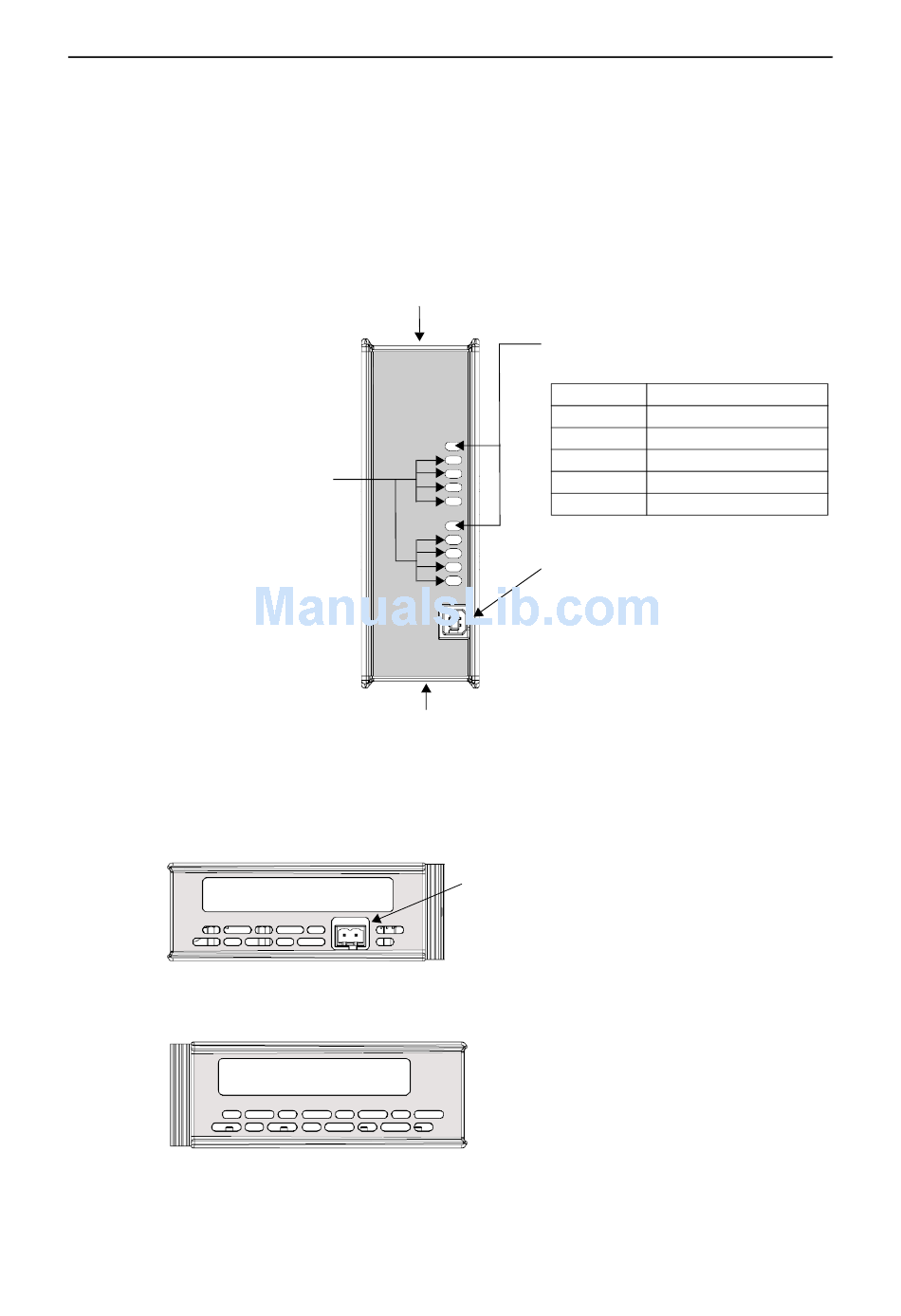

Front View
Network Status LEDs for
each network.
(See separate X-gateway
Interface Addendums).
Top Panel
The top panel of the Anybus X-Gateway includes the connectors & switches specific to the installed
network. See the separate X-gateway Interface Addendum for further information.
This panel also includes the unit's power connector. See also "Power Supply" on page 19.
Network-specific connectors
and switches
Bottom Panel
Network-specific connectors
and switches
Anybus X-gateway User Manaul
Network A mounts in
upper slot
Network B mounts in
lower slot
Gateway power
connector
About the Anybus X-gateway 8
Gateway Status LEDs
These LEDs (1 per network) reflect the
overall status of each network interface.
Colour Indication
Green Communication running
Green, flashing Transport provider connected
Red Communication error
Red, flashing Network interface error
Off No power
Gateway Configuration Connector
This USB connector enables the connec-
tion of a PC to the gateway, for configura-
tion purposes.
See also: "Anybus Configuration Manager"
on page 16.
The bottom panel of the Anybus X-Gate-
way includes the connectors & switches
specific to the installed network.
