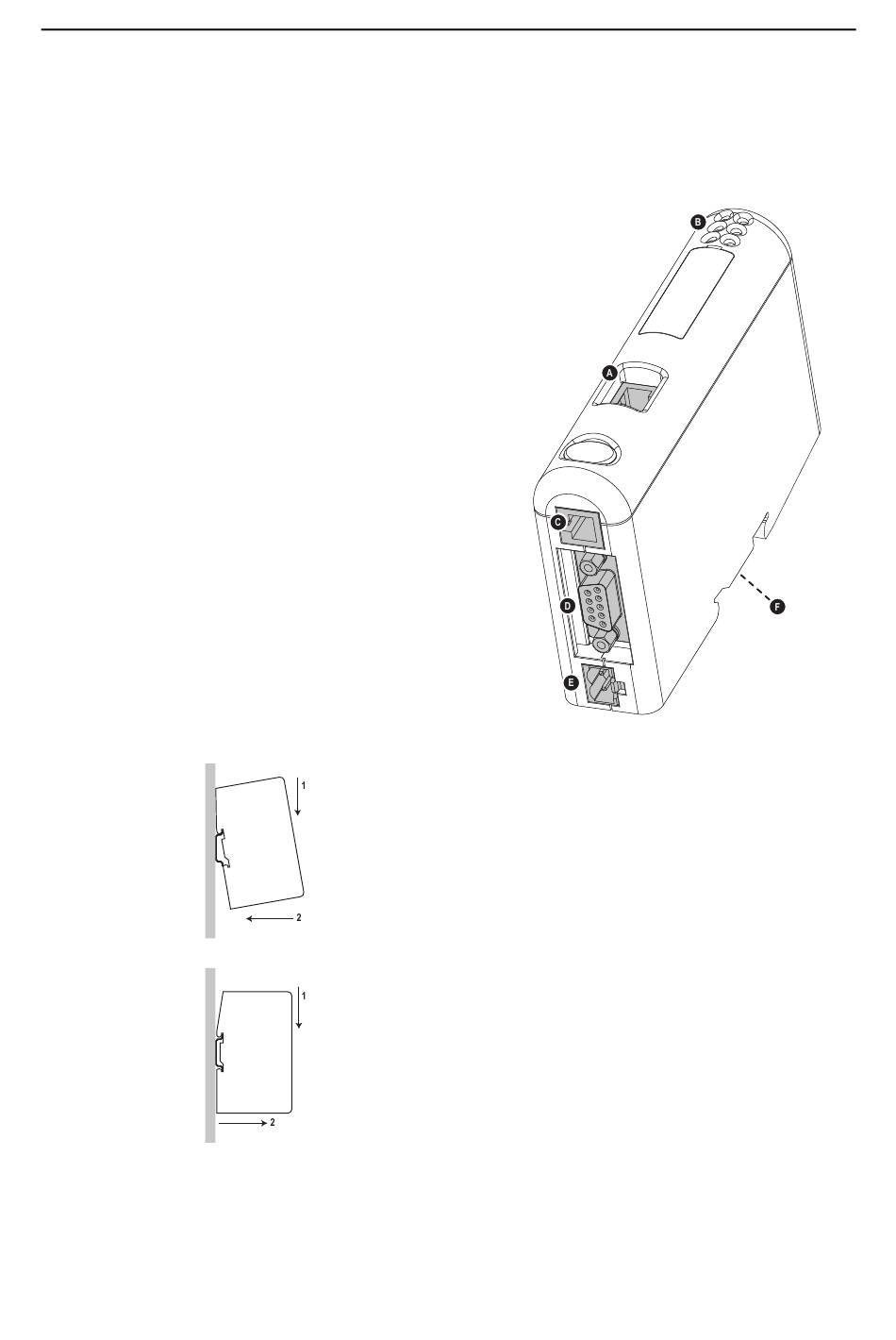

External View

(See also B-1 "Connector Pin Assignments").
A: PROFINET Interface
See also...
- B-1 "PROFINET Interface (RJ45)"
B: Status LEDs
See also...
- 1-3 "Status LEDs"
C: Service Port
(reserved)
D: USS Interface
See also...
- B-1 "USS Interface (DB9F)"
E: Power Supply Input
See also...
- B-1 "Power Connector"
- C-1 "Technical Specification"
F: DIN-rail Mechanism
The DIN-rail mechanism works as follows:
To snap the gateway on, first press the it downwards (1) to compress the
spring in the DIN-rail mechanism, then push it towards the DIN-rail as
to make it snap on (2)
To snap the gateway off, push the it downwards (1) and pull it out from
the DIN-rail (2), as to make it snap off.
Introduction 1-2
