1.4 Installation
1.4.1 DIN-rail Installation
The gateway is DIN-rail mountable. To ensure proper EMC behaviour, the DIN-rail must be connected
to protective earth (PE).

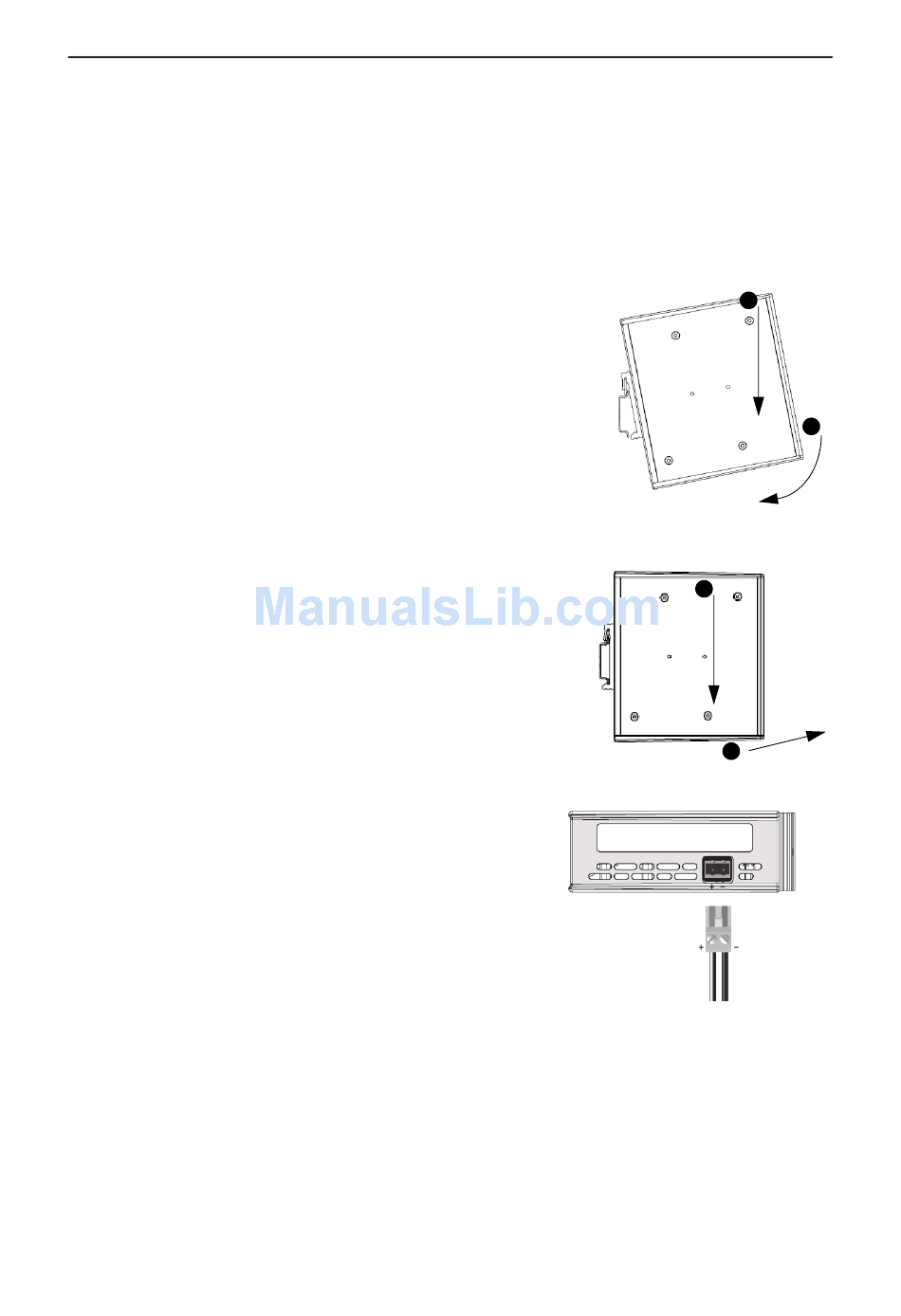

Snap On
To fasten the gateway to the DIN-rail, align it with the DIN-rail
connector, according to the figure shown here. Press firmly on the
top (1) and push the lower part into position (2).
Snap Off
To remove the gateway from the DIN rail, press firmly on the
top (1) and pull the lower part away from the rail (2).
1.4.2 Power
The gateway requires a regulated 24VDC ±20% Class
2 power source. Power is applied via a 2-pole pluggable
screw connector.
Note that this connector is polarized; using the wrong
polarity will not work and may even damage the
product.
1.4.3 Network Installation
Where applicable, specific installation procedures for specific networks are described in the separate
interface addendums for each product.
Anybus X-gateway User Manaul
About the Anybus X-gateway 9
