Cygnus 1 Operation Manual page 37

CALIBRATING THE GAUGE
Calibration on a Test Sample
If possible : the Gauge should always be calibrated on the actual Material-under-Test,
or on a measured test-sample of the same material
Calibration by Sound Velocity
If there is no test-sample available : the Gauge can be calibrated by setting the value of
Sound Velocity directly
Calibration by Named Material
CygLink provides a list of commonly-used engineering materials – Calibration can be
achieved by selecting from this list
Reading Conversion - not recommended
Log Readings with the Calibration preset to Mild Steel [5920 m/s or 0.2332 in/us], and
then later to use a Conversion FactorSee: Reading Conversion, page 43
Calibration on a Test Sample
Turn the Gauge on as normal, and place the Probe on the measured test-sample, and
ensure that a stable reading is being obtained
Calibration
Click on the
Move the slider until the displayed reading is exactly the same as the known thickness
of the test-sample: the Gauge is now Calibrated
Calibration by Named Material
Material
Click the
Click in the list to select the suitable Material, then click
the Gauge is now Calibrated for this Material
option in the Display box
Display
button in the

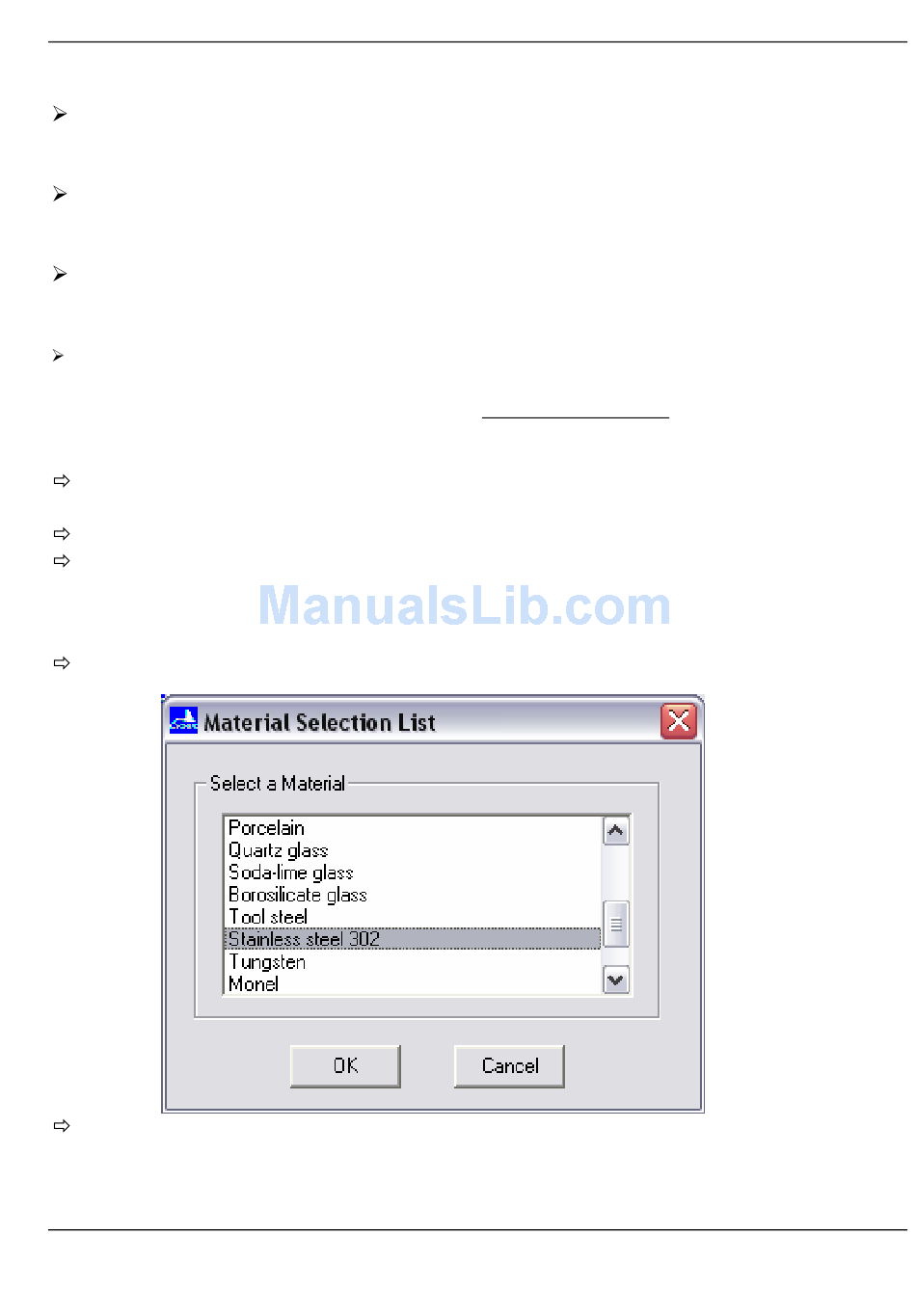

Material Selection List
box – the
OK
Measuring with the Gauge
will open :
:
