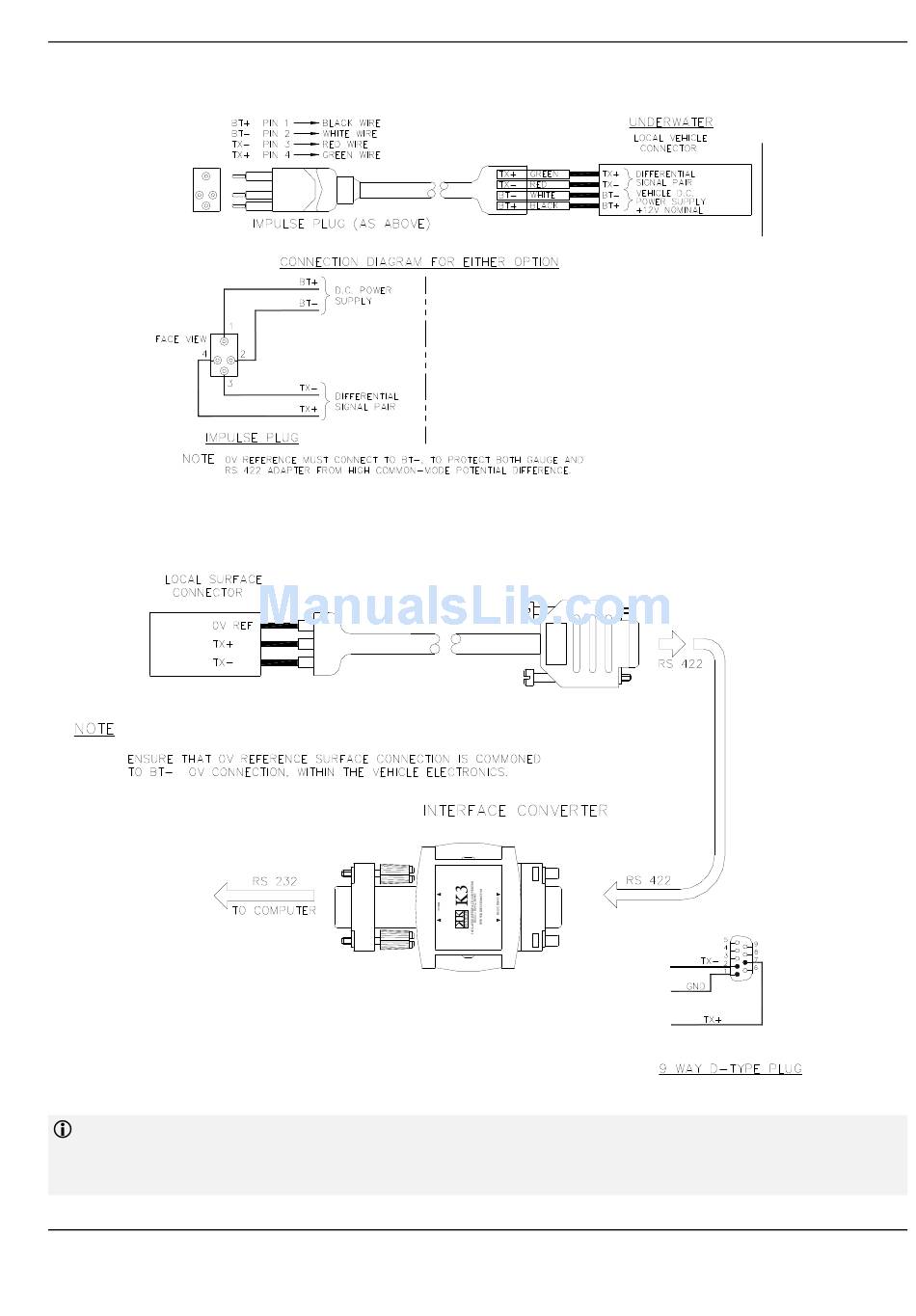

ROV Local-Termination Connection
Recommended cable connection from Cygnus 1 ROV Gauge to ROV :
Recommended connection at surface, taken from ROV cabling to PC :
Alternatively - if you intend to convert the serial data sent from the Cygnus 1 ROV
Gauge using your own electronics and/or software : the TX+ / TX- data-pair may be
connected directly to any RS-422 compatible receiving equipment.
Installing the Gauge
22
