USING THE CYGLINK REMOTE DISPLAY PROGRAM

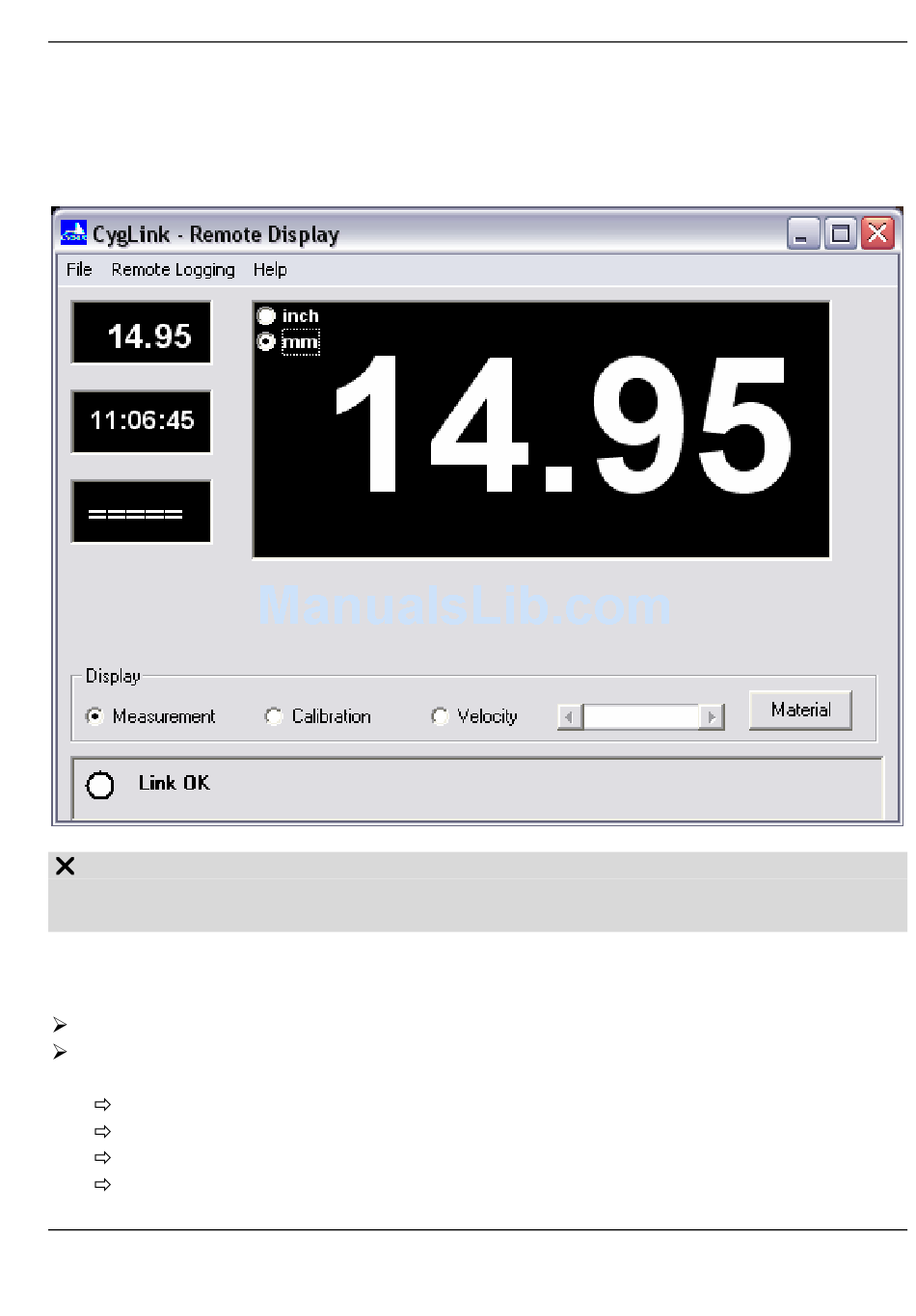

CygLink main window
This is the typical measurement screen as it will appear when the Gauge is in use and is
obtaining a measurement :
If the Display box does not appear in the screen :
this indicates a fault in the internal settings of the Gauge – in this case the Gauge
must be returned to Cygnus for servicing
Measurement Displays
There are two Measurement displays in the CygLink main window :
the Current Reading being sent from the Gauge appears in the large display
the Last Reading appears in the small display
this reading is maintained after the Gauge stops sending new readings :
if the Probe is no longer in contact with the material being measured
if a new Reading cannot be obtained from the material
if the Gauge is turned off
if the Datalink is disconnected
