<KX-UT248>

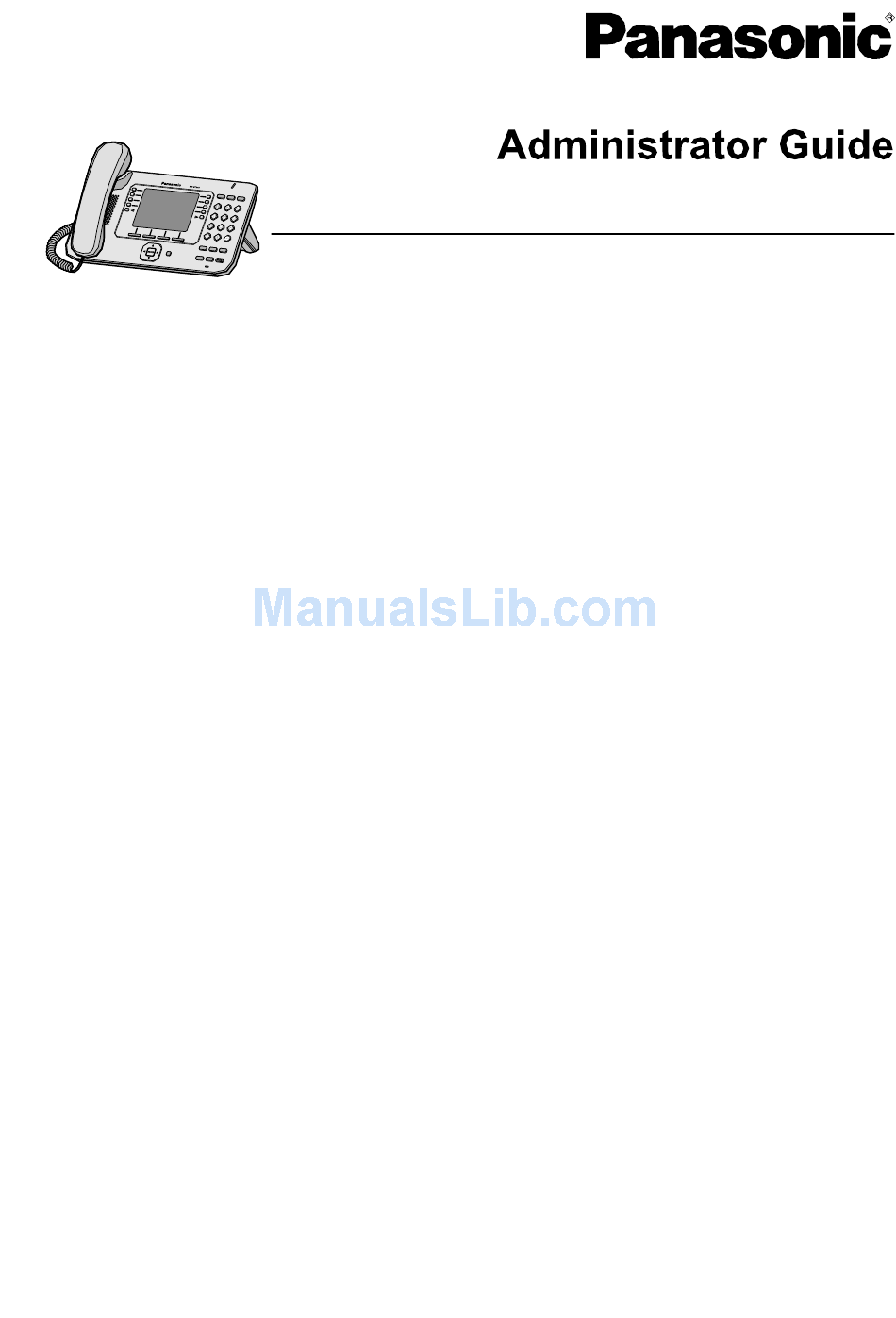

Thank you for purchasing this Panasonic product.
Please read this manual carefully before using this product and save this manual for future use.
KX-UT113/KX-UT123/KX-UT133/KX-UT136/KX-UT248: Software File Version 01.080 or later
In this manual, the suffix of each model number is omitted unless necessary.
KX-UT113/KX-UT123
Model No.
KX-UT133/KX-UT136

SIP Phone

KX-UT248
Document Version: 2012-02

Advertisement

Table of Contents

Troubleshooting

   Summary of Contents for Panasonic KX-UT113

  • Page 1: Sip Phone

    Thank you for purchasing this Panasonic product. Please read this manual carefully before using this product and save this manual for future use. KX-UT113/KX-UT123/KX-UT133/KX-UT136/KX-UT248: Software File Version 01.080 or later In this manual, the suffix of each model number is omitted unless necessary.
  • Page 2: Document Version

    Briefly describes basic information about the installation of the unit. Operating Instructions Describes information about the installation and operation of the unit. Manuals and supporting information are provided on the Panasonic Web site at: http://www.panasonic.com/sip (for users in the United States) http://panasonic.net/pcc/support/sipphone (for users in all other countries/areas) Technical Support When technical support is required, contact your phone system dealer.
  • Page 3: Table Of Contents

    Table of Contents Table of Contents 1 Initial Setup .....................17 Setup ..........................18 1.1.1 Factory Defaults ......................18 1.1.2 Language Selection for the Unit ..................18 1.1.3 Basic Network Setup ......................18 1.1.4 Overview of Programming ....................20 1.1.5 Phone User Interface Programming ................20 1.1.5.1 Changing the Language for Phone User Interface Programming .......20 1.1.6 Web User Interface Programming ..................21...
  • Page 4 Table of Contents 4 Web User Interface Programming ............59 Web User Interface Setting List ..................60 Status ..........................70 4.2.1 Version Information ......................71 4.2.1.1 Version Information .....................71 Model ........................71 Operating Bank ......................71 IPL Version .......................71 Firmware Version ......................71 4.2.2 Network Status .......................72 4.2.2.1 Network Status ......................72 MAC Address ......................72...
  • Page 5 Table of Contents Authentication Protocol .....................84 Authentication ID .......................84 Authentication Password ..................84 4.3.4 HTTP Client Settings ......................85 4.3.4.1 HTTP Client Settings ....................85 HTTP Version ......................85 HTTP User Agent ......................85 4.3.4.2 HTTP Authentication ....................86 Authentication ID .......................86 Authentication Password ..................86 4.3.4.3 Proxy Server Settings ....................86 Enable Proxy ......................86 Proxy Server Address ....................87...
  • Page 6 Table of Contents Enable Synchronization by NTP ................97 Synchronization Interval ....................97 4.4.5.2 Time Server .........................98 NTP Server Address ....................98 4.4.5.3 Time Zone ........................98 Time Zone .........................98 4.4.5.4 Daylight Saving Time (Summer Time) .................98 Enable DST (Enable Summer Time) ................98 DST Offset (Summer Time Offset) ................98 4.4.5.5 Start Day and Time of DST (Start Day and Time of Summer Time) ......99 Month ........................99...
  • Page 7 Table of Contents Timer J ........................110 4.5.2.10 Quality of Service (QoS) ....................110 SIP Packet QoS (DSCP) ..................110 4.5.2.11 SIP extensions ......................110 Supports 100rel (RFC 3262) ...................110 Supports Session Timer (RFC 4028) ..............110 4.5.2.12 NAT Identity .......................111 Keep Alive Interval ....................111 Supports Rport (RFC 3581) ..................111 4.5.2.13 Security ........................111...
  • Page 8 Table of Contents Flash/Recall Button ....................122 Flash Hook Event ....................123 Direct Call Pickup ....................123 4.6.1.2 Call Rejection Phone Numbers .................123 1–30 ........................123 4.6.2 Call Control [Line 1]–[Line x] ..................123 4.6.2.1 Call Control ........................124 Display Name ......................124 Voice Mail Access Number ..................124 Enable Shared Call ....................125 Synchronize Do Not Disturb and Call Forward ............125 Resource List URI ....................126...
  • Page 9 Table of Contents 4.6.6.1 Import Phonebook .....................139 File Name ........................139 4.6.7 Export Phonebook ......................139 4.6.8 Application Settings ......................140 4.6.8.1 Application Bootup URL ....................140 URL .........................140 4.6.8.2 Application initial URL ....................141 URL .........................141 4.6.8.3 Incoming call URL .....................141 URL .........................141 4.6.8.4 Talking URL .......................141 URL .........................141 4.6.8.5...
  • Page 10 Table of Contents 5.2.2 Characters Available for String Values .................164 System Settings ......................165 5.3.1 Login Account Settings ....................165 ADMIN_ID .........................165 ADMIN_PASS ......................165 USER_ID ........................166 USER_PASS ......................166 5.3.2 System Time Settings ....................166 TIME_ZONE ......................166 DST_ENABLE ......................167 DST_OFFSET ......................167 DST_START_MONTH ....................168 DST_START_ORDINAL_DAY ..................168 DST_START_DAY_OF_WEEK .................168 DST_START_TIME ....................169 DST_STOP_MONTH ....................169...
  • Page 11 Table of Contents PERIODIC_INFORM_TIME ..................183 CON_REQ_USER_ID ....................184 CON_REQ_PASS .....................184 ANNEX_G_STUN_ENABLE ..................185 ANNEX_G_STUN_SERV_ADDR ................185 ANNEX_G_STUN_SERV_PORT ................185 ANNEX_G_STUN_USER_ID ..................185 ANNEX_G_STUN_PASS ..................186 ANNEX_G_STUN_MAX_KEEP_ALIVE ..............186 ANNEX_G_STUN_MIN_KEEP_ALIVE ..............186 UDP_CON_REQ_ADDR_NOTIFY_LIMIT ..............187 Network Settings ......................187 5.4.1 IP Settings ........................187 CONNECTION_TYPE ....................187 HOST_NAME ......................188 DHCP_DNS_ENABLE ....................188 STATIC_IP_ADDRESS .....................188 STATIC_SUBNET .....................189 STATIC_GATEWAY ....................189 USER_DNS1_ADDR ....................190...
  • Page 12 Table of Contents Telephone Settings .......................199 5.5.1 Call Control Settings .....................199 VM_SUBSCRIBE_ENABLE ..................199 CONFERENCE_SERVER_URI ................200 FIRSTDIGIT_TIM .......................200 INTDIGIT_TIM ......................200 MACRODIGIT_TIM ....................201 INTERNATIONAL_ACCESS_CODE .................201 COUNTRY_CALLING_CODE ...................201 NATIONAL_ACCESS_CODE ...................201 DEFAULT_LINE_SELECT ..................202 DATA_LINE_MODE ....................202 NUM_PLAN_PICKUP_DIRECT ................202 TALK_PACKAGE ......................202 HOLD_PACKAGE .....................203 HOLD_RECALL_TIM ....................203 AUTO_ANS_RING_TIM ....................203 RINGING_OFF_SETTING_ENABLE ................203 AUTO_CALL_HOLD ....................204 REDIALKEY_CALLLOG_ENABLE ................204...
  • Page 13 Table of Contents CW_TONE1_GAIN ....................212 CW_TONE1_RPT .....................213 CW_TONE1_TIMING ....................213 HOLD_TONE_FRQ ....................213 HOLD_TONE_GAIN ....................213 HOLD_TONE_RPT ....................214 HOLD_TONE_TIMING ....................214 BELL_CORE_PATTERN1_TIMING ................214 BELL_CORE_PATTERN2_TIMING ................214 BELL_CORE_PATTERN3_TIMING ................215 BELL_CORE_PATTERN4_TIMING ................215 BELL_CORE_PATTERN5_TIMING ................215 5.5.3 Telephone Settings ......................216 DISPLAY_NAME_REPLACE ..................216 NUMBER_MATCHING_LOWER_DIGIT ..............216 NUMBER_MATCHING_UPPER_DIGIT ..............216 DISPLAY_DATE_PATTERN ..................216 DISPLAY_TIME_PATTERN ..................217 DEFAULT_LANGUAGE ....................217 EXTENSION_PIN ......................218 POUND_KEY_DELIMITER_ENABLE ...............218...
  • Page 14 Table of Contents NOM_DELAY_n ......................228 RTP_PORT_MIN .......................228 RTP_PORT_MAX ......................228 RTP_PTIME ......................229 RTCP_ENABLE_n .....................229 RTCP_SEND_BY_SDP_n ..................230 RTP_CLOSE_ENABLE_n ..................230 5.6.3 Miscellaneous VoIP Settings ..................230 OUTBANDDTMF_n ....................230 DTMF_RELAY_n .......................231 OUTBANDDTMF_VOL ....................231 INBANDDTMF_VOL ....................231 TELEVENT_PAYLOAD .....................231 RFC2543_HOLD_ENABLE_n ...................232 DTMF_SIGNAL_LEN ....................232 DTMF_INTDIGIT_TIM ....................232 Line Settings ........................233 5.7.1 Call Control Settings .....................233 DISPLAY_NAME_n ....................233...
  • Page 15 Table of Contents SIP_TIMER_T2_n .....................244 SIP_TIMER_T4_n .....................245 SIP_FOVR_NORSP_n ....................245 SIP_FOVR_MAX_n ....................246 SIP_REFRESHER_n ....................246 SIP_DNSSRV_ENA_n ....................246 SIP_UDP_SRV_PREFIX_n ..................247 SIP_TCP_SRV_PREFIX_n ..................247 SIP_100REL_ENABLE_n ..................247 SIP_INVITE_EXPIRE_n ....................248 SIP_18X_RTX_INTVL_n ...................248 SIP_PRSNC_ADDR_n ....................248 SIP_PRSNC_PORT_n ....................249 SIP_2NDPRSNC_ADDR_n ..................249 SIP_2NDPRSNC_PORT_n ..................249 USE_DEL_REG_OPEN_n ..................249 USE_DEL_REG_CLOSE_n ..................250 PORT_PUNCH_INTVL_n ..................250 SIP_ADD_RPORT_n ....................250 SIP_REQURI_PORT_n .....................251 SIP_SUBS_EXPIRE_n ....................251 SUB_RTX_INTVL_n ....................251...
  • Page 16 Firmware Update Settings ....................276 Executing Firmware Update ..................276 Local Firmware Update ....................277 8 Troubleshooting ...................279 Troubleshooting ......................280 9 Appendix ....................285 Revision History ......................286 9.1.1 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.025 ....286 9.1.2 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.080 ....287 Index......................289 Administrator Guide Document Version 2012-02...
  • Page 17: Initial Setup

    Section 1 Initial Setup This section provides an overview of the setup procedures for the unit. Document Version 2012-02 Administrator Guide...
  • Page 18: Setup

    Note • To select the display language for the unit, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). • To select the display language for the Web user interface, see 4.4.1 Web Language.
  • Page 19 For details about the individual network settings that can be configured via the unit, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). For details about configuring network settings via the Web user interface, see 4.3.1 Basic Network Settings.
  • Page 20: Overview Of Programming

    You can change the language used on the LCD. Because the language settings for the LCD of the unit are not synchronized, you must set the languages individually for the unit. For details about changing the setting, refer to the Operating Instructions on the Panasonic Web site (® see Introduction).
  • Page 21: Web User Interface Programming

    1.1.6 Web User Interface Programming 1.1.6 Web User Interface Programming After connecting the unit to your network, you can configure the unit’s settings by accessing the Web user interface from a PC connected to the same network. For details, see Section 4 Web User Interface Programming.
  • Page 22: Before Accessing The Web User Interface

    To access the Web user interface, you must open the unit’s Web port beforehand. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). For details about additional features available with direct commands, see Section 3 Phone User Interface Programming.
  • Page 23: Accessing The Web User Interface

    1.1.6 Web User Interface Programming Access Levels (IDs and Passwords) 2 accounts with different access privileges are provided for accessing the Web user interface: User and Administrator. Each account has its own ID and password, which are required to log in to the Web user interface.
  • Page 24: Controls On The Window

    1.1.6 Web User Interface Programming Press Setting Setup Press [ ] or [ ] to select "Information Display", and then press [ENTER]. Press [ ] or [ ] to select "IP Address". Press [CANCEL]. For authentication, enter your ID (username) and password, and then click OK. Notice •...
  • Page 25: Entering Characters

    1.1.6 Web User Interface Programming Tabs Tabs are the top categories for classifying settings. When you click a tab, the corresponding menu items and the configuration screen of the first menu item appear. There are 6 tabs for the Administrator account and 4 tabs for the User account.
  • Page 26 1.1.6 Web User Interface Programming – You cannot enter invalid IP addresses, for example, "0.0.0.0", "255.255.255.255", or "127.0.0.1". • FQDN field – The field cannot contain ", &, ', <, >, or trailing spaces. – You can enter the IP address using dotted-decimal notation (i.e., "n.n.n.n" where n=0–255). –...
  • Page 27: Other Network Settings

    • When attempting to import the phonebook data, the total number of phonebook entries, including the existing entries, exceeds the limit (of up to 100 [for the KX-UT113]/500 [for the KX-UT123/KX-UT133/KX-UT136/ KX-UT248] entries). No Data The operation failed because: 4.6.6 Import Phonebook •...
  • Page 28: Nat (network Address Translation) Setup

    1.1.7 Other Network Settings 1.1.7.2 NAT (Network Address Translation) Setup This section provides information about configuring a router that uses NAT. Internet Global IP address: xxx.yyy.zzz.127 Router Switching SIP Phone Private IP address: Private IP address: 192.168.228.11 192.168.228.12 If the unit is connected to a network that uses a NAT router and a private IP address is assigned to each terminal on the network, depending on your phone system’s setup, you might need to configure the unit and router so as to use NAT Traversal techniques.
  • Page 29: Global Address Detection

    1.2.1 Reset RTP (Real-time Transport Protocol) Setup If the unit is connected to a network that uses a NAT router and a private IP address is assigned to each terminal on the network, you must configure the RTP function for the unit and router so that the units can perform voice transmission between each other using a peer-to-peer connection.
  • Page 30: Resetting The Network Settings (ip Reset)

    1.2.1 Reset Press Setting Setup Press [#][1][3][6]. Press [ ] or [ ] to select "Factory Setting", and then press [ENTER]. Press [ ] or [ ] to select "Yes", and then press [ENTER]. Press [ ] or [ ] to select "Yes", and then press [ENTER]. Notice •...
  • Page 31: Firmware Update

    1.2.2 Firmware Update 1.2.2 Firmware Update You can update the unit’s firmware to improve the unit’s operation. You can configure the unit so that it automatically downloads the new firmware file from a specified location. The firmware update will be executed when the unit is restarted.
  • Page 32 1.2.2 Firmware Update Administrator Guide Document Version 2012-02...
  • Page 33: General Information On Provisioning

    Section 2 General Information on Provisioning This section provides an overview of the configuration file programming procedures for the unit, including pre-provisioning and provisioning. Document Version 2012-02 Administrator Guide...
  • Page 34: Pre-provisioning

    2.1.1 What is Pre-provisioning? 2.1 Pre-provisioning 2.1.1 What is Pre-provisioning? To perform pre-provisioning, you must set the IP address of a TFTP server to the DHCP server option 66 so that the unit can acquire the TFTP server address. When the unit starts up and no configuration has been applied, it will automatically acquire the address of the TFTP server and download the configuration file.
  • Page 35: Pre-provisioning When Setting Static Ip Addresses

    2.1.4 Pre-provisioning Setting Example 2.1.2 Pre-provisioning when Setting Static IP Addresses To perform pre-provisioning, the unit needs to acquire the TFTP server address from option 66 on a DHCP server. Therefore, pre-provisioning cannot be performed if you use static IP addressing on your network. If you use static IP addressing and want to perform pre-provisioning, construct a small, separate network and connect a DHCP and TFTP server to that network.
  • Page 36 Provisioning server name (where the provisioning.example.com configuration file used for provisioning is to be stored) Distribution directory of the provisioning server /Panasonic File name of the configuration file used for Config0080F0123456.cfg provisioning URL of the configuration file used for http://provisioning.example.com/Panasonic/ provisioning Config0080F0123456.cfg...
  • Page 37 TFTP Server • The file name may be different depending on the phone being used. For example, the file name for KX-UT113 users will be: tftp://192.168.0.130/KX-UT113.cfg Step 3 The URL of the server where the configuration file for provisioning is stored (provisioning server) is set http://provisioning.example.com/...
  • Page 38: Provisioning

    2.2.3 Configuration File 2.2 Provisioning 2.2.1 What is Provisioning? After pre-provisioning has been performed (® see 2.1 Pre-provisioning), you can set up the unit automatically by downloading the configuration file stored on the provisioning server into the unit. This is called "provisioning".
  • Page 39 Time Protocol) servers managed by your phone system dealer. This configuration file is used by all the units. Example of the configuration file’s URL: http://prov.example.com/Panasonic/ConfigCommon.cfg Product configuration file Configure settings that are required for a particular model, such as the default setting of the privacy mode. This configuration file is used by all the units that have the same model name.
  • Page 40: Downloading Configuration Files

    Confirm that the provisioning server's IP address/FQDN and directory are correct, and store the configuration files in the directory (e.g., http://provisioning.example.com/Panasonic/Config_Sample.cfg). Enter the IP address of the unit into the PC's Web browser (® see 1.1.6.3 Before Accessing the Web User Interface).
  • Page 41 2.2.4 Downloading Configuration Files Download Timing Explanation At regular intervals of time The configuration files are downloaded at specified intervals of time, set in minutes. In the example below, the unit has been programmed to check for and download configuration files from the provisioning server every 3 days (4320 minutes).
  • Page 42 2.2.4 Downloading Configuration Files Download Timing Explanation At a specified time each day After the unit is powered on, it will check for and download configuration files once per day at the specified time. CFG_RESYNC_TIME="02:00" Provisioning SIP Phone Server Check Power On at 12:00 Download...
  • Page 43: Provisioning Server Setting Example

    Panasonic/Config{MAC}.cfg" • CFG_MASTER_FILE_PATH="http://prov.example.com/ Panasonic/ConfigCommon.cfg" Directory on the provisioning Create the "Panasonic" directory just under the HTTP root directory of the server containing the provisioning server. configuration files File name of configuration Store the following configuration files in the "Panasonic" directory.
  • Page 44: Encryption

    To set up the provisioning server Connect the units to the network, and turn them on. The unit with the MAC address 0080F0111111 accesses the following URLs: http://prov.example.com/Panasonic/ConfigCommon.cfg http://prov.example.com/Panasonic/Config0080F0111111.cfg The unit with the MAC address 0080F0222222 accesses the following URLs: http://prov.example.com/Panasonic/ConfigCommon.cfg...
  • Page 45: Priority Of Setting Methods

    2.3 Priority of Setting Methods Notice • To avoid redundant data transfer over the network, important data, such as the encryption key used to encrypt the configuration files and the root certificate for SSL, should be configured through pre-provisioning as much as possible. •...
  • Page 46: Configuration File Specifications

    Comment lines that start with "#" • Configuration files must start with a comment line containing the following designated character sequence (44 bytes): # Panasonic SIP Phone Standard Format File # The hexadecimal notation of this sequence is: Administrator Guide Document Version...
  • Page 47: Configuration File Examples

    All configurable settings can be specified in the configuration file. You can ignore settings that already have the desired values. Only change parameters as necessary. 2.5 Configuration File Examples The following examples of configuration files are provided on the Panasonic Web site (® see Introduction). • Simplified Example of the Configuration File •...
  • Page 48: Examples Of Codec Settings

    2.5.1 Examples of Codec Settings 2.5.1 Examples of Codec Settings Setting the Codec Priority to (1)G.729A, (2)G.726-32, (3)PCMU, (4)G.722 ## Codec Settings # Enable G722 CODEC_ENABLE0_1="Y" CODEC_PRIORITY0_1="4" # Disable PCMA CODEC_ENABLE1_1="N" # Enable G726-32K CODEC_ENABLE2_1="Y" CODEC_PRIORITY2_1="2" # Enable G729A CODEC_ENABLE3_1="Y" CODEC_PRIORITY3_1="1"...
  • Page 49: Example With Incorrect Descriptions

    The following listing shows an example of a configuration file that contains incorrect formatting: An improper description is entered in the first line. A configuration file must start with the designated character sequence "# Panasonic SIP Phone Standard Format File #". Comment lines start in the middle of the lines.
  • Page 50: Setting Configuration File Parameters Using Tr-069

    2.6 Setting Configuration File Parameters Using TR-069 # DTMF will be sent through SDP, according to RFC 2833 OUTBANDDTMF_1="Y" ############################################################ # Call Control Settings # ############################################################ # Enables subscription to the Voice Mail server VM_SUBSCRIBE_ENABLE="y" # Shared Call Settings SHARED_CALL_ENABLE_1="Y" # Disables Do Not Disturb, Call Forward synchronization.
  • Page 51 2.6 Setting Configuration File Parameters Using TR-069 Parameter Name Requirement Ref. TR-069 Parameter Configuration File Parameter TR-106 Device.ManagementServer.Connection CON_REQ_USER_ID Page 184 RequestUsername TR-106 Device.ManagementServer.Connection CON_REQ_PASS Page 184 RequestPassword TR-106 Device.ManagementServer.STUNEnabl ANNEX_G_STUN_ENABLE Page 185 ANNEX_G_STUN_SERV_ADDR TR-106 Device.ManagementServer.STUNServe Page 185 rAddress TR-106 Device.ManagementServer.STUNServe ANNEX_G_STUN_SERV_PORT Page 185...
  • Page 52 2.6 Setting Configuration File Parameters Using TR-069 Parameter Name Requirement Ref. TR-069 Parameter Configuration File Parameter TR-104 Device.VoiceService.1.VoiceProfile. OUTBANDDTMF_n Page 230 {n}.DTMFMethod DTMF_RELAY_n Page 231 TR-104 Device.VoiceService.1.VoiceProfile. DIAL_PLAN_n Page 233 {n}.DigitMap TR-104 Device.VoiceService.1.VoiceProfile. TELEVENT_PAYLOAD Page 231 1.RTP.TelephoneEventPayloadType TR-104 Device.VoiceService.1.VoiceProfile. SIP_AUTHID_n Page 239 {n}.Line.1.SIP.AuthUserName TR-104...
  • Page 53 2.6 Setting Configuration File Parameters Using TR-069 Parameter Name Requirement Ref. TR-069 Parameter Configuration File Parameter TR-104 Device.VoiceService.1.VoiceProfile. SIP_TIMER_F_n Page 257 {n}.SIP.TimerF TR-104 Device.VoiceService.1.VoiceProfile. SIP_TIMER_H_n Page 257 {n}.SIP.TimerH TR-104 Device.VoiceService.1.VoiceProfile. SIP_TIMER_J_n Page 258 {n}.SIP.TimerJ SIP_INVITE_EXPIRE_n TR-104 Device.VoiceService.1.VoiceProfile. Page 248 {n}.SIP.InviteExpires TR-104 Device.VoiceService.1.VoiceProfile.
  • Page 54 2.6 Setting Configuration File Parameters Using TR-069 Parameter Name Requirement Ref. TR-069 Parameter Configuration File Parameter TR-104 Device.VoiceService.1.VoiceProfile. FLEX_BUTTON_LABELx Page 220 1.ButtonMap.Button.{x}.ButtonMessage Administrator Guide Document Version 2012-02...
  • Page 55: Phone User Interface Programming

    Section 3 Phone User Interface Programming This section explains how to configure the unit by entering direct commands through the phone user interface. Document Version 2012-02 Administrator Guide...
  • Page 56: Phone User Interface Programming

    To enter direct commands, use the dial keys and soft buttons on the unit. For details about the other available features, settings and key operations on the phone user interface, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). 3.1.1 Phone User Interface Feature List and Direct Commands The following table shows additional features programmable with direct commands.
  • Page 57: Reset Web Id/password

    3.1.4 Reset Web ID/Password 3.1.4 Reset Web ID/Password Reset Web ID/Password resets all the IDs and passwords required for users and administrators to access the Web user interface (® see Access Levels (IDs and Passwords) in 1.1.6.3 Before Accessing the Web User Interface) to their factory defaults.
  • Page 58 3.1.4 Reset Web ID/Password Administrator Guide Document Version 2012-02...
  • Page 59: Web User Interface Programming

    Section 4 Web User Interface Programming This section provides information about the settings available in the Web user interface. Document Version 2012-02 Administrator Guide...
  • Page 60: Web User Interface Setting List

    4.1 Web User Interface Setting List 4.1 Web User Interface Setting List The following tables show all the settings that you can configure from the Web user interface and the access levels. For details about each setting, see the reference pages listed. For details about setting up Web user interface programming, see 1.1.6 Web User Interface Programming.
  • Page 61 4.1 Web User Interface Setting List Network Access Level Menu Item Section Title Setting Ref. Basic Network Connection Mode Connection Mode ü ü Page 77 Settings DHCP Settings Host Name ü Page 77 Domain Name Server ü ü Page 78 Static Settings Static IP Address ü...
  • Page 62 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. HTTP Client HTTP Client Settings HTTP Version ü Page 85 Settings HTTP User Agent ü Page 85 HTTP Authentication Authentication ID ü ü Page 86 Authentication Password ü...
  • Page 63 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Administrator Change Administrator Current Password ü Page 93 Password Password New Password ü Page 93 Confirm New Password ü Page 94 Change User Change User Password Current Password ü...
  • Page 64 4.1 Web User Interface Setting List VoIP Access Level Menu Item Section Title Setting Ref. SIP Settings SIP Setting SIP User Agent ü Page 102 SIP Settings Phone Number Phone Number ü Page 103 [Line 1]–[Line x] SIP URI ü Page 104 SIP Server Registrar Server Address...
  • Page 65 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. SIP extensions Supports 100rel (RFC 3262) ü Page 110 Supports Session Timer (RFC ü Page 110 4028) NAT Identity Keep Alive Interval ü Page 111 Supports Rport (RFC 3581) ü...
  • Page 66 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. CODEC Preferences G722 – – – Enable ü Page 117 Priority ü Page 117 PCMA – – – Enable ü Page 118 Priority Page 118 ü G726-32 –...
  • Page 67 4.1 Web User Interface Setting List Telephone Access Level Menu Item Section Title Setting Ref. Call Control Call Control Send SUBSCRIBE to Voice ü Page 120 Mail Server Conference Server URI ü Page 121 Inter-digit Timeout ü Page 121 Timer for Dial Plan ü...
  • Page 68 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Call Control [Line Call Control Display Name ü ü Page 124 1]–[Line x] Voice Mail Access Number ü Page 124 Enable Shared Call ü Page 125 Synchronize Do Not Disturb ü...
  • Page 69 4.1 Web User Interface Setting List Access Level Menu Item Section Title Setting Ref. Tone Settings Dial Tone Tone Frequencies ü Page 133 Tone Timings ü Page 134 Busy Tone Tone Frequencies ü Page 134 Tone Timings ü Page 135 Ringing Tone Tone Frequencies Page 135...
  • Page 70: Status

    4.2 Status Maintenance Access Level Menu Item Section Title Setting Ref. Firmware Firmware Maintenance Enable Firmware Update ü Page 143 Maintenance Update Type ü Page 144 Firmware File URL ü Page 144 Local Firmware Local Firmware Update Encryption ü Page 145 Update File Name ü...
  • Page 71: Version Information

    4.2.1 Version Information 4.2.1 Version Information This screen allows you to view the current version information such as the model number and the firmware version of the unit. 4.2.1.1 Version Information Model Description Indicates the model number of the unit (reference only). Value Range Model number Default Value...
  • Page 72: Network Status

    4.2.2 Network Status Default Value Current firmware version 4.2.2 Network Status This screen allows you to view the current network information of the unit, such as the MAC address, IP address, Ethernet port status, etc. Clicking [Refresh] updates the information displayed on the screen. 4.2.2.1 Network Status MAC Address Description...
  • Page 73: Connection Mode

    4.2.2 Network Status Value Range • Connected • Not connected Default Value Not applicable. Connection Mode Description Indicates whether the IP address of the unit is assigned automatically (DHCP) or manually (static) (reference only). Value Range • DHCP • Static Default Value Not applicable.
  • Page 74: Dns1

    4.2.3 VoIP Status DNS1 Description Indicates the specified IP address of the primary DNS server (reference only). Note • If the primary DNS server address is not specified, this field will be left blank. Value Range IP address of the primary DNS server Default Value Not applicable.
  • Page 75: Voip Status

    Note • The available line number varies depending on the type of the unit being used. Value Range • Line 1–Line 2 (for KX-UT113/KX-UT123) • Line 1–Line 4 (for KX-UT133/KX-UT136) • Line 1–Line 6 (for KX-UT248) Default Value Not applicable.
  • Page 76: Network

    4.3.1 Basic Network Settings Value Range • Registered: The unit has been registered to the SIP server, and the line can be used. • Registering: The unit is being registered to the SIP server, and the line cannot be used. •...
  • Page 77: Connection Mode

    4.3.1 Basic Network Settings "Embedded web" on the unit (® see Opening/Closing the Web Port in 1.1.6.3 Before Accessing the Web User Interface). 4.3.1.1 Connection Mode Connection Mode Description Selects whether to assign the IP address automatically (DHCP) or manually (static). •...
  • Page 78: Domain Name Server

    4.3.1 Basic Network Settings Value Range Max. 63 characters Note • You cannot leave this field empty. • If "{MODEL}" is included in this parameter, it will be replaced with the unit’s model name. Default Value {MODEL} Configuration File Reference HOST_NAME (Page 188) Domain Name Server Description...
  • Page 79: Subnet Mask

    4.3.1 Basic Network Settings Phone User Interface Configuring the Network Settings of the Unit (Page 19) Reference Configuration File Reference STATIC_IP_ADDRESS (Page 188) Subnet Mask Description Specifies the subnet mask for the unit. Note • This setting is available only when [Connection Mode] is set to [Static].
  • Page 80: Dns2

    To access it again, you need to correct the speed/duplex settings or perform IP Reset through phone user interface programming. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Administrator Guide Document Version...
  • Page 81: Link Speed/duplex Mode

    4.3.2 Ethernet Port Settings 4.3.2.1 Link Speed/Duplex Mode LAN Port Description Selects the connection mode (link speed and duplex mode) of the LAN port. • Value Range Auto Negotiation • 100 Mbps/Full Duplex • 100 Mbps/Half Duplex • 10 Mbps/Full Duplex •...
  • Page 82: Ip Phone (vlan Id)

    4.3.2 Ethernet Port Settings Default Value Configuration File Reference VLAN_ENABLE (Page 192) IP Phone (VLAN ID) Description Specifies the VLAN ID for this unit. Note • You cannot set this parameter if [Enable IEEE802.1X] is set to [Yes] (KX-UT248 only). Value Range 1–4094 Default Value...
  • Page 83: Pc (priority) (kx-ut123/kx-ut133/kx-ut136/kx-ut248 Only)

    4.3.3 IEEE802.1X Settings (KX-UT248 only) PC (Priority) (KX-UT123/KX-UT133/KX-UT136/KX-UT248 only) Description Selects the priority number for the PC. Note • You cannot set this parameter if [Enable IEEE802.1X] is set to [Yes] (KX-UT248 only). Value Range 0–7 Default Value Configuration File Reference VLAN_PRI_PC (Page 193) 4.3.3 IEEE802.1X Settings (KX-UT248 only) This screen allows you to configure settings relating to the IEEE 802.1X networking protocol.
  • Page 84: Ieee802.1x Authentication

    4.3.3 IEEE802.1X Settings (KX-UT248 only) 4.3.3.2 IEEE802.1X Authentication Authentication Protocol Description Specifies the authentication method used with the IEEE 802.1X protocol. Note • You cannot set this parameter if [Enable VLAN] is set to [Yes]. Value Range • EAP-MD5 • PEAP Default Value EAP-MD5...
  • Page 85: Http Client Settings

    4.3.4 HTTP Client Settings 4.3.4 HTTP Client Settings This screen allows you to change the HTTP client settings for the unit in order to access the HTTP server of your phone system and download configuration files. 4.3.4.1 HTTP Client Settings HTTP Version Description Selects which version of the HTTP protocol to use for HTTP...
  • Page 86: Http Authentication

    4.3.4 HTTP Client Settings Value Range Max. 40 characters Note • You cannot leave this field empty. • If "{mac}" is included in this field, it will be replaced with the unit’s MAC address in lower-case. • If "{MAC}" is included in this field, it will be replaced with the unit’s MAC address in upper-case.
  • Page 87: Proxy Server Address

    4.3.5 Global Address Detection Proxy Server Address Description Specifies the IP address or FQDN of the proxy server. Value Range Max. 127 characters Note • You cannot leave this field empty if [Enable Proxy] is set to [Yes]. Default Value Not stored.
  • Page 88: Detection Interval

    4.3.6 Static NAPT Settings Default Value STUN Detection Interval Description Specifies the interval, in seconds, to wait between attempts to detect the global IP address. Value Range 0, 10–65535 (0: Disable) Note • When [Detection Method] is set to [SIP], the value "0" disables detection and a value other than "0"...
  • Page 89: Global Ip Address

    4.3.6 Static NAPT Settings packets might be blocked by the router, depending on the SIP server. To avoid this problem, this setting is required. For details, see 1.1.7.2 NAT (Network Address Translation) Setup. 4.3.6.1 Global IP Address Global IP Address Description Specifies the global IP address of your network.
  • Page 90: Enable Global Ip Address Usage Per Line

    Description Selects whether to enable the NAT Traversal feature for each line. Note • The number of lines available varies depending on the phone being used, as follows: – KX-UT113/KX-UT123: 1–2 – KX-UT133/KX-UT136: 1–4 – KX-UT248: 1–6 Value Range •...
  • Page 91: Application Settings

    4.3.7 Application Settings 4.3.7 Application Settings This screen allows you to configure settings related to the XML application feature. 4.3.7.1 Application Settings Application Port Description Specifies the port number for receiving XML application data. Value Range 1–65535 Default Value 6666 Configuration File Reference XMLAPP_PORTNUM (Page 221) Enable Application...
  • Page 92: Authentication Password

    4.4.1 Web Language Authentication Password Description Specifies the authentication password used to access the XML application server. Value Range Max. 63 characters (except ", &, ', :, <, >, and space) Default Value Not stored. Configuration File Reference XMLAPP_USERPASS (Page 222) 4.4 System This section provides detailed descriptions about all the settings classified under the [System] tab.
  • Page 93: Administrator Password

    4.4.2 Administrator Password Value Range • English (US) • English (UK) • Deutsch • Français • Español • Italiano • Portugués • Русский Default Value English (US) 4.4.2 Administrator Password This screen allows you to change the password used to authenticate the Administrator account when logging in to the Web user interface.
  • Page 94: Confirm New Password

    4.4.3 Change User Password Value Range 6–16 characters (except ", &, ', :, <, >, and space) Default Value Not stored. Configuration File Reference ADMIN_PASS (Page 165) Confirm New Password Description Specifies the same password that you entered in [New Password] for confirmation.
  • Page 95: New Password

    4.4.4 Web Server Settings Default Value Not stored. Configuration File Reference USER_PASS (Page 166) New Password Description Specifies the new password to use to authenticate the User account when logging in to the Web user interface. Value Range 6–16 characters (except ", &, ', :, <, >, and space) Default Value Not stored.
  • Page 96: Web Server Settings

    4.4.4 Web Server Settings 4.4.4.1 Web Server Settings Web Server Port Description Specifies the port number used by the Web server. Value Range 80, 1024–49151 Note • You cannot specify here the same port number as any of the port numbers specified for the individual lines in [Source Port] in 4.5.2.5 SIP Source Port.
  • Page 97: Time Adjust Settings

    4.4.5 Time Adjust Settings 4.4.5 Time Adjust Settings This screen allows you to enable automatic clock adjustment using an NTP server and configure the settings for DST (Daylight Saving Time), also known as Summer Time. 4.4.5.1 Synchronization Enable Synchronization by NTP Description Selects whether to enable the unit to automatically adjust its clock according to the time information provided by an NTP server.
  • Page 98: Time Server

    4.4.5 Time Adjust Settings Configuration File Reference TIME_QUERY_INTVL (Page 197) 4.4.5.2 Time Server NTP Server Address Description Specifies the IP address or FQDN of the NTP server. Value Range Max. 127 characters Default Value Not stored. Configuration File Reference NTP_ADDR (Page 197) 4.4.5.3 Time Zone Time Zone Description...
  • Page 99: Start Day And Time Of Dst (start Day And Time Of Summer Time)

    4.4.5 Time Adjust Settings 4.4.5.5 Start Day and Time of DST (Start Day and Time of Summer Time) Month Description Selects the month in which DST (Summer Time) starts. Value Range • January • February • March • April • •...
  • Page 100: Time

    4.4.5 Time Adjust Settings Time Description Specifies the start time of DST (Summer Time) in minutes after 12:00 Value Range 0–1439 Default Value Configuration File Reference DST_START_TIME (Page 169) 4.4.5.6 End Day and Time of DST (End Day and Time of Summer Time) Month Description Selects the month in which DST (Summer Time) ends.
  • Page 101: Time

    4.5.1 SIP Settings Value Range • Sunday • Monday • Tuesday • Wednesday • Thursday • Friday • Saturday Default Value Sunday Configuration File Reference DST_STOP_DAY_OF_WEEK (Page 170) Time Description Specifies the end time of DST (Summer Time) in minutes after 12:00 Value Range 0–1439 Default Value...
  • Page 102: Sip Setting

    4.5.2 SIP Settings [Line 1]–[Line x] This screen allows you to change the SIP settings that are specific to each line. The number of lines available varies depending on the phone being used, as follows: • KX-UT113/KX-UT123: 1–2 • KX-UT133/KX-UT136: 1–4 •...
  • Page 103: Phone Number

    4.5.2 SIP Settings [Line 1]–[Line x] For details about flexible buttons, see 4.6.3 Flexible Button Settings (KX-UT133/KX-UT136/ KX-UT248 only). 4.5.2.1 Phone Number Phone Number Description Specifies the phone number to use as the user ID required for registration to the SIP registrar server. Note •...
  • Page 104: Sip Uri

    4.5.2 SIP Settings [Line 1]–[Line x] SIP URI Description Specifies the unique ID used by the SIP registrar server, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:user@example.com". Note • When registering using a user ID that is not a phone number, you should use this setting.
  • Page 105: Proxy Server Port

    4.5.2 SIP Settings [Line 1]–[Line x] Proxy Server Port Description Specifies the port number to use for communication with the SIP proxy server. Value Range 1–65535 Default Value 5060 Configuration File Reference SIP_PRXY_PORT_n (Page 240) Presence Server Address Description Specifies the IP address or FQDN of the SIP presence server. Value Range Max.
  • Page 106: Sip Service Domain

    4.5.2 SIP Settings [Line 1]–[Line x] 4.5.2.4 SIP Service Domain Service Domain Description Specifies the domain name provided by your phone system dealer. The domain name is the part of the SIP URI that comes after the "@" symbol. Value Range Max.
  • Page 107: Authentication Password

    4.5.2 SIP Settings [Line 1]–[Line x] Configuration File Reference SIP_AUTHID_n (Page 239) Authentication Password Description Specifies the authentication password used to access the SIP server. Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Not stored.
  • Page 108: Srv Lookup Prefix For Tcp

    4.5.2 SIP Settings [Line 1]–[Line x] SRV lookup Prefix for TCP Description Specifies a prefix to add to the domain name when performing a DNS SRV lookup using TCP. Note • This setting is available only when [Enable DNS SRV lookup] is set to [Yes].
  • Page 109: Timer B

    4.5.2 SIP Settings [Line 1]–[Line x] Value Range • • • • • Default Value Configuration File Reference SIP_TIMER_T2_n (Page 244) Timer B Description Specifies the value of SIP timer B (INVITE transaction timeout timer), in milliseconds. For details, refer to RFC 3261. Value Range 250–64000 Default Value...
  • Page 110: Timer J

    4.5.2 SIP Settings [Line 1]–[Line x] Timer J Description Specifies the value of SIP timer J (wait time for non-INVITE request resending), in milliseconds. For details, refer to RFC 3261. Value Range 0, 250–64000 Default Value 5000 Configuration File Reference SIP_TIMER_J_n (Page 258) 4.5.2.10 Quality of Service (QoS) SIP Packet QoS (DSCP)
  • Page 111: Nat Identity

    4.5.2 SIP Settings [Line 1]–[Line x] Default Value Configuration File Reference SIP_SESSION_TIME_n (Page 242) 4.5.2.12 NAT Identity Keep Alive Interval Description Specifies the interval, in seconds, between transmissions of the Keep Alive packet to the unit in order to maintain the NAT binding information. Note •...
  • Page 112: Voip Settings

    4.5.3 VoIP Settings Default Value Configuration File Reference SIP_DETECT_SSAF_n (Page 255) 4.5.3 VoIP Settings This screen allows you to change the VoIP settings that are common to all lines. 4.5.3.1 RTP Settings RTP Packet Time Description Selects the interval, in milliseconds, between transmissions of RTP packets.
  • Page 113: Maximum Rtp Port Number

    4.5.3 VoIP Settings Value Range 1024–48750 (even number only) Note • The value for this setting must be less than or equal to "[Maximum RTP Port Number] - 400". • Changing this setting may affect the number of simultaneous calls that can be made. Therefore, when setting this parameter, be aware that the maximum number of necessary ports can be calculated as shown below: No.
  • Page 114: Voip Settings [line 1]-[line X]

    4.5.4 VoIP Settings [Line 1]–[Line x] This screen allows you to change the VoIP settings that are specific to each line. The number of lines available varies depending on the phone being used, as follows: • KX-UT113/KX-UT123: 1–2 • KX-UT133/KX-UT136: 1–4 •...
  • Page 115: Statistical Information

    4.5.4 VoIP Settings [Line 1]–[Line x] Configuration File Reference DSCP_RTCP_n (Page 226) 4.5.4.2 Statistical Information RTCP Enable Description Selects whether to enable or disable RTCP (Real-Time Transport Control Protocol). For details, refer to RFC 3550. Value Range • • Default Value Configuration File Reference RTCP_ENABLE_n (Page 229) RTCP Interval...
  • Page 116: Initial Delay

    4.5.4 VoIP Settings [Line 1]–[Line x] Value Range 1 or 2 (´ 10 ms) Note • This setting is subject to the following conditions: – This value must be less than or equal to [Initial Delay] – This value must be less than [Maximum Delay] –...
  • Page 117: Call Hold

    4.5.4 VoIP Settings [Line 1]–[Line x] Value Range • • Note • If you select [Yes], DTMF tones will be sent in the SIP INFO message. If you select [No], the method selected in [DTMF Type] will be used. Default Value Configuration File Reference DTMF_RELAY_n (Page 231) 4.5.4.5 Call Hold...
  • Page 118: Pcma (enable)

    4.5.4 VoIP Settings [Line 1]–[Line x] PCMA (Enable) Description Selects whether to enable the PCMA codec for voice data transmission. Value Range • • Default Value Configuration File Reference CODEC_ENABLEx_n (Page 225) PCMA (Priority) Description Specifies the numerical order usage priority for the PCMA codec. Value Range 1–255 Default Value...
  • Page 119: G729a (priority)

    4.6 Telephone G729A (Priority) Description Specifies the numerical order usage priority for the G.729A codec. Value Range 1–255 Default Value Configuration File Reference CODEC_PRIORITYx_n (Page 225) PCMU (Enable) Description Selects whether to enable the PCMU codec for voice data transmission. Value Range •...
  • Page 120: Call Control

    4.6.1 Call Control 4.6.1 Call Control This screen allows you to configure various call features that are common to all lines. 4.6.1.1 Call Control Send SUBSCRIBE to Voice Mail Server Description Selects whether to send the SUBSCRIBE request to a voice mail server.
  • Page 121: Conference Server Uri

    4.6.1 Call Control Conference Server URI Description Specifies the URI for a conference server, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:conference@example.com". Note • In a SIP URI, the user part ("conference" in the example above) can contain up to 63 characters, and the host part ("example.com"...
  • Page 122: Country Calling Code

    Note • The available line number may vary depending on the type of the unit being used. Value Range 1–2 (for KX-UT113/KX-UT123) 1–4 (for KX-UT133/KX-UT136) 1–6 (for KX-UT248) Default Value Configuration File Reference DEFAULT_LINE_SELECT (Page 202)
  • Page 123: Flash Hook Event

    4.6.2 Call Control [Line 1]–[Line x] This screen allows you to configure various call features that are specific to each line. The number of lines available varies depending on the phone being used, as follows: • KX-UT113/KX-UT123: 1–2 Document Version 2012-02 Administrator Guide...
  • Page 124: Call Control

    4.6.2 Call Control [Line 1]–[Line x] • KX-UT133/KX-UT136: 1–4 • KX-UT248: 1–6 4.6.2.1 Call Control Display Name Description Specifies the name to display as the caller on the other party’s phone when you make a call. Value Range Max. 24 characters Note •...
  • Page 125: Enable Shared Call

    4.6.2 Call Control [Line 1]–[Line x] Configuration File Reference VM_NUMBER_n (Page 233) Enable Shared Call Description Selects whether to enable the Shared Call feature of the SIP server, which is used to share one line among the units. Note • You cannot set both [Enable Shared Call] and [Synchronize Do Not Disturb and Call Forward] to [Yes] at the same time.
  • Page 126: Resource List Uri

    4.6.2 Call Control [Line 1]–[Line x] Resource List URI Description Specifies the Uniform Resource Identifier string for the resource list, which consists of "sip:", a user part, the "@" symbol, and a host part, for example, "sip:user@example.com". For details, refer to RFC 4662. Note •...
  • Page 127: Call Features

    4.6.2 Call Control [Line 1]–[Line x] Value Range • • Note • If you select [Yes], calls will be made even if the dialed number does not match the dial formats specified in [Dial Plan] (i.e., dial plan filtering is disabled). If you select [No], calls will not be made if the dialed number does not match one of the dial formats specified in [Dial Plan] (i.e., dial plan filtering is enabled).
  • Page 128: Do Not Disturb

    4.6.2 Call Control [Line 1]–[Line x] Do Not Disturb Description Selects whether to enable the Do Not Disturb feature for incoming calls. Note • If Do Not Disturb has been enabled on the server, the server rejects incoming calls and the unit does not receive any calls, even if you have selected [No] for this setting.
  • Page 129: Unconditional (phone Number)

    4.6.2 Call Control [Line 1]–[Line x] Unconditional (Phone Number) Description Specifies the phone number of the destination to forward all incoming calls to. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
  • Page 130: Busy (phone Number)

    4.6.2 Call Control [Line 1]–[Line x] Busy (Phone Number) Description Specifies the phone number of the destination to forward calls to when the line is in use. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
  • Page 131: No Answer (phone Number)

    4.6.2 Call Control [Line 1]–[Line x] No Answer (Phone Number) Description Specifies the phone number of the destination to forward calls to when a call is not answered after it has rung a specified number of times. Note • If you change this setting when [Synchronize Do Not Disturb and Call Forward] is set to [Yes], the change to this setting is not immediately applied on this screen.
  • Page 132: Flexible Button Settings (kx-ut133/kx-ut136/kx-ut248 Only)

    4.6.3 Flexible Button Settings (KX-UT133/KX-UT136/KX-UT248 only) 4.6.3 Flexible Button Settings (KX-UT133/KX-UT136/KX-UT248 only) This screen allows you to configure various features for each flexible button. For more details, see 6.3 Flexible Buttons (KX-UT133/KX-UT136/KX-UT248 only). 4.6.3.1 Flexible Button Settings Type (No. 1–24) Description Selects the feature to be assigned to each flexible button.
  • Page 133: Label Name (no. 1-24)

    4.6.4 Tone Settings Label Name (No. 1–24) Description Specifies the message to be displayed on the screen when the flexible button is pressed. Value Range Max. 10 characters Note • You can use Unicode characters for this setting. Default Value For KX-UT133/KX-UT136: Not stored.
  • Page 134: Tone Timings

    4.6.4 Tone Settings Value Range 0, 200–2000 (0: No tone) Note • If the value for this setting is "350,440", the unit will use a mixed signal of a 350 Hz tone and a 440 Hz tone. Default Value 350,440 Configuration File Reference DIAL_TONE1_FRQ (Page 205) Tone Timings...
  • Page 135: Tone Timings

    4.6.4 Tone Settings Tone Timings Description Specifies the pattern, in milliseconds, of busy tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note • It is recommended that you set a value of 60 milliseconds or more for the first value (off 1).
  • Page 136: Stutter Tone

    4.6.4 Tone Settings 4.6.4.4 Stutter Tone Tone Frequencies Description Specifies the dual-tone frequencies, in hertz, of stutter dial tones to notify that a voice mail is waiting, using 2 whole numbers separated by a comma. Value Range 0, 200–2000 (0: No tone) Default Value 350,440 Configuration File Reference...
  • Page 137: Tone Timings

    4.6.5 Telephone Settings Tone Timings Description Specifies the pattern, in milliseconds, of reorder tones using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas. Note • It is recommended that you set a value of 60 milliseconds or more for the first value (off 1).
  • Page 138: Extension Pin

    Description Specifies the Personal Identification Number (PIN) of the extension. This is used to lock access to the call log and phonebook list. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Value Range Max.
  • Page 139: Import Phonebook

    4.6.7 Export Phonebook automatically, and you will need to click the text "HERE" before the timer expires in order for the import operation to function properly. 4.6.6.1 Import Phonebook File Name Description Specifies the path of the TSV (Tab-separated Value) file to import from the PC.
  • Page 140: Application Settings

    4.6.8 Application Settings settings are set to enable, and the file may not be exported successfully. In this case, try the export operation again or disable the Pop-up Blocker feature of your Web browser. 4.6.8 Application Settings This screen allows you to configure the various URLs used with the XML application feature. 4.6.8.1 Application Bootup URL Description Specifies the URL that is accessed when the unit starts up, to check for...
  • Page 141: Application Initial Url

    4.6.8 Application Settings Value Range Max. 244 characters Default Value Not stored. Configuration File Reference XMLAPP_START_URL (Page 222) 4.6.8.2 Application initial URL Description Specifies the URL that is accessed when the application is started from the unit's menu, to check for XML data. Value Range Max.
  • Page 142: Call Log Url

    4.6.8 Application Settings Value Range Max. 244 characters Default Value Not stored. Configuration File Reference XMLAPP_MAKECALL_URL (Page 223) 4.6.8.6 Call log URL Description Specifies the URL that is accessed when the call log is accessed, to check for XML data. Value Range Max.
  • Page 143: Authentication Password

    4.7.1 Firmware Maintenance Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Not stored. Configuration File Reference XMLAPP_LDAP_USERID (Page 224) Authentication Password Description Specifies the authentication password used to access the network phonebook server. Value Range Max.
  • Page 144: Update Type

    4.7.2 Local Firmware Update Value Range • • Default Value Configuration File Reference FIRM_UPGRADE_ENABLE (Page 173) Update Type Description Selects whether to display a confirmation message asking the user to perform a firmware update (manual) or perform the firmware update without asking the user (automatic) when the unit detects a newer version of firmware.
  • Page 145: Local Firmware Update

    4.7.3 Provisioning Maintenance Note • After the firmware has been successfully updated, the unit will restart automatically. 4.7.2.1 Local Firmware Update Encryption Description Selects whether the firmware files are encrypted or not. Value Range • • Default Value File Name Description Specifies the path of the firmware file to be imported.
  • Page 146: Provisioning Maintenance

    4.7.3 Provisioning Maintenance Note • Each unit can accept up to 3 configuration files. For details about provisioning, see 2.2 Provisioning. 4.7.3.1 Provisioning Maintenance Enable Provisioning Description Selects whether the unit is automatically configured by downloading the configuration files from the provisioning server of your phone system. Note •...
  • Page 147: Product File Url

    4.7.3 Provisioning Maintenance Product File URL Description Specifies the URL of the product configuration file, which is used when all units with the same model number need the same settings. Note • When you change this setting, set [Enable Provisioning] to [Yes] at the same time.
  • Page 148: Resync Interval

    4.7.4 Management Server Resync Interval Description Specifies the interval, in minutes, between periodic checks for updates of the configuration files. Value Range 1–40320 Default Value 10080 Configuration File Reference CFG_CYCLIC_INTVL (Page 181) Header Value for Resync Event Description Specifies the value of the "Event" header sent from the SIP server to the unit so that the unit can access the configuration files on the provisioning server.
  • Page 149: Management Server

    4.7.5 Reset to Defaults 4.7.4.1 Management Server Management Server URL Description Specifies the URL of the Auto-Configuration Server for using TR-069. Note • This parameter must be in the form of a valid HTTP or HTTPS URL, as defined in RFC 3986. Value Range Max.
  • Page 150: Restart

    4.7.6 Restart Note • If you have changed the default password for the Administrator account and successfully reset the settings (the message "Complete" is displayed), the next time you access the Web user interface, the authentication dialog box appears. 4.7.6 Restart This screen allows you to restart the unit by clicking [Restart].
  • Page 151: Configuration File Programming

    Section 5 Configuration File Programming This section provides information about the configuration parameters used in the configuration files. Document Version 2012-02 Administrator Guide...
  • Page 152: Configuration File Parameter List

    5.1 Configuration File Parameter List 5.1 Configuration File Parameter List The following tables show all the parameters that can be programmed using configuration file programming. For details about each parameter, see the reference pages listed. For details about configuration file specifications, see 2.4 Configuration File Specifications. System Settings Category Parameter Name...
  • Page 153 5.1 Configuration File Parameter List Category Parameter Name Ref. Firmware Update Settings Page 173 FIRM_UPGRADE_ENABLE FIRM_VERSION Page 174 Page 174 FIRM_UPGRADE_AUTO Page 174 FIRM_FILE_PATH Provisioning Settings OPTION66_ENABLE Page 175 OPTION66_REBOOT Page 175 Page 176 PROVISION_ENABLE Page 176 CFG_STANDARD_FILE_PATH Page 177 CFG_PRODUCT_FILE_PATH Page 178 CFG_MASTER_FILE_PATH...
  • Page 154 5.1 Configuration File Parameter List Category Parameter Name Ref. Management Server Settings Page 182 ACS_URL Page 182 ACS_USER_ID Page 183 ACS_PASS PERIODIC_INFORM_ENABLE Page 183 PERIODIC_INFORM_INTERVAL Page 183 PERIODIC_INFORM_TIME Page 183 CON_REQ_USER_ID Page 184 CON_REQ_PASS Page 184 ANNEX_G_STUN_ENABLE Page 185 ANNEX_G_STUN_SERV_ADDR Page 185 ANNEX_G_STUN_SERV_PORT Page 185...
  • Page 155 5.1 Configuration File Parameter List Category Parameter Name Ref. Ethernet Port Settings Page 192 VLAN_ENABLE Page 192 VLAN_ID_IP_PHONE Page 192 VLAN_PRI_IP_PHONE Page 193 VLAN_ID_PC Page 193 VLAN_PRI_PC IEEE 802.1X Settings (KX-UT248 Page 193 IEEE8021X_ENABLE only) Page 194 IEEE8021X_AUTH_PRTCL Page 194 IEEE8021X_USER_ID Page 194 IEEE8021X_USER_PASS...
  • Page 156 5.1 Configuration File Parameter List Telephone Settings Category Parameter Name Ref. Call Control Settings Page 199 VM_SUBSCRIBE_ENABLE Page 200 CONFERENCE_SERVER_URI FIRSTDIGIT_TIM Page 200 Page 200 INTDIGIT_TIM Page 201 MACRODIGIT_TIM Page 201 INTERNATIONAL_ACCESS_CODE Page 201 COUNTRY_CALLING_CODE Page 201 NATIONAL_ACCESS_CODE Page 202 DEFAULT_LINE_SELECT DATA_LINE_MODE Page 202...
  • Page 157 5.1 Configuration File Parameter List Category Parameter Name Ref. Tone Settings Page 205 DIAL_TONE1_FRQ DIAL_TONE1_GAIN Page 205 DIAL_TONE1_RPT Page 206 Page 206 DIAL_TONE1_TIMING DIAL_TONE2_FRQ Page 206 DIAL_TONE2_GAIN Page 206 DIAL_TONE2_RPT Page 207 DIAL_TONE2_TIMING Page 207 Page 207 DIAL_TONE4_FRQ DIAL_TONE4_GAIN Page 207 DIAL_TONE4_RPT Page 208 Page 208...
  • Page 158 5.1 Configuration File Parameter List Category Parameter Name Ref. CW_TONE1_RPT Page 213 CW_TONE1_TIMING Page 213 HOLD_TONE_FRQ Page 213 HOLD_TONE_GAIN Page 213 HOLD_TONE_RPT Page 214 HOLD_TONE_TIMING Page 214 BELL_CORE_PATTERN1_TIMING Page 214 BELL_CORE_PATTERN2_TIMING Page 214 BELL_CORE_PATTERN3_TIMING Page 215 BELL_CORE_PATTERN4_TIMING Page 215 BELL_CORE_PATTERN5_TIMING Page 215 Telephone Settings DISPLAY_NAME_REPLACE...
  • Page 159 5.1 Configuration File Parameter List Category Parameter Name Ref. XML Application Settings Page 221 XMLAPP_PORTNUM Page 221 XMLAPP_ENABLE Page 221 XMLAPP_USERID Page 222 XMLAPP_USERPASS Page 222 XMLAPP_START_URL Page 222 XMLAPP_INITIAL_URL Page 222 XMLAPP_INCOMING_URL Page 223 XMLAPP_TALKING_URL Page 223 XMLAPP_MAKECALL_URL Page 223 XMLAPP_CALLLOG_URL Page 223 XMLAPP_IDLING_URL...
  • Page 160 5.1 Configuration File Parameter List Category Parameter Name Ref. RTP Settings Page 226 DSCP_RTP_n Page 226 DSCP_RTCP_n Page 227 RTCP_INTVL_n Page 227 MAX_DELAY_n Page 227 MIN_DELAY_n Page 228 NOM_DELAY_n Page 228 RTP_PORT_MIN Page 228 RTP_PORT_MAX Page 229 RTP_PTIME Page 229 RTCP_ENABLE_n RTCP_SEND_BY_SDP_n Page 230...
  • Page 161: Line Settings

    5.1 Configuration File Parameter List Line Settings Category Parameter Name Ref. Call Control Settings Page 233 DISPLAY_NAME_n Page 233 VM_NUMBER_n Page 233 DIAL_PLAN_n Page 234 DIAL_PLAN_NOT_MATCH_ENABLE_n Page 234 SHARED_CALL_ENABLE_n Page 235 FWD_DND_SYNCHRO_ENABLE_n Page 235 RESOURCELIST_URI_n CW_ENABLE_n Page 236 RETURN_VOL_SET_DEFAULT_ENABLE Page 236 Page 236 FLASH_RECALL_TERMINATE Page 236...
  • Page 162 5.1 Configuration File Parameter List Category Parameter Name Ref. SIP_2NDPROXY_ADDR_n Page 243 SIP_2NDPROXY_PORT_n Page 243 SIP_2NDRGSTR_ADDR_n Page 244 SIP_2NDRGSTR_PORT_n Page 244 Page 244 SIP_TIMER_T1_n Page 244 SIP_TIMER_T2_n SIP_TIMER_T4_n Page 245 SIP_FOVR_NORSP_n Page 245 SIP_FOVR_MAX_n Page 246 SIP_REFRESHER_n Page 246 Page 246 SIP_DNSSRV_ENA_n Page 247 SIP_UDP_SRV_PREFIX_n...
  • Page 163: General Information On The Configuration Files

    5.2.1 Configuration File Parameters Category Parameter Name Ref. Page 254 SIP_OUTPROXY_ADDR_n Page 254 SIP_OUTPROXY_PORT_n Page 254 SIP_TRANSPORT_n SIP_ANM_DISPNAME_n Page 254 SIP_ANM_USERNAME_n Page 255 SIP_ANM_HOSTNAME_n Page 255 Page 255 SIP_DETECT_SSAF_n SIP_RCV_DET_HEADER_n Page 256 SIP_CONTACT_ON_ACK_n Page 256 Page 257 SIP_TIMER_B_n Page 257 SIP_TIMER_D_n Page 257 SIP_TIMER_F_n...
  • Page 164: Characters Available For String Values

    5.2.2 Characters Available for String Values – KX-UT113/KX-UT123: 1–2 – KX-UT133/KX-UT136: 1–4 – KX-UT248: 1–6 Value Format Each parameter value is categorized into Integer, Boolean, or String. Some parameters require a composite form such as "Comma-separated Integer" or "Comma-separated String".
  • Page 165: System Settings

    5.3.1 Login Account Settings Available ASCII characters are shown on a white background in the following table: 5.3 System Settings 5.3.1 Login Account Settings ADMIN_ID Value Format String Description Specifies the account ID used to access the Web user interface with the Administrator account.
  • Page 166: User_id

    5.3.2 System Time Settings USER_ID Value Format String Description Specifies the account ID used to access the Web user interface with the User account. Value Range Max. 16 characters (except ", &, ', :, <, >, and space) Note • An empty string is not allowed.
  • Page 167: Dst_enable

    5.3.2 System Time Settings Value Range -720–780 Note • Only the following values are available: -720 (GMT -12:00), -660 (GMT -11:00), -600 (GMT -10:00), -540 (GMT -09:00), -480 (GMT -08:00), -420 (GMT -07:00), -360 (GMT -06:00), -300 (GMT -05:00), -240 (GMT -04:00), -210 (GMT -03:30), -180 (GMT -03:00), -120 (GMT -02:00), -60 (GMT -01:00), 0 (GMT), 60 (GMT +01:00), 120 (GMT +02:00), 180 (GMT +03:00), 210 (GMT +03:30), 240 (GMT +04:00), 270...
  • Page 168: Dst_start_month

    5.3.2 System Time Settings Value Range 0–720 Note • This parameter is usually set to "60". Default Value Web User Interface Reference DST Offset (Summer Time Offset) (Page 98) DST_START_MONTH Value Format Integer Description Specifies the month in which DST (Summer Time) starts. Note •...
  • Page 169: Dst_start_time

    5.3.2 System Time Settings Description Specifies the day of the week on which DST (Summer Time) starts. Note • This parameter is disabled when the "LOCAL_TIME_ZONE_POSIX" parameter is specified. Value Range 0–6 – 0: Sunday – 1: Monday – 2: Tuesday –...
  • Page 170: Dst_stop_ordinal_day

    5.3.2 System Time Settings DST_STOP_ORDINAL_DAY Value Format Integer Description Specifies the number of the week on which DST (Summer Time) ends. The actual end day is specified in "DST_STOP_DAY_OF_WEEK". For example, to specify the second Sunday, specify "2" in this parameter, and "0"...
  • Page 171: Local_time_zone_posix

    5.3.3 Syslog Settings Description Specifies the end time of DST (Summer Time) in minutes after 12:00 Note • This parameter is disabled when the "LOCAL_TIME_ZONE_POSIX" parameter is specified. Value Range 0–1439 Default Value Web User Interface Reference Time (Page 101) LOCAL_TIME_ZONE_POSIX Value Format String...
  • Page 172: Syslog_event_cfg

    5.3.3 Syslog Settings Value Range 0–6 – 0: no logs sent – 1: emergency (highest) – 2: alert – 3: critical – 4: error – 5: warning – 6: information (lowest) Default Value SYSLOG_EVENT_CFG Value Format Integer Description Specifies the threshold of syslog events regarding configuration. Value Range 0–6 Default Value...
  • Page 173: Syslog_port

    5.3.4 Firmware Update Settings Default Value Empty string SYSLOG_PORT Value Format Integer Description Specifies the port number of the syslog server. Value Range 1–65535 Default Value SYSLOG_RTPSMLY_INTVL_n Parameter Name Example SYSLOG_RTPSMLY_INTVL_1, SYSLOG_RTPSMLY_INTVL_2, …, SYSLOG_RTPSMLY_INTVL_6 Value Format Integer Description Specifies the interval, in seconds, to send summarized information of RTP packets to the syslog server.
  • Page 174: Firm_version

    5.3.4 Firmware Update Settings FIRM_VERSION Value Format String Description Specifies the firmware version of the unit. Note • Changing this setting may require restarting the unit. Value Range 00.000–15.999 Default Value Empty string FIRM_UPGRADE_AUTO Value Format Boolean Description Specifies whether to display a confirmation message asking the user to perform a firmware update (manual) or perform the firmware update without asking the user (automatic) when the unit detects a newer version of firmware.
  • Page 175: Provisioning Settings

    5.3.5 Provisioning Settings Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>". – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
  • Page 176: Provision_enable

    5.3.5 Provisioning Settings Value Range • Y (Restart automatically) • N (Do not restart automatically) Default Value PROVISION_ENABLE Value Format Boolean Description Specifies whether the unit is automatically configured by downloading the configuration files from the provisioning server of your phone system.
  • Page 177: Cfg_product_file_path

    5.3.5 Provisioning Settings Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
  • Page 178: Cfg_master_file_path

    5.3.5 Provisioning Settings Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
  • Page 179: Cfg_file_key1

    5.3.5 Provisioning Settings Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
  • Page 180: Cfg_file_key2

    5.3.5 Provisioning Settings CFG_FILE_KEY2 Value Format String Description Specifies the encryption key (password) used to decrypt configuration files. Note • If the extension of the configuration file is ".e2c", the configuration file will be decrypted using this key. Value Range 32-byte characters Note •...
  • Page 181: Cfg_cyclic_intvl

    5.3.5 Provisioning Settings Description Specifies whether the unit periodically checks for updates of configuration files. Value Range • Y (Enable periodic synchronization of configuration files) • N (Disable periodic synchronization of configuration files) Default Value Web User Interface Reference Cyclic Auto Resync (Page 147) CFG_CYCLIC_INTVL Value Format Integer...
  • Page 182: Cfg_resync_from_sip

    5.3.6 Management Server Settings Value Range 00:00–23:59 Note • If the value for this setting is any valid value other than an empty string, the unit downloads the configuration files at the fixed time, and the settings specified in "CFG_CYCLIC", "CFG_CYCLIC_INTVL", and "CFG_RTRY_INTVL"...
  • Page 183: Acs_pass

    5.3.6 Management Server Settings Description Specifies the user ID for the Auto-Configuration Server for using TR-069. Value Range Max. 255 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication ID (Page 149) ACS_PASS Value Format String...
  • Page 184: Con_req_user_id

    5.3.6 Management Server Settings Description Specifies the time (UTC) to determine when the CPE will initiate the periodic Inform method calls. Note • Each Inform call must occur at this reference time plus or minus an integer multiple of the "PERIODIC_INFORM_INTERVAL". This "PERIODIC_INFORM_TIME"...
  • Page 185: Annex_g_stun_enable

    5.3.6 Management Server Settings ANNEX_G_STUN_ENABLE Value Format Boolean Description Specifies whether or not the CPE can use STUN. This applies only to the use of STUN in association with the ACS to allow UDP Connection Requests. Value Range • Y (Enable) •...
  • Page 186: Annex_g_stun_pass

    5.3.6 Management Server Settings Description Specifies the STUN username to be used in Binding Requests (only if message integrity has been requested by the STUN server). Note • If the value for this setting is an empty string, the CPE must not send STUN Binding Requests with message integrity.
  • Page 187: Udp_con_req_addr_notify_limit

    5.4.1 IP Settings Description Specifies the minimum period, in seconds, that STUN Binding Requests can be sent by the CPE for the purpose of maintaining the binding in the Gateway. This limit applies only to Binding Requests sent from the UDP Connection Request address and port, and only those that do not contain the BINDING-CHANGE attribute.
  • Page 188: Host_name

    5.4.1 IP Settings HOST_NAME Value Format String Description Specifies the host name for the unit to send to the DHCP server. Note • This setting is available only when "CONNECTION_TYPE" is set to "1". Value Range Max. 63 characters Note •...
  • Page 189: Static_subnet

    5.4.1 IP Settings Value Range IP address in dotted-decimal notation Default Value Empty string Phone User Interface Configuring the Network Settings of the Unit (Page 19) Reference Web User Interface Reference Static IP Address (Page 78) STATIC_SUBNET Value Format String Description Specifies the subnet mask for the unit.
  • Page 190: User_dns1_addr

    5.4.2 DNS Settings USER_DNS1_ADDR Value Format String Description Specifies the IP address of the primary DNS server. Note • This setting is available only when "CONNECTION_TYPE" is set to "0" and when "NW_SETTING_ENABLE" is set to "N". Value Range IP address in dotted-decimal notation Default Value Empty string Phone User Interface...
  • Page 191: Dns_priority

    5.4.2 DNS Settings Value Range • Y (Parallel) • N (Sequential) Note • If set to "Y", the unit sends out all DNS queries at the same time. The first DNS reply will be accepted and used by the unit. •...
  • Page 192: Ethernet Port Settings

    5.4.3 Ethernet Port Settings Default Value Empty string 5.4.3 Ethernet Port Settings VLAN_ENABLE Value Format Boolean Description Specifies whether to use the VLAN feature to perform VoIP communication securely. Note • This setting is available only when both "NW_SETTING_ENABLE" and "IEEE8021X_ENABLE"...
  • Page 193: Vlan_id_pc

    5.4.4 IEEE 802.1X Settings (KX-UT248 only) Default Value Web User Interface Reference IP Phone (Priority) (Page 82) VLAN_ID_PC Value Format Integer Description Specifies the VLAN ID for the PC. Note • This setting is available only when both "NW_SETTING_ENABLE" and "IEEE8021X_ENABLE"...
  • Page 194: Ieee8021x_auth_prtcl

    5.4.4 IEEE 802.1X Settings (KX-UT248 only) Value Range • Y (Enable) • N (Disable) Default Value Web User Interface Reference Enable IEEE802.1X (Page 83) IEEE8021X_AUTH_PRTCL Value Format String Description Specifies the authentication method used with the IEEE 802.1X protocol. Note •...
  • Page 195: Http Settings

    5.4.5 HTTP Settings Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication Password (Page 84) 5.4.5 HTTP Settings HTTPD_PORTOPEN_AUTO Value Format Boolean Description Specifies whether the unit’s Web port is always open. Value Range •...
  • Page 196: Http_ssl_verify

    5.4.5 HTTP Settings Value Range Max. 40 characters Note • An empty string is not allowed. • If "{mac}" is included in this parameter, it will be replaced with the unit’s MAC address in lower-case. • If "{MAC}" is included in this parameter, it will be replaced with the unit’s MAC address in upper-case.
  • Page 197: Time Adjust Settings

    5.4.6 Time Adjust Settings Value Range Max. 500 characters Note • The format must be RFC 1738 compliant, as follows: "<scheme>://<user>:<password>@<host>:<port>/<url-path>" – "<user>" must be less than 128 characters. – "<password>" must be less than 128 characters. – "<user>:<password>@" may be empty. –...
  • Page 198: Stun Settings

    5.4.7 STUN Settings 5.4.7 STUN Settings STUN_SERV_ADDR Value Format String Description Specifies the IP address or FQDN of the STUN server. Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string Web User Interface Reference STUN Server Address (Page 88) STUN_SERV_PORT Value Format...
  • Page 199: Miscellaneous Network Settings

    5.5.1 Call Control Settings 5.4.8 Miscellaneous Network Settings NW_SETTING_ENABLE Value Format Boolean Description Specifies whether to enable the network settings from the unit. Note • If you change this setting to "N" when the network settings (with the exception of "HOST_NAME") in 5.4.1 IP Settings have been made through Web user interface programming, clear these settings once by performing Reset Web Settings from the Web user interface, and then change this setting to "N".
  • Page 200: Conference_server_uri

    5.5.1 Call Control Settings Value Range • Y (Send the SUBSCRIBE request) • N (Do not send the SUBSCRIBE request) Default Value Web User Interface Reference Send SUBSCRIBE to Voice Mail Server (Page 120) CONFERENCE_SERVER_URI Value Format String Description Specifies the URI for a conference server, which consists of "sip:", a user part, the "@"...
  • Page 201: Macrodigit_tim

    5.5.1 Call Control Settings MACRODIGIT_TIM Value Format Integer Description Specifies the length of time, in seconds, that the unit waits when a "T" or "t" has been entered in the dial plan. Value Range 1–15 Default Value Web User Interface Reference Timer for Dial Plan (Page 121) INTERNATIONAL_ACCESS_CODE Value Format...
  • Page 202: Default_line_select

    Note • The available line number varies depending on the type of the unit being used. Value Range 1–2 (for KX-UT113/KX-UT123) 1–4 (for KX-UT133/KX-UT136) 1–6 (for KX-UT248) Default Value Web User Interface Reference Default Line for Outgoing (Page 122)
  • Page 203: Hold_package

    5.5.1 Call Control Settings Value Range • Y (Enable Talk Package) • N (Disable Talk Package) Default Value HOLD_PACKAGE Value Format Boolean Description Specifies whether to enable the Click to Hold function. Note • When this parameter is set to "Y", "hold" is added to the Allow-Events header.
  • Page 204: Auto_call_hold

    5.5.1 Call Control Settings Default Value AUTO_CALL_HOLD Value Format Boolean Description Selects whether calls are disconnected or held when a DN button is pressed while having a conversation. Value Range • Y (Enable Auto Call Hold) • N (Disable Auto Call Hold) Default Value REDIALKEY_CALLLOG_ENABLE Value Format...
  • Page 205: Tone_len_disconnect_handset

    5.5.2 Tone Settings TONE_LEN_DISCONNECT_HANDSET Value Format Integer Description Specifies the duration, in seconds, that a disconnect tone will be heard when the other party ends a call and the handset is being used. Value Range 1–15 Default Value TONE_LEN_DISCONNECT_HANDSFREE Value Format Integer Description Specifies the duration, in seconds, that a disconnect tone will be heard...
  • Page 206: Dial_tone1_rpt

    5.5.2 Tone Settings Description Specifies the gain, in decibels, of Dial Tone 1. Value Range -24–6 Default Value DIAL_TONE1_RPT Value Format Integer Description Specifies whether Dial Tone 1 is repeated. Value Range 0–1 – 0: No Repeat – 1: Repeat Default Value DIAL_TONE1_TIMING Value Format...
  • Page 207: Dial_tone2_rpt

    5.5.2 Tone Settings Description Specifies the gain, in decibels, of Dial Tone 2. Value Range -24–6 Default Value DIAL_TONE2_RPT Value Format Integer Description Specifies whether Dial Tone 2 is repeated. Value Range 0–1 – 0: No Repeat – 1: Repeat Default Value DIAL_TONE2_TIMING Value Format...
  • Page 208: Dial_tone4_rpt

    5.5.2 Tone Settings Description Specifies the gain, in decibels, of Dial Tone 4 (stutter-type dial tone). Value Range -24–6 Default Value DIAL_TONE4_RPT Value Format Integer Description Specifies whether Dial Tone 4 (stutter-type dial tone) is repeated. Value Range 0–1 – 0: No Repeat –...
  • Page 209: Busy_tone_gain

    5.5.2 Tone Settings BUSY_TONE_GAIN Value Format Integer Description Specifies the gain, in decibels, of the busy tone. Value Range -24–6 Default Value BUSY_TONE_RPT Value Format Integer Description Specifies whether the busy tone is repeated. Value Range 0–1 – 0: No Repeat –...
  • Page 210: Reorder_tone_gain

    5.5.2 Tone Settings REORDER_TONE_GAIN Value Format Integer Description Specifies the gain, in decibels, of the reorder tone. Value Range -24–6 Default Value REORDER_TONE_RPT Value Format Integer Description Specifies whether the reorder tone is repeated. Value Range 0–1 – 0: No Repeat –...
  • Page 211: Ringback_tone_gain

    5.5.2 Tone Settings RINGBACK_TONE_GAIN Value Format Integer Description Specifies the gain, in decibels, of the ringback tone. Value Range -24–6 Default Value RINGBACK_TONE_RPT Value Format Integer Description Specifies whether the ringback tone is repeated. Value Range 0–1 – 0: No Repeat –...
  • Page 212: Hold_alarm_gain

    5.5.2 Tone Settings HOLD_ALARM_GAIN Value Format Integer Description Specifies the gain, in decibels, of the hold alarm. Value Range -24–6 Default Value HOLD_ALARM_RPT Value Format Integer Description Specifies whether the hold alarm is repeated. Value Range 0–1 – 0: No Repeat –...
  • Page 213: Cw_tone1_rpt

    5.5.2 Tone Settings Value Range -24–6 Default Value CW_TONE1_RPT Value Format Integer Description Specifies whether call waiting tone 1 is repeated. Value Range 0–1 – 0: No Repeat – 1: Repeat Default Value CW_TONE1_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of call waiting tone 1 using up to 10 whole numbers (on 1, off 1, on 2, off 2…) separated by commas.
  • Page 214: Hold_tone_rpt

    5.5.2 Tone Settings HOLD_TONE_RPT Value Format Integer Description Specifies whether the hold tone is repeated. Value Range 0–1 – 0: No Repeat – 1: Repeat Default Value HOLD_TONE_TIMING Value Format Comma-separated Integer Description Specifies the pattern, in milliseconds, of the hold tone using up to 10 whole numbers (off 1, on 1, off 2, on 2…) separated by commas.
  • Page 215: Bell_core_pattern3_timing

    5.5.2 Tone Settings Description Specifies the cadence, in milliseconds, of pattern ID 2, described in the LSSGR, GR-506-CORE, "Signaling for Analog Interfaces" section 14, using up to 8 whole numbers (on 1, off 1, on 2, off 2…) separated by commas.
  • Page 216: Telephone Settings

    5.5.3 Telephone Settings Value Range 0–5000 (0: Infinite time) Note • Avoid setting 1–50 for any of the values. Default Value 5.5.3 Telephone Settings DISPLAY_NAME_REPLACE Value Format Boolean Description Specifies whether the name saved in the phonebook is used in place of the name display if a matching entry is found.
  • Page 217: Display_time_pattern

    5.5.3 Telephone Settings Description Selects the display order pattern for the day and month of the date. Value Range 0–2 – 0: Not specified – 1: DDMM – 2: MMDD Default Value DISPLAY_TIME_PATTERN Value Format Integer Description Selects the display type for the time (12- or 24-hour format). Value Range 0–2 –...
  • Page 218: Extension_pin

    Description Specifies the PIN (Personal Identification Number) of the extension. This is used to lock access to the call log and phonebook list. For details, refer to the Operating Instructions on the Panasonic Web site (® see Introduction). Value Range Max.
  • Page 219: Flexible Button Settings (kx-ut133/kx-ut136/kx-ut248 Only)

    5.5.5 Flexible Button Settings (KX-UT133/KX-UT136/KX-UT248 only) Note • It is necessary to specify 2 digits for each of the 30 acoustic settings (i.e., a total of 60 digits in succession). Even if you are not changing a value, you must enter "00". The digit order (offset) of each setting is as follows: –...
  • Page 220: Flex_button_facility_argx

    5.5.5 Flexible Button Settings (KX-UT133/KX-UT136/KX-UT248 only) Description Specifies a particular Facility Action for the flexible button. No facility action will be taken for the button if the string is empty or invalid. Note • If this parameter is specified, "FLEX_BUTTON_QUICK_DIALx" should be an empty string. Value Range Only the following values are available: X_PANASONIC_IPTEL_DN, X_PANASONIC_IPTEL_HEADSET,...
  • Page 221: Xml Application Settings

    5.5.6 XML Application Settings Description Specifies the message to be displayed on the screen when the flexible button is pressed. Value Range Max. 10 characters Note • You can use Unicode characters for this setting. Default Value For KX-UT133/KX-UT136: Not stored. For KX-UT248: No.
  • Page 222: Xmlapp_userpass

    5.5.6 XML Application Settings XMLAPP_USERPASS Value Format String Description Specifies the authentication password used to access the XML application server. Value Range Max. 63 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication Password (Page 92) XMLAPP_START_URL Value Format...
  • Page 223: Xmlapp_talking_url

    5.5.6 XML Application Settings XMLAPP_TALKING_URL Value Format String Description Specifies the URL that is accessed when the unit is on a call, to check for XML data. Value Range Max. 244 characters Default Value Empty string Web User Interface Reference URL (Page 141) XMLAPP_MAKECALL_URL Value Format...
  • Page 224: Xmlapp_ldap_url

    5.6.1 Codec Settings XMLAPP_LDAP_URL Value Format String Description Specifies the URL that is accessed when the phonebook is accessed, to check for XML data. Value Range Max. 244 characters Default Value Empty string Web User Interface Reference URL (Page 142) XMLAPP_LDAP_USERID Value Format String...
  • Page 225: Codec_g729_param

    5.6.1 Codec Settings Default Value CODEC_G729_PARAM Value Format Integer Description Specifies whether to add an attribute line, "a=fmtp:18 annexb=no", to SDP when the codec is set to "G729A". Value Range • 0 (Do not add "a=fmtp:18 annexb=no") • 1 (Add "a=fmtp:18 annexb=no") Default Value CODEC_ENABLEx_n Parameter Name Example...
  • Page 226: Rtp Settings

    5.6.2 RTP Settings Description Specifies the priority order for the codec. Note • The "x" character in the parameter title should be changed to one of the following numbers, according to the codec to be changed. – 0: G.722 – 1: PCMA –...
  • Page 227: Rtcp_intvl_n

    5.6.2 RTP Settings RTCP_INTVL_n Parameter Name Example RTCP_INTVL_1, RTCP_INTVL_2, …, RTCP_INTVL_6 Value Format Integer Description Specifies the interval, in seconds, between RTCP packets. Value Range 5–65535 Default Value Web User Interface Reference RTCP Interval (Page 115) MAX_DELAY_n Parameter Name Example MAX_DELAY_1, MAX_DELAY_2, …, MAX_DELAY_6 Value Format Integer...
  • Page 228: Nom_delay_n

    5.6.2 RTP Settings NOM_DELAY_n Parameter Name Example NOM_DELAY_1, NOM_DELAY_2, …, NOM_DELAY_6 Value Format Integer Description Specifies the initial delay, in 10-millisecond units, of the jitter buffer. Value Range 1–7 (´ 10 ms) Note • This setting is subject to the following conditions: –...
  • Page 229: Rtp_ptime

    5.6.2 RTP Settings Description Specifies the highest port number that the unit will use for RTP packets. Note • If port numbers are specified in [Channel 1–25] in 4.3.6.3 External RTP Port in the Web user interface, this setting is ignored and the corresponding external RTP port is enabled.
  • Page 230: Rtcp_send_by_sdp_n

    5.6.3 Miscellaneous VoIP Settings RTCP_SEND_BY_SDP_n Parameter Name Example RTCP_SEND_BY_SDP_1, RTCP_SEND_BY_SDP_2, …, RTCP_SEND_BY_SDP_6 Value Format Integer Description Specifies whether to send RTCP signals by SDP (Session Description Protocol). Value Range 0–1 – 0: Send RTCP signals using the value specified in "RTCP_INTVL_n", if the "RTCP_ENABLE_n"...
  • Page 231: Dtmf_relay_n

    5.6.3 Miscellaneous VoIP Settings DTMF_RELAY_n Parameter Name Example DTMF_RELAY_1, DTMF_RELAY_2, …, DTMF_RELAY_6 Value Format Boolean Description Selects whether DTMF tones are sent in the SIP INFO message. Value Range • • Note • If set to "Y", DTMF tones will be sent in the SIP INFO message. •...
  • Page 232: Rfc2543_hold_enable_n

    5.6.3 Miscellaneous VoIP Settings Web User Interface Reference Telephone-event Payload Type (Page 113) RFC2543_HOLD_ENABLE_n Parameter Name Example RFC2543_HOLD_ENABLE_1, RFC2543_HOLD_ENABLE_2, …, RFC2543_HOLD_ENABLE_6 Value Format Boolean Description Specifies whether to enable the RFC 2543 Call Hold feature on this line. Value Range •...
  • Page 233: Line Settings

    5.7.1 Call Control Settings 5.7 Line Settings 5.7.1 Call Control Settings DISPLAY_NAME_n Parameter Name Example DISPLAY_NAME_1, DISPLAY_NAME_2, …, DISPLAY_NAME_6 Value Format String Description Specifies the name to display as the caller on the other party’s phone when you make a call. Value Range Max.
  • Page 234: Dial_plan_not_match_enable_n

    5.7.1 Call Control Settings DIAL_PLAN_NOT_MATCH_ENABLE_n Parameter Name Example DIAL_PLAN_NOT_MATCH_ENABLE_1, DIAL_PLAN_NOT_MATCH_ENABLE_2, …, DIAL_PLAN_NOT_MATCH_ENABLE_6 Value Format Boolean Description Specifies whether to enable dial plan filtering so that a call is not made when the dialed number does not match any of the dial formats specified in "DIAL_PLAN_n".
  • Page 235: Fwd_dnd_synchro_enable_n

    5.7.1 Call Control Settings FWD_DND_SYNCHRO_ENABLE_n Parameter Name Example FWD_DND_SYNCHRO_ENABLE_1, FWD_DND_SYNCHRO_ENABLE_2, …, FWD_DND_SYNCHRO_ENABLE_6 Value Format Boolean Description Specifies whether to synchronize the Do Not Disturb and Call Forward settings, configured via the Web user interface or phone user interface, between the unit and the portal server that is provided by your phone system dealer.
  • Page 236: Cw_enable_n

    5.7.1 Call Control Settings CW_ENABLE_n Parameter Name Example CW_ENABLE_1, CW_ENABLE_2, …, CW_ENABLE_6 Value Format Boolean Description Specifies whether automatic call waiting is enabled. Value Range • Y (Enable Call Waiting) • N (Disable Call Waiting) Default Value RETURN_VOL_SET_DEFAULT_ENABLE Value Format Boolean Description Specifies whether the volume is returned to its default setting after each...
  • Page 237: Voice_message_available

    5.7.2 SIP Settings VOICE_MESSAGE_AVAILABLE Value Format Boolean Description Selects how the existence of voice messages is determined when a "Messages-Waiting: yes" message is received. Value Range • Y (Determines that voice messages exist when "Messages-Waiting: yes" is received with a "Voice-Message" line included.) •...
  • Page 238: Phone_number_n

    5.7.2 SIP Settings Value Range Max. 40 characters Note • An empty string is not allowed. • If "{mac}" is included in this parameter, it will be replaced with the unit’s MAC address in lower-case. • If "{MAC}" is included in this parameter, it will be replaced with the unit’s MAC address in upper-case.
  • Page 239: Line_enable_n

    5.7.2 SIP Settings Default Value Empty string Web User Interface Reference SIP URI (Page 104) LINE_ENABLE_n Parameter Name Example LINE_ENABLE_1, LINE_ENABLE_2, …, LINE_ENABLE_6 Value Format String Description Specifies whether a line is enabled or disabled. Note • Even when this parameter is enabled, if the "PROFILE_ENABLEn"...
  • Page 240: Sip_pass_n

    5.7.2 SIP Settings SIP_PASS_n Parameter Name Example SIP_PASS_1, SIP_PASS_2, …, SIP_PASS_6 Value Format String Description Specifies the authentication password used to access the SIP server. Value Range Max. 127 characters (except ", &, ', :, <, >, and space) Default Value Empty string Web User Interface Reference Authentication Password (Page 107)
  • Page 241: Sip_rgstr_addr_n

    5.7.2 SIP Settings Value Format Integer Description Specifies the port number to use for communication with the SIP proxy server. Value Range 1–65535 Default Value 5060 Web User Interface Reference Proxy Server Port (Page 105) SIP_RGSTR_ADDR_n Parameter Name Example SIP_RGSTR_ADDR_1, SIP_RGSTR_ADDR_2, …, SIP_RGSTR_ADDR_6 Value Format String...
  • Page 242: Reg_expire_time_n

    5.7.2 SIP Settings REG_EXPIRE_TIME_n Parameter Name Example REG_EXPIRE_TIME_1, REG_EXPIRE_TIME_2, …, REG_EXPIRE_TIME_6 Value Format Integer Description Specifies the length of time, in seconds, that the registration remains valid. This value is set in the "Expires" header of the REGISTER request. Value Range 1–4294967295 Default Value 3600...
  • Page 243: Dscp_sip_n

    5.7.2 SIP Settings Value Range 0–2 – 0: reINVITE – 1: UPDATE – 2: AUTO Default Value DSCP_SIP_n Parameter Name Example DSCP_SIP_1, DSCP_SIP_2, …, DSCP_SIP_6 Value Format Integer Description Selects the DSCP level of DiffServ applied to SIP packets. Value Range 0–63 Default Value Web User Interface Reference...
  • Page 244: Sip_2ndrgstr_addr_n

    5.7.2 SIP Settings SIP_2NDRGSTR_ADDR_n Parameter Name Example SIP_2NDRGSTR_ADDR_1, SIP_2NDRGSTR_ADDR_2, …, SIP_2NDRGSTR_ADDR_6 Value Format String Description Specifies the IP address of the secondary SIP registrar server. Note • This setting is available only when "SIP_RGSTR_ADDR_n" is specified in IP address notation. Value Range IP address in dotted-decimal notation Default Value...
  • Page 245: Sip_timer_t4_n

    5.7.2 SIP Settings Description Specifies the maximum interval, in seconds, between transmissions of SIP messages. For details, refer to RFC 3261. Value Range • • • • • Default Value Web User Interface Reference T2 Timer (Page 108) SIP_TIMER_T4_n Parameter Name Example SIP_TIMER_T4_1, SIP_TIMER_T4_2, …, SIP_TIMER_T4_6 Value Format Integer...
  • Page 246: Sip_fovr_max_n

    5.7.2 SIP Settings SIP_FOVR_MAX_n Parameter Name Example SIP_FOVR_MAX_1, SIP_FOVR_MAX_2, …, SIP_FOVR_MAX_6 Value Format Integer Description Specifies the maximum number of servers (including the first [normal] server) used in the fail-over process. Value Range 1–4 Default Value SIP_REFRESHER_n Parameter Name Example SIP_REFRESHER_1, SIP_REFRESHER_2, …, SIP_REFRESHER_6 Value Format Integer...
  • Page 247: Sip_udp_srv_prefix_n

    5.7.2 SIP Settings SIP_UDP_SRV_PREFIX_n Parameter Name Example SIP_UDP_SRV_PREFIX_1, SIP_UDP_SRV_PREFIX_2, …, SIP_UDP_SRV_PREFIX_6 Value Format String Description Specifies a prefix to add to the domain name when performing a DNS SRV lookup using UDP. Note • This setting is available only when "SIP_DNSSRV_ENA_n" is set to "Y".
  • Page 248: Sip_invite_expire_n

    5.7.2 SIP Settings Value Range • Y (Enable 100rel function) • N (Disable 100rel function) Note • If set to "Y", the Reliability of Provisional Responses function will be enabled. The option tag 100rel will be added to the "Supported" header of the INVITE message and to the "Require"...
  • Page 249: Sip_prsnc_port_n

    5.7.2 SIP Settings SIP_PRSNC_PORT_n Parameter Name Example SIP_PRSNC_PORT_1, SIP_PRSNC_PORT_2, …, SIP_PRSNC_PORT_6 Value Format Integer Description Specifies the port number to use for communication with the SIP presence server. Value Range 1–65535 Default Value 5060 Web User Interface Reference Presence Server Port (Page 105) SIP_2NDPRSNC_ADDR_n Parameter Name Example SIP_2NDPRSNC_ADDR_1, SIP_2NDPRSNC_ADDR_2, …,...
  • Page 250: Use_del_reg_close_n

    5.7.2 SIP Settings Value Range • Y (Enable cancelation before registration) • N (Disable cancelation before registration) Default Value USE_DEL_REG_CLOSE_n Parameter Name Example USE_DEL_REG_CLOSE_1, USE_DEL_REG_CLOSE_2, …, USE_DEL_REG_CLOSE_6 Value Format Boolean Description Specifies whether to enable the cancelation of registration before the SIP function shuts down when, for example, the configuration has changed.
  • Page 251: Sip_requri_port_n

    5.7.2 SIP Settings Value Range • Y (Add Rport [RFC 3581]) • N (Do not add Rport [RFC 3581]) Default Value Web User Interface Reference Supports Rport (RFC 3581) (Page 111) SIP_REQURI_PORT_n Parameter Name Example SIP_REQURI_PORT_1, SIP_REQURI_PORT_2, …, SIP_REQURI_PORT_6 Value Format Boolean Description Specifies whether to add the port parameter to the Request-Line in the...
  • Page 252: Reg_rtx_intvl_n

    5.7.2 SIP Settings Description Specifies the interval, in seconds, between transmissions of SUBSCRIBE requests when a subscription results in failure (server no reply or error reply). Note • Transmissions will not be sent when the "403 Forbidden" error occurred. Value Range 10–86400 Default Value REG_RTX_INTVL_n...
  • Page 253: Add_user_phone_n

    5.7.2 SIP Settings Value Range • Y (Add the "Privacy" header) • N (Do not add the "Privacy" header) Default Value ADD_USER_PHONE_n Parameter Name Example ADD_USER_PHONE_1, ADD_USER_PHONE_2, …, ADD_USER_PHONE_6 Value Format Boolean Description Specifies whether to add "user=phone" to the SIP URI in SIP messages.
  • Page 254: Sip_outproxy_addr_n

    5.7.2 SIP Settings SIP_OUTPROXY_ADDR_n Parameter Name Example SIP_OUTPROXY_ADDR_1, SIP_OUTPROXY_ADDR_2, …, SIP_OUTPROXY_ADDR_6 Value Format String Description Specifies the IP address or FQDN of the SIP outbound proxy server. Value Range Max. 127 characters (IP address in dotted-decimal notation or FQDN) Default Value Empty string Web User Interface Reference Outbound Proxy Server Address (Page 105)
  • Page 255: Sip_anm_username_n

    5.7.2 SIP Settings Value Range • 0 (Use normal display name) • 1 (Use "Anonymous" for display name) • 2 (Do not send a display name) Default Value SIP_ANM_USERNAME_n Parameter Name Example SIP_ANM_USERNAME_1, SIP_ANM_USERNAME_2, …, SIP_ANM_USERNAME_6 Value Format Integer Description Specifies the text string to set as the user name in the "From"...
  • Page 256: Sip_rcv_det_header_n

    5.7.2 SIP Settings Value Range • Y (Enable SSAF) • N (Disable SSAF) Note • If set to "Y", the unit receives SIP messages only from the source addresses stored in the SIP servers (registrar server, proxy server, and presence server), and not from other addresses.
  • Page 257: Sip_timer_b_n

    5.7.2 SIP Settings SIP_TIMER_B_n Parameter Name Example SIP_TIMER_B_1, SIP_TIMER_B_2, …, SIP_TIMER_B_6 Value Format Integer Description Specifies the value of SIP timer B (INVITE transaction timeout timer), in milliseconds. For details, refer to RFC 3261. Value Range 250–64000 Default Value 32000 Web User Interface Reference Timer B (Page 109) SIP_TIMER_D_n...
  • Page 258: Sip_timer_j_n

    5.7.2 SIP Settings Web User Interface Reference Timer H (Page 109) SIP_TIMER_J_n Parameter Name Example SIP_TIMER_J_1, SIP_TIMER_J_2, …, SIP_TIMER_J_6 Value Format Integer Description Specifies the value of SIP timer J (wait time for non-INVITE request resending), in milliseconds. For details, refer to RFC 3261. Value Range 0, 250–64000 Default Value...
  • Page 259: Sip_add_diversion_n

    5.7.2 SIP Settings Description Specifies whether to allow re-INVITE for calls on hold. Value Range • Y (Enable SIP Hold Receive) • N (Disable SIP Hold Receive) Default Value SIP_ADD_DIVERSION_n Parameter Name Example SIP_ADD_DIVERSION_1, SIP_ADD_DIVERSION_2, …, SIP_ADD_DIVERSION_6 Value Format Integer Description Specifies whether to add Diversion header information.
  • Page 260 5.7.2 SIP Settings Administrator Guide Document Version 2012-02...
  • Page 261: Useful Telephone Functions

    Section 6 Useful Telephone Functions This section explains phone number settings, dial plan, and phonebook import/export function. Document Version 2012-02 Administrator Guide...
  • Page 262: Phonebook Import And Export

    6.1 Phonebook Import and Export 6.1 Phonebook Import and Export This section explains how to import and export phonebook data. Phonebook data of the unit includes names and phone numbers. Phonebook data on the unit can be exported, edited with editor tools, and imported again. In addition, phonebook data created with other software can be imported into the unit.
  • Page 263 6.1 Phonebook Import and Export Importing the Same Phonebook Data to other Units You can export the phonebook data created on a unit to a PC, and then import it into other units. Phonebook data You can also import phonebook data created on a PC to other units. Phonebook Microsoft data...
  • Page 264: Import/export Operation

    6.1.1 Import/Export Operation Phonebook Data in Text Format Aaron MacDowel 1234001 Barbara Nicolls 1234002 Carl O’Brien 1234003 Dorothy Parker 1234004 ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· ···· A Record ID (Unique ID: 1–65535) B Tab C Name (up to 24 characters) D Tab...
  • Page 265: Editing With Microsoft Excel

    The phonebook for a unit has the following limitations: – A maximum of 100 (for the KX-UT113)/500 (for the KX-UT123/KX-UT133/KX-UT136/KX-UT248) phonebook entries can be stored in the unit. If the unit already has phonebook data, it accepts up to the 500th entry, including the existing entries. The rest of the entries will not be imported, and the message "Memory Full"...
  • Page 266 6.1.2 Editing with Microsoft Excel Select All Files for the file type, select the exported phonebook data file, and click Open. On the Text Import Wizard - Step 1 of 3 window, click Next. Note • Regardless of what is selected for File origin, the file will be processed normally if the format is appropriate.
  • Page 267: Exporting Data From Microsoft Outlook

    6.1.3 Exporting Data from Microsoft Outlook On the Text Import Wizard - Step 3 of 3 window, select all columns in Data preview, select Text in Column data format, and then click Finish. The TSV file will be opened. Note •...
  • Page 268: Dial Plan

    6.2 Dial Plan On the Export to a File window, click Finish. The data will be exported. Note • You can export data from Microsoft Outlook Express by using a similar procedure. It is also possible to export data from other applications that are compatible with Microsoft Excel. •...
  • Page 269: Document Version 2012-02

    6.2.1 Dial Plan Settings [Dial Plan Flowchart] When a user dials a single digit on a unit, the following sequence of events begins. A user dials a single digit on the unit. The unit stores each digit dialed before the inter-digit timer expires.
  • Page 270: Available Values For The Dial Plan Field

    6.2.1 Dial Plan Settings For details about available characters for the dial format, see Available Values for the Dial Plan Field in this section. Select [Yes] or [No] for [Call Even If Dial Plan Does Not Match]. • If you select [Yes], the call will be made even if the user dials a phone number that does not match the dial format in [Dial Plan].
  • Page 271 6.2.1 Dial Plan Settings Element Available Value Description Macro Timer T, t Example: "1x.T" If the dialed phone number begins with "1", the call is made after a lapse of "T" seconds. • The value of "T" or "t" can be configured through the Web user interface (®...
  • Page 272: Flexible Buttons (kx-ut133/kx-ut136/kx-ut248 Only)

    6.3 Flexible Buttons (KX-UT133/KX-UT136/KX-UT248 only) Example: "[2346789]11|01[2-9]x.|[2-9]xxxxxxxxx" • If the dialed phone number is "21234567", "598765432" and so on when [Call Even If Dial Plan Does Not Match] is set to [Yes], the call is made after the inter-digit timer expires. •...
  • Page 273: Flexible Button Settings

    6.3.1 Flexible Button Settings Button Description Lamp Indication Used to show the current status of another Off: The BLF extension is idle. extension, call the extension and transfer Red on: A corresponding BLF extension is calls to it. using the line. This button can also be used to perform Flashing red rapidly: The BLF extension is receiving an incoming call.
  • Page 274 6.3.1 Flexible Button Settings Parameter 1 Parameter 2 Button Description Value Description Value Extension Up to 32 digits – – Number Line No. • 1–4 (for KX-UT133/ KX-UT136) – – • 1–6 (for KX-UT248) Note • For details about configuring these settings by configuration file programming, see 5.5.5 Flexible Button Settings (KX-UT133/KX-UT136/KX-UT248 only).
  • Page 275: Firmware Update

    Section 7 Firmware Update This section explains how to update the firmware of the unit. Document Version 2012-02 Administrator Guide...
  • Page 276: Firmware Server Setup

    7.3 Executing Firmware Update 7.1 Firmware Server Setup No special server is necessary for the firmware update. You can use an HTTP, HTTPS, FTP, or TFTP server as the firmware server by simply setting its URL. 7.2 Firmware Update Settings Firmware updates are provided by the manufacturer when necessary.
  • Page 277: Local Firmware Update

    7.4 Local Firmware Update The firmware update process Step 1 The unit downloads a configuration file from the Provisioning Server Address provisioning server. • For details about setting the timing of when configuration files are downloaded, see Configuration File 2.2.4 Downloading Configuration Files. SIP Phone Provisioning Server...
  • Page 278 7.4 Local Firmware Update Administrator Guide Document Version 2012-02...
  • Page 279: Troubleshooting

    Section 8 Troubleshooting This section provides information about troubleshooting. Document Version 2012-02 Administrator Guide...
  • Page 280: Troubleshooting

    8.1 Troubleshooting 8.1 Troubleshooting If you still have difficulties after following the instructions in this section, disconnect the unit from the AC outlet, then connect the AC adaptor again. If using PoE, disconnect the LAN cable, then connect the LAN cable again. General Use Problem Cause/Solution...
  • Page 281 8.1 Troubleshooting Making/Answering Calls, Intercom Problem Cause/Solution The unit does not ring. • Check the VoIP status in the Web user interface and confirm that each line is registered properly (® see To check the setting status in the Web user interface in this section).
  • Page 282: Error Codes

    8.1 Troubleshooting Time Problem Cause/Solution The time is not correct. • In the Web user interface, you can set NTP synchronization and DST (Summer Time) control to adjust the time automatically (® see 4.4.5 Time Adjust Settings). • If the time is still incorrect even after setting NTP synchronization, check the firewall and port forwarding settings on the router (®...
  • Page 283 8.1 Troubleshooting – SYSLOG_EVENT_VOIP: Logs syslog events regarding VoIP operation. Document Version 2012-02 Administrator Guide...
  • Page 284 8.1 Troubleshooting Administrator Guide Document Version 2012-02...
  • Page 285: Appendix

    Section 9 Appendix Document Version 2012-02 Administrator Guide...
  • Page 286: Revision History

    9.1.1 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.025 9.1 Revision History 9.1.1 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.025 New Contents • 5.7.1 Call Control Settings—VOICE_MESSAGE_AVAILABLE (Page 237) • 5.7.1 Call Control Settings—HOLD_SOUND_PATH_n (Page 237) • 5.7.2 SIP Settings—SIP_REQURI_PORT_n (Page 251) Changed Contents •...
  • Page 287: Kx-ut113/kx-ut123/kx-ut133/kx-ut136 Software File Version 01.080

    9.1.2 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.080 9.1.2 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.080 New Contents • 4.3.7 Application Settings (Page 91) • 4.5.4.1 Quality of Service (QoS)—RTCP Packet QoS (DSCP) (Page 114) • 4.5.4.4 DTMF—DTMF Relay (Page 116) • 4.6.8 Application Settings (Page 140) •...
  • Page 288 9.1.2 KX-UT113/KX-UT123/KX-UT133/KX-UT136 Software File Version 01.080 Administrator Guide Document Version 2012-02...
  • Page 289: Index

    Index Document Version 2012-02 Administrator Guide...
  • Page 290: Document Version

    Index Call Even If Dial Plan Does Not Match Numerics Call Features 1–30 Call Forward 125, 128, 129, 130, 235 Call Hold 117, 232 Call log URL Call Rejection Phone Numbers Access Level 23, 60 Cancel Button Access Levels (IDs and Passwords) 21, 23 CFG_CYCLIC Accessing the Web User Interface...
  • Page 291 Index Daylight Saving Time (Summer Time) DST_STOP_ORDINAL_DAY Default Gateway 73, 79 DST_STOP_TIME Default Line for Outgoing DTMF DEFAULT_LANGUAGE DTMF Relay DEFAULT_LINE_SELECT DTMF Type Detection Interval DTMF_INTDIGIT_TIM Detection Method DTMF_RELAY_n DHCP Server 18, 35, 175 DTMF_SIGNAL_LEN DHCP Settings DHCP_DNS_ENABLE Dial Plan 126, 268, 269 Editing with Microsoft Excel Dial Plan (max 500 columns)
  • Page 292 Index FLEX_BUTTON_FACILITY_ARGx INTDIGIT_TIM FLEX_BUTTON_LABELx Inter-digit Timeout FLEX_BUTTON_QUICK_DIALx International Call Prefix Flexible Button Settings 132, 158, 219, 273 INTERNATIONAL_ACCESS_CODE Flexible Buttons 272, 273 IP Address FWD_DND_SYNCHRO_ENABLE_n IP Phone (Priority) IP Phone (VLAN ID) IP Reset IP Settings 154, 187 G722 (Enable) IPL Version G722 (Priority) G726–32 (Enable)
  • Page 293 Index Phonebook Data in Text Format Phonebook deletion NAPT Phonebook Import and Export 28, 88, 111, 250 Port Close Timer NAT Identity Port Forwarding NAT Traversal 28, 90 PORT_PUNCH_INTVL_n National Access Code POUND_KEY_DELIMITER_ENABLE NATIONAL_ACCESS_CODE Pre-provisioning Network Presence Server Address Network Phone Book URL Presence Server Port Network Phone Book URL Authentication Primary DNS Server...
  • Page 294 Index RINGING_OFF_SETTING_ENABLE SIP_HOLD_HOLDRECEIVE_n Root Certificate 44, 196 SIP_INVITE_EXPIRE_n Router Setup SIP_OUTPROXY_ADDR_n RTCP Enable SIP_OUTPROXY_PORT_n RTCP Interval SIP_P_PREFERRED_ID_n RTCP Packet QoS (DSCP) SIP_PASS_n RTCP_ENABLE_n SIP_PRIVACY_n RTCP_INTVL_n SIP_PRSNC_ADDR_n RTCP_SEND_BY_SDP_n SIP_PRSNC_PORT_n RTP (Real-time Transport Protocol) Setup SIP_PRXY_ADDR_n RTP Packet QoS (DSCP) SIP_PRXY_PORT_n RTP Packet Time SIP_RCV_DET_HEADER_n RTP Settings 29, 112, 160, 226...
  • Page 295 Index SUB_INTERVAL_RATE_n Trademarks SUB_RTX_INTVL_n Transport Protocol Subnet Mask 73, 79 Transport Protocol of SIP Supports 100rel (RFC 3262) Troubleshooting TSV ® Tab-separated Value Supports RFC 2543 (c=0.0.0.0) 139, 263, 265 Supports Rport (RFC 3581) Type (No. 1–24) Supports Session Timer (RFC 4028) Synchronization Synchronization Interval UDP_CON_REQ_ADDR_NOTIFY_LIMIT...
  • Page 296 Index XMLAPP_LDAP_USERPASS XMLAPP_MAKECALL_URL XMLAPP_PORTNUM XMLAPP_START_URL XMLAPP_TALKING_URL XMLAPP_USERID XMLAPP_USERPASS Administrator Guide Document Version 2012-02...
  • Page 297 Notes Document Version 2012-02 Administrator Guide...
  • Page 298 Copyright: This material is copyrighted by Panasonic System Networks Co., Ltd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Co., Ltd. Panasonic System Networks Co., Ltd. 2011...

This manual is also suitable for:

Kx-ut123Kx-ut136Kx-ut248Kx-ut133

Comments to this Manuals

Symbols: 0
Latest comments:
