Control Modes

There are 4 Modes:
One Quadro Flower
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. When the Quadro Flower

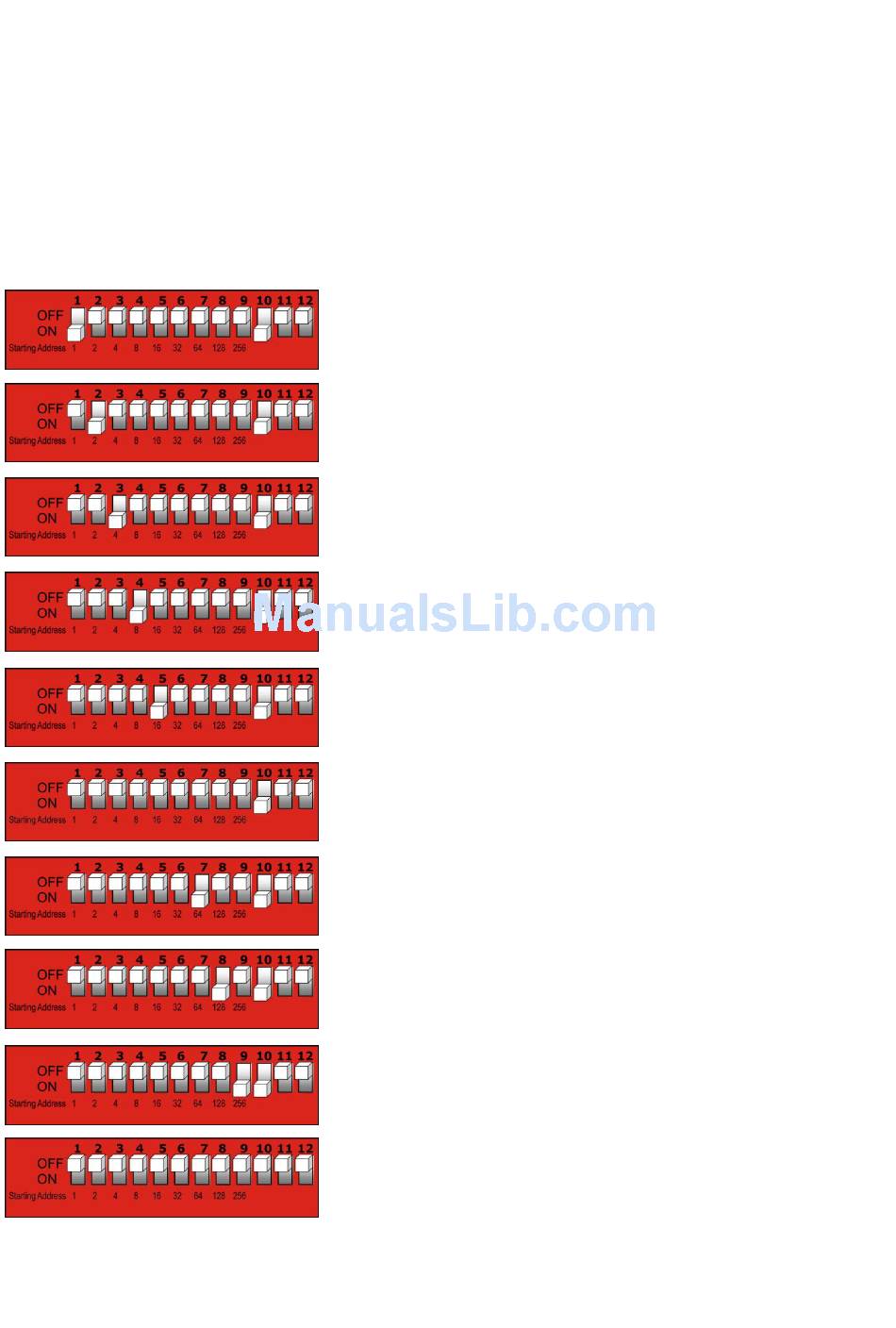

Dipswitch #10 must always be set to OFF for custom control.
You can set dipswitch #1, #2, #3, #4, #5, #7, #8 or #9 to your desired operating mode.
1) Custom Settings
2) Sound-controlled
3) Master/Slave
4) DMX512 (10 Channels)
(Custom Mode)
is not connected by a DMX-cable, it functions as a stand-alone device.
Single LED move from left to right and up to down
Single row LED move from up to down
Single row LED move from left to right
LED move from up to down and lift to right
LED flash and move from up to down and lift to right
LED1.2.3.4 eye light bounce-Slow
LED1.2.3.4 eye light bounce-Medium
LED1.2.3.4eye light bounce-Fast
Strobe
Auto program
8
