Summary of Contents for SHOWTEC compact par 7 q4

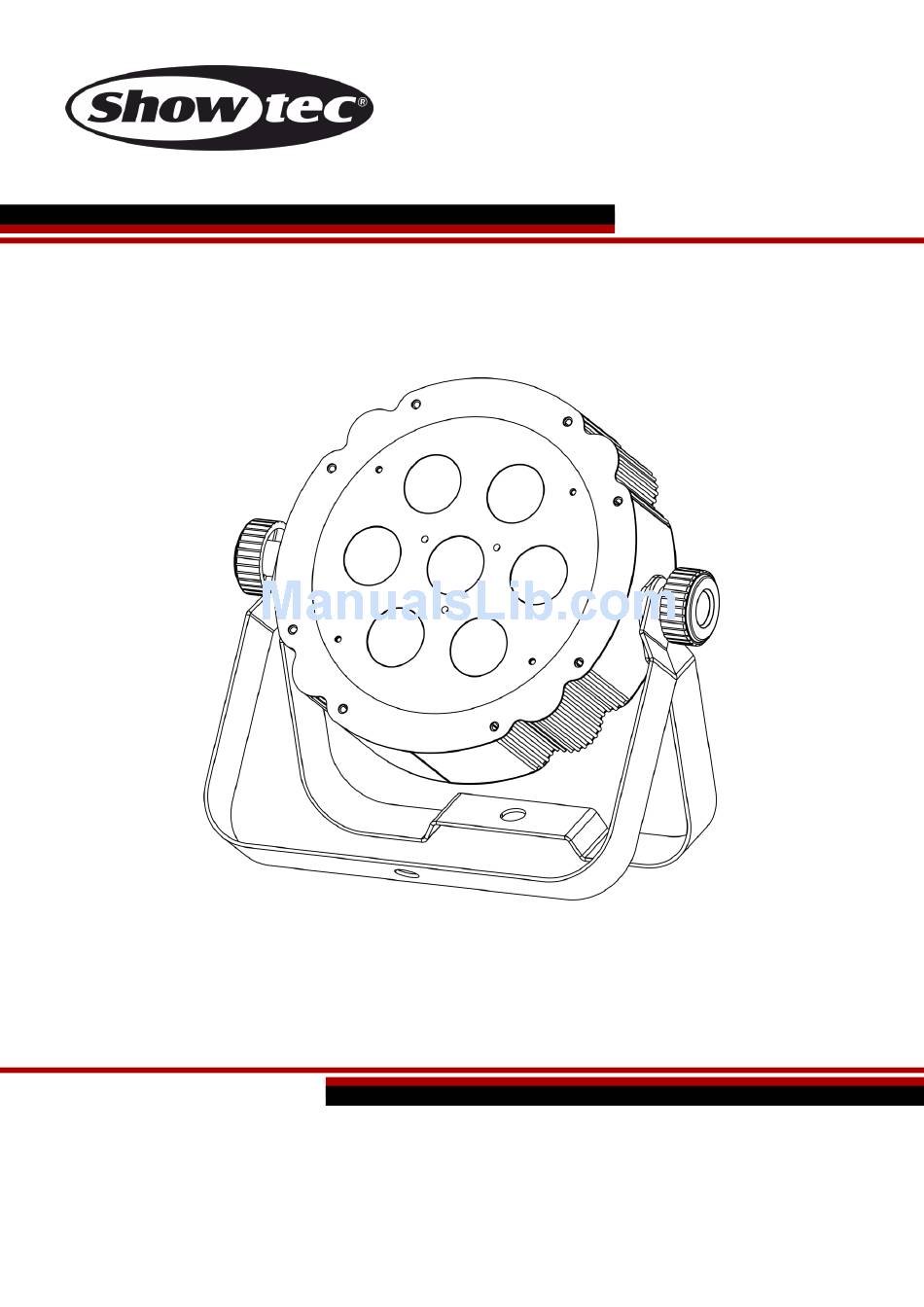

- Page 1 MANUAL ENGLISH Compact Par 7 Q4 Ordercode: 42582 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Set Up and Operation ............................... 8 Control Modes ................................9 One Compact Par 7 Q4 (Auto Run Mode, Built-in programs and Static Color Mode) ....... 9 One Compact Par 7 Q4 (Sound-controlled) ......................9 Multiple Compact Pars 7 Q4 (Master/Slave control)..................9 Multiple Compact Pars 7 Q4 (DMX Control) ......................10... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Compact Par 7 Q4 IEC power cable (1,5 m) ... - Page 4 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
Compact Par 7 Q4 • The user is responsible for correct positioning and operating of the Compact Par 7 Q4. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 6: Connection With The Mains
Compact Par 7 Q4 The Compact Par 7 Q4 can be placed on a flat stage floor or mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. -
Page 7: Return Procedure
Compact Par 7 Q4 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 8: Description Of The Device

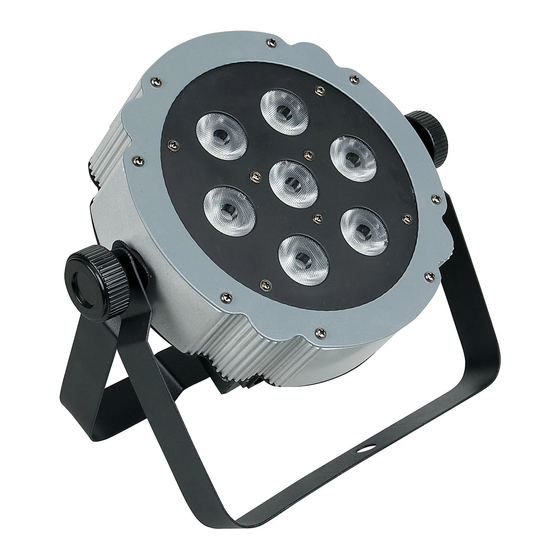

Compact Par 7 Q4 Description of the device Features The Compact Par 7 Q4 is a compact light effect with high output and great effects. It is the successor of the popular Compact par 7 Tri with 7x 4-in-1 RGBW LEDs. ... -
Page 9: Backside
08) 3-pin DMX signal connector OUT Installation Remove all packing materials from the Compact Par 7 Q4. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Control Modes
• DMX-512 (4CH, 6CH or 11CH) One Compact Par 7 Q4 (Auto Run Mode, Built-in programs and Static Color Mode) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. -
Page 11: Multiple Compact Pars 7 Q4 (Dmx Control)
Compact Par 7 Q4 Multiple Compact Pars 7 Q4 (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). -
Page 12: Fixture Linking
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Compact Par 7 Q4 can be operated with a controller in DMX mode or without the controller in stand- alone mode. Ordercode: 42582... -
Page 13: Control Panel
Compact Par 7 Q4 Control Panel A) LED display Mode button C) Setup button D) Up button Down button Fig. 05 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 14: Menu Overview
Compact Par 7 Q4 Menu Overview Main Menu Options Auto run Built in programs DMX address / DMX configuration Master-Slave Static Color Mode Sound-controlled Mode Settings Info Ordercode: 42582... -
Page 15: Auto Run Mode
Compact Par 7 Q4 Auto Run Mode With this menu you can start the Auto Run program of the Compact Par 7 Q4. 01) Press the Mode button and then the Up/Down buttons, until the display shows 02) The Compact Par will start immediately the Auto Run program. -
Page 16: Slave Mode
Compact Par 7 Q4 Slave Mode With this menu you can set the device as a Master or Slave. 01) Press the Mode button and then the Up/Down buttons, until the display shows If the device has not been set to slave, it is automatically classified as a master device. All slave devices will follow the master movement. -
Page 17: Dmx Channels
Compact Par 7 Q4 DMX Channels 4 channels Channel 1 – Red Dimmer intensity 0-255 Red from 0-100% Channel 2 – Green Dimmer intensity 0-255 Green from 0-100% Channel 3 – Blue Dimmer intensity 0-255 Blue from 0-100% Channel 4 – White Dimmer intensity... - Page 18 Compact Par 7 Q4 Channel 4 – Color presets (CH1 must be set between 001-255 No function 8-13 Color 1 (R255, G000, B000, W000) 14-20 Color 2 (R255, G000, B000, W100) 21-27 Color 3 (R255, G000, B000, W200) 28-34 Color 4 (R255, G050, B000, W000)
- Page 19 Compact Par 7 Q4 Channel 6 – Speed color running 0-255 Gradual speed adjustment, from slow to fast Channel 7 – Sound mode 0-50 No function 51-255 Gradual adjustment Sensitivity, from 1-100% Channel 8 – Red Dimmer intensity (CH1 must be set between 001-255...
-
Page 20: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Compact Par 7 Q4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. -
Page 21: No Response To Dmx
Compact Par 7 Q4 No Response to DMX Suspect the DMX cable or connectors, a controller malfunction, a light effect DMX card malfunction. 01) Check the DMX setting. Make sure that DMX addresses are correct. 02) Check the DMX cable: Unplug the unit; change the DMX cable; then reconnect to electrical power. -
Page 22: Product Specifications
Compact Par 7 Q4 Product Specifications Model: Showtec Compact Par 7 Q4 Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 32W (full output) Drive Current: 330mA Refresh rate 7,8 kHz DMX linking: 30 pcs Protection rate: IP-20 Fuse: T1L/250V Dimensions: 272 x 92 x 260 mm (LxWxH) -
Page 23: Dimensions
Compact Par 7 Q4 Dimensions Ordercode: 42582... - Page 24 ©2016 Showtec...
