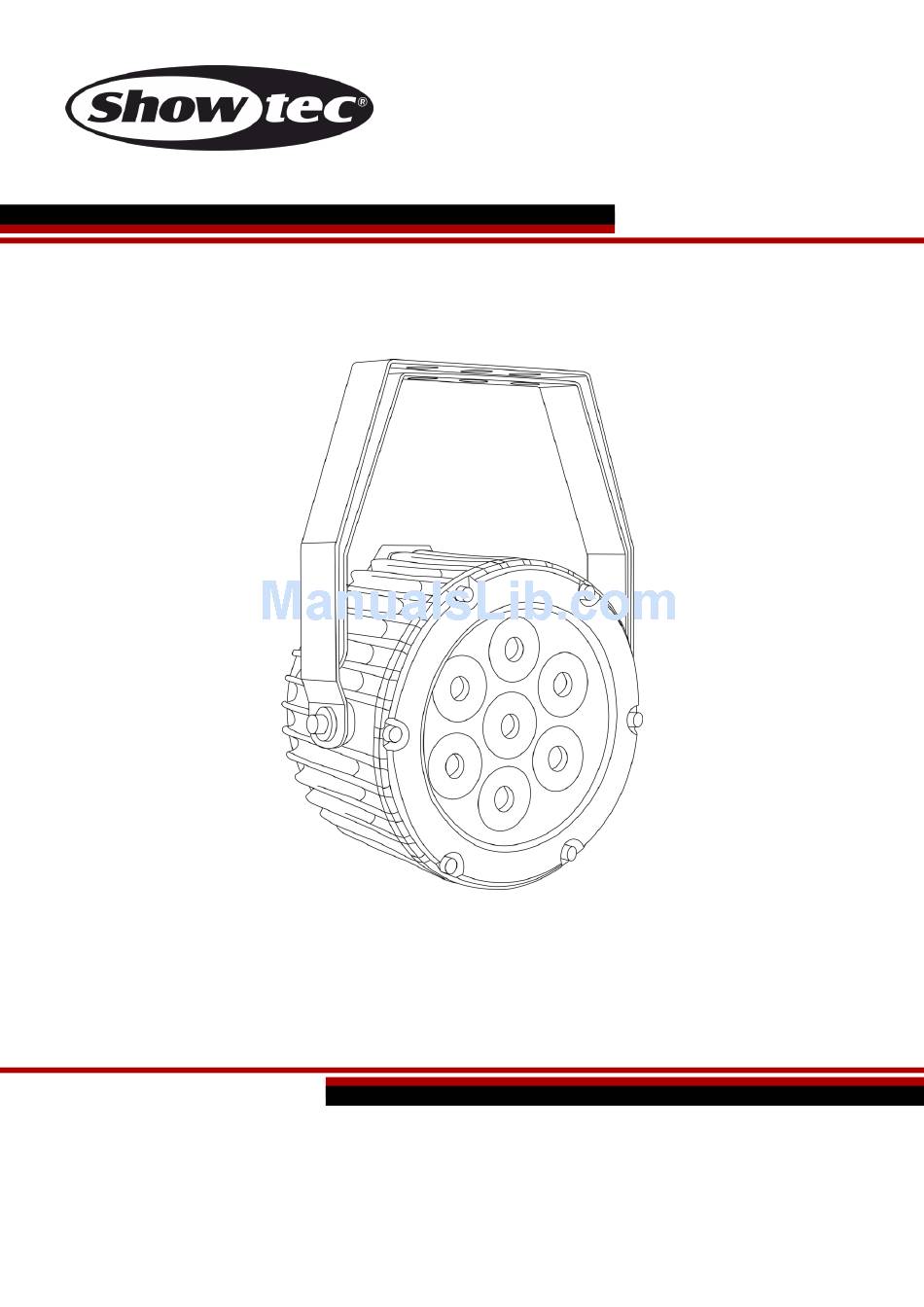

- Page 1 MANUAL ENGLISH Compact Par 7 MKII Ordercode: 42595 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Backside ..................................8 Installation ................................... 8 Set Up and Operation ............................... 9 Control Modes ................................9 One Compact Par 7 MKII (Manual Control) ......................9 Multiple Compact Pars (Master/Slave control) ...................... 9 Multiple Compact Pars (DMX Control) ........................10 Fixture Linking ................................11 Data Cabling ................................11... -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● Showtec Compact Par 7 MKII ● Schuko to IEC powercable 1,5m ●... - Page 4 For replacement use fuses of same type and rating only. The user is responsible for correct positioning and operating of the Compact Par 7 MKII. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 5: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: ● If the Compact Par 7 MKII is lowered from the ceiling or high joists, professional trussing systems have to be used. ● Use a clamp to mount the Compact Par 7 MKII, with the mounting-bracket, to the trussing system. -
Page 6: Connection With The Mains
Compact Par 7 MKII Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER... -
Page 7: Description Of The Device
Compact Par 7 MKII Description of the device Features The Showtec Compact Par 7 MKII is a compact and powerful parcan for indoor use. LED Quantity: 7 x 3-in-1 LED 3 DMX Modes: 3, 6 or 7 Channels ... -
Page 8: Frontside
Compact Par 7 MKII Frontside Fig.01 01) Frontside Mounting bracket with Screw Lens Ordercode: 42595... -
Page 9: Backside
NOTE: Knowledge of DMX is required to fully utilize this unit. Installation Remove all packing materials from the Compact Par 7 MKII. Check that all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 10: Set Up And Operation
02) Always use a safety cable (ordercode 70140 / 70141). 03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) When the Compact Par 7 MKII is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 11: Multiple Compact Pars (Dmx Control)
03) Plug the end of the electric mains power cord into a proper electric power supply socket. 04) Use a 3-p XLR cable to connect the Compact Par 7 MKII and other devices. 05) Link the units as shown in (figure 04), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in"... -
Page 12: Fixture Linking
DAP Audio cable for the demanding user with exceptional audio-qualities and connector made by Neutrik®. Ordercode FL71150 (1,5m.), FL713 (3m.), FL716 (6m.), FL7110 (10m.). The Compact Par 7 MKII can be operated with a controller in control mode or without the controller in stand-alone mode. -
Page 13: Control Panel
Therefore, the DMX address of the first Compact Pars should be 1(d001); the DMX address of the second Compact Par 7 MKII should be 1+7=8 (d008); the DMX address of the third Compact Par 7 MKII should be 8+7=15 (d015), etc. -
Page 14: Menu Overview
Compact Par 7 MKII Menu Overview Ordercode: 42595... -
Page 15: Main Menu Options
If the device has been set to slave, it will react the same as its master device. 3.Auto Run Mode With this menu you can set Auto Run mode of the Compact Par 7 MKII. 01) Press the MODE button and then the Up / Down buttons, until the display shows... -
Page 16: Built-In Programs
Compact Par 7 MKII 4.Built-in Programs With this menu you can you can set the built-in programs. 01) Press the MODE button and then the Up / Down buttons, until the display shows 02) Press the SETUP button to open this menu. -
Page 17: Sound Control Mode
Compact Par 7 MKII 6.Sound control Mode 01) Press the MODE button on the device, until the display shows 02) Press the SETUP button to open this menu. 03) Use the UP/DOWN buttons to change the values. 04) Set the value of the sound control mode (0-31) -
Page 18: Channels
Compact Par 7 MKII 7 Channels Channel 1 – Dimmer (Colors RGB must be open 0-255 From black to brightest Channel 2 – Red Dimmer intensity (CH1 must be set between 0-255 0-255 Red from 0 – 100% Channel 3 – Green Dimmer intensity (CH1 must be set between 0-255 0-255 Green from 0 –... -
Page 19: Maintenance
Compact Par 7 MKII Maintenance The Showtec Compact Par 7 MKII requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth. Wipe the front glass panel clean with glass cleaner and a soft cloth. -
Page 20: Troubleshooting
04) If all of the above appears to be O.K., plug the unit in again. 05) If you are unable to determine the cause of the problem, do not open the Compact Par 7 MKII, as this may damage the unit and the warranty will become void. - Page 21 Compact Par 7 MKII Problem Probable cause(s) Remedy One or more No power to the fixture. ● Check that power is switched on and fixtures are cables are plugged in. completely dead. Primary fuse blown. ● Replace fuse. Fixtures reset The controller is not connected.
-
Page 22: Product Specification
Compact Par 7 MKII Product Specification Model: Showtec Compact Par 7 MKII Input Voltage: 100-240 VAC Drive current: 0,68A/110V, 0,32A/240V Continuous Power: 28W max. at full output Power linking: 20pcs@110V, 38pcs@240V Dimensions: 200 x 95 x 220 mm (LxWxH) Weight:... -
Page 23: Dimensions
Compact Par 7 MKII Dimensions Ordercode: 42595... - Page 24 ©2015 Showtec...
