Control Modes

There are 4 modes:

One Spectral (Built-in programs and Manual Mode)

01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Plug the end of the electric mains power cord into a proper electric power supply socket.
03) When the Spectral is not connected with a DMX cable, it functions as a stand-alone device.
Please see pages 15 and 16 for more information about the Built-in programs and Manual Mode.

Multiple Spectrals (Master/Slave control)

01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
02) Use a 3-pin XLR cable to connect the Spectral.
The pins:

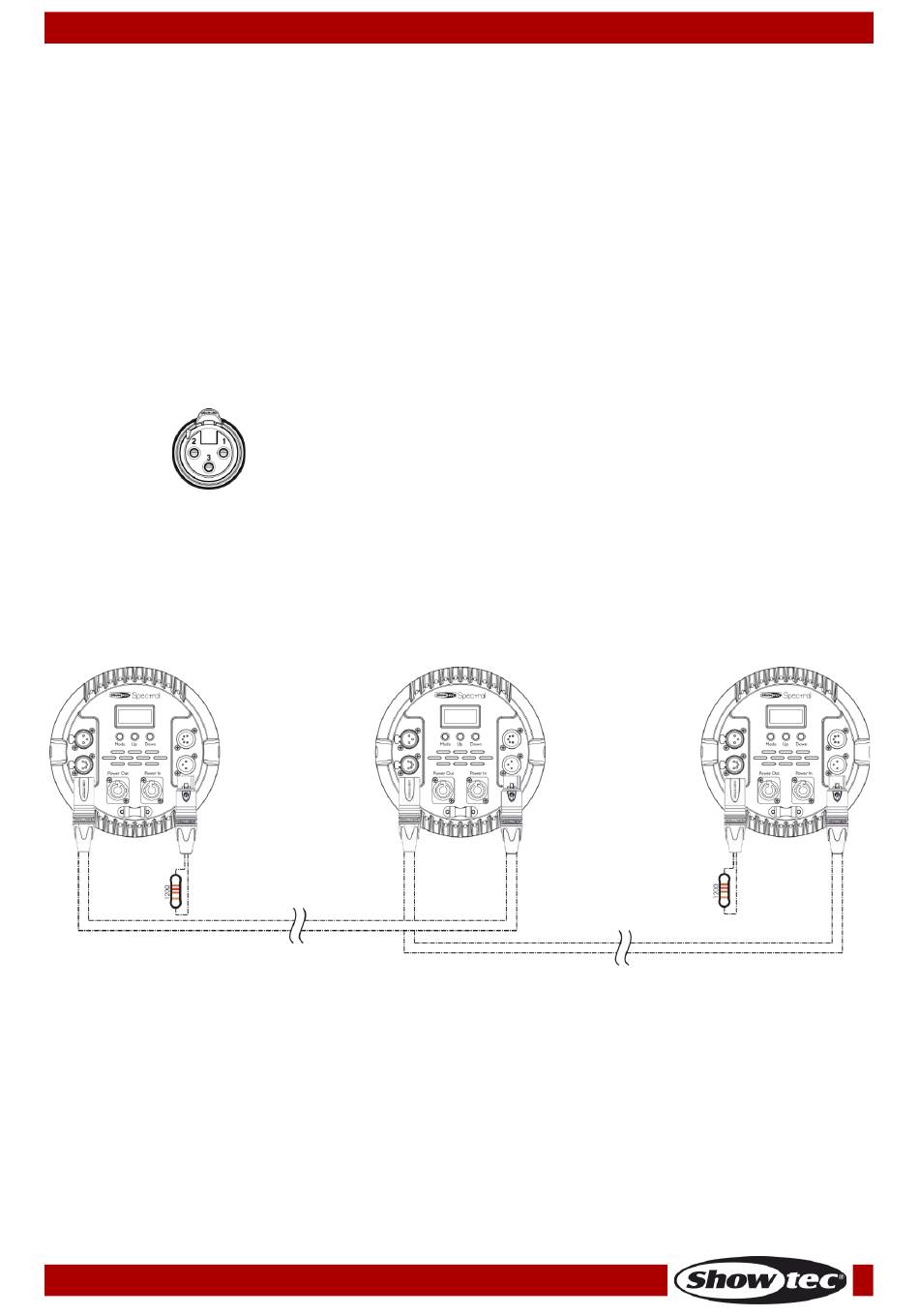

03) Link the units as shown in fig. 03. Connect the first unit's DMX "out" socket with the second unit's "in"
socket, using a DMX-signal cable. Repeat this process to link the second, third, and fourth units.
You can use the same functions on the master device as described on pages 15-16 (Built-in
programs and Manual Mode). This means that you can set your desired operation mode on the
master device and all slave devices will react the same as the master device.
Multiple Spectrals (Master/Slave control)
Ordercode: 43630
• Built-in programs
• Manual Mode
• Master/Slave
• DMX-512 (3CH, 7CH, 13CH)
01) Earth
02) Signal -
03) Signal +
