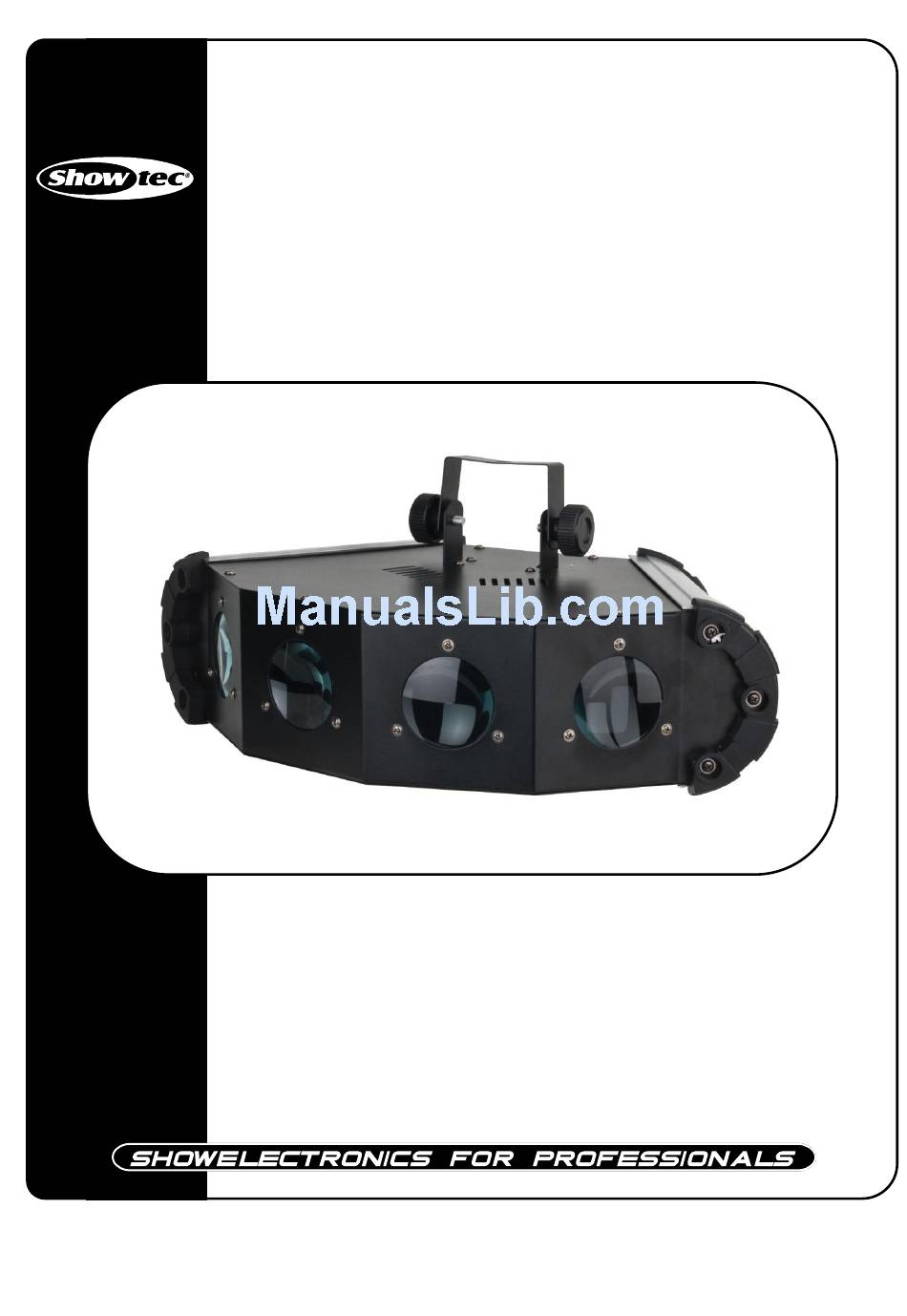

- Page 1 Quadro Flower ORDERCODE 43028...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec Quadro Flower Product Guide ™ Warning.................…...……………..…………………………….…………. Safety-instructions………………………………………………………………………………………………………. Operating Determinations.…………………………………………………………………………………………… Rigging.…………………………………………………………………………………………………………………… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description................…...………………………………………….………… Features and Overview ………………………………...….……………….………….……….……….……………. Backside…………………………………………………...…...….……………….…………………...……………….. Installation................…...…………………………………………………..… Set Up and Operation..............……..……………………………………………. Control Modes…………………………………………………………………………………………………….…….. One Quadro Flower (Custom Mode)……………………………………..………….……………….……… One Quadro Flower (Sound Control)…………………………………………………………………..…….. Multiple Quadro Flowers (Master/Slave control).……………………………………………………...……... -
Page 4: Warning
FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
OPERATING DETERMINATIONS This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. The maximum ambient temperature t = 45°C must never be exceeded. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description

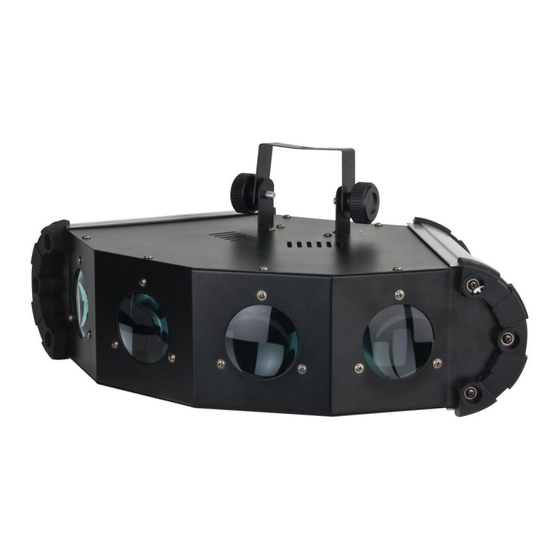

Description of the device Features The Showtec Quadro Flower is a light effect with very high output and great effects. • Dynamic moonflower effect • Bright light output • DMX-controlled • 10 DMX Channels • 3-pin DMX In and 3-pin DMX Out •... -
Page 9: Installation
Installation Remove all packing materials from the Quadro Flower. Check that all foam and plastic padding is removed. Connect all cables. Always disconnect from electric mains power supply before cleaning or servicing. Damages caused by non-observance are not subject to warranty. Set Up and Operation Before plugging the unit in, always make sure that the power supply matches the product specification voltage. -
Page 10: Control Modes
Control Modes There are 4 Modes: 1) Custom Settings Sound-controlled 3) Master/Slave 4) DMX512 (10 Channels) One Quadro Flower (Custom Mode) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. When the Quadro Flower is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 11: One Quadro Flower (Sound Control)
One Quadro Flower (Sound-control) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. Plug the end of the electric mains power cord into a proper electric power supply socket. The dipswitces have no influence during the Sound controlled modus. When the device is not connected by a DMX-cable, it functions as a stand-alone device. -
Page 12: Multiple Quadro Flowers (Dmx Control)
Multiple Quadro Flowers (DMX Control) 1. Fasten the effect light onto firm trussing Leave at least 1 meter on all sides for air circulation. Always use a safety cable (ordercode 70140 / 70141). 3. Use a 3-p XLR cable to connect the Quadro Flowers and other devices. 4. -
Page 13: Dipswitch Setting For Dmx Mode
Addresses on the controller are set by flipping the appropriate DMX dip switches #1 - #9. You need to know that DMX address settings are the sum of the dip switch values. A standard DMX address for a Showtec Quadro Flower, which has 10 channels is as follow: Example Quadro Flower Address Value DMX Dip Switches "ON"... -
Page 15: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 16: Dmx Channels
DMX Channels Channel 1 – Colors 0-14 Blackout 15-19 20-24 Green 25-29 Blue 30-34 Red+Green 35-39 Red+Blue 40-44 Green+Blue 45-49 Red+Green+Blue 50-99 Select CH2-CH10 DMX Mode 100-255 Built-in Auto Program Channel 2 – Built-in programs (Only works when CH1 is set between 50-99 0-255 Built-in Auto Programs Channel 3 –... -
Page 17: Maintenance
Maintenance The Showtec Quadro Flower requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. -
Page 18: Product Specifications
Product Specification Model: Showtec Quadro Flower Power: AC110-230V, 50Hz/60Hz Power consumption: 40 Watt LEDs: 256 LEDs (96 Red, 96 Green, 64 Blue) ultra bright 5mm Beam angle: 15˚ 3-pin DMX In and 3-pin DMX Out DMX-controlled 10 DMX Channels Built-in microphone Operating Modes: Built-in programs, Auto run, Static Color, DMX, Sound active, Master/Slave Recall last operation when power is on again.
