Description of the device
Features
The Showtec Quadro Flower is a light effect with very high output and great effects.
• Dynamic moonflower effect
• Bright light output
• DMX-controlled
• 10 DMX Channels
• 3-pin DMX In and 3-pin DMX Out
• Compact strong metal housing
• Power consumption: 40 Watt
• Beam angle: 15˚
• Light source: 256 LEDs (96 Red, 96 Green, 64 Blue)
• Music-controlled via built-in microphone
• Operating Modes: built-in programs, Auto run, DMX, Sound active, Master/Slave
• Fuse 2A / 250V

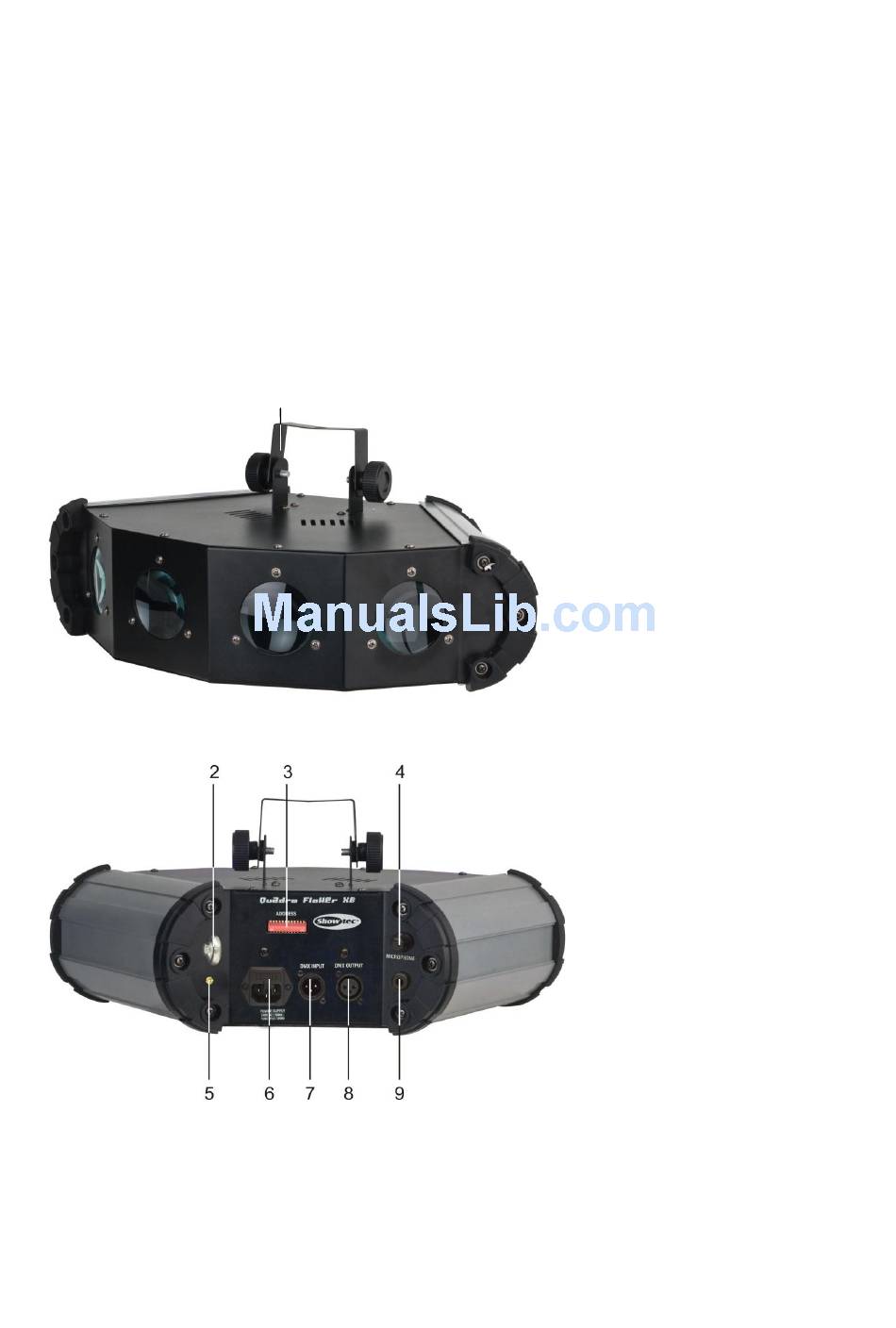

Overview
Backside
1) Mountingbracket
2) Safety Eye
3) Dipswitches
4) Audio Sensitivity
5) Earth connection
1
6) IEC Powerconnector + Fuse 2A/250V
7) DMX In
8) DMX Out
9) Built-in Microphone
6
Fig. 1
Fig. 2
