MANUAL
ENGLISH
StageBeam 300/500W PC
V1
Ordercode: 30531
Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands

Advertisement

loading
Need help?

Need help?

Do you have a question about the StageBeam 300/500W PC and is the answer not in the manual?

Questions and answers

Summary of Contents for SHOWTEC StageBeam 300/500W PC

  • Page 1 MANUAL ENGLISH StageBeam 300/500W PC Ordercode: 30531 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
  • Page 2 StageBeam 300/500W PC Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................6 Claims ....................................6 Description of the device ..............................7 Overview ..................................7 Installation ................................... 8 Set Up and Operation ............................... 8 Installing the lamp .................................
  • Page 3 Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: ● StageBeam 300/500W PC with Schuko power cable (0,8 m) ● Filter frame ●...
  • Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
  • Page 5 StageBeam 300/500W PC Operating Determinations ● This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light output and the illuminated surface must be bigger than 1 meter.
  • Page 6 StageBeam 300/500W PC The StageBeam can be mounted to any kind of truss with a clamp. Improper installation can cause serious injuries and/or damage of property! Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place.
  • Page 7 StageBeam 300/500W PC Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility.

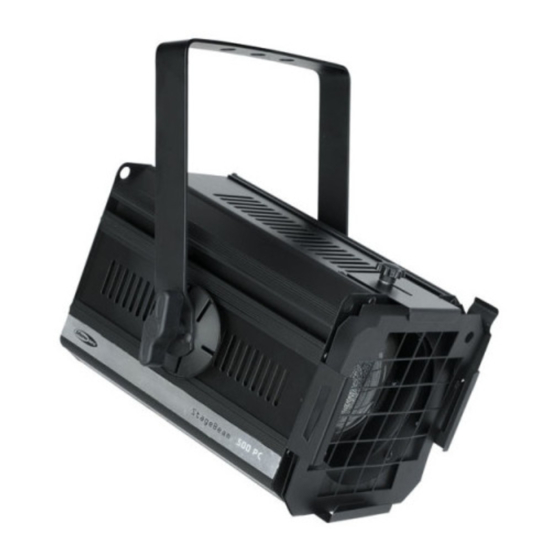

  • Page 8 StageBeam 300/500W PC Description of the device Features The StageBeam 300/500W PC is a theatre spot with high output. It is equipped with a GY9.5 ceramic lamp socket, suitable for 300/500W lamps. ● Light source: 300/500W lamp ● Lamp socket: GY9.5 ●...
  • Page 9 StageBeam 300/500W PC Installation Remove all packing materials from the StageBeam 300/500W PC. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. Always disconnect from electric mains power supply before cleaning or servicing.
  • Page 10 StageBeam 300/500W PC Adjusting the beam angle 01) Turn the beam angle adjustment screw to the left or right to increase/decrease the beam angle. Fig. 03 Filter frame retaining clip and locking screw 01) Push the retaining clip sideways to open.
  • Page 11 04) The electric power supply cables must not show any damages or material fatigue. The StageBeam 300/500W PC requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth.
  • Page 12 01) Power supply. Check that the unit is plugged into an appropriate power supply. 02) The lamp. Replace the lamp. See page 8 for installing the lamp. 03) The internal fuse. Return the device to your Showtec dealer. 04) If all of the above appears to be O.K., plug the unit in again.
  • Page 13 StageBeam 300/500W PC Product Specifications Model: Showtec StageBeam 300/500W PC Dimensions: 315 x 175 x 315 mm (LxWxH) (incl. bracket) Weight: 3,3 kg Electro-mechanical effects: Light source: GY9.5 300/500W lamp Lamp socket: GY9.5 Beam angle: 10º-40º Zoom: manual Housing: powder coated aluminum and steel...
  • Page 14 StageBeam 300/500W PC Dimensions Ordercode: 30351...
  • Page 15 StageBeam 300/500W PC Notes Ordercode: 30351...
  • Page 16 ©2017 Showtec...

This manual is also suitable for:

30531
