- Page 1 MANUAL ENGLISH Performer Profile 600 Q4 Ordercode: 33061 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
Performer Profile 600 Q4 Table of contents Warning ....................................3 Safety Instructions ................................. 3 Operating Determinations ............................5 Rigging .................................... 5 Connection with the mains............................6 Return Procedure ................................7 Claims ....................................7 Description of the device ..............................8 Features ..................................8 Optional accessories.............................. - Page 3 Performer Profile 600 Q4 8.1. Calibration menu 1 ............................27 8.2. Calibration menu 2 ............................27 8.3. Reset calibration ...............................27 DMX Channels ................................28 10 channels TOUR ..............................28 15 channels TR16 ..............................30 3 channels ARC.1 ..............................32 4 channels AR1.D ..............................32 4 channels ARC.2 ..............................32 5 channels AR2.D ..............................33...
-
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: Showtec Performer Profile 600 Q4 1 safety cable ... - Page 5 • If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Performer Profile 600 Q4 • The user is responsible for correct positioning and operating of the Performer. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device. • This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. -
Page 7: Connection With The Mains
Performer Profile 600 Q4 Connection with the mains Connect the device to the mains with the power-plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE... -
Page 8: Return Procedure
Performer Profile 600 Q4 Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. -
Page 9: Description Of The Device

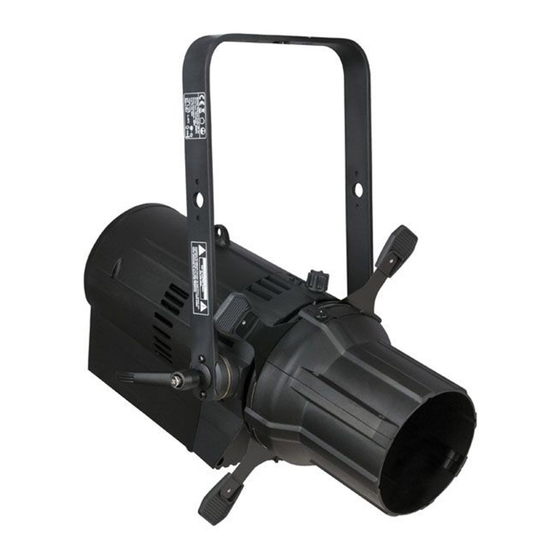

Performer Profile 600 Q4 Description of the device Features The Showtec Performer Profile 600 Q4 is a theater spotlight fixture with high output and great effects. Light Source: 1 x 150W COB 4-in-1 Input Voltage: 100 - 240VAC, 50/60Hz ... - Page 10 Performer Profile 600 Q4 Fig. 02 01) Lens tube 02) Beam focus control 03) Barrel 04) Mounting bracket 05) LED lens 06) LED board 07) Thermal switch holder + thermal switch 08) Driver board 09) Insulated handle 10) PCB 11) Fuse T3,15AL/250V...
-
Page 11: Backside
Performer Profile 600 Q4 Backside Fig. 03 20) Fuse T3,15AL/250V 21) Powercon power connector 100-240V IN 22) Powercon power connector 100-240V OUT 23) 5-pin DMX signal connector IN 24) 5-pin DMX signal connector OUT 25) 3-pin DMX signal connector IN... -
Page 12: Installation
Performer Profile 600 Q4 Installation Remove all packing materials from the Performer Profile 600 Q4. Check if all foam and plastic padding is removed. Connect all cables. Do not supply power before the whole system is set up and connected properly. -
Page 13: Color Frame Retaining Clip
(Fig. 06). Make sure that all color frame accessories are locked in position with the retaining clip before hanging the Performer Profile 600 Q4. 01) Release the retaining clip by pushing it sideways while gently pulling backwards. -
Page 14: Shutters
Performer Profile 600 Q4 Shutters The shutters are located inside the barrel. Move them back and forth to modify the shape of the beam. Fig. 07 Drop-in Iris-Slot The Drop-in Iris slot is located on the top of the barrel. It accommodates either a drop-in iris or a motorized pattern device. -
Page 15: Rotating The Barrel Assembly
Performer Profile 600 Q4 Rotating the barrel assembly 01) Loosen the barrel rotation control. It can be found directly behind the shutters on the underside of the reflector housing (Fig 09). Do not remove the barrel rotation control. 02) Rotate the barrel to the desired position. -
Page 16: Setting The Angle
Performer Profile 600 Q4 Setting the angle 01) Loosen the adjustment screws (do not remove them). 02) Tilt the fixture to the desired position (Fig. 11). 03) Tighten the adjustment screws to secure the fixture in position. Fig. 11 Control Modes There are 4 modes: •... -
Page 17: Multiple Performers (Master/Slave Control)
Performer Profile 600 Q4 Multiple Performers (Master/Slave control) 01) Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performer. -
Page 18: Multiple Performers (Dmx Control)
Performer Profile 600 Q4 Multiple Performers (DMX Control) 01) Fasten the effect light to a firm trussing. Leave at least 0,5 meter on all sides for air circulation. 02) Always use a safety cable (ordercode 70140 / 70141). 03) Use a 3-pin XLR cable to connect the Performers and other devices. -
Page 19: Fixture Linking
FL09150 (1,5 m), FL093 (3 m), FL096 (6 m), FL0910 (10 m), FL0915 (15 m), FL0920 (20 m). • DAP Audio DMX adapter: 3-pin/5-pin. Ordercode FLA30. The Performer Profile 600 Q4 can be operated with a controller in control mode or without the controller in stand-alone mode. Ordercode: 33061... -
Page 20: Control Panel
Performer Profile 600 Q4 Control Panel A) LED Display MENU button C) ENTER button D) UP button DOWN button Fig. 14 Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address, next time.) -
Page 21: Menu Overview
Performer Profile 600 Q4 Menu Overview Ordercode: 33061... - Page 22 Performer Profile 600 Q4 The Performer will only show its entire version number at start-up ! Ordercode: 33061...
-
Page 23: Main Menu Options
Performer Profile 600 Q4 Main Menu Options Static Colors Built-in and custom programs Master/ slave mode DMX address DMX configuration Edit mode Settings Calibration menu 1. Static Colors With this menu you can set the static colors. While in main menu, press the UP/DOWN buttons until the display shows Press the ENTER button to open the menu. -
Page 24: Built-In And Custom Programs
Performer Profile 600 Q4 2. Built-in and custom programs With this menu you can set the built-in programs or choose your edited custom programs. 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 25: Dmx Configuration
Performer Profile 600 Q4 5. DMX configuration With this menu you can set the desired DMX channel mode (personality). 01) While in main menu, press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. -
Page 26: How To Make Your Own Custom Program
Performer Profile 600 Q4 10) When the display shows FADE, press the ENTER button to open the menu and press the UP/DOWN buttons to set the fade time between particular scenes. The adjustment range is between 0-255, from 0 to 255 seconds. -
Page 27: Color
Performer Profile 600 Q4 7.4. Color With this menu you can adjust the color calibration functions. 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the following 3 options:... -
Page 28: Strobe Personalities
Performer Profile 600 Q4 7.8. Strobe personalities With this menu you can set the strobe’s personalities. 01) Press the UP/DOWN buttons until the display shows 02) Press the ENTER button to open the menu. 03) Press the UP/DOWN buttons to toggle between the 2 modes. -
Page 29: Dmx Channels
Performer Profile 600 Q4 DMX Channels 10 channels TOUR Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer intensity (CH1 must be set between 1-255 0-255 Gradual adjustment Red from 0 – 100% Channel 2 –... - Page 30 Performer Profile 600 Q4 Channel 7 –Strobe (mode is in settings menu (CH1 and CH2, CH3, CH4 or CH5 must be set between 1-255 and CH6 between 11-255 No function 10-99 Linear strobe, from slow to fast (0-20Hz) 100-109 No function...
-
Page 31: Channels Tr16
Performer Profile 600 Q4 15 channels TR16 Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Master Dimmer fine intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Time (CH13 must be set between 141-255 0-255 Gradual adjustment time, from 0 to 255 sec. - Page 32 Performer Profile 600 Q4 211-215 White 3: 4200K 216-220 White 4: 4900K 221-225 White 5: 5600K 226-230 White 6: 5900K 231-235 White 7: 6500K 236-240 White 8: 7200K 241-245 White 9: 8000K 246-250 White 10: 8500K 251-255 White 11: 10000K Channel 12 –...
-
Page 33: Channels Arc.1
Performer Profile 600 Q4 Channel 14 – Program speed (CH13 must be set between 41-140 0-255 Gradual speed adjustment, from slow to fast Channel 15 – Dimmer speed Preset Dimmer speed 10-29 Linear dimmer 30-69 DIM1 (fastest) 70-129 DIM2 130-189... -
Page 34: Channels Ar2.D
Performer Profile 600 Q4 5 channels AR2.D Channel 1 – Master Dimmer intensity 0-255 Gradual adjustment, from dark to brightest 0-100% Channel 2 – Red Dimmer intensity (CH1 must be set between 1-255 0-255 Gradual adjustment Red from 0 – 100% Channel 3 –... -
Page 35: Cleaning
Performer Profile 600 Q4 Cleaning Please follow the next recommendations when cleaning and inspecting lenses and reflectors: Do not use glass or window type cleaners on lenses (glass or polymer) or reflectors. Do not use abrasive materials such as steel wool. -
Page 36: Maintenance
04) The electric power supply cables must not show any damages or material fatigue. The Performer Profile 600 Q4 requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. - Page 37 Performer Profile 600 Q4 Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.
-
Page 38: Product Specifications
Performer Profile 600 Q4 Product Specifications Model: Showtec Performer Profile 600 Q4 Input Voltage: 100-240 VAC, 50/60Hz Power consumption: 180W (full output) DMX linking: 30pcs Power linking @120V: 5 units Power linking @230V: 10 units Fuse: T3,15AL/250V Dimensions: 490 x 305 x 460 mm (LxWxH) -
Page 39: Dimensions
Performer Profile 600 Q4 Dimensions Ordercode: 33061... - Page 40 ©2017 Showtec...
