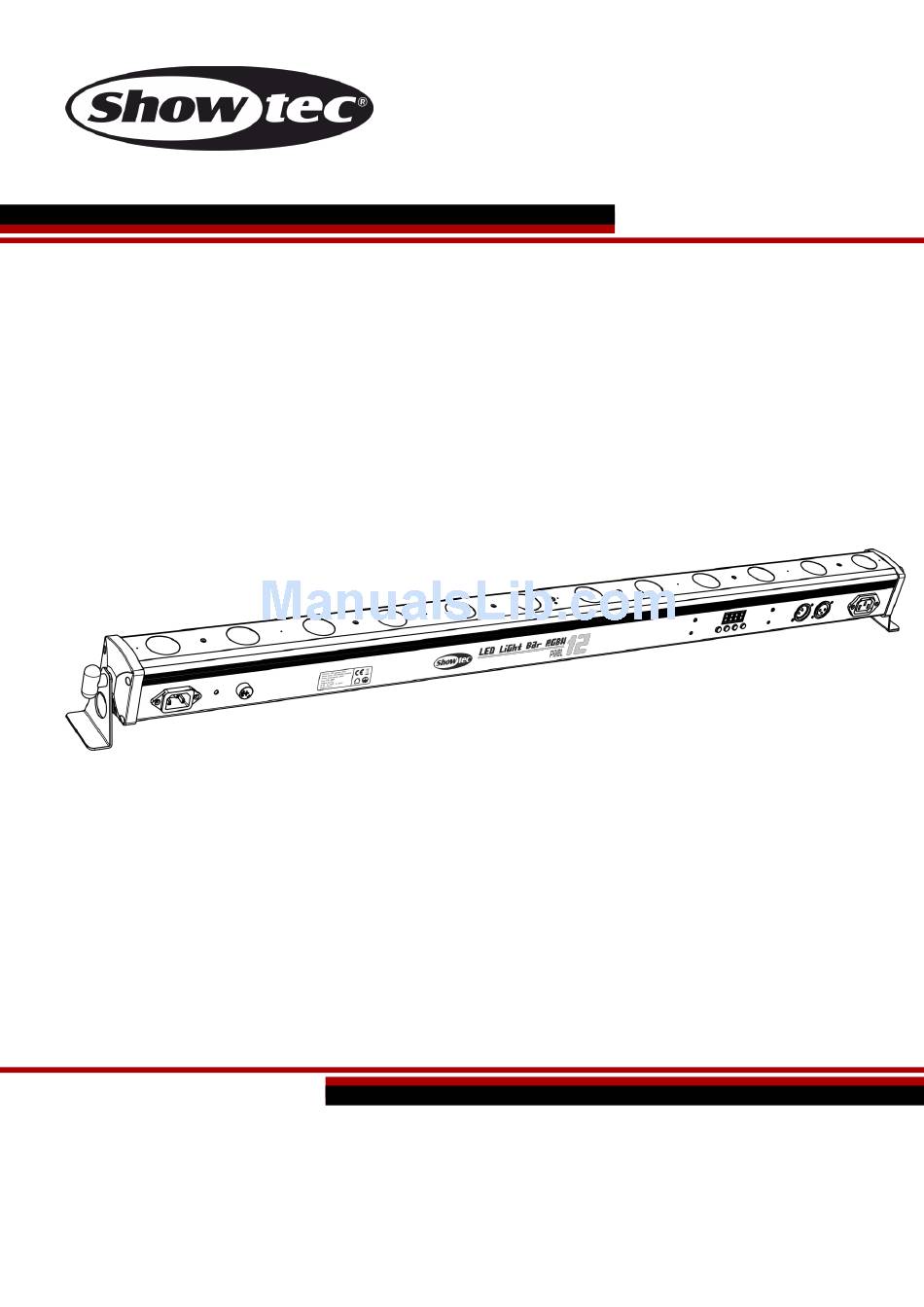

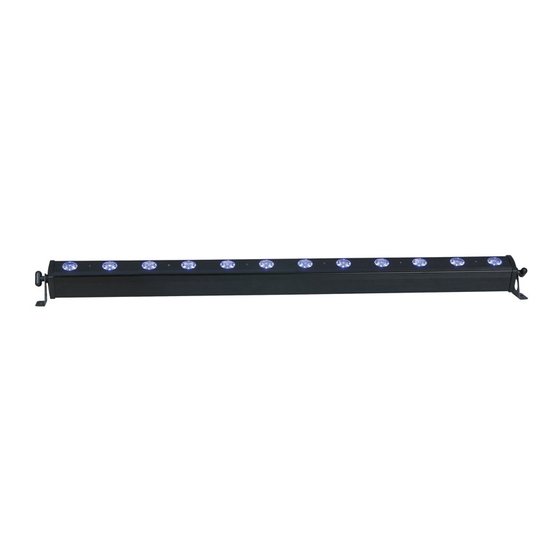

  • Page 1 MANUAL ENGLISH LED Lightbar 12 Pixel Ordercode: 42197 Highlit e I nt ernat ional B.V. – Ves t as t raat 2 – 6468 EX – K erkrade – t he Net herlands...

  • Page 2: Table Of Contents

    LED Lightbar 12 Pixel Table of contents Warning ................................2 Safety Instructions............................2 Operating Determinations ......................... 4 Rigging ............................... 4 Connection with the mains ........................5 Return Procedure ............................5 Claims................................. 5 Description of the device ..........................6 Optional accessories ..........................6 Overview ..............................

  • Page 3: Warning

    Save the carton and all packing materials. In the event that the fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes:  Showtec LED Lightbar 12 Pixel • 2 brackets and screws • IEC powercable 1,5m •...
  • Page 4  If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.

  • Page 5: Operating Determinations

    LED Lightbar 12 Pixel Operating Determinations ● This device is not designed for permanent operation. Regular operation breaks will ensure that the device will serve you for a long time without defects. ● The minimum distance between light-output and the illuminated surface must be bigger than 1 meter.

  • Page 6: Connection With The Mains

    LED Lightbar 12 Pixel Connection with the mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER PHASE BLUE BLACK...

  • Page 7: Description Of The Device

    Features The Showtec LED Lightbar 12 Pixel is a cost effective LED bar with 12 x 4-in-1 RGBW LEDs. It offers full pixel control in 48 channel mode to create beautiful color flows but can also be controlled in 4, 6, 10, 12 or 18 channel mode.

  • Page 8: Overview

    LED Lightbar 12 Pixel Overview Fig. 01 01) IEC Power In 02) Ground/Earth connection 03) Fuse T1L / 250V 04) 12 x 4W RGBW 05) Menu Buttons + LED display 06) DMX signal connector (IN) 3-pin DMX signal connector (OUT) 3-pin 08) IEC Power Out (max 10A) 09) Adjustment screw + mounting bracket for Truss mounting Installation...

  • Page 9: One Led Lightbar 12 Pixel (Manual Control)

    LED Lightbar 12 Pixel One LED Lightbar 12 Pixel (Manual control) 01) Fasten the effect light onto firm trussing or place it on the floor. Leave at least 0,5 meter on all sides for air circulation. 02) When the LED Lightbar is not connected by a DMX-cable, it functions as a stand-alone device.

  • Page 10: Multiple Led Lightbars 12 Pixel (Dmx512 Mode)

    LED Lightbar 12 Pixel Multiple LED Lightbars 12 Pixel (DMX512 Mode) 01) Fasten the effect light onto firm trussing or place it on the floor. Leave at least 0,5 meter on all sides for air circulation. 02) Plug the end of the electric mains power cord into a proper electric power supply socket. 03) Use a 3-p XLR cable to connect the LED Lightbars and other devices.

  • Page 11: Fixture Linking

    LED Lightbar 12 Pixel Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX -512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixt ures the data link can support.

  • Page 12: Control Panel

    LED Lightbar 12 Pixel Control Panel A. LED Display B. Mode button C. Setup Button D. Up Button E. Down Button Fig. 04 DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the backside of the device allows you to assign the DMX fixture address, which is...

  • Page 13: Menu Overview

    LED Lightbar 12 Pixel Menu overview Ordercode: 42197...

  • Page 14: Main Menu Options

    LED Lightbar 12 Pixel Main Menu Options Built-in Programs Auto Run DMX mode Slave Sound controlled Color Settings Built-in Programs With this menu you can choose a built-in program. 01) Press the Mode button on the device, until the display shows 02) You can choose 16 built-in programs , by using the Up and Down buttons.

  • Page 15: Auto Run Program

    LED Lightbar 12 Pixel 04) Press Setup again and you can set the strobe value by using the Up and Down buttons. 05) Press the Mode button to go back to 06) With the Up and Down buttons you can choose between 07) Press the Setup button to set the speed or strobe value.

  • Page 16: Master / Slave Addressing

    LED Lightbar 12 Pixel Master / slave addressing Master 01) The default setting for this device is master. 02) Only one fixture can be the master. Note: • Disconnect the fixture from the DMX controller before master/slave operating, otherwise data collisions may occur and the fixtures will not work properly! •...

  • Page 17: Static Color Mode

    LED Lightbar 12 Pixel Static Color Mode With this menu you can create a static color. 01) Press the Mode button, until the display shows 02) Press the Setup button to make a color. 03) With this sub menu you can set 4 static colors of the LED Lightbar 12 Pixel. You can choose Red, Green, Blue or White by pressing the Setup button.

  • Page 18: Dmx Channels

    LED Lightbar 12 Pixel DMX Channels 4 DMX Channels Channel 1 – Pixel Programs 2-24 Program 1 25-49 Program 2 50-74 Program 3 75-99 Program 4 100-124 Program 5 125-149 Program 6 150-174 Program 7 175-199 Program 8 200-224 Program 9 225-249 Program 10 250-255...

  • Page 19: Dmx Channels

    LED Lightbar 12 Pixel 6 DMX Channels Channel 1 – Dimmer (Colors RGBW must be open 0-255 From black to brightest Channel 2 – Linear Strobe (CH1, CH3, CH4, CH5 or CH6 must be set between 001-255 0-255 Strobe intensity, from slow to fast (0-20Hz, color strobe selected by CH3-CH6) Channel 3 –...
  • Page 20 LED Lightbar 12 Pixel 133-139 Color 20 (R000, G000, B255, W000) 140-146 Color 21 (R075, G000, B255, W000) 147-153 Color 22 (R160, G000, B255, W000) 154-160 Color 23 (R255, G000, B255, W000) 161-167 Color 24 (R255, G000, B175, W000) 168-174 Color 25 (R255, G000, B100, W000) 175-181 Color 26 (R255, G000, B100, W050)

  • Page 21: Mx Channels

    LED Lightbar 12 Pixel Channel 9 – Red Dimmer intensity (CH1 must be set between 001-255 0-255 Red from 0 – 100% Channel 10 – Green Dimmer intensity (CH1 must be set between 001-255 0-255 Green from 0 – 100% Channel 11 –...

  • Page 22: Mx Channels

    LED Lightbar 12 Pixel Channel 7 – Red Dimmer intensity section 2 (CH1 must be set between 001-255 0-255 Red from 0 – 100% Channel 8– Green Dimmer intensity section 2 (CH1 must be set between 001-255 0-255 Green from 0 – 100% Channel 9 –...
  • Page 23 LED Lightbar 12 Pixel Channel 5 – Blue Dimmer intensity section 1 (CH1 must be set between 001-255 0-255 Blue from 0 – 100% Channel 6 – White Dimmer intensity section 1 (CH1 must be set between 001-255 0-255 White from 0 – 100% Channel 7 –...
  • Page 24 LED Lightbar 12 Pixel Channel 12– Green Dimmer intensity section 3 (CH1 must be set between 001-255 0-255 Green from 0 – 100% Channel 13 – Blue Dimmer intensity section 3 (CH1 must be set between 001-255 0-255 Blue from 0 – 100% Channel 14 –...

  • Page 25: Mx Channels

    LED Lightbar 12 Pixel 48 DMX Channels Channel 1 – Red Pixel LED 1 0-255 Red from 0 – 100% Channel 2 – Green Pixel LED 1 0-255 Green from 0 – 100% Channel 3 – Blue Pixel LED 1 0-255 Blue from 0 –...
  • Page 26 LED Lightbar 12 Pixel Channel 33 – Red Pixel LED 9 0-255 Red from 0 – 100% Channel 34 – Green Pixel LED 9 0-255 Green from 0 – 100% Channel 35 – Blue Pixel LED 9 0-255 Blue from 0 – 100% Channel 36 –...

  • Page 27: Maintenance

    04) The electric power supply cables must not show any damages or material fatigue. The Showtec LED Lightbar 12 Pixel requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply and then wipe the cover with a damp cloth.
  • Page 28 LED Lightbar 12 Pixel Problem Probable cause(s) Solution No power to the fixture • Check if power is switched on and One or more cables are plugged in. fixtures do not function at all Primary fuse blown • Replace fuse Fixtures reset The controller is not connected.

  • Page 29: Product Specifications

    LED Lightbar 12 Pixel Product Specifications Model: Showtec LED Lightbar 12 Pixel Input Voltage: 100-240V AC, 50/60Hz Consumption Power 20 Watt Drive current: 100 mA Refresh rate: 2 Khz DMX linking: 30pcs Fuse: T1L / 250V Dimensions: 1080 x 65 x 88 mm (LxWxH) (incl. brackets)

  • Page 30: Dimensions

    LED Lightbar 12 Pixel Dimensions Ordercode: 42197...

  • Page 31: Notes

    LED Lightbar 12 Pixel Notes Ordercode: 42197...
  • Page 32 ©2016 Showtec...
