- Page 1 Spider LED ORDERCODE 43107 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Overview ..................................6 Set Up and Operation ............................... 7 Control Modes ................................7 One Spider LED (Auto Run Programs) ........................7 One Spider LED (Sound-control)..........................8 Multiple Spider LEDs (Master/Slave control) ......................8 Multiple Spider LEDs (DMX Control) ........................9 Fixture Linking ................................ -
Page 4: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture be returned in the original factory box and packing. Your shipment includes: • Showtec Spider LED including hanging bracket • IEC powercable 1,5m • User manual LED Expected Lifespan LEDs gradually decline in brightness over time. - Page 5 Allow time to cool down, before replacing lamp. The user is responsible for correct positioning and operating of the Spider LED. The manufacturer will not accept liability for damages caused by the misuse or incorrect installation of this device.
-
Page 6: Operating Determinations
Always let the installation be carried out by an authorized dealer ! Procedure: If the Spider LED is lowered from the ceiling or high joists, professional trussing systems have to be used. Use a clamp to mount the Spider LED, with the mounting-bracket, to the trussing system. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description Of The Device

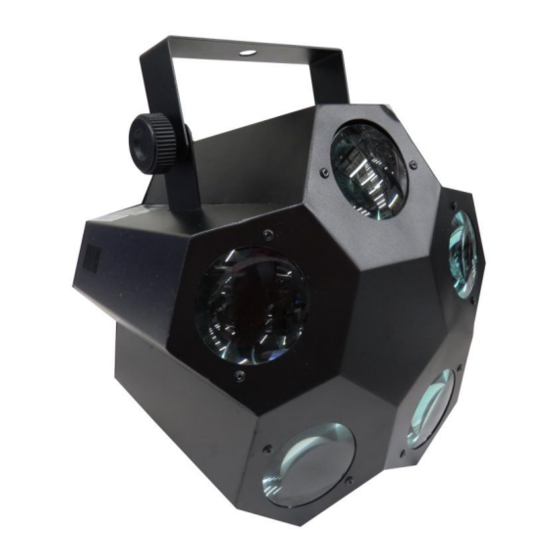

Description of the device Features The Showtec Spider LED is a light effect with high output and great effects. • New and exciting lighting effect which creates a flowering effect • Wide Beam angle • Vivid colors • DMX Control •... -
Page 9: Set Up And Operation
Do not attempt to operate a 120V specification product on 230V power, or vice versa. Remove all packing materials from the Spider LED. Check that all foam and plastic padding is removed. Always disconnect from electric mains power supply before cleaning or servicing. -
Page 10: One Spider Led (Sound-Control)
3. The dipswitces have no influence during the Sound controlled modus. 4. When the Spider LED is not connected by a DMX-cable, it functions as a stand-alone device 5. For sound control dipswitch #12 must be set to ON. The other dipswitches must be OFF. -
Page 11: Multiple Spider Leds (Dmx Control)
After having addressed all Spider LED fixtures, you may now start operating these via your lighting controller. Note: After switching on, the Spider LED will automatically detect whether DMX 512 data is received or not. If there is no data received, the problem may be: •... -
Page 12: Fixture Linking
Fixture Linking You will need a serial data link to run light shows of one or more fixtures using a DMX-512 controller or to run synchronized shows on two or more fixtures set to a master/slave operating mode. The combined number of channels required by all the fixtures on a serial data link determines the number of fixtures the data link can support. -
Page 13: Dipswitch Setting For Dmx Mode
(DMX Dip Switches "ON") for each unit. Flip appropriate DMX dip switches on each unit. Example: 1. If you want to give a Spider LED DMX address 133, you first have to find the number 133 in the DMX Chart. (See page 11+12) 2. -
Page 14: Dmx Quick Reference Chart
DMX Quick Reference Chart... -
Page 15: Dmx Channels
DMX Channels 10 Channels Channel 1 – Colors, Program Mode and Sound Active Mode 0-14 Blackout 15-19 20-24 Green 25-29 Blue 30-34 Red + Green 35-39 Red + Blue 40-44 Green + Blue 45-49 Red + Green + Blue 50-199 Program Mode (Select Program with CH2) 200-255 Sound-controlled... -
Page 16: Maintenance
191-255 2 lenses illuminated Maintenance The Showtec Spider LED requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light-output will be significantly reduced. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. Wipe lens clean with glass cleaner and a soft cloth. -
Page 17: Troubleshooting
4. If all of the above appears to be O.K., plug the unit in again. 5. If you are unable to determine the cause of the problem, do not open the Spider LED, as this may damage the unit and the warranty will become void. - Page 18 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 19: Product Specification
Product Specification Model: Showtec Spider LED • New and exciting lighting effect which creates a flowering effect • Pre-programmed shows are perfectly synchronized to the beat of the music by its built in music control • Wide Beam angle • Vivid colors •...
