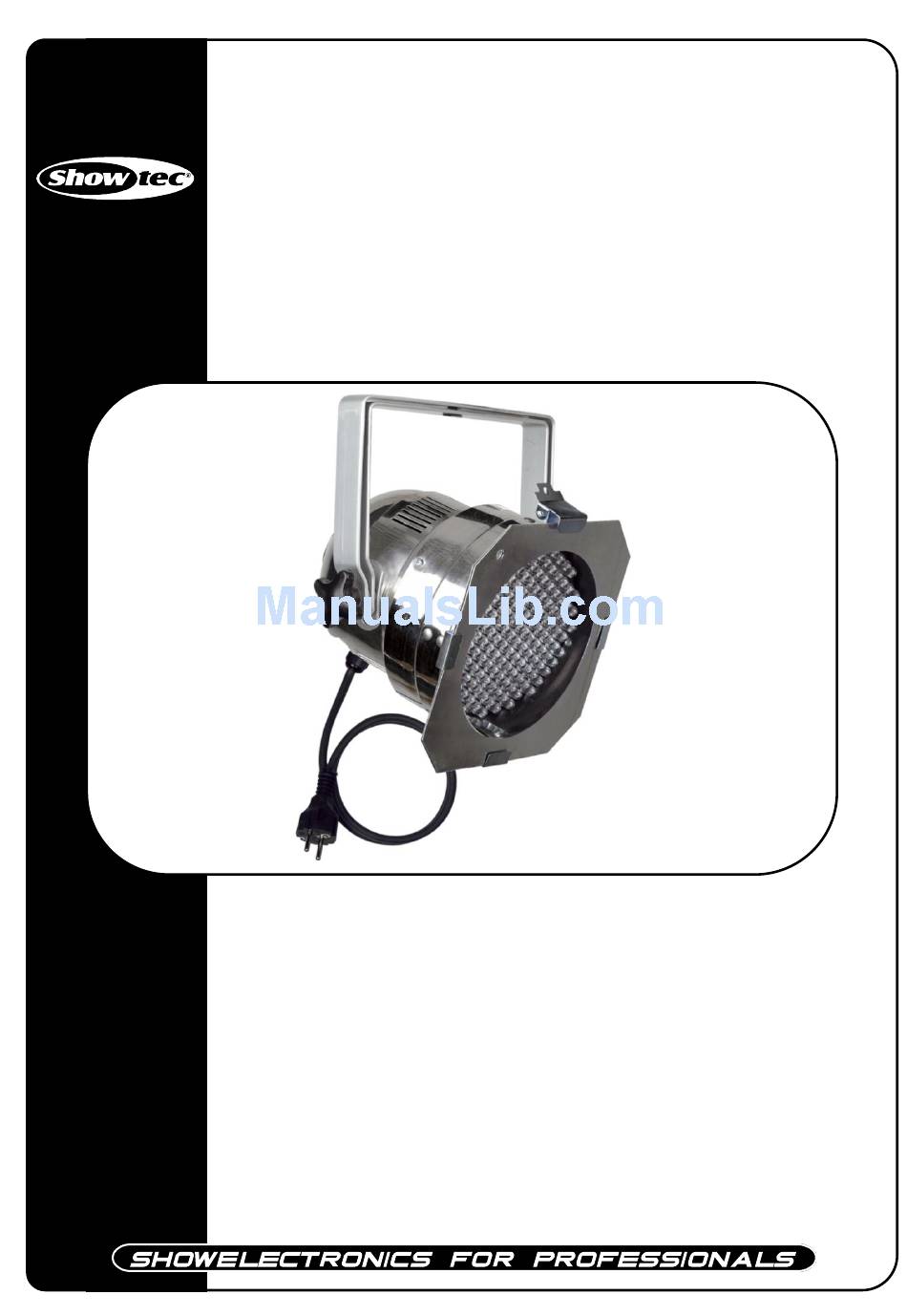

- Page 1 LED PAR 56 Short Pro RGB ORDERCODE 42426 Highlite International B.V. Vestastraat 2 6468 EX Kerkrade The Netherlands Phone: +31 45-5667700...
- Page 2 Congratulations! You have bought a great, innovative product from Showtec. The Showtec LED Par 56 Short Pro brings excitement to any venue. Whether you want simple plug-&-play action or a sophisticated DMX show, this product provides the effect you need.
-
Page 3: Table Of Contents
Showtec Showtec LED Par 56 Short Pro ™ Product Guide Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 4 Return Procedure ................................5 Claims ....................................5 Description of the device ..............................6 Overview ..................................6 Set Up and Operation ............................... -
Page 4: Warning
Warning FOR YOUR OWN SAFETY, PLEASE READ THIS USER MANUAL CAREFULLY BEFORE YOUR INITIAL START-UP! Unpacking Instructions Immediately upon receiving this product, carefully unpack the carton and check the contents to ensure that all parts are present, and have been received in good condition. Notify the dealer immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. - Page 5 If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 6: Operating Determinations
Operating Determinations • This device is not designed for permanent operation. Consistent operation breaks will ensure that the device will serve you for a long time without defects. • The minimum distance between light-output and the illuminated surface must be more than 0.5 meter. •... -
Page 7: Return Procedure
Connection with the mains Connect the device to the mains with the power-plug. Always pay attention, that the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER FASE BLUE BLACK SILVER YELLOW/GREEN GREEN GREEN... -
Page 8: Description Of The Device
Description of the device Features The Showtec LED Par 56 Short Pro is a LED parcan with high output and great effects. • Never change lamps again! • Powersupply: 120-240V / 50-60 Hz multi-voltage • Peak Power 31 Watt • Continuous Power 17 Watt •... -
Page 9: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Damages caused by non-observance are not subject to warranty. -
Page 10: Multiple Led Pars (Master/Slave Control)
Multiple LED Pars (Master/Slave control) 1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation. 2. Always use a safety cable (ordercode 70140 / 70141). Use a 3-p XLR cable to connect the LED Par 56 Short Pro. The pins: Earth Signal -... -
Page 11: Fixture Linking
Link the units as shown in (figure 5), Connect a DMX signal cable from the first unit's DMX "out" socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units. Supply electric power: Plug electric mains power cords into each unit's IEC socket, then plug the other end of the mains power cord into proper electric power supply sockets, starting with the first unit. -
Page 12: Control Panel
Control Panel Fig. 6 A. LCD Display C. Up Button B. MODE button D. Down Button DMX Control Mode The fixtures are individually addressed on a data-link and connected to the controller. The fixtures respond to the DMX signal from the controller. (When you select the DMX address and save it, the controller will display the saved DMX address the next time.) DMX Addressing The control panel on the front side of the LED Par 56 Short Pro allows you to assign the DMX fixture... -
Page 13: Menu Overview
Menu Overview DMX Mode 1 (6 Channels) DMX Mode 2 (3 Channels) Static Color Mode Color Jump Mode Color Dream Mode Auto Run Mode Sound-controlled Mode Slave Mode The LED Par 56 Short Pro will automatically detect the presence of a DMX signal. In order to receive a DMX signal, the controller must be attached to a DMX controller by a 3/5-pin DMX cable and the DMX controller must be turned on. -
Page 14: Static Color Mode
2. Static Color Mode 1) Press the MODE button on the device, until the display shows 2) With these menus you can set the Static Color Mode of the LED Par 56 Short Pro. There are 7 different Static Colors. Blackout Green Blue... -
Page 15: Dmx Channels
DMX Channels 6 Channels Channel 1 – Red 0-255 Red from 0 – 100% Channel 2 – Green 0-255 Green from 0 – 100% Channel 3 – Blue 0-255 Blue from 0 – 100% Channel 4 – Macro Colors No function 8-255 36 Macro colors Channel 5 –... -
Page 16: Maintenance
3. Mechanically moving parts like axles, eyes and others may not show any traces of wearing. 4. The electric power supply cables must not show any damages or material fatigue. The Showtec LED Par 56 Short Pro requires almost no maintenance. However, you should keep the unit clean. - Page 17 Problem Probable cause(s) Remedy No power to the fixture • Check that power is switched on One or more and cables are plugged in. fixtures are Primary fuse blown. • Replace fuse. completely dead. Fixtures reset The controller is not connected. •...
-
Page 18: Product Specification
Product Specification Model: Showtec LED Par 56 Short Pro Never change lamps again! Powersupply: 120-240V / 50-60 Hz multi-voltage Peak Power 31 Watt Continuous Power 17 Watt Power connector: Schuko LEDs: 108x 0.25W 10 mm (36x Red, 36x Green, 36x Blue) Beam angle: 20°...
