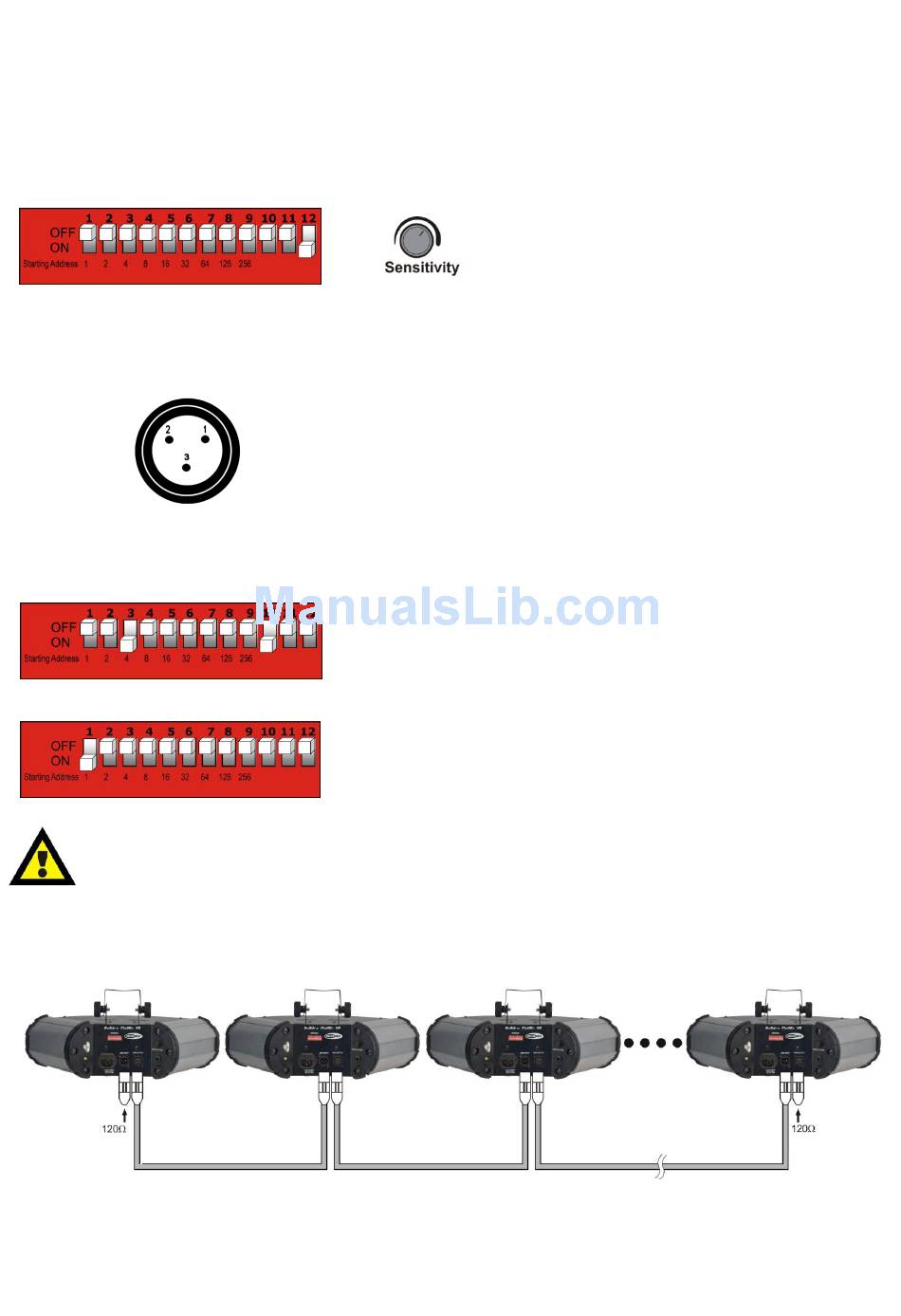

One Quadro Flower (Sound-control)
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
Plug the end of the electric mains power cord into a proper electric power supply socket.
2. The dipswitces have no influence during the Sound controlled modus.
3. When the device is not connected by a DMX-cable, it functions as a stand-alone device.
For sound control dipswitch #12 must be set to ON. The other dipswitches must be OFF.
Turn on the music, then the Quadro Flower will react to the beat of the music.
You can also adjust the Sensitivity, by using the sensitivity control.
Multiple Quadro Flowers
1. Fasten the effect light onto firm trussing. Leave at least 0,5 meter on all sides for air circulation.
2. Use a 3-p XLR cable to connect the Quadro Flower.
The pins:
3. Link the units as shown in (Fig. 3), Connect a DMX signal cable from the first unit's DMX "out"
socket to the second unit's "in" socket. Repeat this process to link the second, third, and fourth units.
4. Set DMX dip switches as follows
You can use the same functions on the master device as described on page 8+9 (Custom and
Music control)
This means on the master device you can use Dipswitch #1-#12 depending on your desired
operation Mode and all slave devices will react the same as the master device.
(Master/Slave control)
1. Earth
2. Signal -
3. Signal +
Master Control:
Slave Control:
Multiple Quadro Flowers
Use dipswitch #1-#12 to play your the desired
mode.
Dipswitch #1 should be ON
(Master/Slave control)
9
Fig. 3
