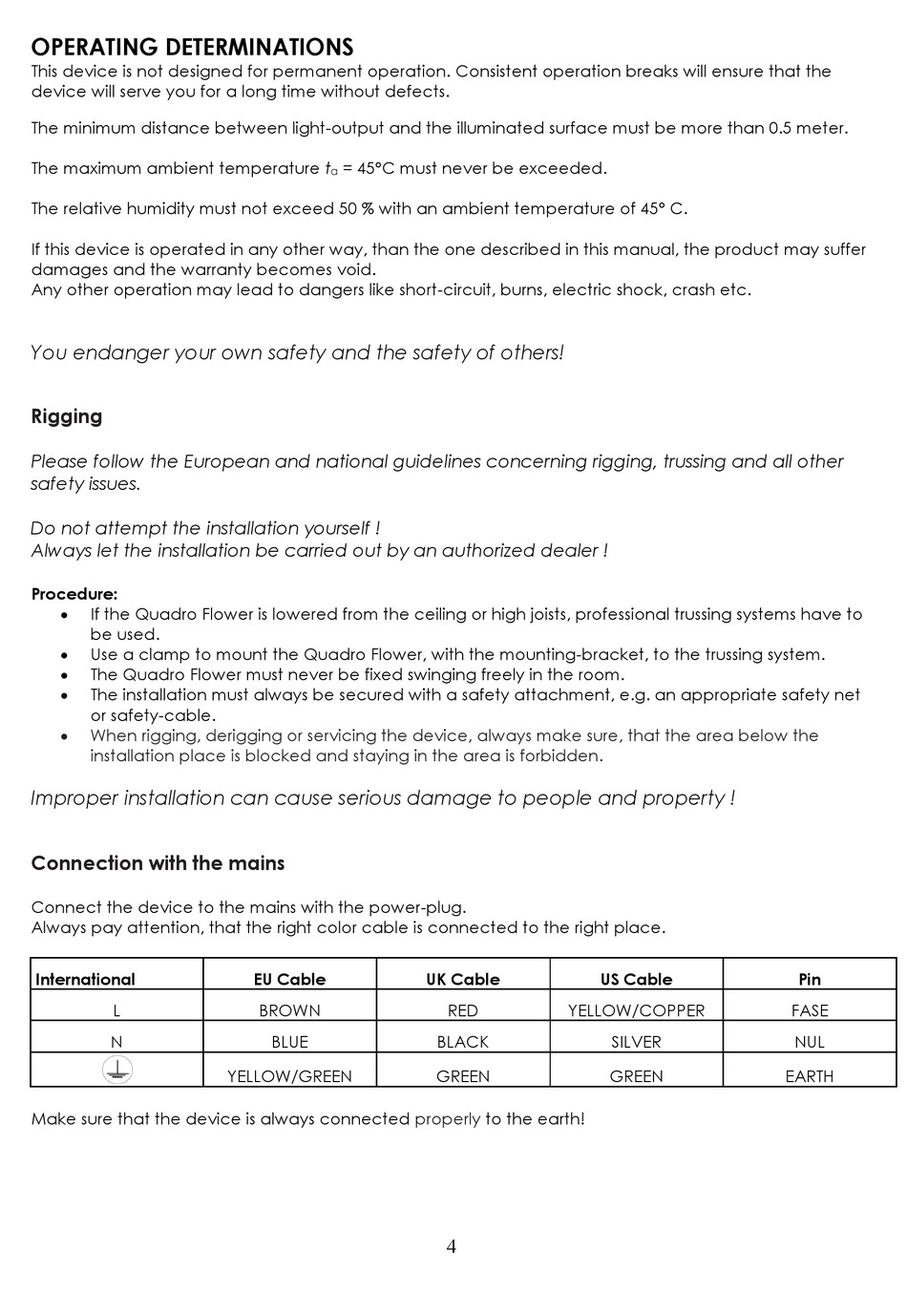

OPERATING DETERMINATIONS

This device is not designed for permanent operation. Consistent operation breaks will ensure that the
device will serve you for a long time without defects.
The minimum distance between light-output and the illuminated surface must be more than 0.5 meter.
The maximum ambient temperature t
The relative humidity must not exceed 50 % with an ambient temperature of 45° C.
If this device is operated in any other way, than the one described in this manual, the product may suffer
damages and the warranty becomes void.
Any other operation may lead to dangers like short-circuit, burns, electric shock, crash etc.
You endanger your own safety and the safety of others!

Rigging

Please follow the European and national guidelines concerning rigging, trussing and all other
safety issues.
Do not attempt the installation yourself !
Always let the installation be carried out by an authorized dealer !
Procedure:
 If the Quadro Flower is lowered from the ceiling or high joists, professional trussing systems have to
be used.
 Use a clamp to mount the Quadro Flower, with the mounting-bracket, to the trussing system.
 The Quadro Flower must never be fixed swinging freely in the room.
 The installation must always be secured with a safety attachment, e.g. an appropriate safety net
or safety-cable.
 When rigging, derigging or servicing the device, always make sure, that the area below the
installation place is blocked and staying in the area is forbidden.
Improper installation can cause serious damage to people and property !
Connection with the mains
Connect the device to the mains with the power-plug.
Always pay attention, that the right color cable is connected to the right place.
International
L
N
Make sure that the device is always connected
= 45°C must never be exceeded.
a
EU Cable
BROWN
BLUE
YELLOW/GREEN
UK Cable
RED YELLOW/COPPER
BLACK
GREEN
properly to the earth!
4
US Cable
SILVER
GREEN
Pin
FASE
NUL
EARTH
