MUX switch
MUX switch function allows the connection of up to 3 switches to one analog input. Switches can
activate various functions such as Launch Control, ALS, Pit Limiter and others. Switches
connected with mux switch function are visible in software with names Mux switch 1-3. Mux switch
state can be checked in Log/Other/Mux switch state. To use this function, switches must be
connected according to the following diagram. It's advised to use resistors with 1% tolerance and
Sensor ground for grounding.
PARAMETR
MUX Switch enabled
MUX Switch input

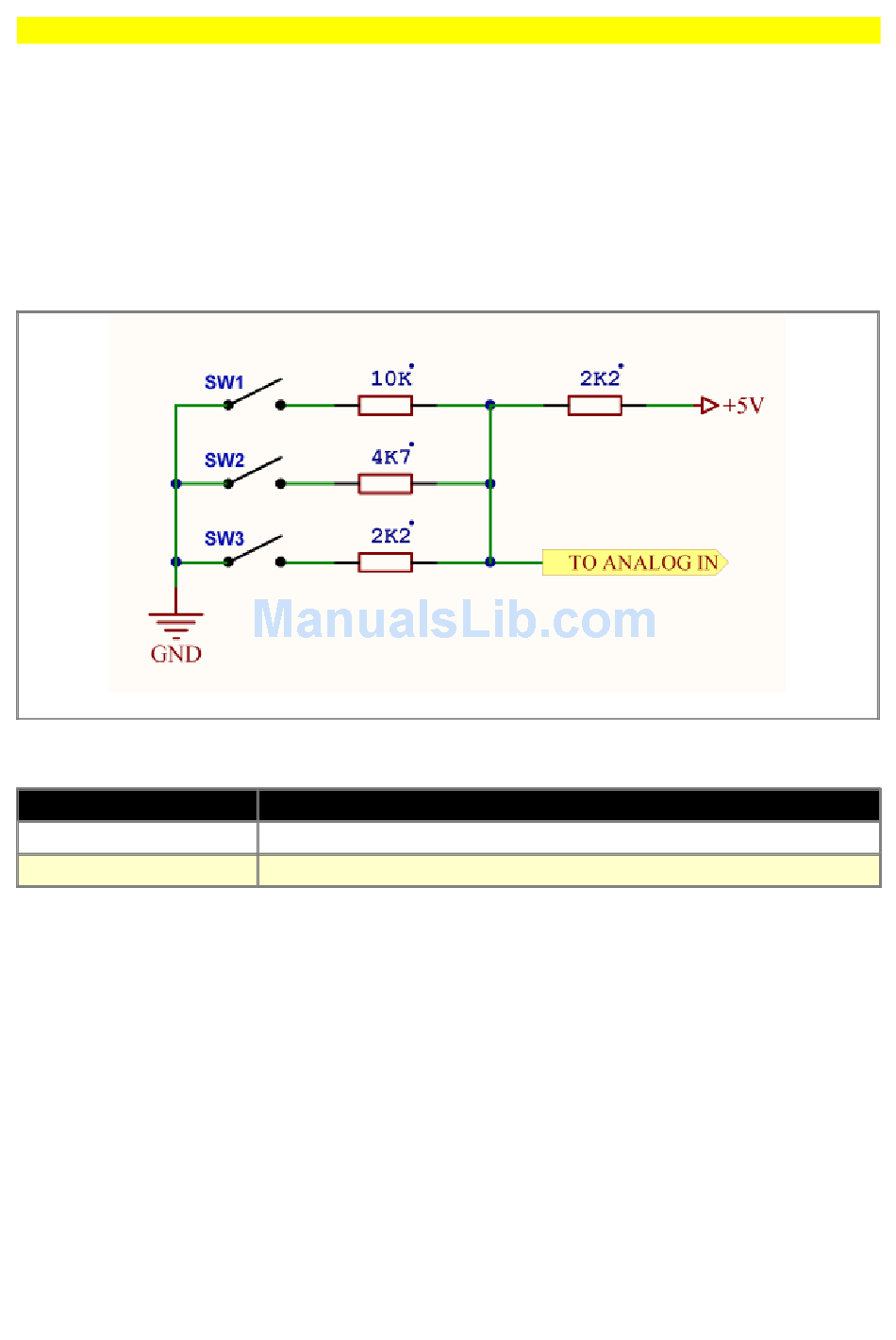

MUX switch wiring diagram
DESCRIPTION
Activates MUX switch function
Analog input connected with MUX Switch
