Tree view parameter list

Nitrous is responsible for nitrous oxide systems. For logging data and visual representation of EMU
parameters categories Log i Gauges should be used.

Desktops

There are ten (10) desktops in the Windows Client. On each desktop user can place tables,
parameters blocks, gauges, etc. Desktop layouts are assigned to the specific EMU device and are
stored on disk when the windows client is closed. To make navigation between Desktops easier
keyboard shortcuts could be used (CTRL+1 – CTRL+7). There is also possibility to store/load the
current layout into file using Save / Open desktop template.
To change deskotop name press the right mouse button on the desktop tabs and choose Rename
active desktop from popup menu.

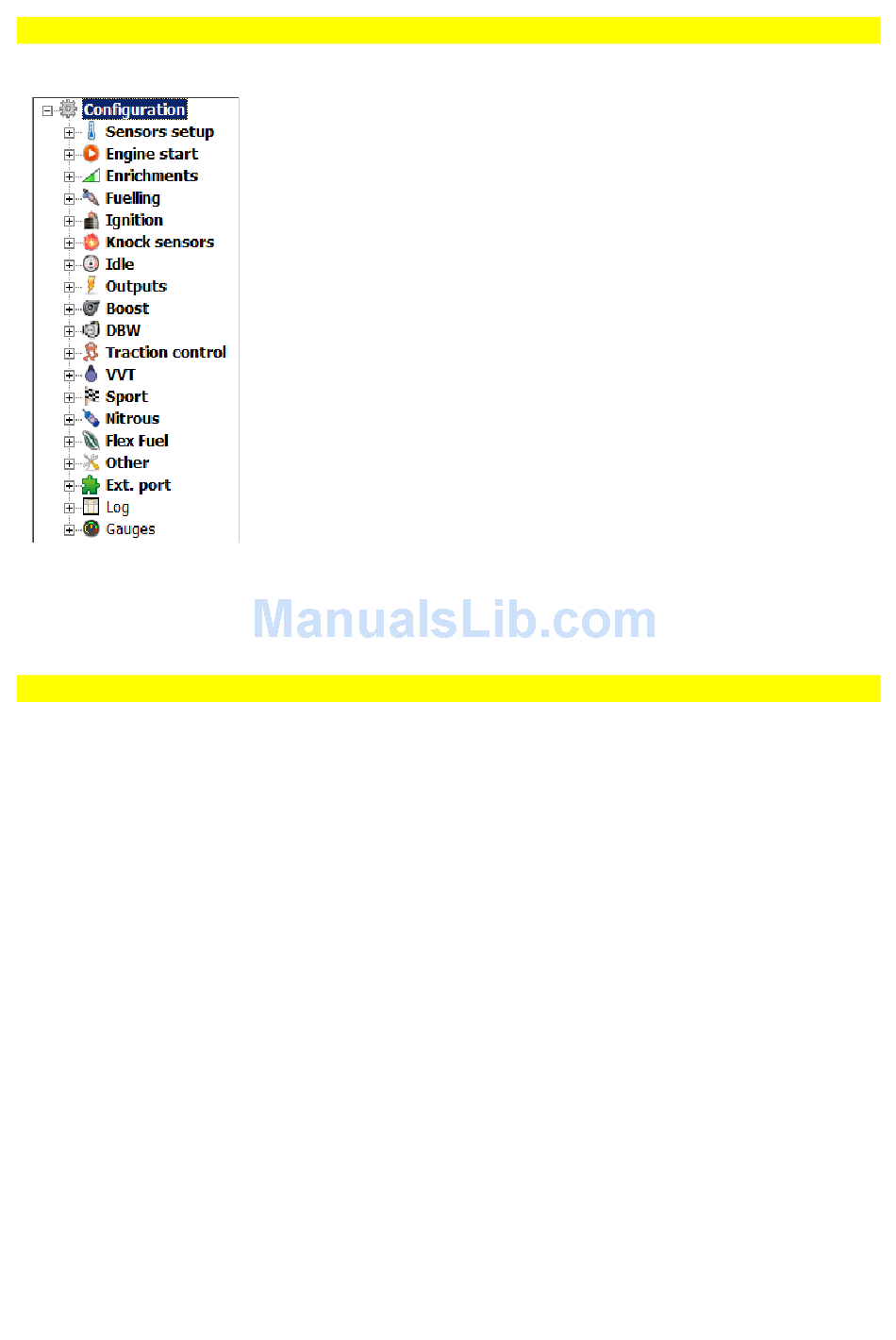

On the left there is a list of all available EMU functions grouped in
functional blocks. Depending on firmware version there could be
different set of functions.
access parameters and tables.
Category Sensors setup contains all options required for calibrating
engine sensors as well as fail safe values.
Engine start category groups all function and tables used during engine
cranking. Enrichments group is responsible for all mixture enrichments,
and categories Fueling and Ignition respectively for fuel dose and
ignition angle. Category Knock Sensor contains functions required for
knock sensor configuration, category Idle is responsible for controlling
engine's idle speed. To configure AUX outputs (eg. Fuel pump, coolant
fan, PWM outputs) category Outputs needs to be used. Category Boost
controls boost pressure, Sport contains functions used in motorsport,
Page 18
By expanding functional group user can
