DYNO TOOL

The dyno tool is used for estimation of engine power (at the wheels) and to
analyze boost pressure, AFR, and IAT as functions of engine RPM
To generate estimated power and torque graphs, test runs must be made on a flat road. During the
test run only one gear should be used. The higher gear the better (more data). During the test run,

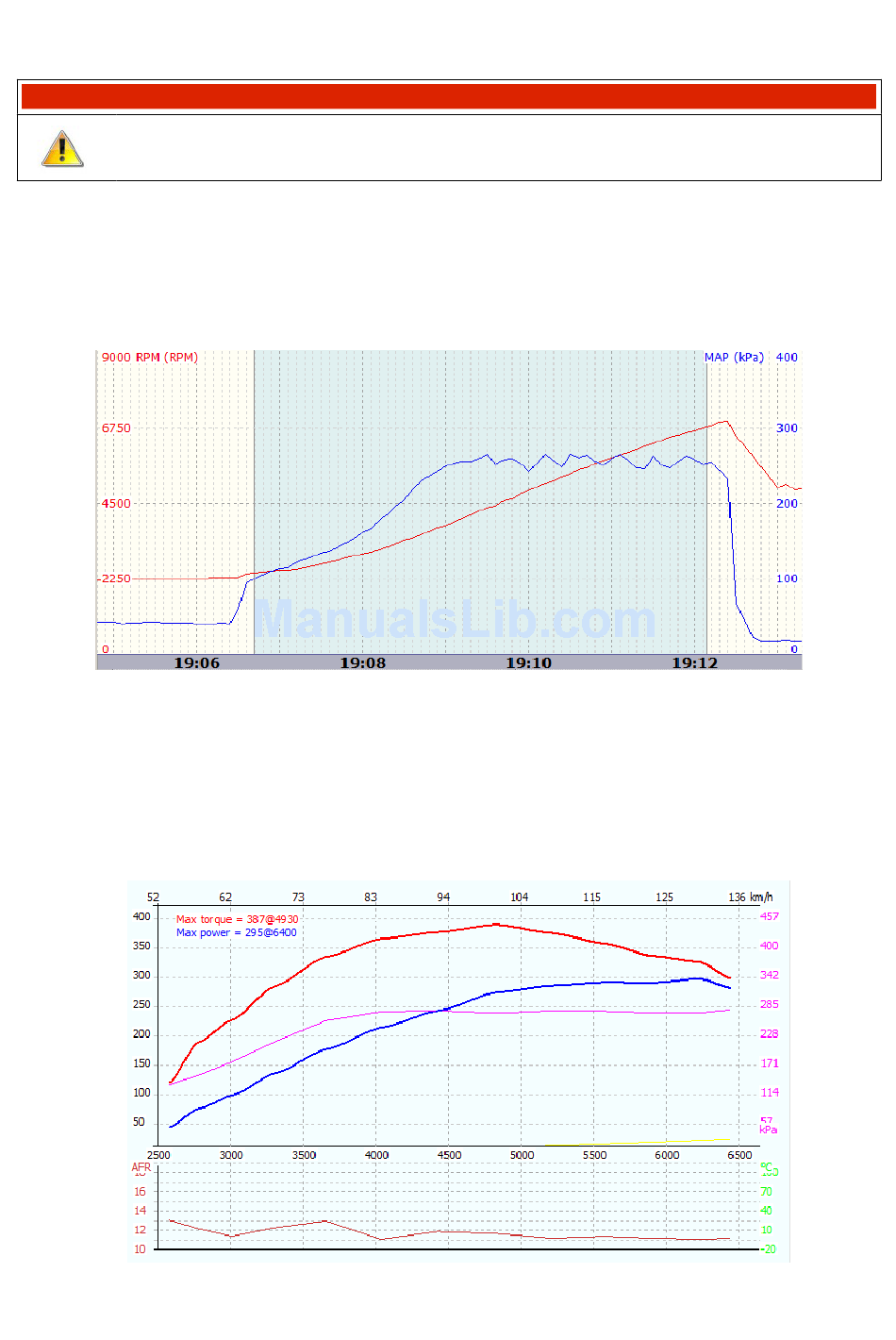

no wheel slip is allowed. To create a dyno plot, highlight the section of the graph log to be analyzed
as shown below.
To generate the dyno graph, right click on the highlighted area (context menu will appear), and
choose option Create Dyno Graph. To get accurate data on the dyno graph, vehicle information
should be entered in Other/Dyno parameters window. On the graph below you will see power,
torque, MAP, AFR and IAT curves
ATTENTION !
Selected area will be used for dyno graph generation
Page 121
