Graph log

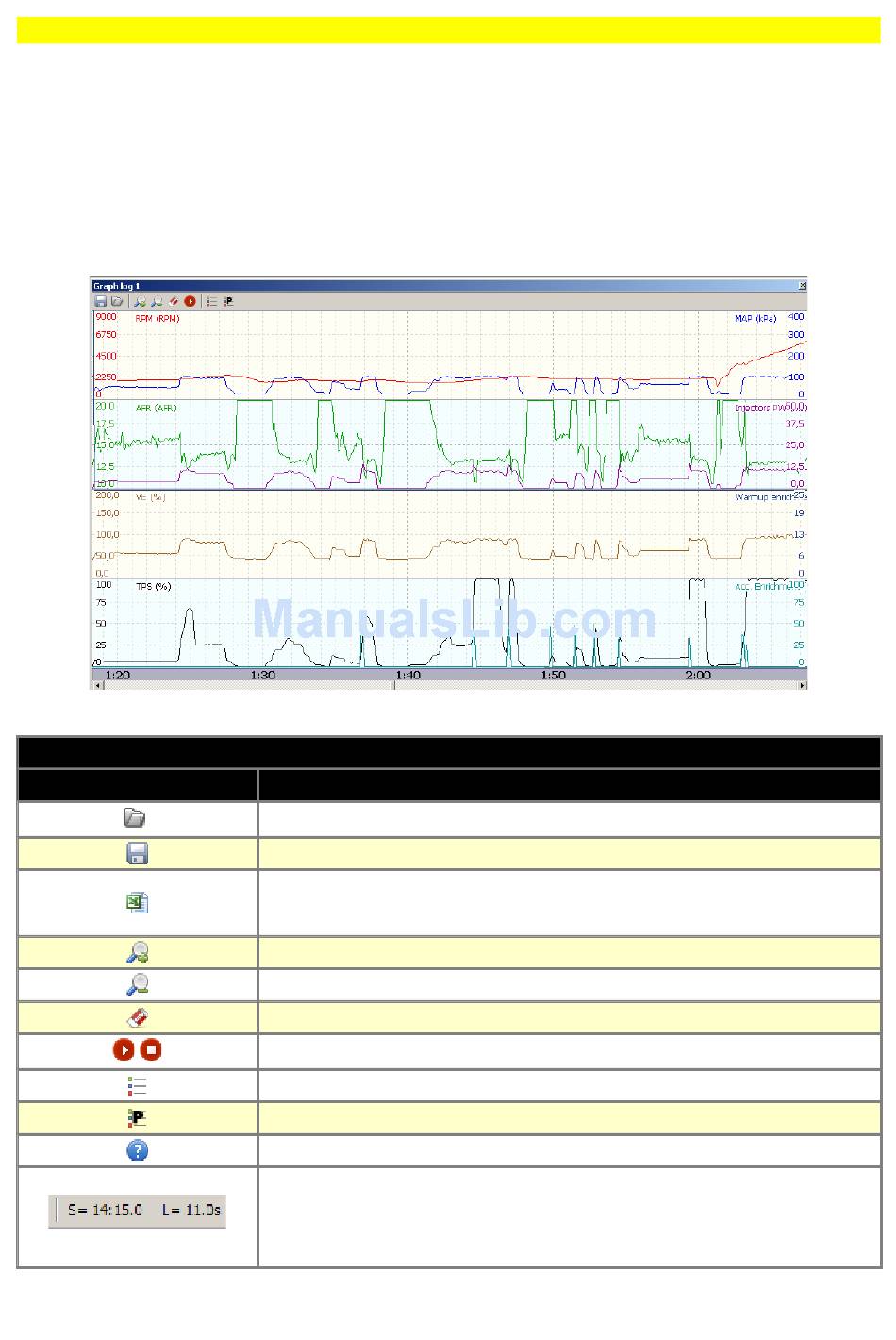

Graph log is a tool to analyse any aspects of engine work and ECUMASTER EMU device state.
Data is shown as a graph in function of time. The detailed information about channel log value can
be obtained by indicating interesting point on the graph. This tool is a key to create engine
calibration as well as for troubleshooting. It allows to display 8 channels at once, however all
available channels are gathered in the background. The list of the all channels could be found at
the end of this manual.
On the toolbar of this window there are seven icons described below.
ICON
/
TOOLBAR ICONS DESCRIPTION
DESCRIPTION
Open log file from disk... (*.emulog)
Save log data to file... (*.emulog)
Export of visible log channels to csv file (Excel, Open Office Calc) to
make custom data analyzys
Zoom in the graph log area
Zoom out the graph log area
Clear the log
Pause / resume graph log refresh
The list of visible log channels
The list of predefined log channels groups
Display help window
Information about current log time indicated by cursor (C) or
information about selection start (S) and selection length (L) in
seconds
