CONNECTOR PINOUT DETAILS

1 EGT In #1
2 Knock Sensor In #1
3 Analog In #2
4 CLT In
5 WBO Vs
6 Camsync In #2
7 Primary trigger In
8 Ignition coil #5
9 EGT In #2
10 Knock Sensor In #2
11 Analog In #3
12 TPS In
13 WBO Ip
14 VSS In
15 Camsync #1
16 Ignition coil #4
17 ECU Ground
18 Sensor Ground
19 Analog In #4
20 Analog In #1
21 IAT In
22 WBO Vs/Ip
23 +5V supply
24 Power Ground
BLACK

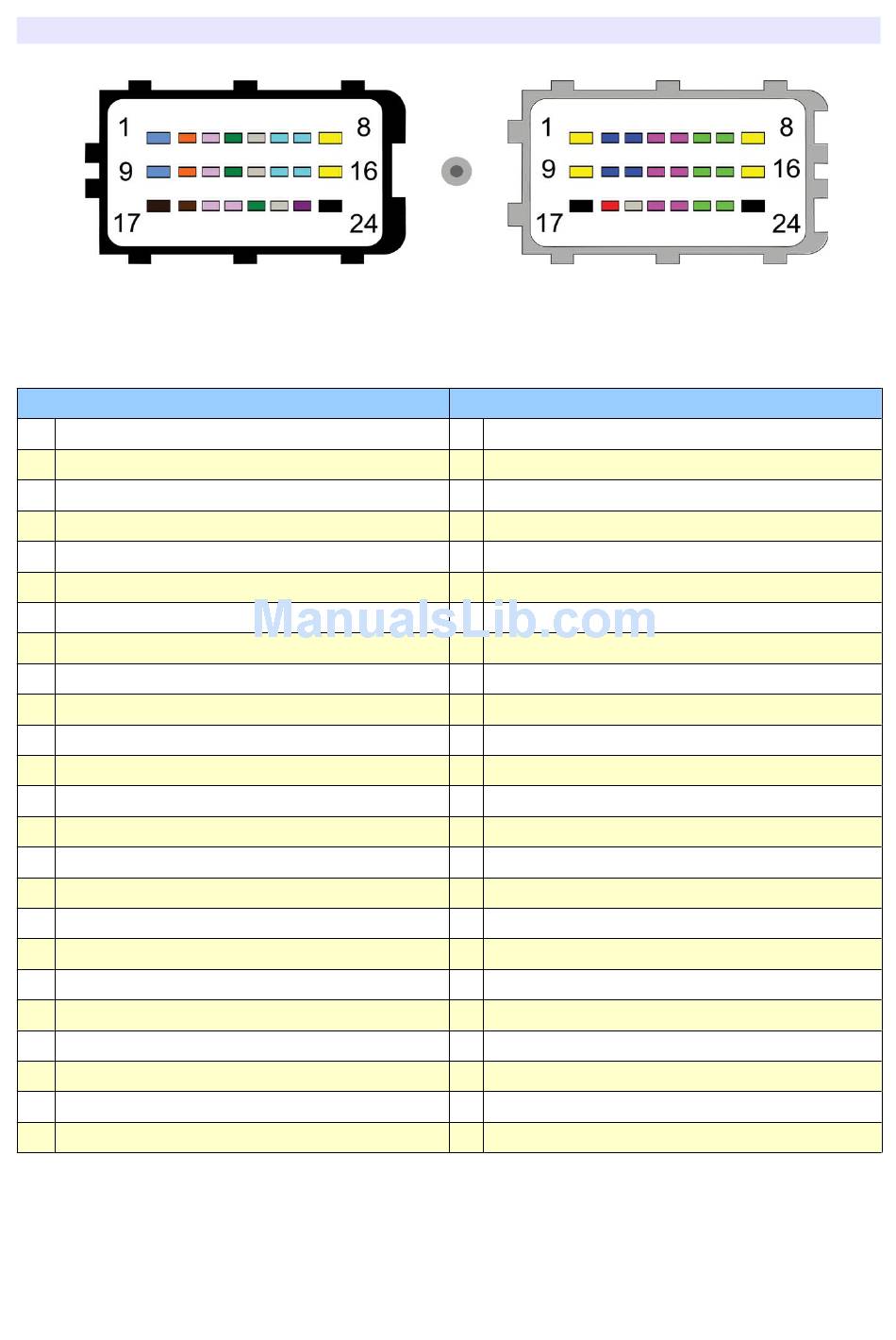

Device View
1 Ignition coil #6
2 Stepper motor #1 winding A
3 Stepper motor #2 winding A
4 AUX 6
5 AUX 3
6 Injector #4
7 Injector #1
8 Ignition coil #1
9 Ignition coil #3
10 Stepper motor #1 winding B
11 Stepper motor #2 winding B
12 AUX 5
13 AUX 2
14 Injector #5
15 Injector #2
16 Ignition coil #2
17 Power Ground
18 Power +12V
19 WBO Heater
20 AUX 4 / Tacho
21 AUX 1
22 Injector #6
23 Injector #3
24 Power Ground
Page 11
GRAY
