CHAPTER 4: FIELDBUS INTERFACE
NOTE:
NOTE
Profibus termination
Profibus DP-parameterization
MM300 MOTOR MANAGEMENT SYSTEM – COMMUNICATIONS GUIDE

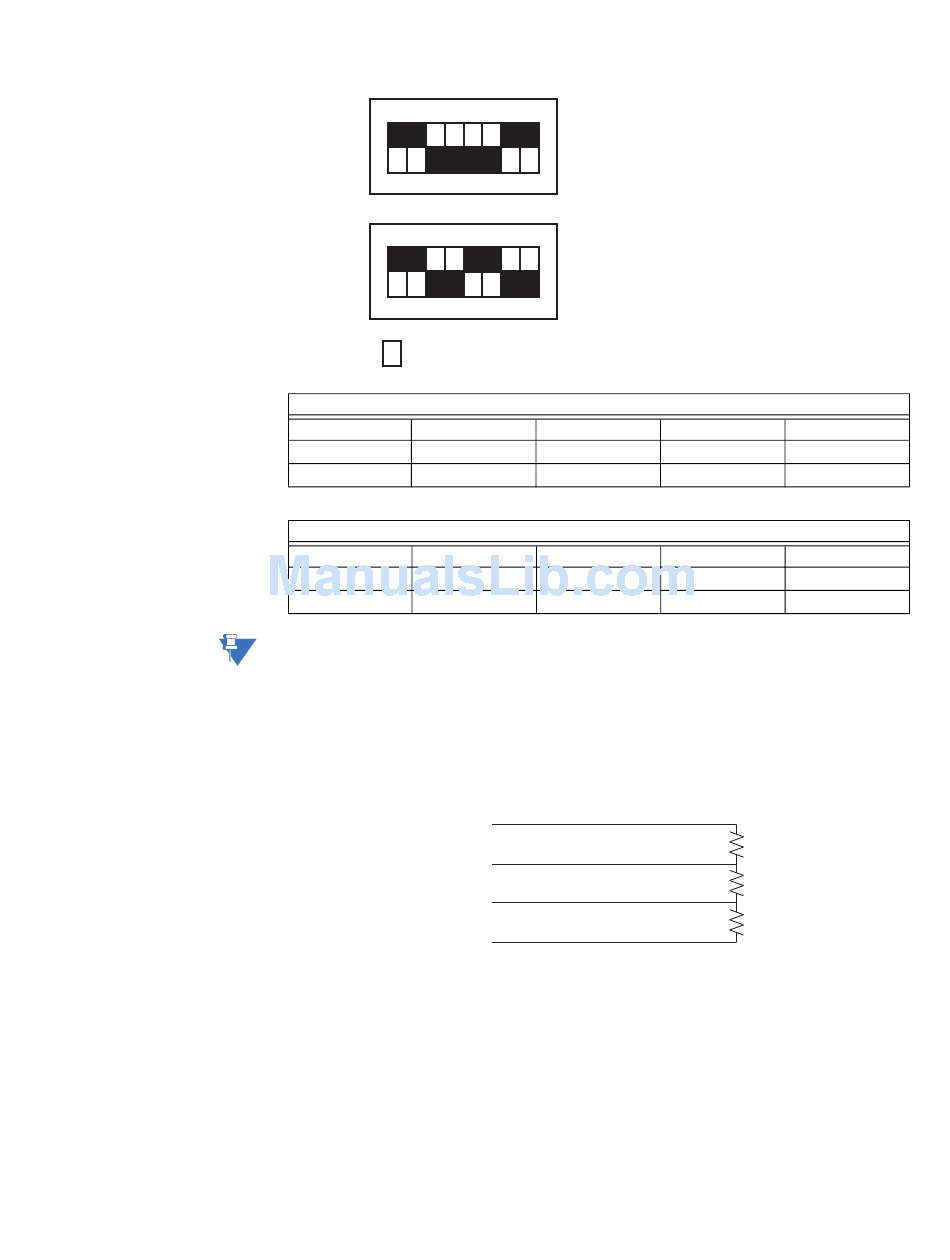

Figure 4-1: Comms board power supply configuration
ON
1 2 3 4 5 6 7 8
ON
1 2 3 4 5 6 7 8
= switch position
Protocol Options
SW1
DeviceNet
ON
Profibus
OFF
Supply Options
SW5
Internal Supply
ON
External Supply
OFF
Other switch combinations are not allowed.
Profibus segments should be terminated by a bus termination. The MM300 termination
voltage is +5V and the connections are as follows:
Figure 4-2: Profibus termination
+5V
Line B
Line A
Data ground
If the bus voltage level is higher, such as 24V, an external device must be used to drop the
voltage to the required +5V termination level. The Procentec T1 Terminator or equivalent is
suitable to provide proper termination to the MM300 from a 24V level.
The MM300 relay supports mandatory parametrization. The relay keeps its user parameter
data / setpoints in a non-volatile memory and does not need device related
parametrization during startup of the DP master. The EnerVista MM300 Setup software is
the best tool for user parametrization of the MM300 device.
PROFIBUS WITH INTERNAL SUPPLY
PROFIBUS WITH EXTERNAL SUPPLY
853845A1.CDR
SW2
SW3
ON
OFF
OFF
ON
SW6
SW7
ON
OFF
OFF
ON
853847A1.CDR
PROFIBUS DP
SW4
OFF
ON
SW8
OFF
ON
Ω
390
Ω
220
Ω
390
4–5
