DEVICENET PROTOCOL
Identity Object (Class Code 01H)
4–62
VALUE
Dec
Hex
71
0x47
72
0x48
73
0x49
74
0x4A
75
0x4B
80
0x50
81
0x51
82
0x52
Commands are actioned on a change in Output data.

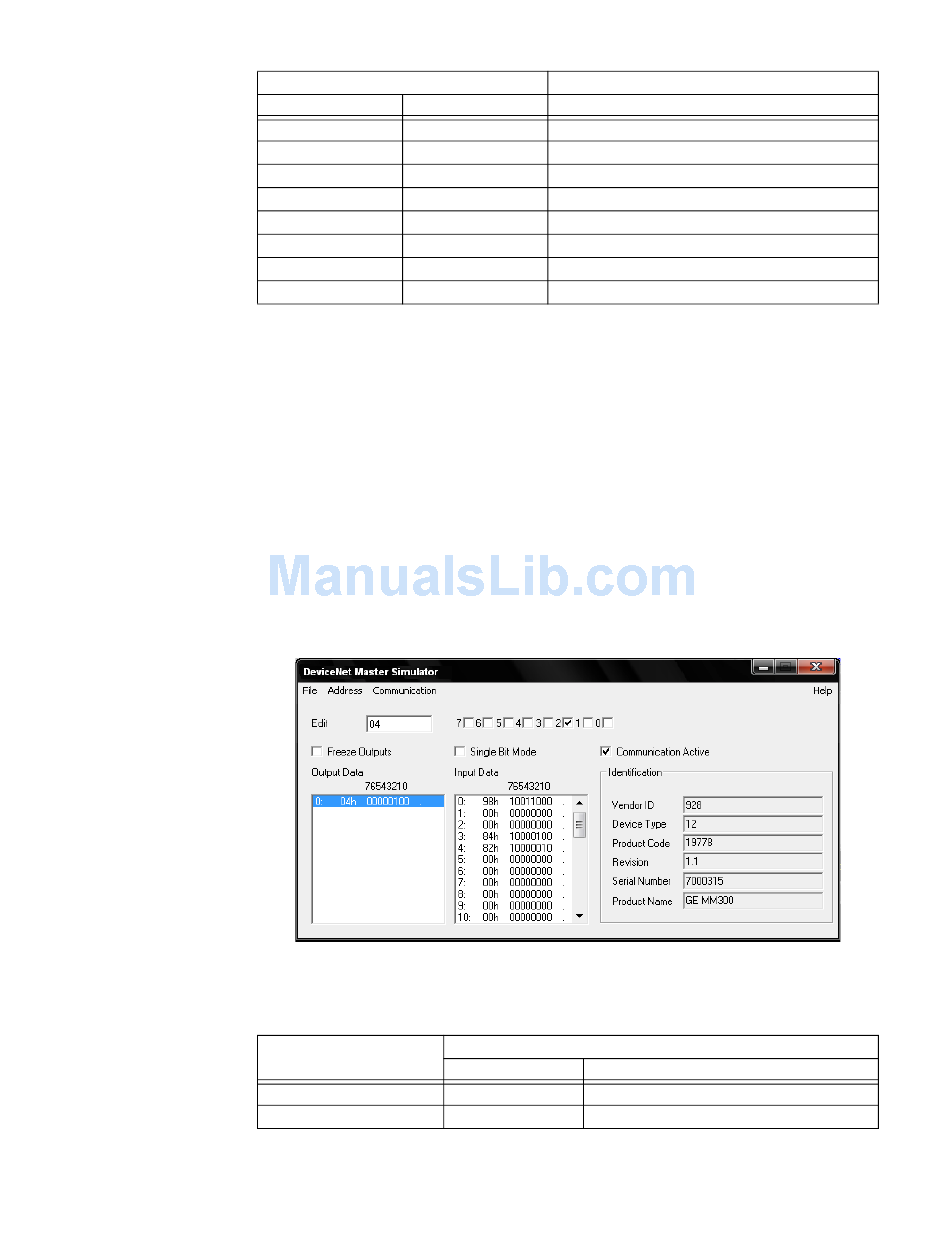

The example diagram below shows the MM300 polled I/O data read/written using a
DeviceNet master simulator. In this example, the "Start A" command has been sent via
Output data. In reading the Input data and interpreting the first byte value (98h) based on
the data format for that byte (FC129) the following is true:
•
Auto control is enabled
•
Contactor A is energized
•
Drive Available is true
In the event that there is a communication fault, and a pre-fault polled output command
caused the MM300 to start a motor, the motor will continue to run even after the
communication fault. To prevent this situation from occurring when remote
communication is used with the device the user must ensure that the 'Comm Failure Trip'
feature is configured. Refer to the MM300 Instruction manual, page 90 - Communications
Setpoints, under the Home > Setpnts > Cfg > Comms HMI page, for more information.
Figure 4-11: DeviceNet polled I/O data
Table 4-12: Identity Object, Class Code 01h, Services:
CODE
0x05
0x0E
DESCRIPTION
Clear Maintenance Timer
Clear RTD Maximums
Reset Motor Information
Auto Mode
Manual Mode
Trigger Waveform Capture
Start Datalog
Stop Datalog
SERVICES AVAILABLE TO THIS OBJECT
NAME
DESCRIPTION
Reset
Reset the device to power up configuration
Get_Attribute_Single Returns the contents of the given attribute
MM300 MOTOR MANAGEMENT SYSTEM – COMMUNICATIONS GUIDE
CHAPTER 4: FIELDBUS INTERFACE
