CHAPTER 4: FIELDBUS INTERFACE

DeviceNet protocol

MM300 MOTOR MANAGEMENT SYSTEM – COMMUNICATIONS GUIDE

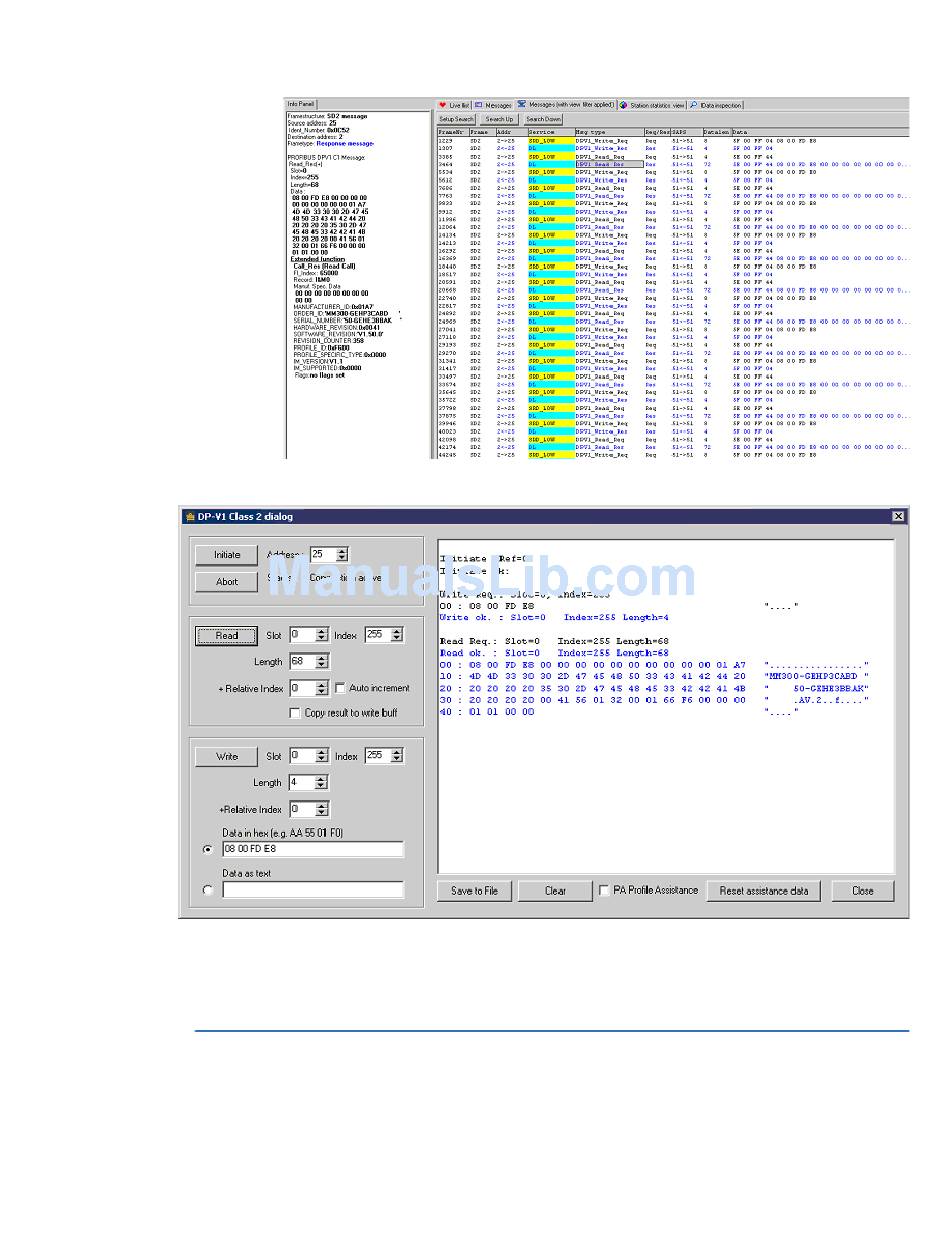

Figure 4-8: I&MO example on MS1 connection
Figure 4-9: I&MO example on MS2 connection
The MM300 supports the mandatory I&M0 record. It does not support the optional I&M1,
I&M2, I&M3 and I&M4 records. Requests for these I&M Records would result in an error
response from the MM300.
To enable the DeviceNet physical interface, ensure that switches 1 and 2 of the DIP switch
communications card (on the CPU module) are on. The external connections through the
fieldbus interface are as follows.
