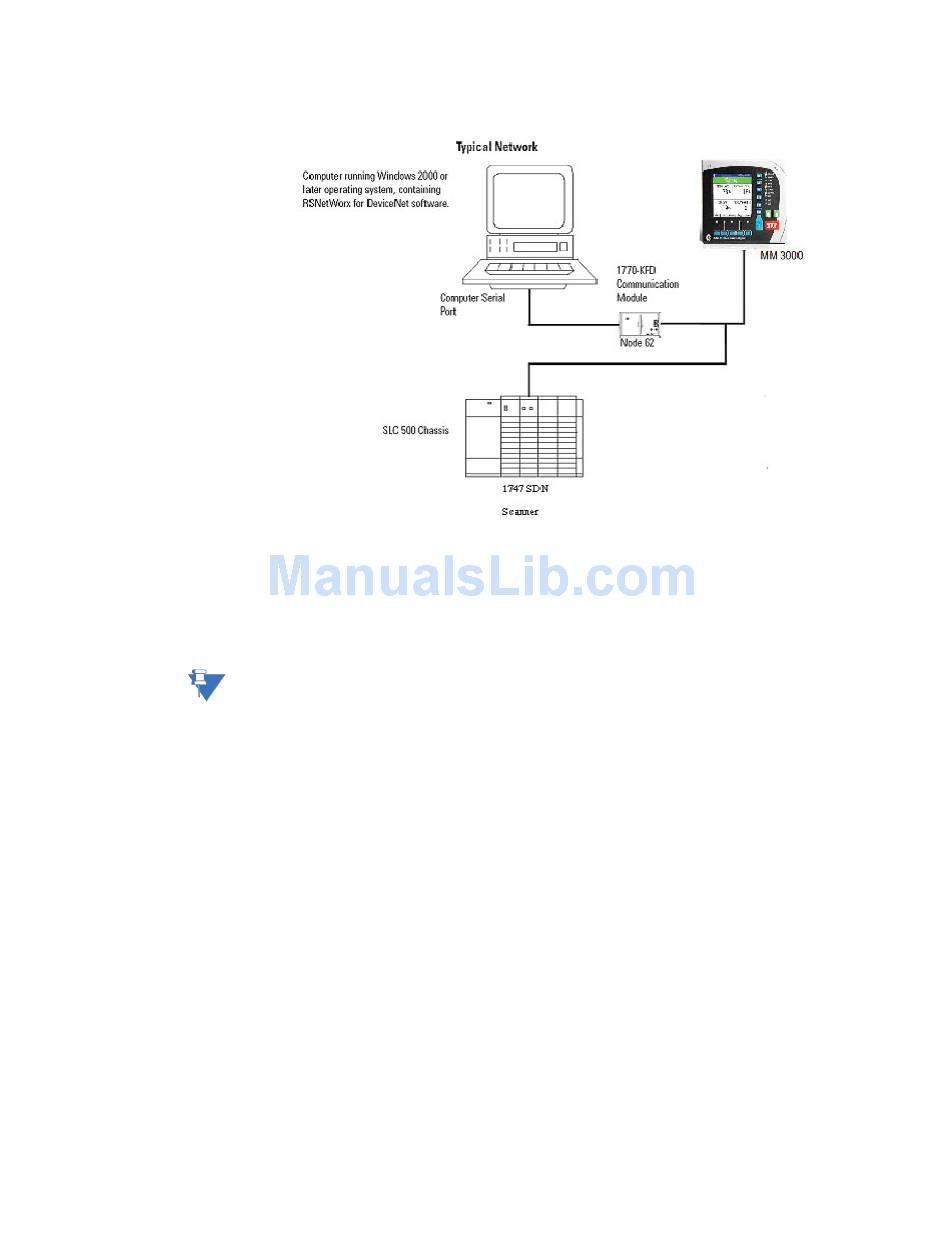

DEVICENET PROTOCOL
NOTE:
NOTE
4–46
Powering up the network
1.
Before switching ON the network power make sure that the MACID of MM300 is set to
something other than 63.
2.
Switch on the power supply to the chassis that will power up the device.
3.
Switch on the power to the 1770 KFD module and the MM300 relay.
External power must be present on the DeviceNet port of the MM300 realy at power-up, in
order to correctly initialize and operate.
Configuring the driver using RSLinx
After the network is setup the first task is to configure the DeviceNet driver on the PC.
Follow these steps to configure the DeviceNet driver:
1.
Start RSLinx software. The RSLinx main dialog opens.
2.
Select Configure Drivers from the Communication menu.
MM300 MOTOR MANAGEMENT SYSTEM – COMMUNICATIONS GUIDE
CHAPTER 4: FIELDBUS INTERFACE
