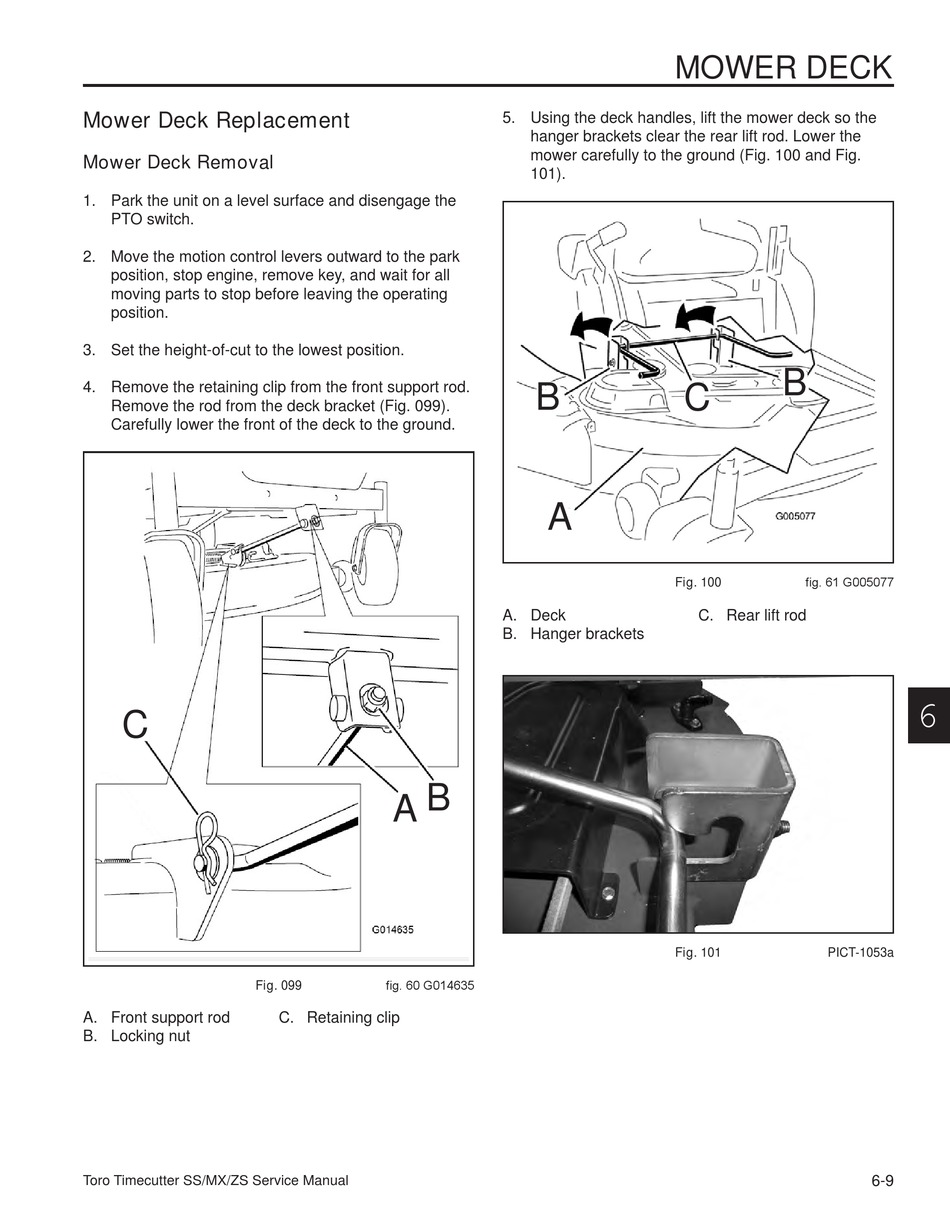

Mower Deck Replacement

Mower Deck Removal

1� Park the unit on a level surface and disengage the
PTO switch�
2� Move the motion control levers outward to the park
position, stop engine, remove key, and wait for all
moving parts to stop before leaving the operating
position�
3� Set the height-of-cut to the lowest position�
4� Remove the retaining clip from the front support rod�
Remove the rod from the deck bracket (Fig� 099)�
Carefully lower the front of the deck to the ground�
C
Fig. 099
A� Front support rod
B� Locking nut
Toro Timecutter SS/MX/ZS Service Manual
A B
fig. 60 G014635
C� Retaining clip
MOWER DECK
5� Using the deck handles, lift the mower deck so the
hanger brackets clear the rear lift rod� Lower the
mower carefully to the ground (Fig� 100 and Fig�
101)�
B
A
Fig. 100
A� Deck
B� Hanger brackets
Fig. 101
B
C
fig. 61 G005077
C� Rear lift rod
