Register at www.Toro.com.
Original Instructions (EN)
TimeCutter
Riding Mower
Model No. 74676—Serial No. 400000000 and Up
Model No. 74680—Serial No. 400220000 and Up
Form No. 3417-397 Rev A
®
SW 4200 or SW 5000
*3417-397* A

Advertisement

Table of Contents
loading

Summary of Contents for Toro 74676

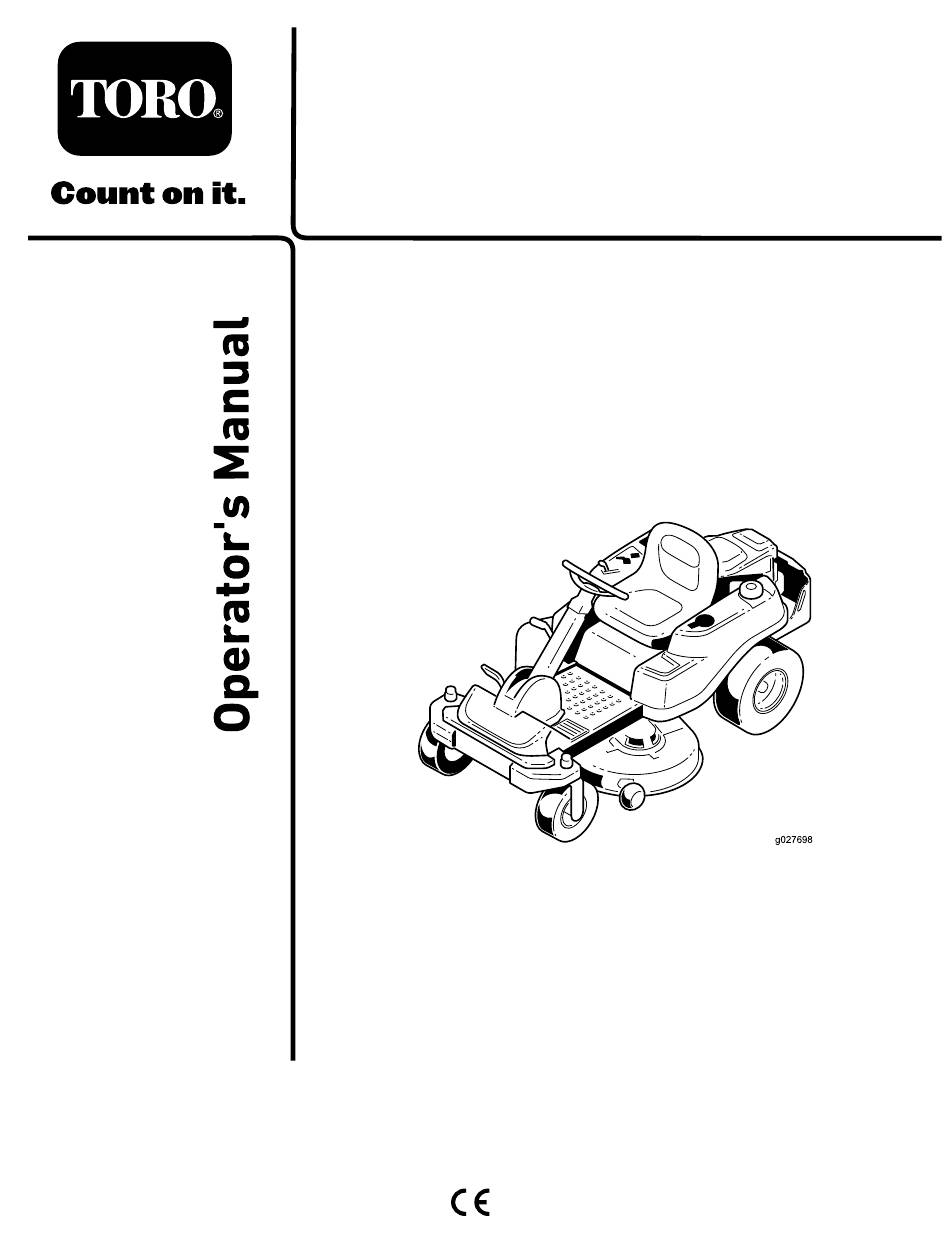

  • Page 1 Form No. 3417-397 Rev A TimeCutter ® SW 4200 or SW 5000 Riding Mower Model No. 74676—Serial No. 400000000 and Up Model No. 74680—Serial No. 400220000 and Up *3417-397* A Register at www.Toro.com. Original Instructions (EN)
  • Page 2: Figure 1

    For the Operator’s Manual, the complete warranty Important: If you are using a machine with a Toro details, or to register your product, use the QR engine above 1500 m (5,000 ft) for a continuous code or visit www.Toro.com. You may also call us...
  • Page 3: Table Of Contents

    Write the product model and serial numbers in the Adjusting the Anti-Scalp Rollers......26 space below: Operating Tips ..........27 After Operation ............ 28 After Operation Safety ........28 Model No. Pushing the Machine by Hand ......28 Transporting the Machine ......... 29 Maintenance ............
  • Page 4: Safety

    Safety This machine has been designed in accordance with EN ISO 5395:2013. General Safety This product is capable of amputating hands and feet and of throwing objects. Always follow all safety instructions to avoid serious personal injury. Using this product for purposes other than its intended use could prove dangerous to you and bystanders.
  • Page 5: Slope Indicator

    Slope Indicator g011841 Figure 4 This page may be copied for personal use. 1. The maximum slope you can operate the machine on is 15 degrees. Use the slope chart to determine the degree of slope of hills before operating. Do not operate this machine on a slope greater than 15 degrees. Fold along the appropriate line to match the recommended slope.
  • Page 6: Safety And Instructional Decals

    Safety and Instructional Decals Safety decals and instructions are easily visible to the operator and are located near any area of potential danger. Replace any decal that is damaged or missing. decalbatterysymbols Battery Symbols Some or all of these symbols are on your battery. 1.
  • Page 7 decal106-8717 106-8717 1. Read the instructions before servicing or performing maintenance. 2. Check tire pressure every 25 operating hours. 3. Grease every 25 operating hours. 4. Engine decal120-5469 120-5469 For Models with 107 cm (42 inch) Decks decal112-9840 112-9840 1. Height of cut For Models with 127 cm (50 inch) Decks 1.
  • Page 8 decal121-0772 121-0772 For Models with 107 cm (42 inch) Decks 1. Fast 4. Choke 2. Continuous-variable setting 5. Power takeoff (PTO), blade-control switch 3. Slow...
  • Page 9 decal121-0773 121-0773 For Models with 127 cm (50 inch) Decks 1. Fast 4. Choke 2. Continuous-variable setting 5. Power takeoff (PTO), blade-control switch 3. Slow...
  • Page 10 decal131-3621b 131-3621 decal121-2989b 121-2989 1. Crushing/dismemberment hazard of bystanders—keep bystanders away from the machine; do not start the 1. Bypass lever position for 2. Bypass lever position for machine with bystanders nearby. pushing the machine operating the machine decal131-3664 decal131-1097 131-3664 131-1097 For Models with 127 cm (50 inch) Decks...
  • Page 11 decal132-0872 132-0872 1. Thrown object 3. Severing hazard of hand hazard—keep bystanders or foot—keep away from decal131-3954 131-3954 away from the machine. moving parts. For Models with 127 cm (50 inch) Decks 2. Thrown object hazard, 4. Entanglement raised baffle—do not hazard—keep away 1.
  • Page 12 decal132-0870 132-0870 Note: This machine complies with the industry standard stability test in the static lateral and longitudinal tests with the maximum recommended slope indicated on the decal. Review the instructions for operating the machine on slopes in the Operator’s Manual as well as the conditions in which you would operate the machine to determine whether you can operate the machine in those conditions on that day and at that site.
  • Page 13: Product Overview

    Product Overview g028251 Figure 7 1. Operating–in–Reverse 3. Fuel-presence window warning light 2. Key Choice key (blue in color) Key Switch g027935 The key switch, used to start and shut off the engine, Figure 5 has 3 positions: O , and S .
  • Page 14: Before Operation

    Contact your extreme care in handling fuel. Fuel vapors are Authorized Service Dealer or Distributor or go to flammable and explosive. www.Toro.com for a list of all approved attachments • and accessories. Extinguish all cigarettes, cigars, pipes, and other sources of ignition.
  • Page 15: Adding Fuel

    Using Stabilizer/Conditioner containers on the ground, away from your vehicle before filling. Use a fuel stabilizer/conditioner in the machine to • Remove the equipment from the truck or trailer provide the following benefits: and refuel it while it is on the ground. If this is not •...
  • Page 16: Performing Daily Maintenance

    Understanding the Safety-Interlock System The safety-interlock system is designed for the following: • To prevent the engine from starting unless the traction pedal is in the position. NEUTRAL • To automatically ensure that the parking brake is engaged and the PTO is off when starting the machine.
  • Page 17: Positioning The Seat

    Positioning the Seat Return to the seat and engage the blades by pulling up the blade-control switch. The seat can move forward and backward. Position Rise from the seat. The blades should the seat where you have the best control of the disengage and the engine should continue to machine and are most comfortable (Figure...
  • Page 18: Positioning The Steering Wheel

    Positioning the Steering Wheel The steering wheel has 3 positions for operation and 1 full-up position. Use the full-up position for stepping on and off the machine and getting out of the seat. When operating the machine, position the steering wheel where you have the best control of the machine and are most comfortable.
  • Page 19 g230248 Figure 13 1. Discharge cover 3. Bracket on the mower deck 2. Metal tab Pivot the discharge cover back and toward the deck so that the discharge cover aligns with the mower deck (Figure 14). g230253 Figure 15 3. Pivot rod 1.
  • Page 20 WARNING Open holes in the machine expose you and others to thrown debris that can cause severe injury. • Never operate the machine without hardware mounted in all holes in the machine housing. • Install the hardware in the mounting holes when you remove the mulching g005655 Figure 16...
  • Page 21: During Operation

    • Use only accessories and attachments approved • Never carry passengers on the machine and keep by Toro. bystanders and pets away from the machine • This machine produces sound levels in excess during operation.
  • Page 22 safe slope operation. Operating the machine on any slope requires extra caution. Before using the machine on a slope, do the following: – Review and understand the slope instructions in the manual and on the machine. – Use an angle indicator to determine the approximate slope angle of the area.
  • Page 23: Operating The Smart Park Parking Brake

    Operating the Smart Park ™ Parking Brake The parking brake is activated electronically. Engage the parking brake by 1 of the following actions: • Pressing the Smart Park ™ switch to the position (Figure • The parking brake engages automatically when the operator leaves the seat and the traction control pedal is in the position.
  • Page 24: Operating The Choke

    Operating the Choke Use the choke to start a cold engine. Pull up the choke knob to engage the choke before using the key switch (Figure 25). Note: Ensure that you fully engage the choke. You may need to hold the knob up when you use the key switch.
  • Page 25: Driving The Machine

    Driving the Machine To slow down, release the pressure on the traction-control pedal. This machine has the characteristics of both a garden tractor and a zero-turn machine. Like a garden Mowing in Reverse tractor, the machine has a foot pedal that controls the forward and reverse motion along with the speed, The machine has an interlock feature that prevents and it has a steering wheel that controls the direction...
  • Page 26: Adjusting The Height Of Cut

    Adjusting the Height of Cut Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the Note: operating position. The transport position is the highest height-of-cut position or cutting height at 115 mm Adjust the anti-scalp rollers to 1 of the following (4-1/2 inches) as shown in Figure...
  • Page 27: Operating Tips

    Cutting more than that is not recommended unless damaged or worn, replace it immediately with a grass is sparse, or it is late fall when grass grows genuine Toro replacement blade. more slowly. Alternating the Mowing Direction Alternate the mowing direction to keep the grass standing straight.
  • Page 28: After Operation

    After Operation After Operation Safety General Safety • Clean grass and debris from the cutting units, mufflers, and engine compartment to help prevent fires. Clean up oil or fuel spills. • Shut off the fuel before storing or transporting the machine.
  • Page 29: Transporting The Machine

    Transporting the Machine Use a heavy-duty trailer or truck to transport the machine. Use a full-width ramp. Ensure that the trailer or truck has all the necessary brakes, lighting, and marking as required by law. Please carefully read all the safety instructions. Knowing this information could help you or bystanders avoid injury.
  • Page 30 If using a trailer, connect it to the towing vehicle and connect the safety chains. If applicable, connect the trailer brakes and lights. Lower the ramp, ensuring that the angle between the ramp and the ground does not exceed 15 degrees (Figure 32).
  • Page 31: Maintenance

    Maintenance Note: Determine the left and right sides of the machine from the normal operating position. Recommended Maintenance Schedule(s) Maintenance Service Maintenance Procedure Interval • Change the engine oil and filter. After the first 5 hours • Check the air cleaner for dirty, loose, or damaged parts. •...
  • Page 32: Pre-Maintenance Procedures

    • To ensure optimum performance and continued safety certification of the machine, use only genuine Toro replacement parts and accessories. Replacement parts and accessories made by other manufacturers could be dangerous, and such use could void the product warranty.
  • Page 33: Raising The Front Of The Machine

    Raising the Front of the Lubrication Machine Greasing the Bearings If the front of the machine needs to be raised, use the very front edge as shown in Figure Service Interval: Every 25 hours—Grease all the lubrication points. Important: To prevent damage to the steering mechanism, use the very front edge of the Grease Type: No.
  • Page 34: Engine Maintenance

    Engine Maintenance Wipe up any excess grease. Engine Safety • Shut off the engine before checking the oil or adding oil to the crankcase. • Keep your hands, feet, face, clothing, and other body parts away the muffler and other hot surfaces. Servicing the Air Cleaner Service Interval: Before each use or daily Note:...
  • Page 35 Servicing the Foam Air-Cleaner Element Service Interval: Every 25 hours/Monthly (whichever comes first)—Clean the air-cleaner foam element (more often in dusty, dirty conditions). Every 100 hours/Yearly (whichever comes first)—Replace the air-cleaner foam element (more often in dusty, dirty conditions). g027800 Wash the foam element in liquid soap and warm water.
  • Page 36: Servicing The Engine Oil

    Installing the Air Cleaner Servicing the Engine Oil Install the foam element over the paper element. Engine-Oil Specifications Note: Ensure that you do not damage the elements. Oil Type: Detergent oil (API service SF, SG, SH, SJ, Align the holes of the filter into the manifold or SL) ports.
  • Page 37 g027799 g193541 Figure 43 Changing the Engine Oil and Oil Filter Service Interval: After the first 5 hours/After the first month (whichever comes first)—Change the engine oil and filter. Every 100 hours/Yearly (whichever comes first)—Change the engine oil and oil filter (more often in dirty or dusty conditions).
  • Page 38: Servicing The Spark Plug

    Change the engine-oil filter (Figure 45). Note: Ensure that the oil-filter gasket touches the engine and then turn the filter an extra 3/4 turn. g193530 Figure 46 Dispose of the used oil at a recycling center. Servicing the Spark Plug Service Interval: Every 100 hours/Yearly (whichever comes first)—Check the spark plug(s).
  • Page 39: Cleaning The Cooling System

    Cleaning the Cooling System Park the machine on a level surface, disengage the blade-control switch (PTO), and engage the parking brake. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the g027478 Figure 47 operating position.
  • Page 40: Fuel System Maintenance

    Fuel System Maintenance DANGER In certain conditions, fuel is extremely flammable and highly explosive. A fire or g027939 explosion from fuel can burn you, others, and can damage property. • Perform any fuel-related maintenance when the engine is cold. Do this outdoors in an open area.
  • Page 41: Electrical System Maintenance

    Electrical System WARNING Incorrectly removing the cables from Maintenance battery could damage the machine and cables, causing sparks. Sparks can cause the battery gasses to explode, Electrical System Safety resulting in personal injury. • Disconnect the battery before repairing the •...
  • Page 42: Servicing The Fuses

    Servicing the Fuses Charge the battery for a minimum of 1 hour at 6 to 10 A. The electrical system is protected by fuses. It requires Note: Do not overcharge the battery. no maintenance; however, if a fuse blows, check the component/circuit for a malfunction or short.
  • Page 43: Drive System Maintenance

    Releasing the Electric Drive System Brake Maintenance You can manually release the electric brake by rotating the link arms forward. Once the electric brake Checking the Tire Pressure is energized, the brake resets. Service Interval: Every 25 hours—Check tire Turn the key to the position or disconnect pressure.
  • Page 44: Belt Maintenance

    Refer to Releasing the Mower-Deck Curtain (page 32). Using a spring-removal tool, (Toro Part No. 92-5771), remove the idler spring from the deck hook to remove tension on the idler pulley, and roll the belt off the pulleys...
  • Page 45: Mower Maintenance

    Mower Maintenance Using a spring-removal tool, install the idler spring over the deck hook, and place tension on the idler pulley and mower belt (Figure 57 Figure 58). Servicing the Cutting Tighten the bottom 2 bolts for the mower-deck Blades curtain to the mower deck.
  • Page 46 g006530 Figure 59 1. Cutting edge 3. Wear/slot forming g014973 Figure 61 2. Curved area 4. Crack 1. Blade (in position for measuring) 2. Level surface Checking for Bent Blades 3. Measured distance between blade and the surface (A) Note: The machine must be on a level surface for Rotate the same blade 180 degrees so that the following procedure.
  • Page 47 g014973 Figure 63 g027833 1. Opposite blade edge (in position for measuring) Figure 64 2. Level surface 1. Sail area of the blade 3. Curved washer 3. Second measured distance between blade and surface (B) 2. Blade 4. Blade bolt If the difference between A and B is greater than 3 mm (1/8 inch), replace the blade with Sharpening the Blades...
  • Page 48: Leveling The Mower Deck

    Installing the Blades Install the blade onto the spindle shaft (Figure 64). Important: The curved part of the blade must be pointing upward toward the inside of the mower to ensure proper cutting. Install the curved washer (cupped side toward the blade) and the blade bolt (Figure 64).
  • Page 49 g009658 Figure 70 Mower Decks with 2 Blades 1. Blades front to rear 2. Measure from the tip of the blade to the flat surface here. g027588 Figure 69 1. Hanger bracket 3. Rear nut 2. Side locking nut Check the side-to-side adjustments again. Repeat this procedure until the measurements are correct.
  • Page 50: Removing The Mower Deck

    g014634 Figure 72 1. Adjusting rod 3. Locknut 2. Adjusting block g014635 Figure 73 To raise the front of the mower, tighten the adjustment nut. 1. Front support rod 3. Deck bracket 2. Locking nut To lower the front of the mower, loosen the adjustment nut.
  • Page 51: Installing The Mower Deck

    Slide the mower deck out from underneath the machine. Note: Retain all parts for future installation. Installing the Mower Deck Park the machine on a level surface, disengage the blade-control switch (PTO), and engage the parking brake. Shut off the engine, remove the key, and wait for all moving parts to stop before leaving the operating position.
  • Page 52: Cleaning

    Cleaning Cleaning under the Front of the Machine Service Interval: After each use—Check and clean the front of the machine. Remove debris under the front of the machine with compressed air or by hand with a brush (Figure 76). Note: Do not use water to clean under the front of the machine, this can cause buildup of debris.
  • Page 53: Storage

    Storage tank. Follow mixing instructions from the stabilizer manufacturer. Do not use an alcohol-based stabilizer (ethanol or Storage Safety methanol). Note: A fuel stabilizer/conditioner is most • Let the engine cool before storing the machine. effective when mixed with fresh fuel and •...
  • Page 54: Storing The Battery

    Storing the Battery Fully charge the battery. Let the battery rest for 24 hours, then check the battery voltage. Note: If the battery voltage is below 12.6 V, repeat steps and 2. Disconnect the cables from the battery. Check the voltage periodically to ensure that the voltage is 12.4 V or higher.
  • Page 55: Troubleshooting

    Troubleshooting Problem Possible Cause Corrective Action The fuel tank is showing signs of collapsing 1. The air-cleaner paper element clogged. 1. Clean the paper element. or the machine is frequently showing signs of running out of fuel. The engine overheats. 1.
  • Page 56 Problem Possible Cause Corrective Action The machine does not drive. 1. The bypass valves are open. 1. Close the tow valves. 2. The traction belts are worn, loose, or 2. Contact an Authorized Service Dealer. broken. 3. The traction belts are off the pulleys. 3.
  • Page 57: Schematics

    Schematics g027754 Electrical Diagram (Rev. A)
  • Page 58 Notes:...
  • Page 59 Notes:...
  • Page 60 The Way Toro Uses Information Toro may use your personal information to process warranty claims, to contact you in the event of a product recall and for any other purpose which we tell you about. Toro may share your information with Toro's affiliates, dealers or other business partners in connection with any of these activities. We will not sell your personal information to any other company.
