Hardware Assembly

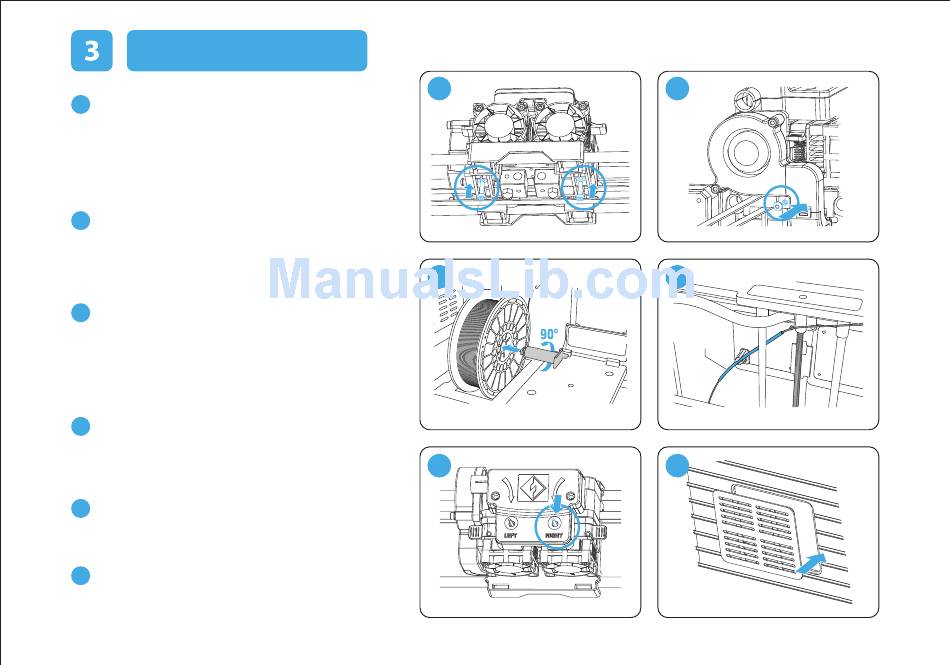

Lay the extruder set on top of extruder seat with two
1
extruder fans facing the front; align the screw holes
and secure the extruder set onto the extruder seat
by tightening two M3x8 screws from the bottom up
with a Φ2.5mm Allen Wrench.
Take out turbofan baffle, and attach it onto the left
2
side of the extruder set. Secure it by tightening a
M3x6 screw with 2.5mm Allen Wrench.
Place filament spool onto spool holder with
3
spool being fed from the bottom towards the back
of the Dreamer. Lock the filament in place by
securing it with the filament spool lock and turning it
counter-clockwise.
Thread the filament through the filament guide tube,
4
and attach the guide tube onto the two filament
guide tube brackets to avoid filament winding.
Press the spring presser, and insert filament
5
into filament intake.
Take out the two side panels and install them
6
onto the two sides of Dreamer body according
to illustrations.
