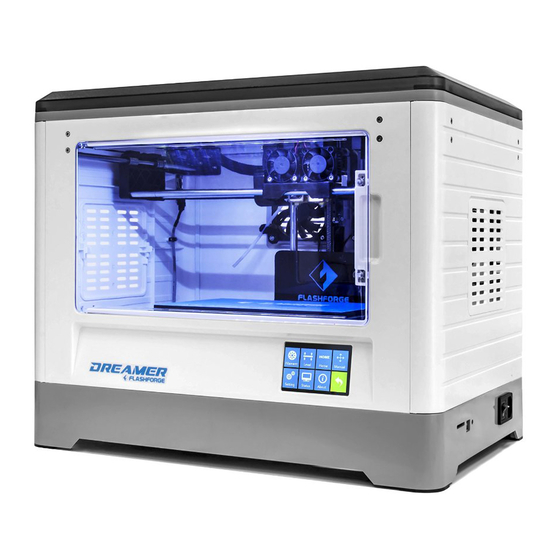

Flashforge DREAMER Quick Start Manual

Flashforge DREAMER Quick Start Manual

Hide thumbs Also See for DREAMER:

Advertisement

Quick Links

Download this manual See also: User Manual
Quick Start Guide
DREAMER
SZ01-EN-A02
WARNING
1. Do not remove the wrapping around the nozzle.
2. Hot! Avoid touching the heating nozzle in operation.
3. Moving parts in printer may cause injury. Do not wear gloves
or other sources of entanglement in operation.
USERGUIDE
The User Guide is in the SD card.
This guide is only applicable to FLASHFORGE Dreamer 3D printer

Advertisement

loading

Related Manuals for Flashforge DREAMER

Summary of Contents for Flashforge DREAMER

  • Page 1 2. Hot! Avoid touching the heating nozzle in operation. 3. Moving parts in printer may cause injury. Do not wear gloves or other sources of entanglement in operation. USERGUIDE The User Guide is in the SD card. This guide is only applicable to FLASHFORGE Dreamer 3D printer...

  • Page 2: Kit Contents

    Kit Contents Filament Spool x 2 3D Printer After-sales Service Card Quick Start Guide Power Cable USB Cable Spool Holder x 2 打印平台调节专用 扫描二维码，观看调平指导视频！ 调整平台支架下方的螺母，直至纸片在喷嘴与平台间的 运动感受到轻微的阻力。 注意 1.Extruder hot during operation. CAUTION 使用过程中喷头会发热。 2.Heating plate hot during operation. Allow surface to cool before servicing. Do Not Touch 请勿触摸...
  • Page 3 Getting to Know Your Dreamer 18 19 20 1.Extruder Cable Bunch 2.Filament Guide Tube 3.Y-Axis Guide Rod 4.X-Axis Guide Rod 8.LevelingKnob 5.Build Plate 6.Build Platform 7.Bracket 11.Cooling Fan 12.Spring Presser 9.Z-Axis Guide Rod 10.Touch Screen 13.Turbofan 14.Turbofan Baffle 15.Left Nozzle 15.Right Nozzle...
  • Page 4 3. Firmly grasp the two sides handles of 4. Remove the packing bag.(Tip:Save your Dreamer. Lift it out from the carton and place packaging for future transportation and it on a stable surface. Then you will see the storage.)
  • Page 5 7. Remove the bubble wrap from extruder and 8. Place the dual extruder on the extruder seat, slide the X-axis rods to the middle of printer as shown. (A extruder seat on the X-axis). 9. Remove the foam from the back of the logo 10.

  • Page 6: Hardware Assembly

    Hardware Assembly Extruder Assembly 1. Place the dual extruder on the extruder seat. 2. Take the M2.5 Allen Wrench from the tool box and two M3 x 8 bolts(longer ones) from the extruder’s accessory kit. 3. Adjust the extruder location to align the bolt holes.
  • Page 7 Turbofan Baffle Assembly 1. Use the M2.5 Allen Wrench to remove two turbofan bolts. 2. Take the turbofan baffle from the extruder’s accessory kit. 3. Install the turbofan baffle to the turbofan.
  • Page 8 Turbofan Seat Align the bump on the turbofan seat to the hole in turbofan sub-assembly. 1. Place the turbofan sub-assembly besides the turbofan seat. 2. Insert the bump on the turbofan seat to the turbofan sub-assembly. 3. Screw the two bolts in. 4.
  • Page 9 Leveling Build Platform How to change language HOME Filament Level Home Manual Print Preheat Tools Setting Status About 简体中文 Language TP Adjust FactoryReset English 繁體中文 Back Fan Fan On WIFI Disable 日本語 Français Filament Pulley Deutsch Check ON How to use the leveling knobs Rotate knob clockwise Raise the build plate to reduce the distance between the nozzle and build plate.
  • Page 10 How to level the build plate 1. Tighten the three leveling knobs under the build platform until you cannot tighten them any more. 2. Tap [Tools], [Leveling] to start leveling. 3. The build plate and the nozzle start moving, once they suspend, you need to adjust the corresponding knob under the right nozzle.
  • Page 11 Place Filament and Loading Filament 1. Remove PLA filament from packaging. 2. Place filament in spool slots located on both sides of the printer. 3. As shown below, insert spool holder into the center hole of the filament. Rotate 90 degrees to lock.
  • Page 12 1. After filament placement, thread the filament through guide tube. 2. Insert the filament into the left extruder at a perpendicular angle while pressing down the spring presser. Ensure the end of the filament has a flat surface before loading it. 1.

  • Page 13: First Print

    2. Tap [Print]-[SD card], turn to next page, tap [Test Files], select the file [DM-test-L-PLA], then tap [print]. Once heated, the printer will start printing automatically. Dreamer快速启动指南Quick St. 测试文件Test Files Dreamer说明书 Use Guide 视频Video FlashPrint切片软件 Happy3D软件安装包 Software DM-test-L-PLA Print Time: 1:11...
