Installation

CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the
4-position DIP switch and jumpers. Failure to observe this caution could result in failure of the media
converter.

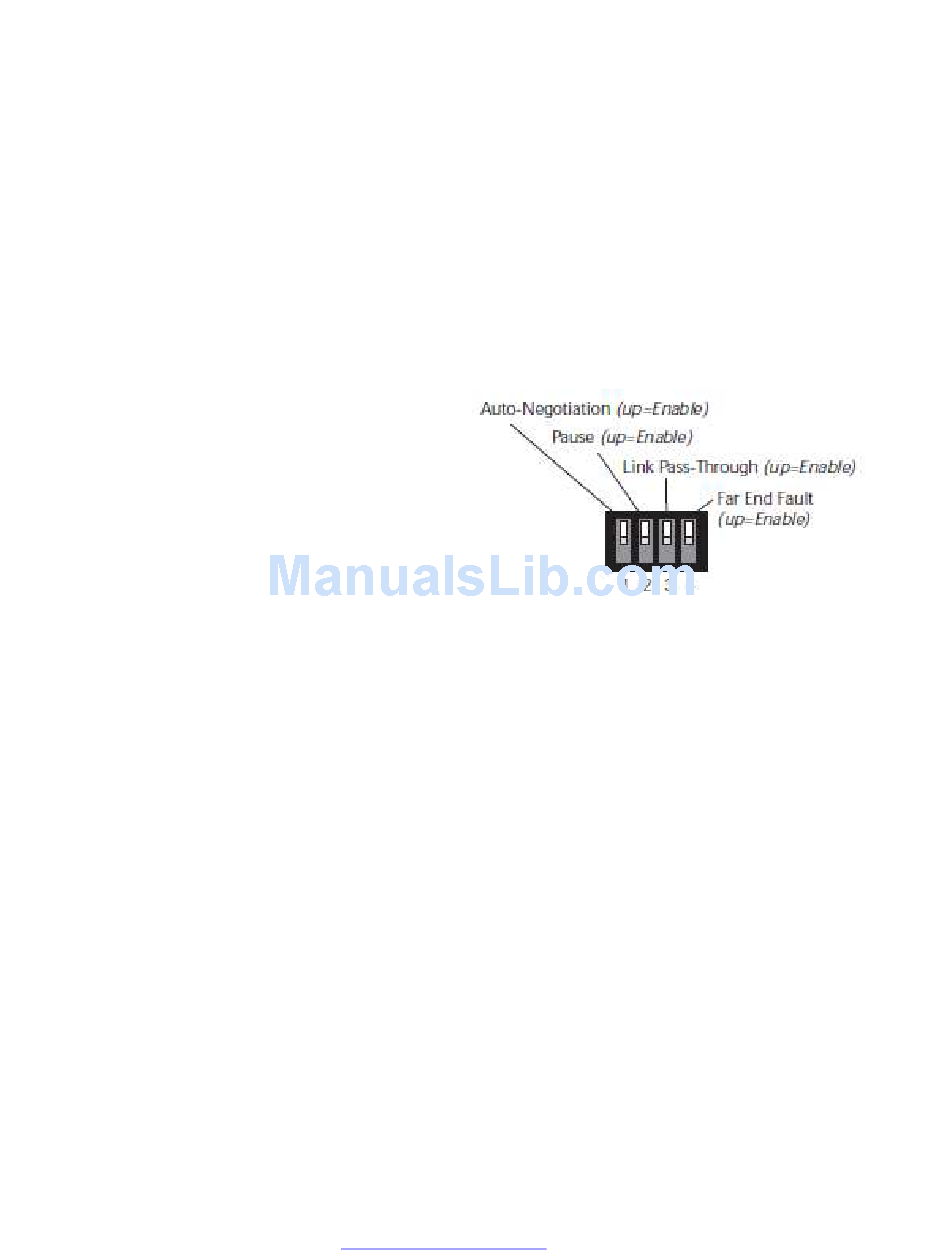

4-Position DIP Switch

The 4-position DIP switch is located on the side of the media converter. Use a small flat-blade screwdriver
or a similar tool to set the recessed switches.
1. Auto-Negotiation
up Enables Auto-Negotiation for the copper connection.
down Disables Auto-Negotiation for the copper connection.
2. Pause Control
up Enabled
down Disabled
3. Link Pass-Through
up Enabled
down Disabled
4. Far-End Fault
up Enabled
down Disabled
