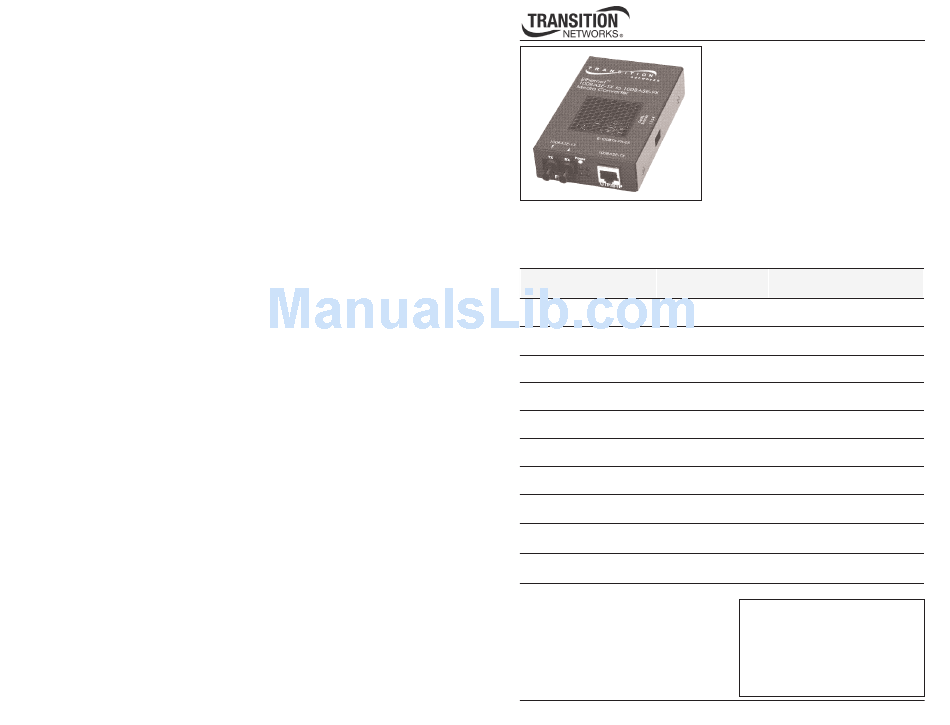

Transition Networks E-100BTX-FX-05(LC) User Manual

100BTX-FX-05 series of media converters include both standard temperature models
(listed below) and extended temperature model.
Standard Temperature Models: 0°C to 50°C (32°F to 122°F)
Part Number Port One - Copper
100Base-TX
E-100BTX-FX-05 RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(MT) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SM) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(SMLC) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LH) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XL) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(LW) RJ-45
100 m (328 ft)*
E-100BTX-FX-05(XLW) RJ-45
100 m (328 ft)*
* Typical maximum cable distance. Actual
distance is dependent upon the physical
characteristics of the network installation.
User's Guide

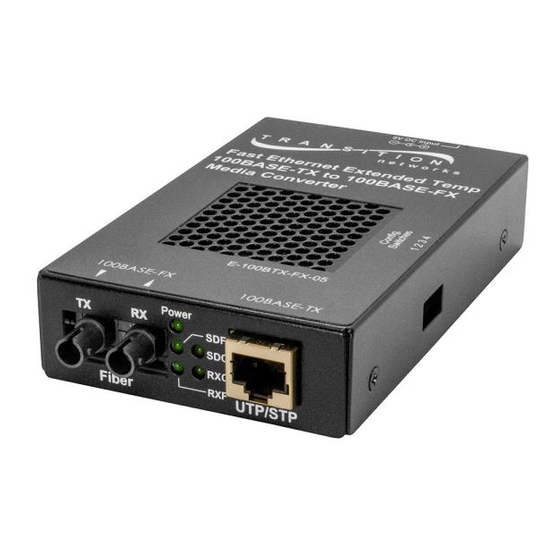

E-100BTX-FX-05
Stand-Alone Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX
• Extended Temperature
Transition Networks E-100BTX-FX-05 Fast
Ethernet media converter connects 100Base-
TX shielded or unshielded twisted-pair copper
cable to 100Base-FX fiber-optic cable. The E-
Port Two - Duplex Fiber-
100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
LC, 1300 nm multimode
2 km (1.2 miles)*
MT-RJ, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
LC, 1310 nm single mode
20 km (12.4 miles)*
SC, 1310 nm single mode
40 km (24.9 miles)*
SC, 1310 nm single mode
60 km (37.3 miles)*
SC, 1550 nm single mode
80 km (49.7 miles)*
SC, 1550 nm single mode
120 km (74.56 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . . . .6
Cable Specifications . . . . . . . . . . . . . .8
Technical Specifications . . . . . . . . . .11
Troubleshooting . . . . . . . . . . . . . . .12
Contact Us . . . . . . . . . . . . . . . . . . .14
Compliance Information . . . . . . . . .15
