Transition Networks E-100BTX-FX-05 User Manual

E-100btx-fx-05(10x) series stand-alone media converter
Hide thumbs Also See for E-100BTX-FX-05:
1
2
3
4
5
6
7

Advertisement

Table of Contents

See also: User Manual
Enlarged version

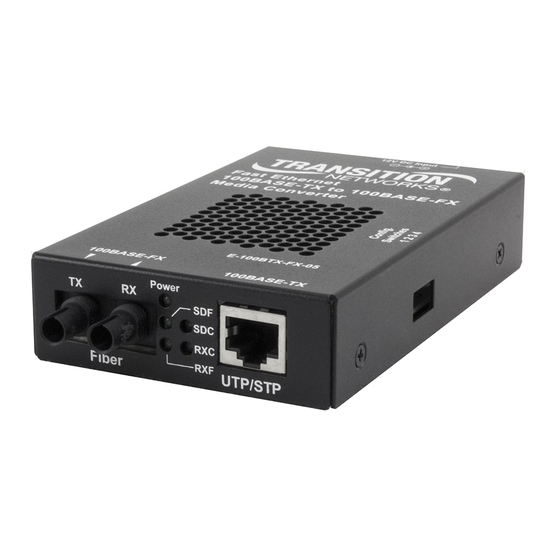

Transition Networks E-100BTX-FX-05(10x) Fast Ethernet Media Converter connects
100Base-TX shielded or unshielded twisted-pair copper cable to single connector
100Base-FX fiber-optic cable.
Part Number
Port One - Copper Port Two - Simplex Fiber-Optic
E-100BTX-FX-05(100) **
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(101) **
RJ-45
100 m (328 ft)*
E-100BTX-FX-05(102) *** RJ-45
100 m (328 ft)*
E-100BTX-FX-05(103) *** RJ-45
100 m (328 ft)*
*
Typical maximum cable distance. (Actual distance is dependent upon the
physical characteristics of the network.) (TX) = transmit (RX) = receive
**
E-100BTX-FX-05(100) and (101) are intended to be installed in the same
network where one is the local converter and the other is the remote
converter.
*** E-100BTX-FX-05(102) and (103) are intended to be installed in the same
network where one is the local converter and the other is the remote
converter.
USER'S GUIDE
E-100BTX-FX-05(10x)
Stand-Alone Media Converter
• Fast Ethernet
• Copper to Single Fiber
• 100Base-TX to 100Base-FX
SC, 1310 nm (TX)/1550 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1550 nm (TX)/1310 nm (RX)
singlemode, 20 km (12.4 miles)*
SC, 1310 nm (TX)/1550 nm (RX)
singlemode, 40 km (24.8 miles)*
SC, 1550 nm (TX)/1310 nm (RX)
singlemode, 40 km (24.8 miles)*
Installation . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . .7
Technical Specifications . . . . . . . .9
Contact Us . . . . . . . . . . . . . . . . .11
Compliance Information . . . . . . .12

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-100BTX-FX-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks E-100BTX-FX-05

Summary of Contents for Transition Networks E-100BTX-FX-05

  • Page 1: Table Of Contents

    *** E-100BTX-FX-05(102) and (103) are intended to be installed in the same network where one is the local converter and the other is the remote converter.

  • Page 2: Installation

    Connect the power adapter plug to AC power. Verify that the Media Converter is powered by observing the illuminated LED power indicator light. Consult the User’s Guide for the Transition Networks SPS1872-xx DC External Power Suppy for powering the Media Converter. Connect the fiber cable...

  • Page 3: Operation

    E-100BTX-FX-05(10x) Operation Status LEDs The E-100BTX-FX-05(10x) Media Converter is designed to operate without user intervention. Use the status LEDs to monitor the Media Converter operation in the network. Power Connection to external AC power. (Singal Detect/Fiber) A link has been established for the Fiber connection.

  • Page 4: Cable Specifications

    If the result is less than or equal to 512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at: http://www.transition.com/learning/whitepapers/colldom_wp.htm Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00) Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™...

  • Page 5: Technical Specifications

    Twisted Pair #1 Twisted Pair #1 Twisted Pair #2 Twisted Pair #2 Tech Support: 800-260-1312 International: 952-941-7600 7am-6pm CST (GMT-6:00) Technical Specifications For use with Transition Networks Model E-100BTX-FX-05(10x) or equivalent Standards: Data Rate: Dimensions: Weight: MTBF Power Consumption:2.8 Watts, 200 mA...

  • Page 6: Fault Isolation And Correction

    E-100BTX-FX-05(103) Regulation: EMC Directive 89/336/EEC Purpose: To declare that the E-100BTX-FX-05(10x) to which this declaration refers is in conformity with the following standards. EN 55022: 19594 Class A; EN 55024:1998; UL 1950, 3rd Edition; 21CFR subpart J I, the undersigned, hereby declare that the equipment specified above conforms to the above Directive(s) and Standard(s).

  • Page 7: Compliance Information

    All trademarks and registered trademarks are the property of their respective owners. Copyright Restrictions © 2002, 2004 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks.
