Transition Networks NANOMETER E-100BTX-SX-01 User Manual

MEDIA CONVERTER TECHNICAL SPECIFICATIONS
Standards
100BASE-SX, IEEE 802.3u
Delay
400ns round trip
Case dimensions
4.7" x 3.0" x 1.0"
Shipping Weight
3 lbs
Environment
Temperature:
Humidity
Altitude
Maximum number
media converters in series: 2
Warranty
Lifetime
Power Supply Requirements
Replace power supply with only the equivalent
input rating (see below) and output rating (regulated 9VDC at 0.5 A).
TN PN Requirement
3525 240 volts, 50 hertz
3525 230 volts, 50 hertz
3518 120 volts, 60 hertz
3514 100 volts, 50-60 hertz
3525 240 volts, 50 hertz
NOTE: This product also can be powered by the Transition Networks E-MCR series media
converter rack.
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Compliance Information
UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Copyright Restrictions
© 1998, 2001 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
(119mm x 76mm x 25mm)
(0.9 kg)
0-40°C (32° to 100° F )
10-90%, non condensing
0-10,000 feet
Location
United Kingdom
Europe
USA/Canada/Mexico
Japan
Australia
33064.C
100BASE-TX/100BASE-SX
850 Nanometer
E-100BTX-SX-01, E-100BTX-SX-01(SC)
USER'S GUIDE

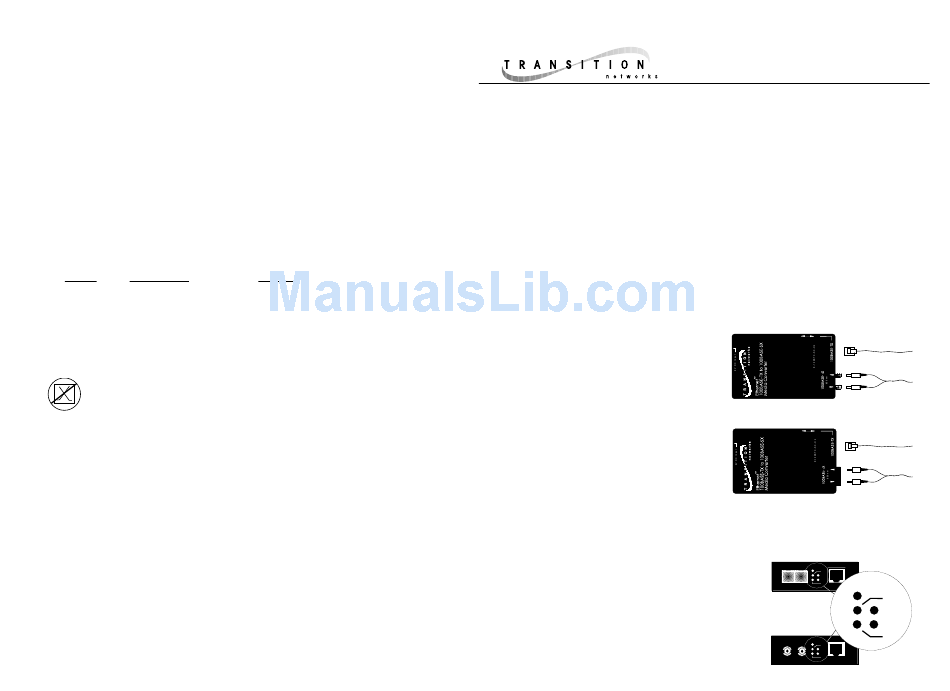

The TRANSITION Networks Ethernet™ E-100BTX-SX-01 series 100BASE-TX to
100BASE-SX media converters connect 100BASE-TX unshielded twisted pair
cable to 850 nm 100BASE-SX multimode fiber-optic cable, using either an
ST connector (E-100BTX-SX-01) or an SC connector (E-100BTX-SX-01(SC)).
A four-positiion switch on the media converter allows selection of Auto-
negotiation, half-duplex or full-duplex, and/or Link Pass Through (LPT)
/Remote Fault Detection (RFD). An MDI/MDI-X switch allows straight-
through twisted-pair cable to be used for crossover 100BASE-TX connections.
E-100BTX-SX-01
Provides an RJ-45 twisted pair 100BASE-TX
connector and a set of RX (receive) and TX
(transmit) ST 100BASE-SX connectors to
850 nm multimode fiber-optic cable.
E-100BTX-SX-01(SC)
Provides an RJ-45 twisted pair 100BASE-TX
connector and an RX (receive) and TX
(transmit) SC 100BASE-SX connector to
850 nm multimode fiber-optic cable.
Status LEDs on the connector side of the media converters indicate:
Power Illuminated green LED indicates
connection to external AC power.
SDF Signal Detect/Fiber: Steady green LED
indicates fiber port is connected to device.
SDC Signal Detect/Copper: Steady green LED
indicates RJ-45 port is connected to device.
RXC Receive/Copper: Flashing green LED
indicates packets are seen on RJ-45 port.
RXF Receive/Fiber: Flashing green LED indicates
packets are seen on fiber port.
Minneapolis, MN 55344 USA
Media Converters
MDI-X MDI
4 3 2 1
Switches
Config UTP
Multimode Fiber
E-100BTX-SX-04
MDI-X MDI
4 3 2 1
Switches
Config UTP
Multimode Fiber
E-100BTX-SX-04(SC)
RJ-45 Connector
RX
TX Power
SDF
SDC
RXC
RXF
10BASE-T
UTP/STP Power
Fiber
SC Connectors
SDF
SDC
RXC
RJ-45 Connector
RXF
TX RX Power
SDF
SDC
RXC
RXF
10BASE-T
Fiber UTP/STP
ST Connectors
