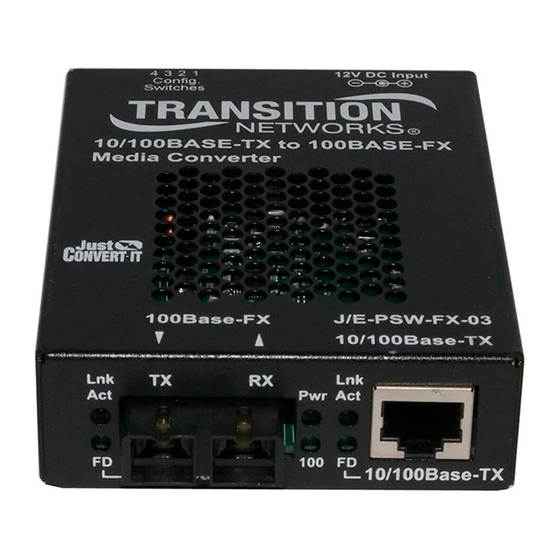

Transition Networks E-PSW-FX-03(LH) User Manual

10base-t/100base-tx to 100base-fx bridging media converter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Enlarged version

COMPLIANCE INFORMATION

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 1999-2001 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A.
10BASE-T/100BASE-TX to 100BASE-FX
E-PSW-FX-03, E-PSW-FX-03(SC), E-PSW-FX-03(SM)
E-PSW-FX-03(LH), E-PSW-FX-03(XL), E-PSW-FX-03(LW)
TRANSITION Networks E-PSW-FX-03 series two-port bridging media
converter, designed to be installed in the TRANSITION Networks Media
Conversion Center, E-MCC-1600, segments 10BASE-T/100BASE-TX copper
and 100BASE-FX fiber Ethernet
administrator to extend the total network diameter, to reduce network
congestion, and/or to convert between legacy 10BASE-T and 100BASE-FX
environments.
E-PSW-FX-03
Provides an RJ-45 twisted-pair
connector to UTP/STP copper cable
and a set of RX (receive) and TX
(transmit) ST 1300nm multimode
fiber connectors.
E-PSW-FX-03(SC)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
(transmit) SC 1300nm multimode
fiber connector.
E-PSW-FX-03(SM)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
(transmit) SC 1300nm singlemode
fiber connector.
E-PSW-FX-03(LH)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
33101.D
(transmit) SC 1300nm singlemode
fiber connector.
Bridging Media Converter
USER'S GUIDE
™
collision domains to allow the network
E-PSW-FX-03(XL)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
(transmit) SC 1300nm singlemode
fiber connector.
E-PSW-FX-03(LW)
Provides an RJ-45 twisted-pair
connector to UTP/STP copper
cable and an RX (receive) and TX
(transmit) SC 1550nm singlemode
fiber connector.
E-FL-HB-0x00 in the Network . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . .11
Fault Isolation and Correction . . . .12
Cable Specifications . . . . . . . . . . . .13
Technical Specifications . . . . . . . . .15
Compliance Information . . . . . . . . .16

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-PSW-FX-03(LH) and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks E-PSW-FX-03(LH)

Summary of Contents for Transition Networks E-PSW-FX-03(LH)

  • Page 1: Compliance Information

    COMPLIANCE INFORMATION UL Listed C-UL Listed (Canada) CISPR/EN55022 Class A FCC Regulations This equipment has been tested and found to comply with the limits for a class A digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 2: Technical Specifications

    E-PSW-FX-03 IN THE NETWORK The TRANSITION Networks E-PSW-FX-03 series two-port bridging media converter is intended to be installed, singly or in pairs, to provide network distance extension, network congestion reduction, and/or rate conversion between legacy Ethernet ™ and Fast Ethernet devices. Fiber Power Link...

  • Page 3: Cable Specifications

    -8.0 dBm segment. Baseline network performance also is improved because max: -8.0 dBm bridging media converters do not forward collision signals or error packets from one collision domain to another. max: -2.0 dBm Rate Conversion max: -7.0 dBm...

  • Page 4: Installation

    INSTALLATION Setting DIP Switch NOTE: Set DIP switch (located on Media Converter Slide-in-Module circuit board) BEFORE installing Media Converter Slide-in-Module in the Media Conversion Center. DIP switch settings shown below are set to configure the bridging media converter for the site installation. To set network speed(s) and operating mode(s), use a very Config...

  • Page 5: Fault Isolation And Correction

    FAULT ISOLATION and CORRECTION If a bridging media converter fails, ask the following questions and then taking the indicated action: Is the P(o)W(e)R LED on the E-PSW-FX-03 illuminated? • Is the power adapter the proper type of voltage and cycle frequency for the AC outlet? •...

  • Page 6: Status Leds

    INSTALLATION (continued) Using the 5-Segment Rule (10BASE-T) The Ethernet 10BASE-T 5-segment rule defines a segment as the cable connection between station interfaces. The transmission path between any two terminal devices in the same collision domain can consist of no more than five segments. Installing the TRANSITION Networks’ bridging media converter in the network separates collision domains, so the 10BASE-T 5-segment rule applies separately to each collision domain.
  • Page 7 INSTALLATION (continued) Powering the Bridging Media Converter To power ON the bridging media converter: 1. Locate power receptacle on back of bridging media converter 2. Connect the bridging media converter power connector end of the power supply adapter to the power receptacle on the back of the Transition Network’s bridging media converter.

  • Page 8: Installing Cable

    INSTALLATION (continued) Connecting Copper Cable (10BASE-T/100BASE-TX) Ensure that the correct cable type is installed to support the highest speed and mode of operation to be selected. Though Category 3 cable is adequate for the 10BASE-T installation, Category 5 cable is strongly recommended, since Category 3 cable can NOT be used for 100BASE-TX.

This manual is also suitable for:

E-psw-fx-03(sc)E-psw-fx-03(lw)E-psw-fx-03(sm)E-psw-fx-03(xl)E-psw-fx-03
