Transition Networks E-100BTX-FX-05 User Manual

Stand-alone
Hide thumbs Also See for E-100BTX-FX-05:
Table of Contents

Advertisement

Quick Links

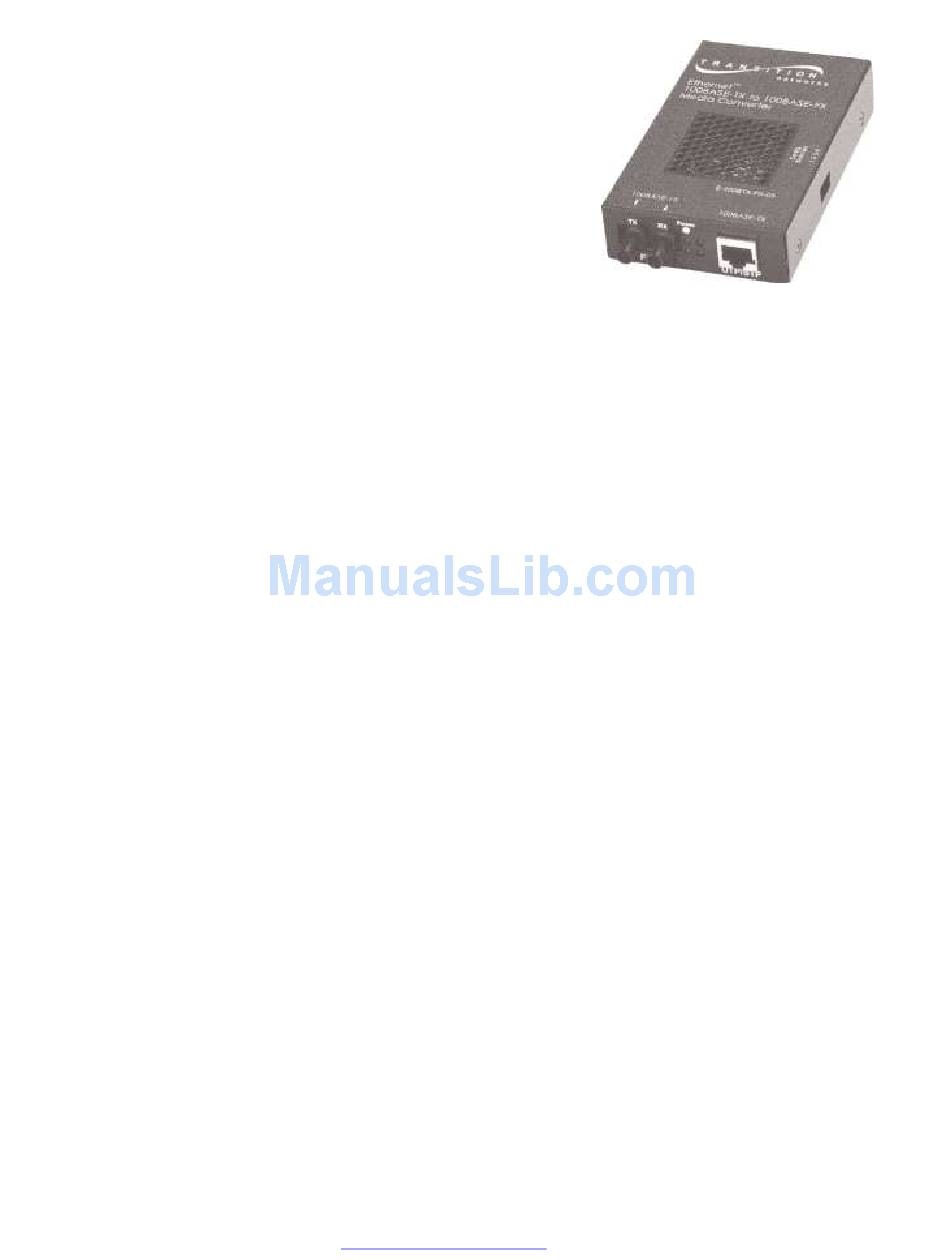

E-100BTX-FX-05
User Guide
Stand-Alone Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX
• Extended Temperature
Contents
Introduction.................................................................................................................................................... 1
Standard Temperature Models ................................................................................................................. 2
Extended Temperature Models ................................................................................................................ 3
Installation ..................................................................................................................................................... 4
4-Position DIP Switch ............................................................................................................................... 4
AutoCross Jumpers .................................................................................................................................. 5
Installing the Fiber Cable .......................................................................................................................... 6
Installing the Copper Cable ...................................................................................................................... 6
Powering the media converter .................................................................................................................. 7
Operation....................................................................................................................................................... 8
Status LEDs .............................................................................................................................................. 8
Auto-Negotiation ....................................................................................................................................... 8
Pause Control ........................................................................................................................................... 8
Link Pass-Through .................................................................................................................................... 8
Far-End Fault ............................................................................................................................................ 9
Optic and Cable Specifications ............................................................................................................... 10
Cable Specifications ............................................................................................................................... 10
Contact Us................................................................................................................................................... 15
Compliance Information .............................................................................................................................. 16
Declaration of Conformity ....................................................................................................................... 16
Record of Revisions .................................................................................................................................... 17

Introduction

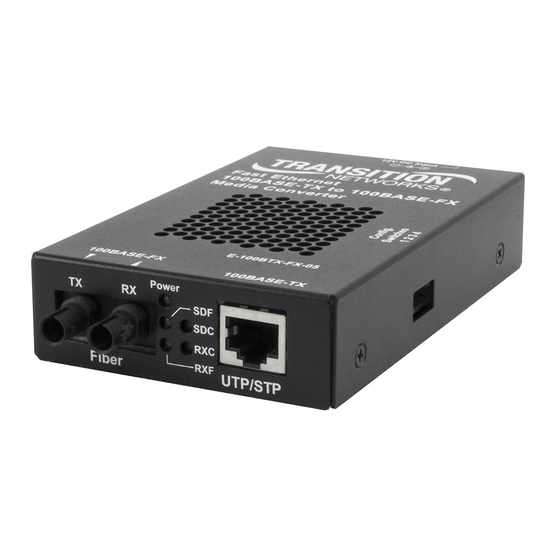

Transition Networks E-100BTX-FX-05 Fast Ethernet media converters connect 100Base-TX shielded or
unshielded twisted-pair copper cable to 100Base-FX fiber-optic cable. The E-100BTX-FX-05 series media
converters include both Standard temperature models and Extended temperature models.
Standard Temperature Models: media converters that can be used in a standard temperature
environment from 0°C to 50°C (32°F to 122°F)
Extended Temperature Models: media converters with the "HT" extension in the part number can be
used in an extended temperature environment from -25°C to 65°C (-13°F to 149°F).
33210 Rev. R
http://www.transition.com/
Page 1 of 17

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-100BTX-FX-05 and is the answer not in the manual?

Questions and answers

Related Manuals for Transition Networks E-100BTX-FX-05

Summary of Contents for Transition Networks E-100BTX-FX-05

  • Page 1: Table Of Contents

    Introduction Transition Networks E-100BTX-FX-05 Fast Ethernet media converters connect 100Base-TX shielded or unshielded twisted-pair copper cable to 100Base-FX fiber-optic cable. The E-100BTX-FX-05 series media converters include both Standard temperature models and Extended temperature models. Standard Temperature Models: media converters that can be used in a standard temperature environment from 0°C to 50°C (32°F to 122°F)

  • Page 2: Standard Temperature Models

    Transition Networks E-100BTX-FX-05 User Guide Standard Temperature Models * Typical maximum cable distance. Actual distance depends on the physical characteristics of the network installation. For more information, see www.transition.com. 33210 Rev. R http://www.transition.com/ Page 2 of 17...

  • Page 3: Extended Temperature Models

    Transition Networks E-100BTX-FX-05 User Guide Extended Temperature Models Accessories Accessories are sold separately. Part Number Description SPS-2460-SA Optional External Power Supply; 24-60 VDC and 24-42 VRMS Stand-Alone Wide-Input; Output: 12.25 VDC, 1.0 A SPS-2460-CC Optional External Power Supply; 24-60 VDC and 24-42 VRMS Piggy-Back Wide-Input;...

  • Page 4: Installation

    Transition Networks E-100BTX-FX-05 User Guide Installation CAUTION: Wear a grounding device and observe electrostatic discharge precautions when setting the 4-position DIP switch and jumpers. Failure to observe this caution could result in failure of the media converter. 4-Position DIP Switch The 4-position DIP switch is located on the side of the media converter.

  • Page 5: Autocross Jumpers

    Transition Networks E-100BTX-FX-05 User Guide AutoCross Jumpers The AutoCross feature allows either straight-through (MDI) or crossover (MDI-X) cables to be used when connecting to devices such as hubs, transceivers, or network interface cards (NICs). AutoCross determines the characteristics of the cable connection and automatically configures the unit to link up, regardless of the cable configuration.

  • Page 6: Installing The Fiber Cable

    Transition Networks E-100BTX-FX-05 User Guide Installing the Fiber Cable 1. Locate a 100Base-FX compliant fiber cable with male, two-stranded TX to RX connectors installed at both ends. 2. Connect the fiber cables to the media converter as described: • Connect the male TX cable connector to the female TX port.

  • Page 7: Powering The Media Converter

    Transition Networks E-100BTX-FX-05 User Guide Powering the media converter 1. Install the power cord barrel connector into the back of the media converter. 2. Connect the power adapter plug into AC power. 3. Verify that the media converter is powered up by observing the illuminated power indicator LED.

  • Page 8: Operation

    Transition Networks E-100BTX-FX-05 User Guide Operation Status LEDs Use the status LEDs to monitor the E-100BTX-FX-05 media converter operation in the network: Power (Power) On = Connected to external AC power. (Signal Detect/Fiber) On = Fiber link is detected. (Signal Detect/Copper) On = Copper link is detected.

  • Page 9: Far-End Fault

    Transition Networks E-100BTX-FX-05 User Guide Far-End Fault When a fault occurs on an incoming fiber link (1), the media converter transmits a Far-End Fault signal on the outgoing fiber link (2). In addition, the Far-End Fault signal also activates the Link Pass-Through, which in turn disables the link on the copper portion of the network (3) and (4).

  • Page 10: Optic And Cable Specifications

    Transition Networks E-100BTX-FX-05 User Guide Optic and Cable Specifications The fiber optic cable physical characteristics must meet or exceed IEEE 802.3ae specification. Cable Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. Fiber Cable Bit Error Rate: <10-9 9 μm...

  • Page 11: Standard Models

    Transition Networks E-100BTX-FX-05 User Guide Standard models E-100BTX-FX-05 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm max: -14.0 dBm Fiber Optic Receiver Sensitivity: min: -30.0 dBm max: -14.0 dBm Link Budget: 11.0 dbm E-100BTX-FX-05(SC) & (LC) 1300 nm multimode Fiber Optic Transmitter Power: min: -19.0 dBm...

  • Page 12: Copper Cable

    Transition Networks E-100BTX-FX-05 User Guide Copper cable Category 5: (minimum requirement) Gauge: 24 to 22 AWG Attenuation: 22.0 db /100m @ 100 MHz Maximum Cable Distance: 100 meters • Straight-through or crossover cable may be used. • Shielded twisted-pair (STP) or unshielded twisted-pair (UTP) may be used •...

  • Page 13: Technical Specifications

    Transition Networks E-100BTX-FX-05 User Guide Technical Specifications For use with Transition Networks Model E-100BTX-FX-05(xxxx) or equivalent Data rate: 100 Mb/s Dimensions: 4.75" x 3.0" x 1.0" (119mm x 76mm x 25mm) Weight: 6 oz. (181 g) approximately MTBF: Greater than 46,768 hours (MIL-HDBK-217F) Greater than 123,861 hours (Bellcore7 V5.0)

  • Page 14: Troubleshooting

    Transition Networks E-100BTX-FX-05 User Guide Troubleshooting If the media converter fails, isolate and correct the fault by determining the answers to the following questions and then taking the indicated action. Note: DIP switch positions 3 and 4 must be DOWN before starting the troubleshooting process.

  • Page 15: Contact Us

    Technical support Technical support is available 24-hours a day US and Canada: 1-800-260-1312 International: 00-1-952-941-7600 Transition now Chat live via the Web with Transition Networks Technical Support. Log onto www.transition.com and click the Transition Now link. Web-based seminars Transition Networks provides seminars via live web-based training.

  • Page 16: Compliance Information

    Transition Networks E-100BTX-FX-05 User Guide Compliance Information Declaration of Conformity FCC regulations This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 17: Record Of Revisions

    In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
