into any slot on a standard PCI bus. No additional power supply is needed since the
power is drawn directly from the PCI slot. The two LEDs on the RJ-45 port facilitate
end-user network monitoring.
Part Number
Port One - Copper
100Base-TX
E-100BTX-FX-N-02
RJ-45
E-100BTX-FX-NLP-02
100 m (328 ft)*
E-100BTX-FX-N-02(SC)
RJ-45
E-100BTX-FX-NLP-02(SC)
100 m (328 ft)*
E-100BTX-FX-N-02(SM)
RJ-45
E-100BTX-FX-NLP-02(SM)
100 m (328 ft)*
* Typical maximum cable distance. Actual distance is dependent upon the physical
characteristics of the network installation.

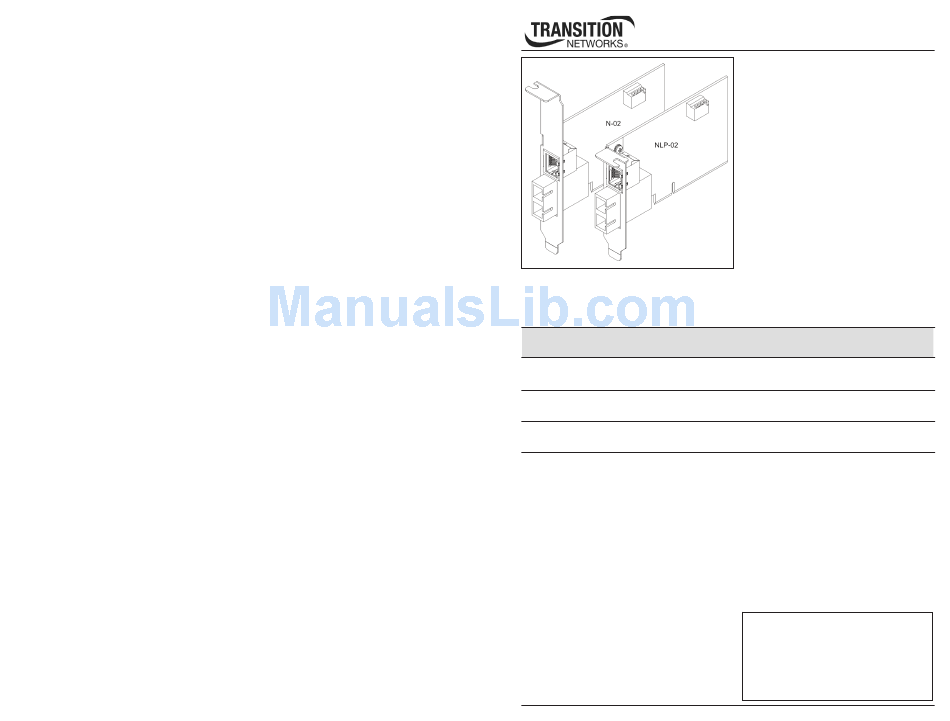

USER'S GUIDE
E-100BTX-FX-N-02
E-100BTX-FX-NLP-02
PCI Powered Media Converter
• Fast Ethernet
• Copper to Fiber
• 100Base-TX to 100Base-FX
Transition Networks E-100BTX-FX-N-
02 and E-100BTX-FX-NLP-02 series
media converters connect 100Base-TX
twisted-pair copper cables to 100Base-
FX fiber optic cables. These converters
are designed to install directly inside a
PC workstation or file server, and insert
Port Two - Duplex Fiber
Optic 100Base-FX
ST, 1300 nm multimode
2 km (1.2 miles)*
SC, 1300 nm multimode
2 km (1.2 miles)*
SC, 1310 nm single mode
20 km (12.4 miles)*
Installation . . . . . . . . . . . . . . . . . . . . .2
Operation . . . . . . . . . . . . . . . . . . . . .4
Cable Specifications . . . . . . . . . . . . . .5
Technical Specifications . . . . . . . . . . .6
Troubleshooting . . . . . . . . . . . . . . . .7
Compliance Information . . . . . . . . . .8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the E-100BTX-FX-N-02 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Transition Networks E-100BTX-FX-N-02

Summary of Contents for Transition Networks E-100BTX-FX-N-02

  • Page 1 E-100BTX-FX-NLP-02 PCI Powered Media Converter • Fast Ethernet • Copper to Fiber • 100Base-TX to 100Base-FX Transition Networks E-100BTX-FX-N- 02 and E-100BTX-FX-NLP-02 series media converters connect 100Base-TX twisted-pair copper cables to 100Base- FX fiber optic cables. These converters are designed to install directly inside a PC workstation or file server, and insert into any slot on a standard PCI bus.

  • Page 2: Installation

    Failure to observe this caution could result in damage to, and failure of, the media converter. To install the E-100BTX-FX-N-02 or the E-100BTX-FX-NLP-02 media converter module: Locate an empty installation slot on the PC workstation or file server.

  • Page 3: Operation

    E-100BTX-FX-N-02 / E-100BTX-FX-NLP-02 Operation Operation — Continued Pause control frame LED indicators The pause feature is used to temporarily suspend data transmission in order to Use the status LEDs to monitor the media converter operation in the network. relieve buffer congestion. If a media converter needs some time to clear network congestion, it will send a pause signal to the media converter at the other end, which FX LED on = The fiber link has been established.

  • Page 4: Technical Specifications

    *Manufacturer’s rated ambient temperature. Tmra range for this slide-in-module depends on the physical characteristics and the installation configuration of the file server or PC workstation in Purpose: To declare that the E-100BTX-FX-N-02 and E-100BTX-FX-NLP02 to which which this slide-in-module will be installed.

  • Page 5: Compliance Information

    All registered trademarks and trademarks are the property of their respective owners. Copyright Restrictions © 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means (graphic, electronic, or mechanical) without written permission from Transition Networks.
