COMPLIANCE INFORMATION

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A
FCC Regulations
This equipment has been tested and found to comply with the limits for a class A digital device, pursuant
to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference, in which case the user will be
required to correct the interference at the user's own expense.
Canadian Regulations
This digital apparatus does not exceed the Class A limits for radio noise for digital apparatus set out on
the radio interference regulations of the Canadian Department of Communications.
Le présent appareil numérique n'émet pas de bruits radioélectriques dépassant les limites applicables
aux appareils numériques de la class A prescrites dans le Règlement sur le brouillage radioélectrique
édicté par le ministère des Communications du Canada.
European Regulations
Warning
This is a Class A product. In a domestic environment this product may cause radio interference in which
case the user may be required to take adequate measures.
Achtung !
Dieses ist ein Gerät der Funkstörgrenzwertklasse A. In Wohnbereichen können bei Betrieb dieses Gerätes
Rundfunkstörungen auftreten, in weichen Fällen der Benutzer für entsprechende Gegenmaßnahmen
werantwortlich ist.
Attention !
Ceci est un produit de Classe A. Dans un environment domestique, ce produit risque de créer des
interférences radioélectriques, il appartiendra alors à l'utilsateur de prende les measures spécifiques
appropriées
CAUTION: RJ connectors are NOT INTENDED FOR CONNECTION TO THE
PUBLIC TELEPHONE NETWORK. Failure to observe this caution could result in
damage to the public telephone network.
Der Anschluss dieses Gerätes an ein öffentlickes Telekommunikationsnetz in den EG-Mitgliedstaaten
verstösst gegen die jeweligen einzelstaatlichen Gesetze zur Anwendung der Richtlinie 91/263/EWG zur
Angleichung der Rechtsvorschriften der Mitgliedstaaten über Telekommunikationsendeinrichtungen
einschliesslich der gegenseitigen Anerkennung ihrer Konformität.
Trademark Notice
All registered trademarks and trademarks are the property of their respective owners.
Copyright Restrictions
© 1999-2001 TRANSITION Networks.
All rights reserved. No part of this work may be reproduced or used in any form or by any means –
graphic, electronic, or mechanical – without written permission from TRANSITION Networks.
Printed in the U.S.A.

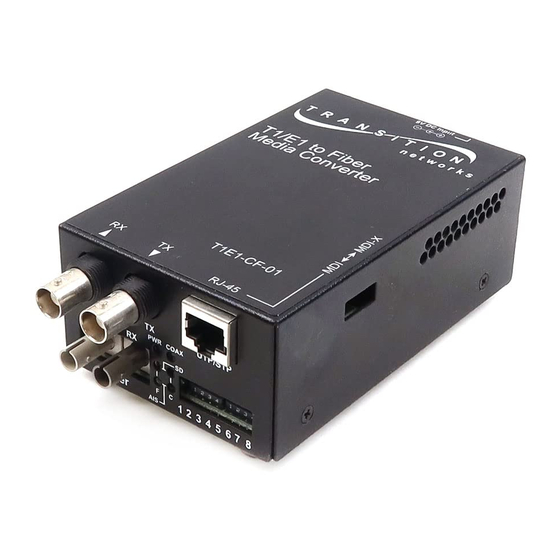

TRANSITION Networks T1E1-CF-01 series media converters encode and decode
T1 OR E1 signals over duplex fiber cables to extend the distance and transmission
reliability of high speed T1 and E1 data traffic.
T1E1-CF-01
Provides an RJ-45 twisted pair
connector for T1 OR E1 signals, a set
of RX (receive) and TX (transmit) coax
connectors for E1 signals, and a set of
RX and TX ST connectors to 850 nm
multimode fiber-optic cable.
T1E1-CF-01(SC)
Provides an RJ-45 twisted pair
connector for T1 OR E1 signals, a set
of RX (receive) and TX (transmit) coax
connectors for E1 signals, and a set of
RX and TX SC connectors to 850 nm
multimode fiber-optic cable.
33112.E
T1/E1 Copper-to-Fiber
Media Converters
T1E1-CF-01
USER'S GUIDE
T1E1-CF-01(SM)
Provides an RJ-45 twisted pair
connector for T1 OR E1 signals, a set
of RX (receive) and TX (transmit) coax
connectors for E1 signals, and a set of
RX and TX ST connectors to 1300 nm
singlemode fiber-optic cable.
T1E1-CF-01(LH)
Provides an RJ-45 twisted pair
connector for T1 OR E1 signals, a set
of RX (receive) and TX (transmit) coax
connectors for E1 signals, and a set of
RX and TX ST connectors to 1300 nm
singlemode fiber-optic cable.
T1E1-CF-01 in the Network . . . . . . .2
Installation . . . . . . . . . . . . . . . . . . . .4
Operation . . . . . . . . . . . . . . . . . . . . .7
Fault Isolation and Correction . . . . .8
Cable Specifications . . . . . . . . . . . .10
Technical Specifications . . . . . . . . .11
Compliance Information . . . . . . . . .12
